12 Tire SINOTRUCK HOWO Dump Truck
12 Tire SINOTRUCK HOWO Dump Truck Information
SINOTRUCK HOWO dump truck loading tons reach to 50 ton, the engine horsepower is 430HP, cabin have left and right hand drive optional, with A/C, one bed, air suspension, MP3 player system.
-. Adopt the new model 430HP WEICHAI brand engine, suitable for climbing and poor road condition.
-. Radial model tire, mainly use at mining site. with wear-resistant, long service life and other characteristics.
12 Tire SINOTRUCK HOWO Dump Truck Specification
|
Description |
Parameter Value |
|
Product Name |
12 tire SINOTRUCK HOWO dump truck |
|
Application |
Transport bauxite, sand, gravel etc |
|
Loading Capacity |
50,000kg |
|
Engine |
WP12.430E201, 430HP, EURO II |
|
Cabin |
HW76, with one bed, A/C, left hand drive |
|
Gearbox |
10 forward and 2 reverse gear |
|
Tire |
12.00R20, 12+1 pcs, TRIANGLE brand |
|
Bucket |
7300x2300x1500mm, bottom 8mm side 6mm |
|
Front Axle |
VGD95, 2x9500kg |
|
Driving Axle |
HC16, 2x16000kg |
|
Fuel Tank |
400L |
|
Dimension |
10060x2580x3450mm |
The 12 tire SINOTRUCK HOWO dump truck specification only for your reference, we will recommend other model SINOTRUCK HOWO dump truck basic your request.

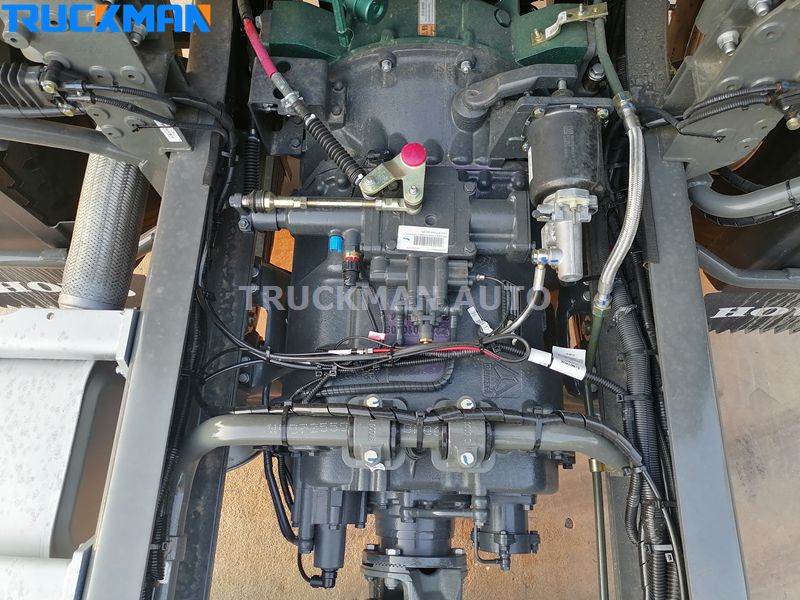

12 Tire SINOTRUCK HOWO Dump Truck Gearbox
The SINOTRUCK HOWO dump truck gearbox adopt the 10 forward and 2 reverse gear, model is HW19710. With power take off, can supply power to lifting the cargo box to offloading cargoes. Also have 12 forward gearbox is optional, model is HW19712.
