25 Tons SINOTRUCK Dumper Truck For Guinea
-1. 25 Tons SINOTRUCK Dumper Truck Detail.
The SINOTRUCK dumper truck cargo box adopt the high strength steel, we add 200mm extra height for cargo box, it’s can loading more cargoes. And tire using the mining model pattern, with wearable ect advantage.
-2. 25 Tons SINOTRUCK Dumper Truck Main Specification.
|
Description |
Parameter value |
|
Product Name |
25 Tons SINOTRUCK Dumper Truck |
|
Application |
For transport construction and mining material |
|
Engine |
WD615.47, 371HP, EURO II |
|
Cabin |
HW76, with one bed, A/C, with top light |
|
Gearbox |
HW19710, 10 forward and 2 reverse gear |
|
Front Axle |
HF9, 1x9,000kg |
|
Driving Axle |
HC16, 2x16,000kg |
|
Tire |
12.00R20 or 13R22.5, 10+1 pcs, TRIANGLE brand |
|
Bucket |
5600x2300x1400+200mm, bottom 8mm, side 6mm. |
|
Fuel Tank |
300L (400L fuel tank optional) |
|
Loading Tons |
25-30 tons |
|
Other |
Intercooler protect cover, reverse buzzer optional |
|
Dimension |
8400x2580x3450mm |
The 25 tons SINOTRUCK dumper truck specification is only for reference, we could recommend the other model SINOTRUCK dumper truck according to your request.

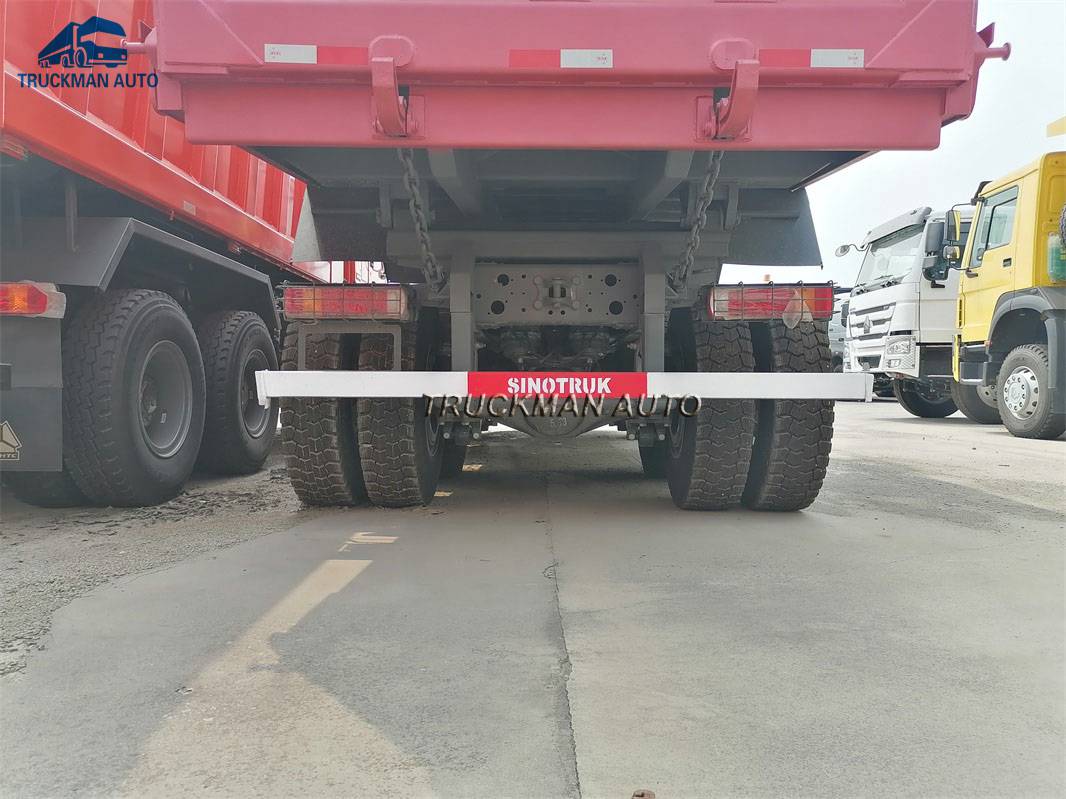

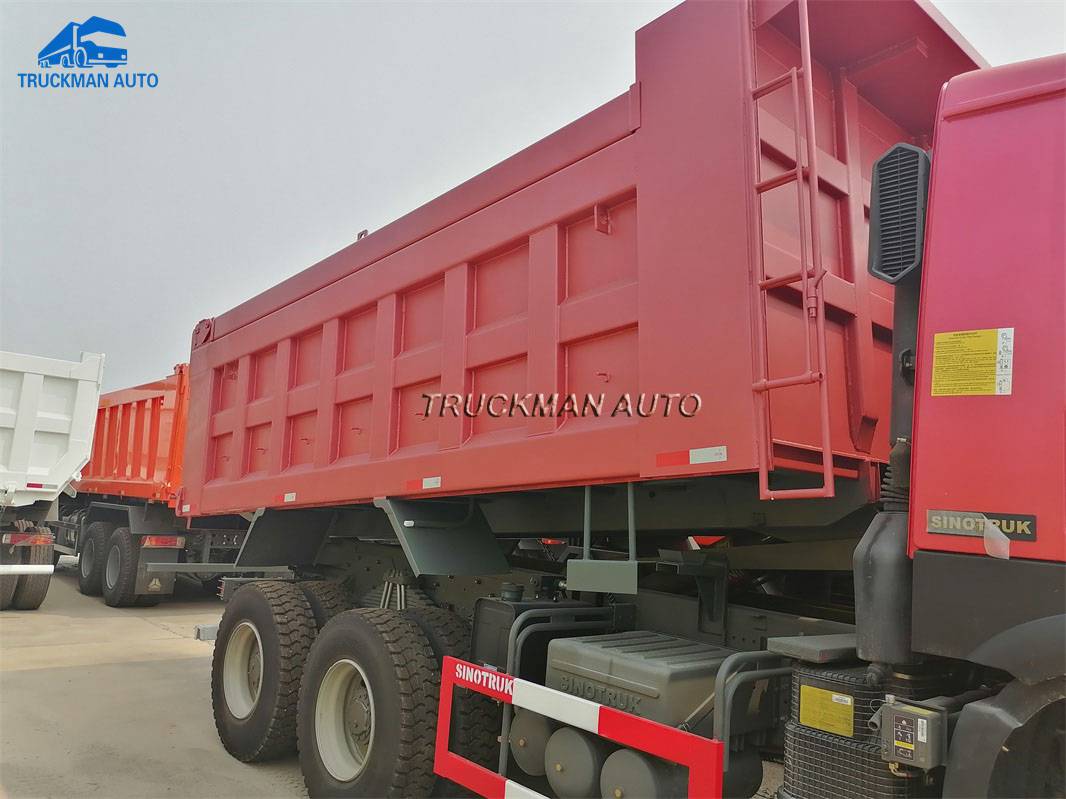

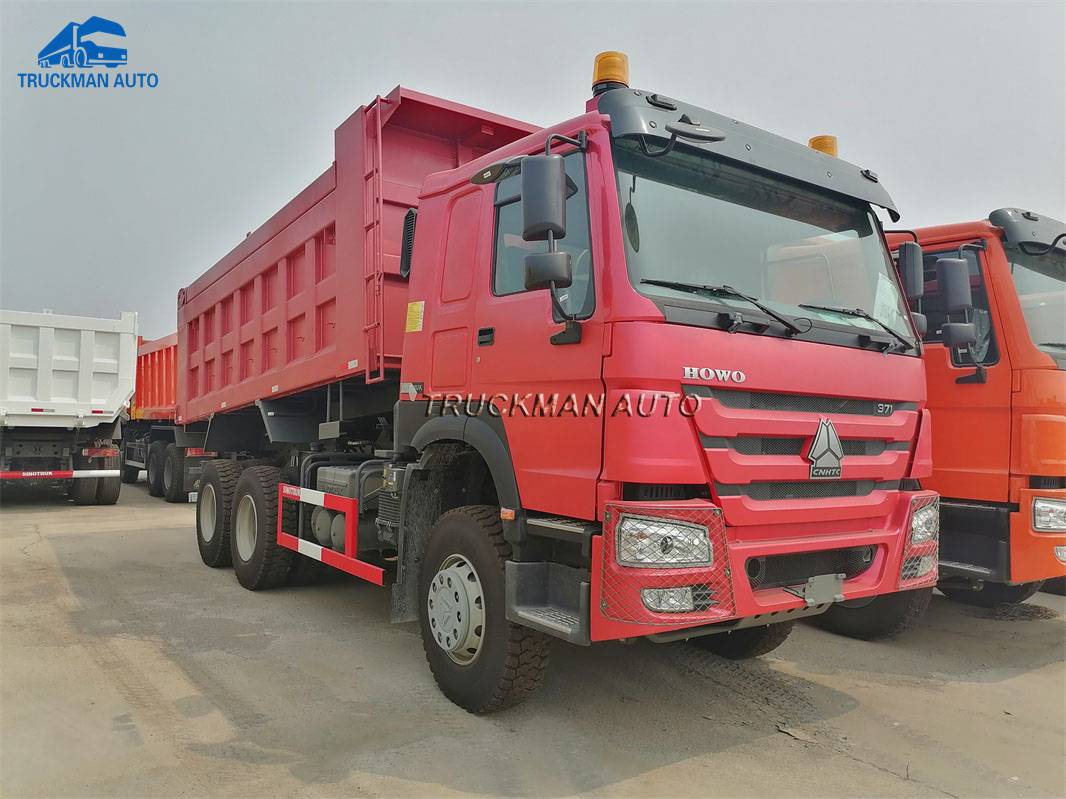

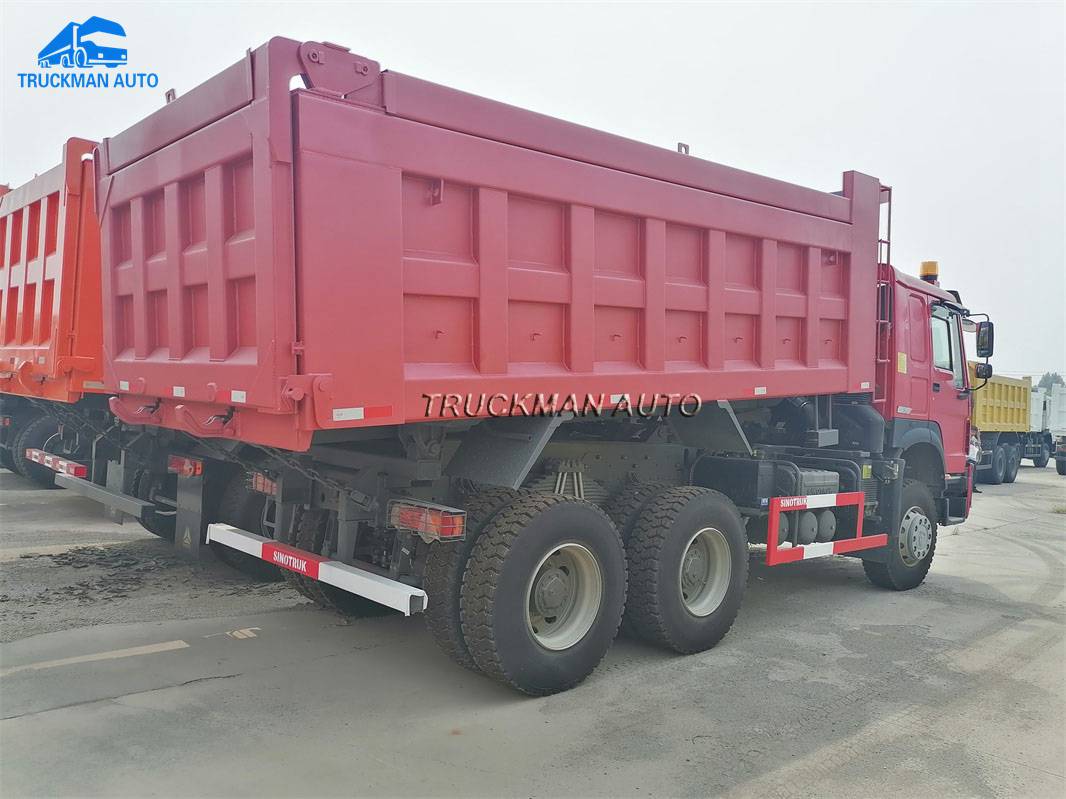

-3. 25 Tons SINOTRUCK Dumper Truck Detail Picture.
Our SINOTRUCK dumper truck have many reasonable design, such as battery, head lamp, intercooler protect cover etc. Make dump truck strong and can suitable for hard condition work.

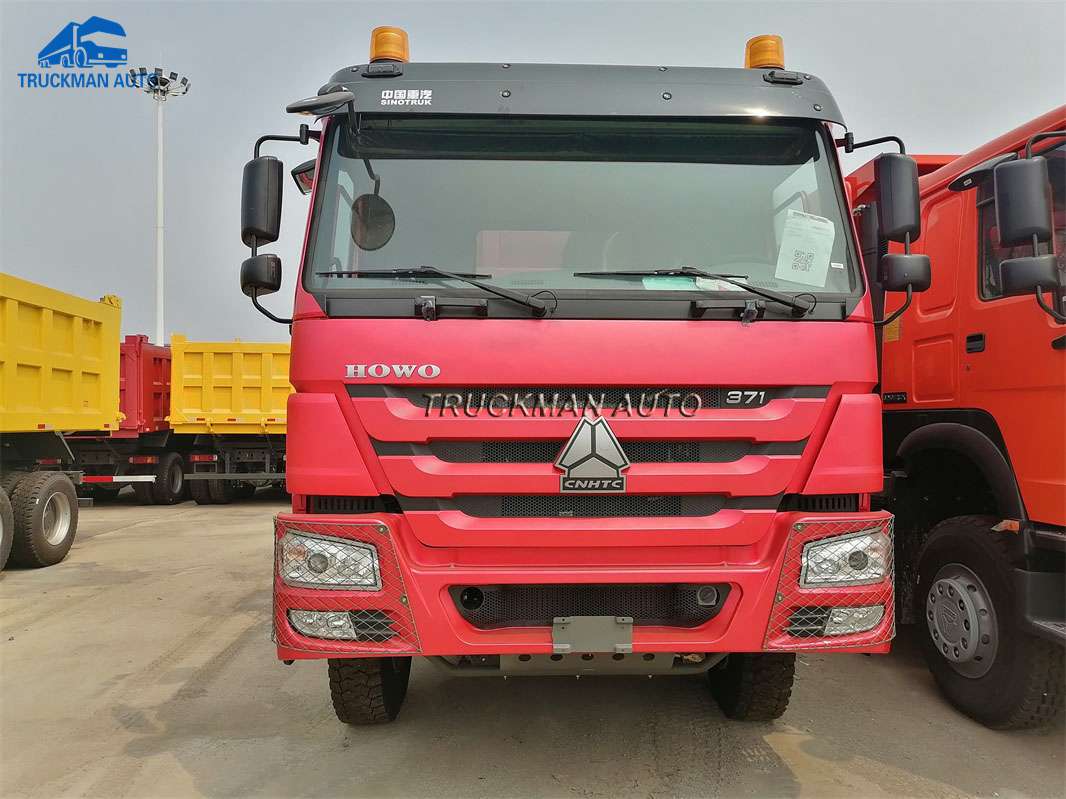

Head lamp and intercooler protect cover

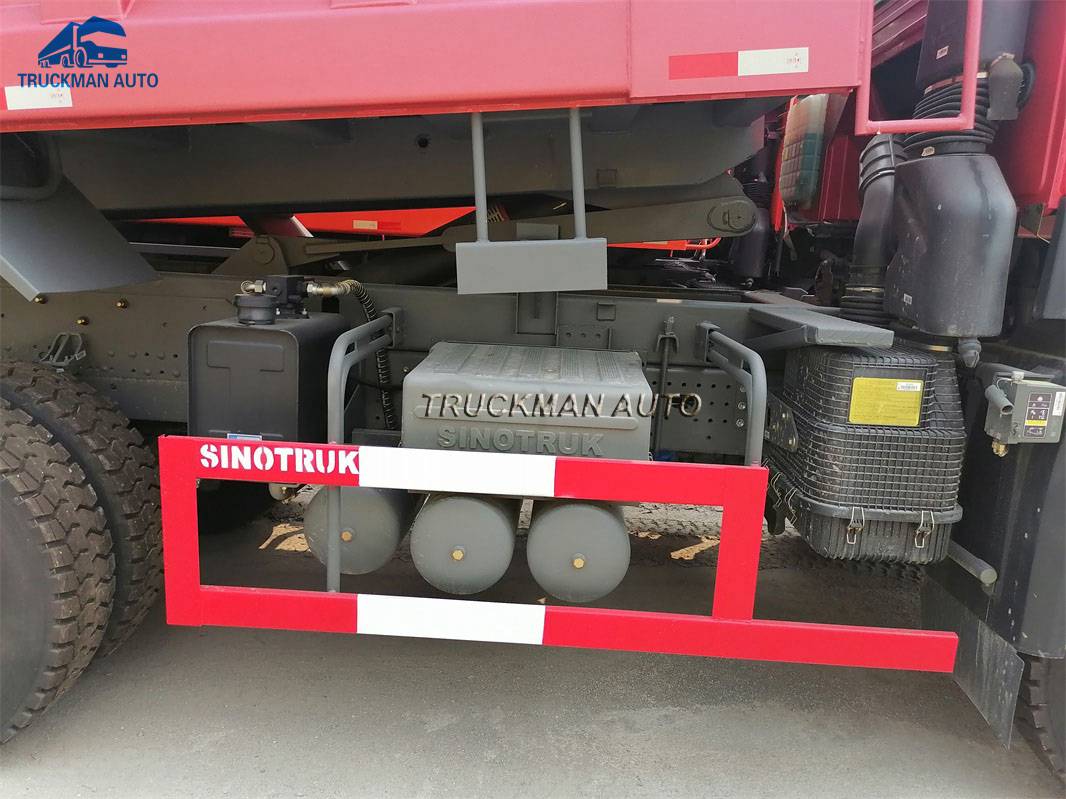

Battery protect cover
