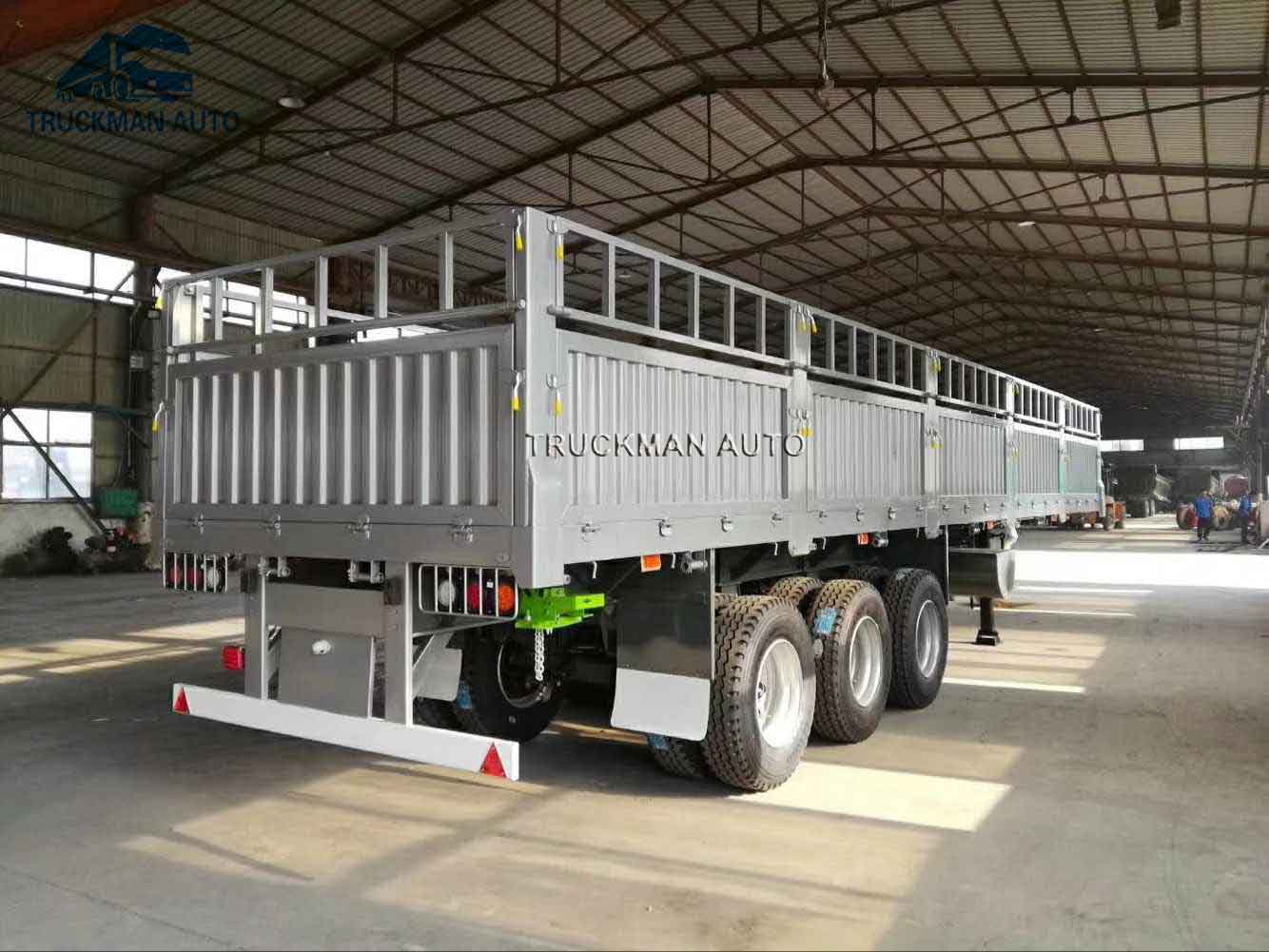

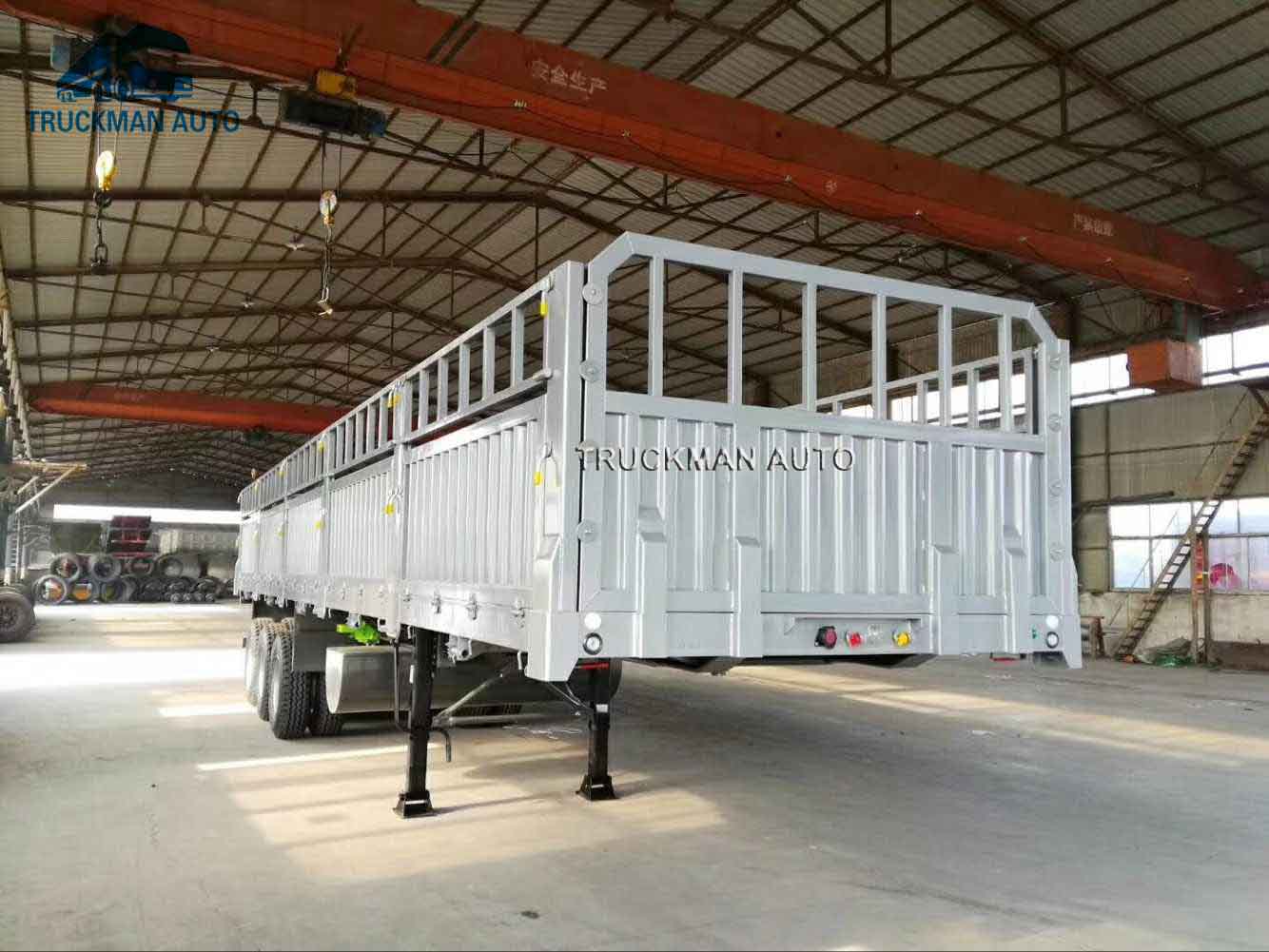

3 Axle 60 Tons Cargo Semi Trailer For Livestock Transport
-1. Cargo Semi Trailer Main Advantage.
-. Design for livestock transport.

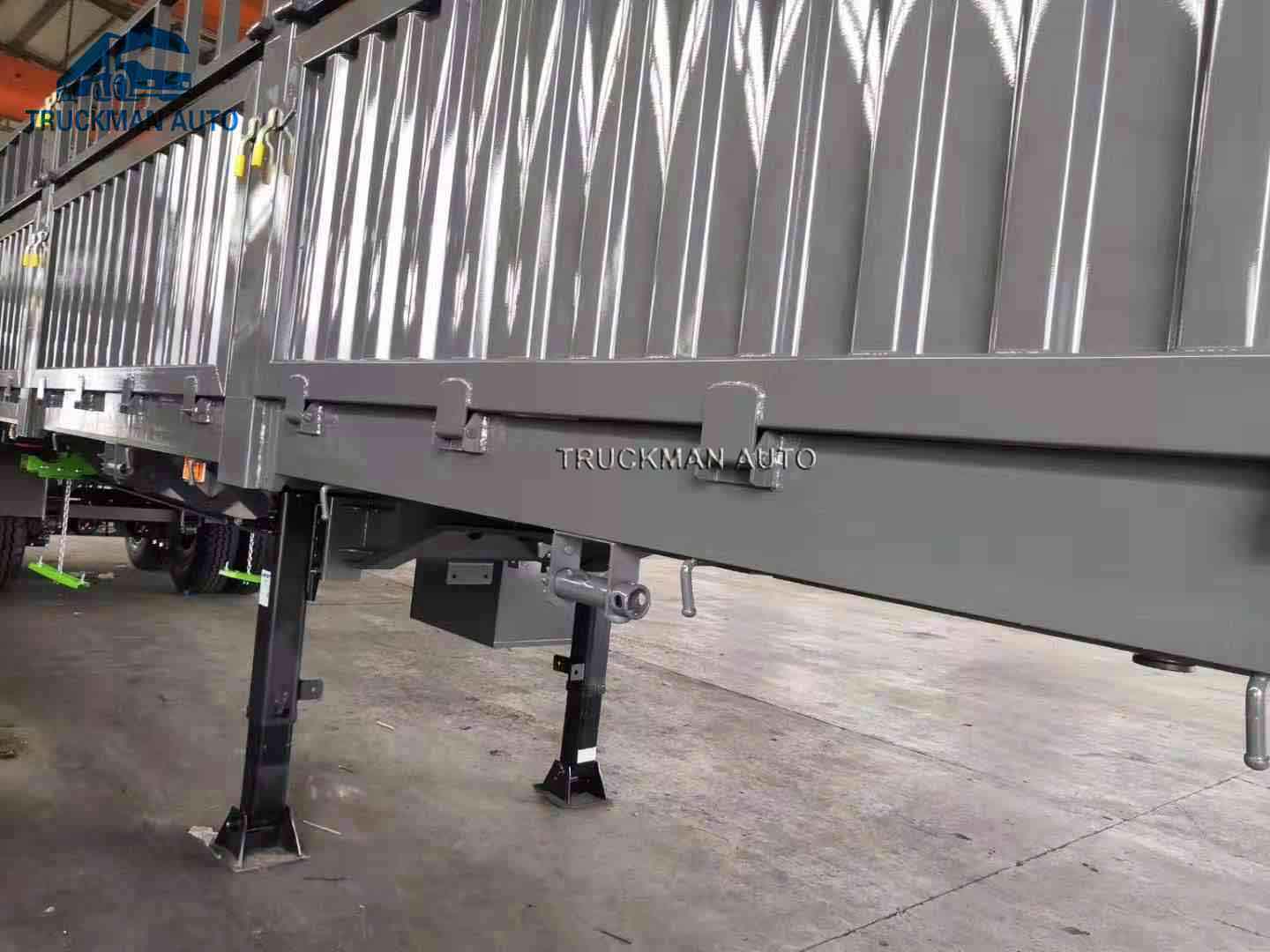

-. With 800+600mm height side wall for convenient for unloading.
-. Tire choose the tubeless model, for long distance transport need.
-. Adopt the advance tech for trailer welding.
-2. Cargo Semi Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
Cargo Semi Trailer |
|
Loading Weight |
60,000kg |
|
Tare Weight |
10,500kg |
|
Axle |
3 axle, 3x13 tons |
|
Suspension |
America type, 8mm thickness |
|
Leaf Spring |
90x16mmx10pcsx6sets |
|
Rim |
16mm thickness |
|
Tire |
12.00R20, 12 pcs |
|
Brake System |
WABCO brand, ABS and 6 pcs brake chamber |
|
Thickness Of Frame |
Upper plate 16mm, middle 8mm lower plate 18mm, “I” type main beam |
|
Material |
Q345, high strength steel |
|
Dimension |
12500x2500x3200mm |
The specification is only for reference, we could design the cargo semi trailer according to your request.

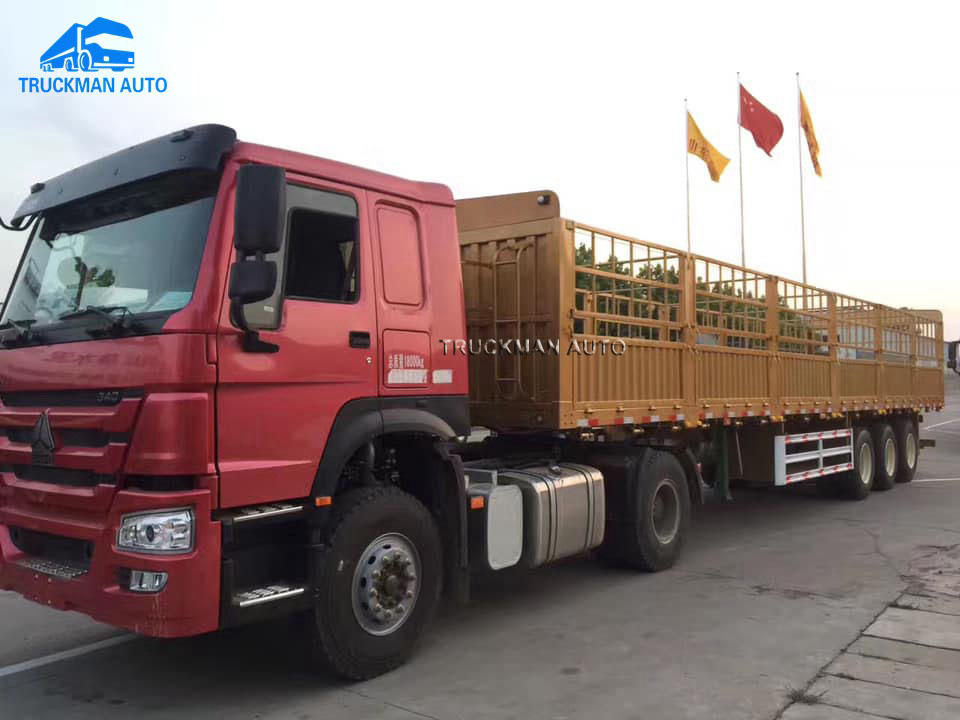

-3. SINOTRUCK HOWO Truck Head With Cargo Semi Trailer.
We have all kind of SINOTRUCK HOWO truck head for sale also, engine horsepower from 336HP to 420HP. The loading capacity will decide how much SINOTRUCK HOWO truck head horse power request. Like 336HP could loading 30 tons, 371HP could loading 30-60 tons, 420HP could max loading 90 tons.
