3 Axle Oil Tank Semi Trailer With 8 Pcs Compartment
-1. 3 Axle Oil Tank Semi Trailer Detail.
3 axle oil tank semi trailer loading tons from 20,000 liter to 50,000 liter, material can use the aluminum alloy, stainless steel and carbon steel.
-. Adopt the heavy duty suspension design, suitable for bad road work condition.
-. Every compartment with the separate sub valve.
-2. 3 Axle Oil Tank Semi Trailer Specification.
|
Description |
Parameter Value |
|
Product Name |
3 Axle Oil Tank Semi Trailer |
|
Application |
For liquid transport |
|
Axle |
3 axle, 16 tons axle |
|
Suspension |
Heavy duty 8mm thickness |
|
Leaf Spring |
90x16mmx10pcsx6sets |
|
Tire |
12R22.5, 12 pcs, tubeless model |
|
Rim |
16mm thickness |
|
Support Leg |
JOST brand, 28 tons |
|
Tractor Pin |
JOST brand, 90# heavy duty version |
|
Tank Body |
8 compartment, total 26000 liter |
|
Dimension |
12500x2500x3650mm |
The 3 axle oil tank semi trailer specification only for your reference, we will recommend other model oil tank semi trailer according to your request.

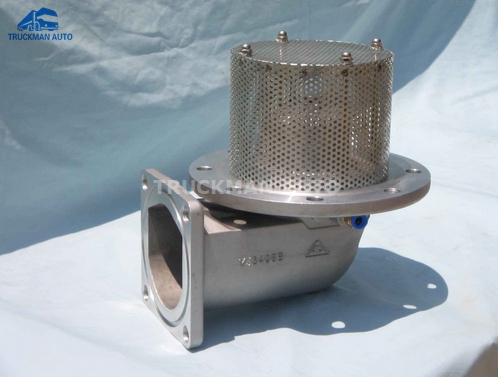

-3. 3 Axle Oil Tank Semi Trailer Subsea Valve Detail.
oil tank semi trailer subsea valve also called emergency shut-off valve, is a safety valve installed at the loading and unloading port of metal atmospheric tank of liquid dangerous goods tank vehicle.
Although the subsea valve is only an inconspicuous part on the vehicle body, it plays a vital role. It can not only effectively absorb the energy transmitted by the vehicle damaged by the impact of the pipeline, but also ensure the integrity of the sealing mechanism to avoid Material leakage greatly improves the security in ensuring the safety of the entire vehicle and avoiding dangerous accidents.
