3 Axles 40 Feet Container Trailer
-1. TRΛKMAN Brand Flatbed Container Trailer Main Specification
-. 50-70 big loading capacity
-. 3-5 Axles, use FUWA and BPW brand.
-. Transport two pcs 20FT container, one pcs 40FT container
-. Choose stronger tire with TRIANGLE, LINGLONG etc brand tire.
-. Recommended WABCO brake system, for the safety driven.
-. With 12 sets twist lock
|
Type |
Flatbed Container Trailer |
|
Weight |
4500kg-8000ka |
|
Tare weight |
30T-60T |
|
Loading capacity |
13T/16T |
|
Axle number |
Two or three |
|
Axle brand |
Fuwa/hj/bpw |
|
Suspension |
Air suspension or mechanical suspension |
|
Wheel |
11.00R22.5/12.00R22.5 Vacunnm tire/Triangle or double cone brand |
|
King pin |
JOST 2.0 ``or “3.5`` |
|
Dimensions(L*W*H) |
12500*2490*1560mm |
|
Support legs |
28Tons/JOSTD200T |
|
Rim |
8.25*22.5/9.00*22.5 Vacunnm tir zhengxing brand |
|
tire no |
8or 12 |
|
Steel spring |
10/10/10pieces per axles |
|
Twist lock |
12 sets |
|
track |
1840/1840/1840 |
|
Tire number |
Can be choose freely |
|
Spare tire carriers |
2/4 pieces |
|
Material of main beam |
Material SSAB high stress steel .the height of the beam is 450/500mm,the uper and the down plate is 8mm,middle plate is 5mm |
|
Side board |
The height is from 600-1500mm |
|
Platform plate |
3mm flat plate |

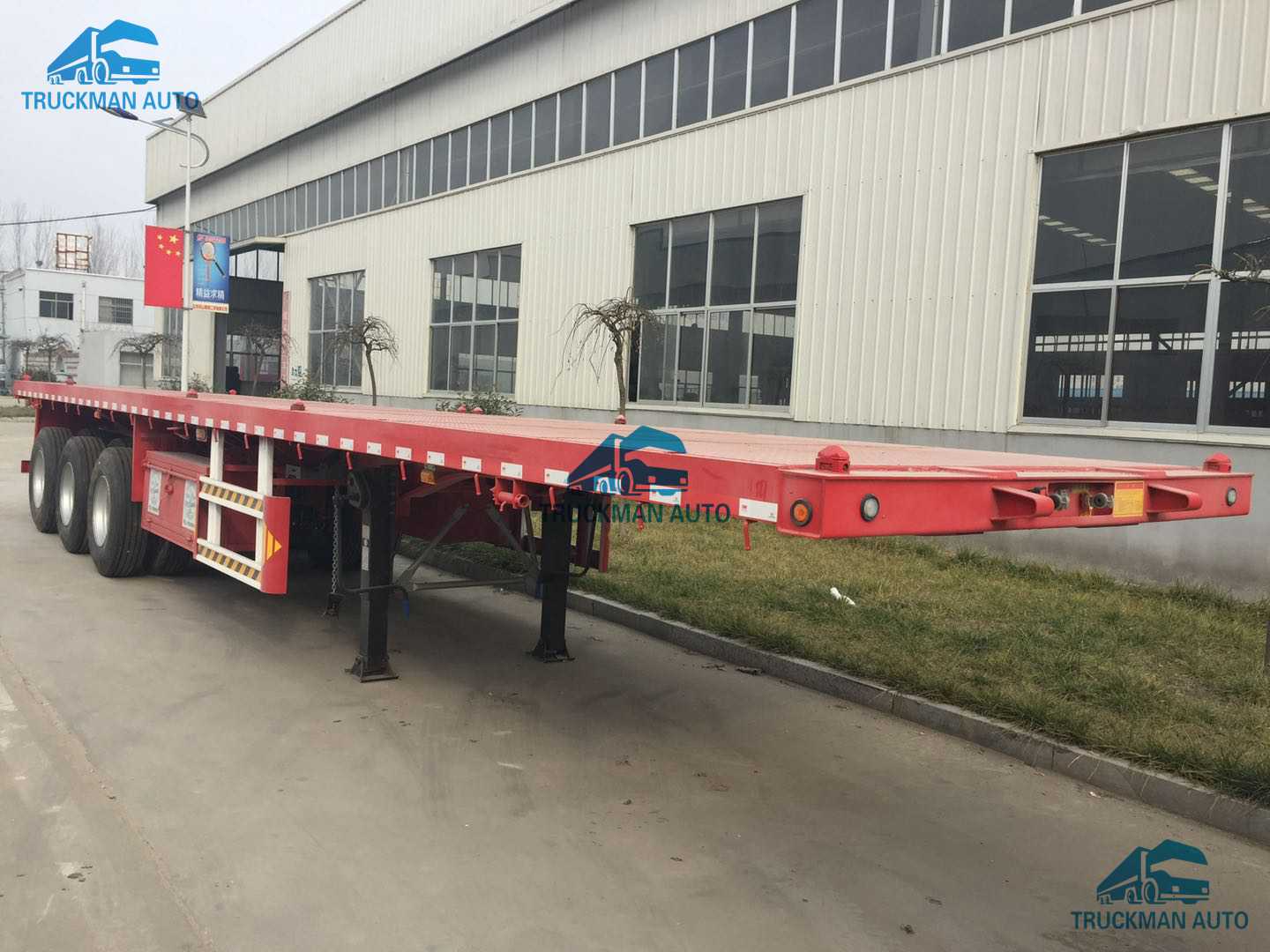

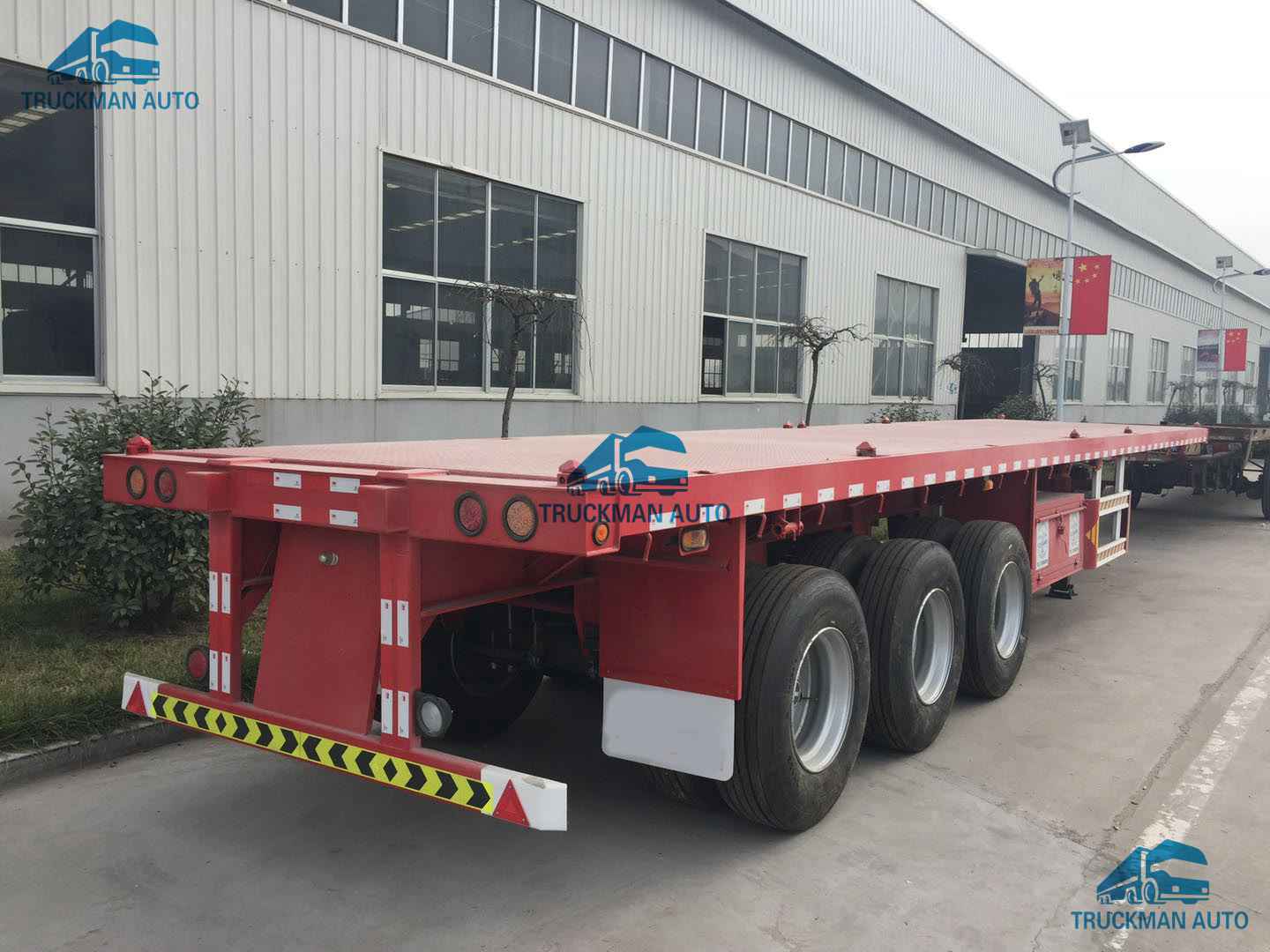

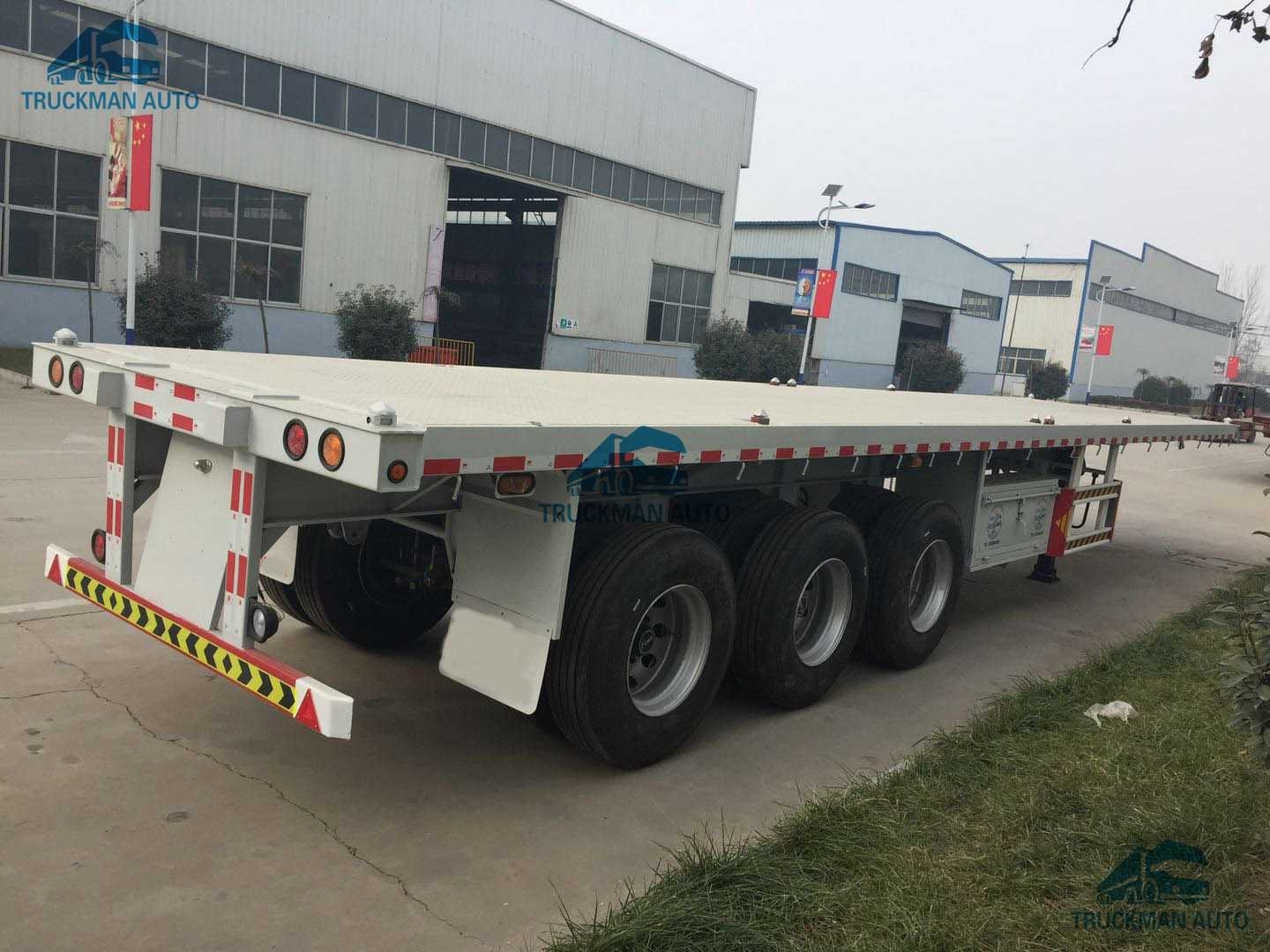

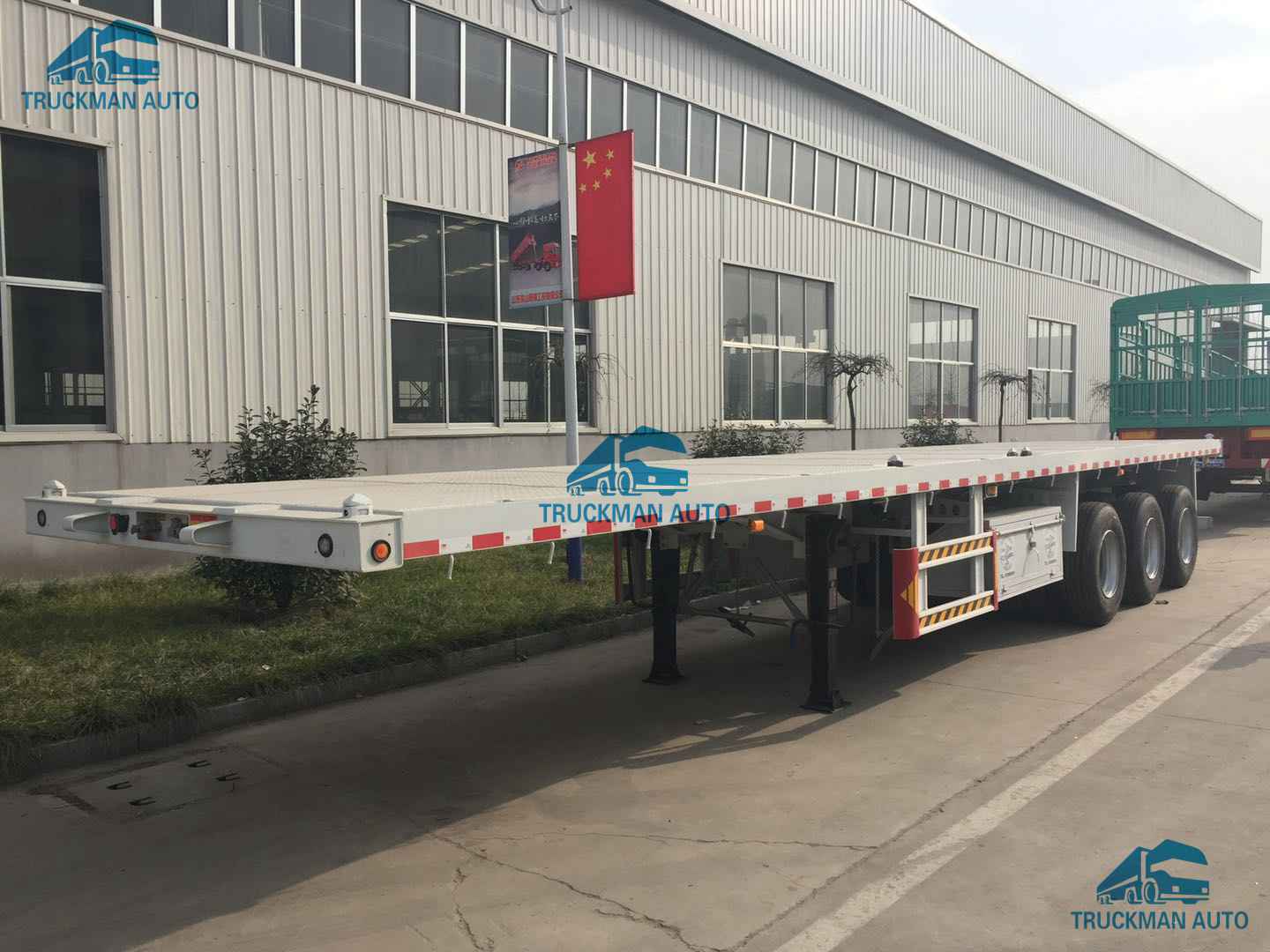

-2. Picture For Reference.
-3. Shipment Picture.
Now our trailers could adopt the RO-RO, BULK, FRAME Vessel, we will recommend to you according to your request.
-4. The Working Picture.
All picture is our customers send us, different country, different customer, different work condition, but our machinery can suitable for our customers all request.
