3 Axles 40 Tons Fence Cargo Trailer
-1. TRΛKMAN Brand Cargo Fence Trailer Main Specification
-. 35-54m³ bucket.
-. 3 Axles, use FUWA and BPW brand.
-. Transport bulk, cargo goods container etc
-. Carbon steel material
-. Choose stronger tire with TRIANGLE, LINGLONG etc brand tire.
-. Recommended WABCO brake system, for the safety driven.
|
Product Name |
3 Axles Cargo Box Semi Trailer |
|
Tare Weight |
About 8.3T |
|
Dimension |
13000mm*2490mm*2860mm (Outer side) |
|
Loading Capacity |
≤ 60 T |
|
Axle |
13 T/16T, Famous Brand |
|
Rim |
9.00-22.5 |
|
Tire |
12.00R22.5/ 315 80R22.5 |
|
Suspension |
Mechanical suspension Or Air suspension |
|
Spring leaf |
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
|
King pin |
Famous brand 2.0 or 3.5inch bolts type or Welding type |
|
Support leg |
Famous brand D200T or China brand 28Tons (Double speed) |
|
Main beam |
Height: 500mm, upper plate is 14mm, middle plate is 8mm, |
|
Side beam |
16mm or 18mm channel steel (Material is Q235steel). |
|
Side Wall |
600mm-1800mm ,the open door can be choose freely. |
|
Brake chamber |
6 relay valve; T30/30+T30 Spring brake chamber (Famous brand); Two pieces of 45L air tanks |
|
ABS |
Optional |
|
Twist Locks |
Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional |
|
Light |
LED light |
|
Voltage |
24V |
|
Receptacle |
7 ways (7 wire harness) |
|
Tool box |
One piece |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |

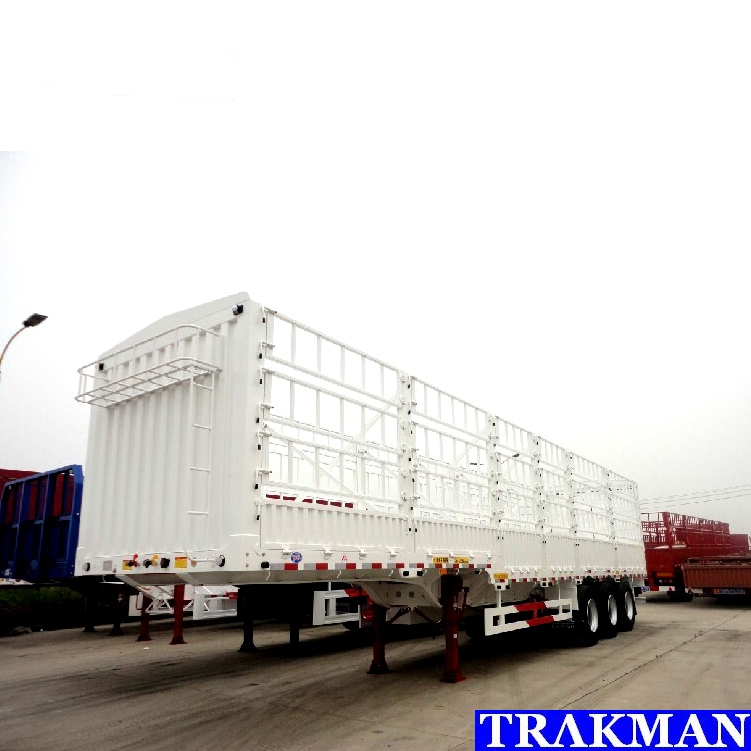

-2. Picture For Reference.

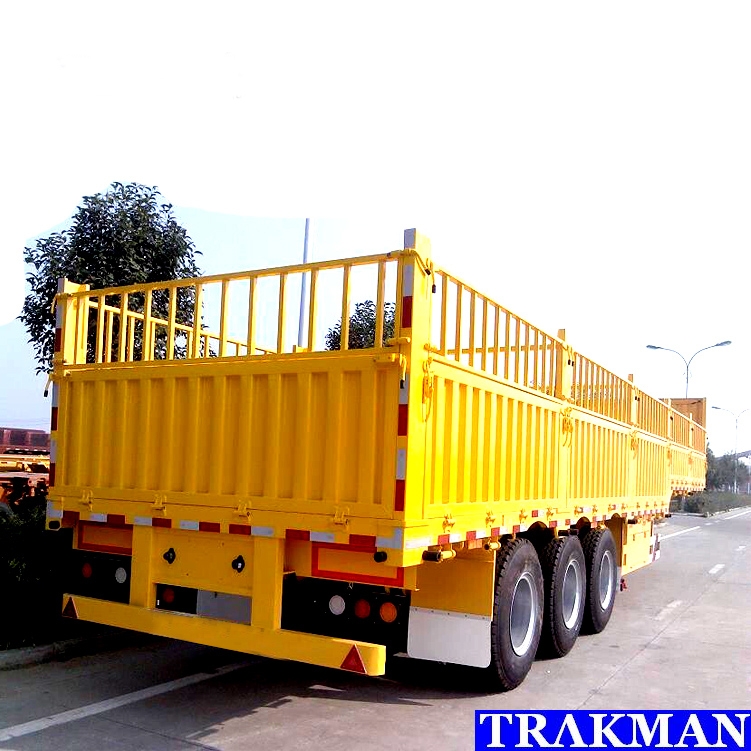

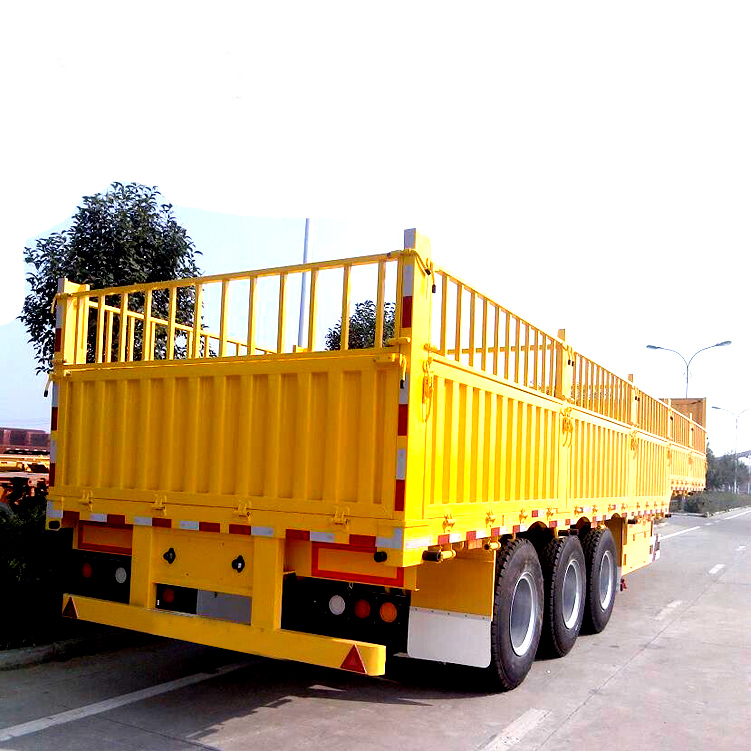

-3. Detail Picture.
-4. Others Product

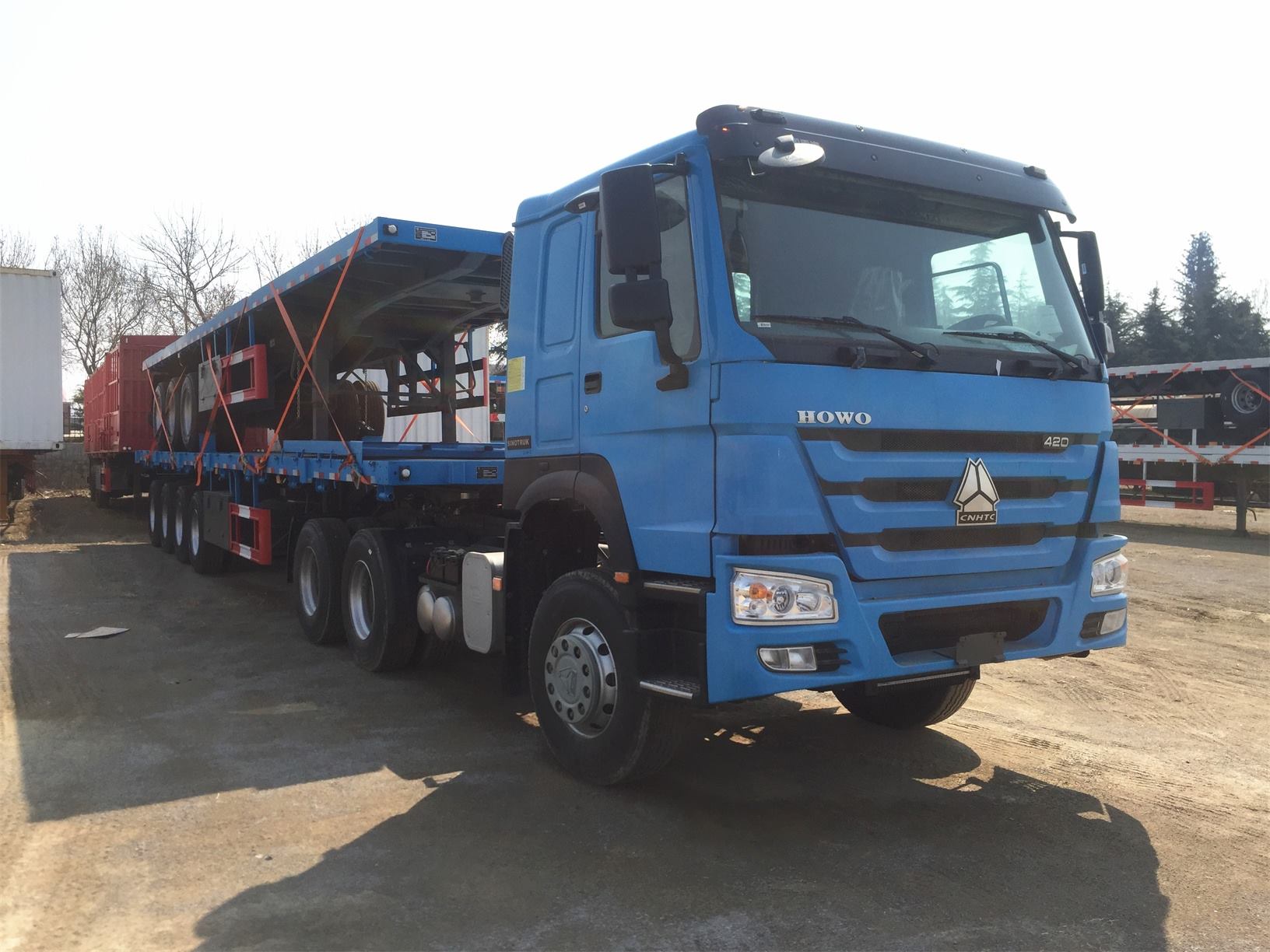

Now our company also deal with HOWO prime mover, the machinery can loading within 50-90 tons. Big horsepower, easy operation, also the maintenance cost is lower.
