3 Axles Side Lifter Boom Crane Container Trailer
-1. Side Lifter Crane Main Specification
-. Power Take Off or Diesel APU.
-. Wireless remote control/Manual operating.
-. Engine throttle size and engine speed can be control, improving working efficiency
-. The front and rear crane can work together and separate, adjusting container conveninetly.
-. Safety control with stop button.
|
Overall(L*W*H) |
14100*2500*4100mm |
|
The distance between trailer and container |
Optimum distance:400mm |
|
The largest distance :1500mm |
|
|
Side Lifter Specification |
Design criteria: GB/T 3811-2008 |
|
Side Lifter Crane |
Quality Side Crane |
|
Max. lifting capacity |
40000kg |
|
Max.stabiliser outreach |
3200mm |
|
Max. working range |
4000mm |
|
Max. pressure of hydraulic |
28MPa |
|
Hydraulic system |
Hydraulic pump: Italian CASAPPA |
|
Electric control system |
Hydraulic control valve: Netherlandish AMCA |
|
Telecontroller: German NBB |
|
|
Voltage: 12V |
|
|
Two chain |
Two chain: lgus (imported) |
|
Diesel engine |
Japanese Kubota diesel engine |

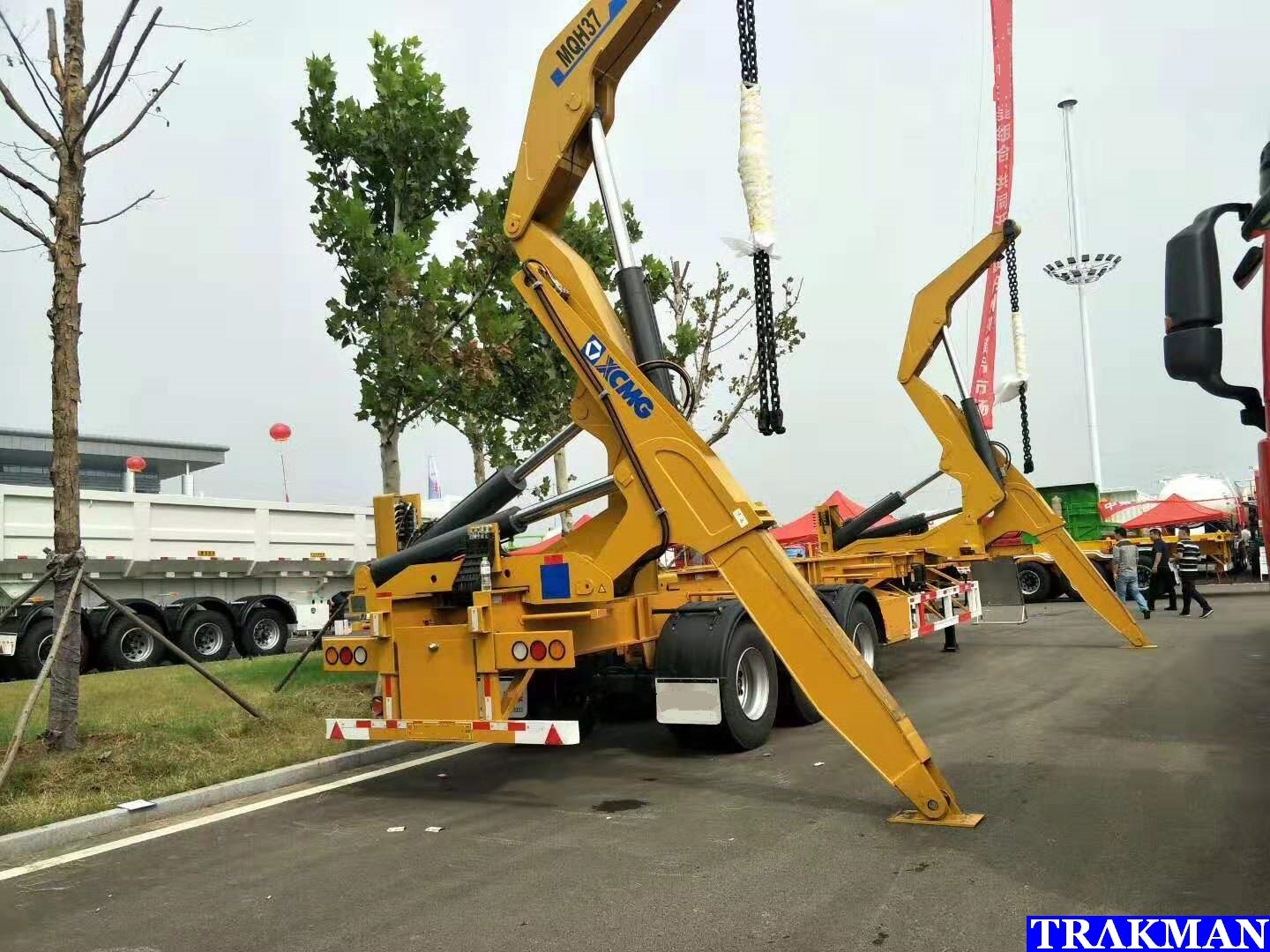

-2. Side Lifter Crane Picture For Reference.

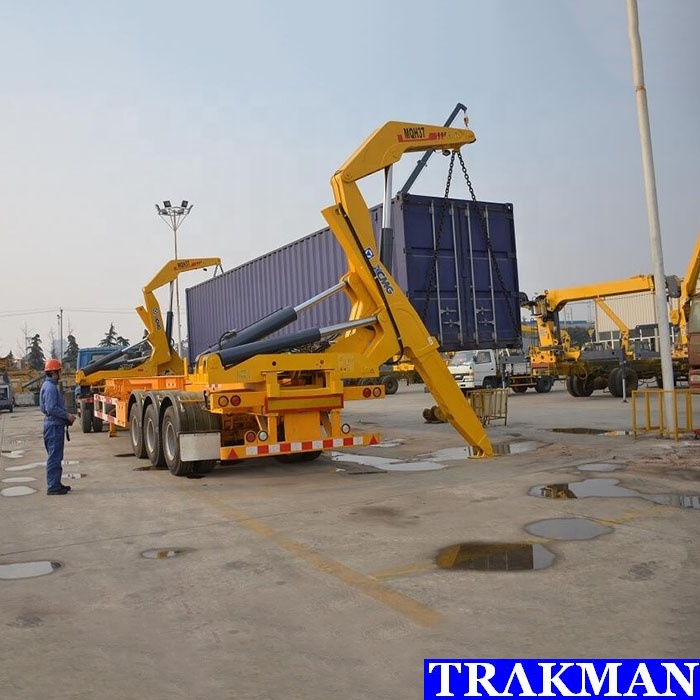

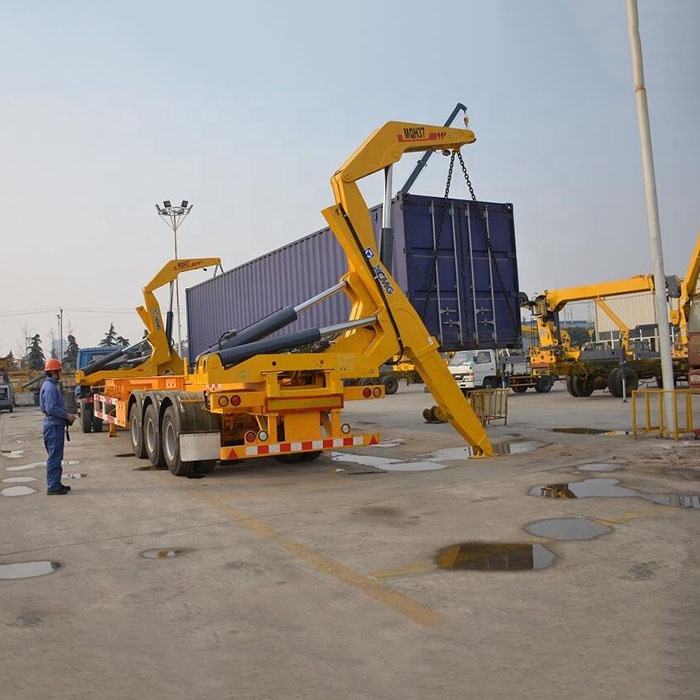

-3. Side Lifter Crane Detail Picture.
-4. Payment Term.
Now our company could accept the T/T (BANK TRANSFER), L/C.
Also can accept the L/C against cover at SINOSURE.
