30000KG 20FT Container Skeleton Trailer
-1. 20FT Container Skeleton Trailer Main Detail.
-. 500mm frame height, upper is 12mm, middle is 8mm, down is 14mm;
-. Material is Q345B steel and automatic welding;
-. 1 coat of anticorrosive prime, 2 coats of final paint. Polyurethane paint.
-2. 20FT Container Skeleton Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
20FT Container Skeleton Trailer |
|
Loading Weight |
30,000kg |
|
Tare Weight |
5,500kg |
|
Axle |
2 axle, 2x13 tons |
|
Suspension |
America type, 8mm thickness |
|
Leaf Spring |
90x13mmx10pcsx4sets |
|
Rim |
16mm thickness |
|
Tire |
12R22.5, 8 pcs |
|
Brake System |
WABCO brand, ABS and 6 pcs brake chamber |
|
Thickness Of Frame |
Upper plate 12mm, middle 8mm, lower plate 14mm, “I” type main beam |
|
Material |
Q345, high strength steel |
|
Application |
Transport the 20ft container |
|
Dimension |
5900x2500x1550mm |
The specification is only for reference, we could design the 20FT container skeleton trailer according to your request.

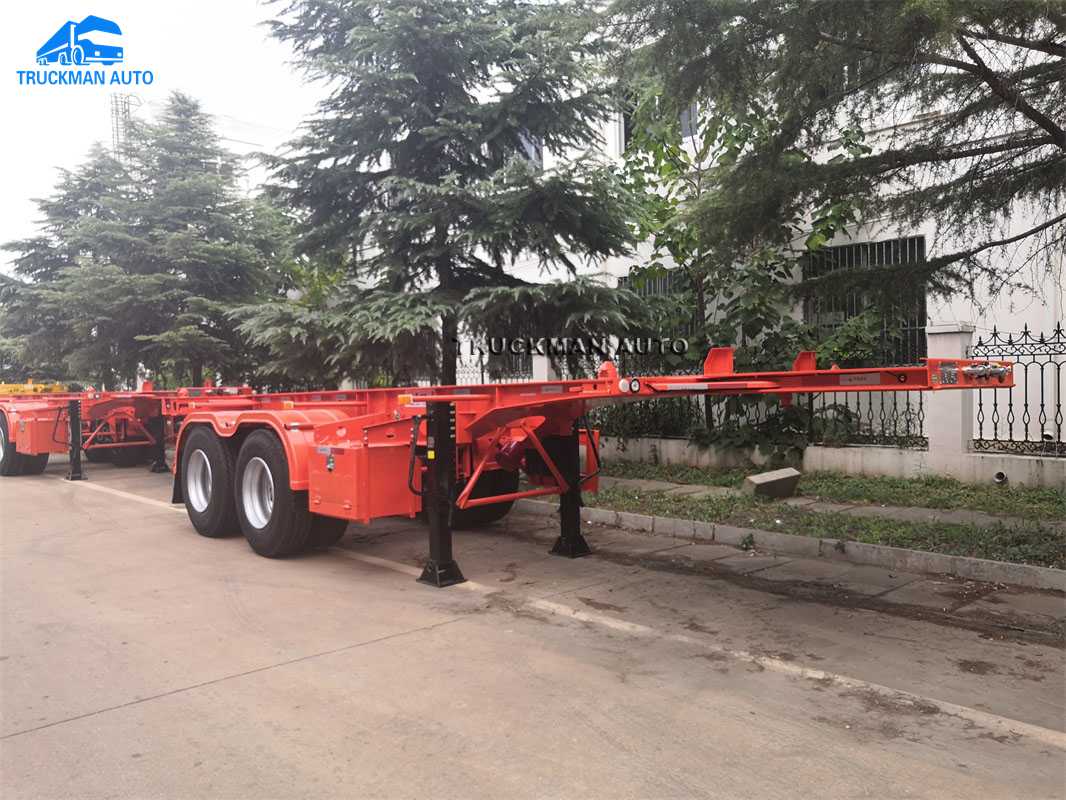

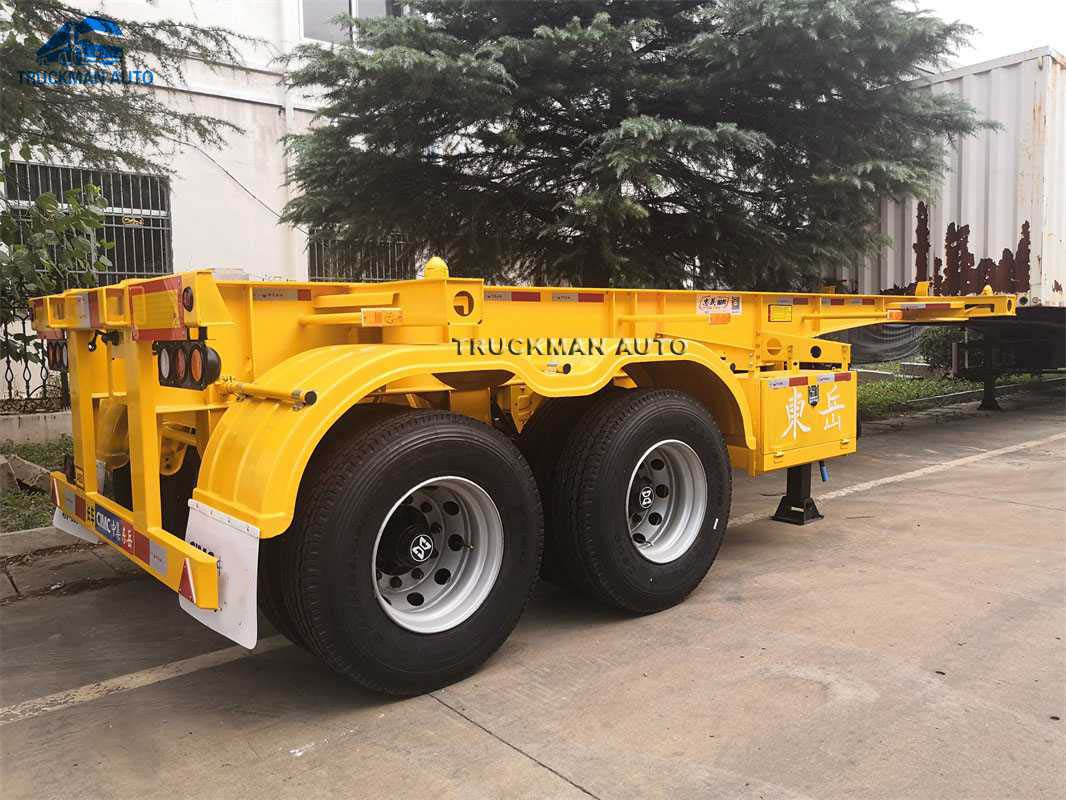

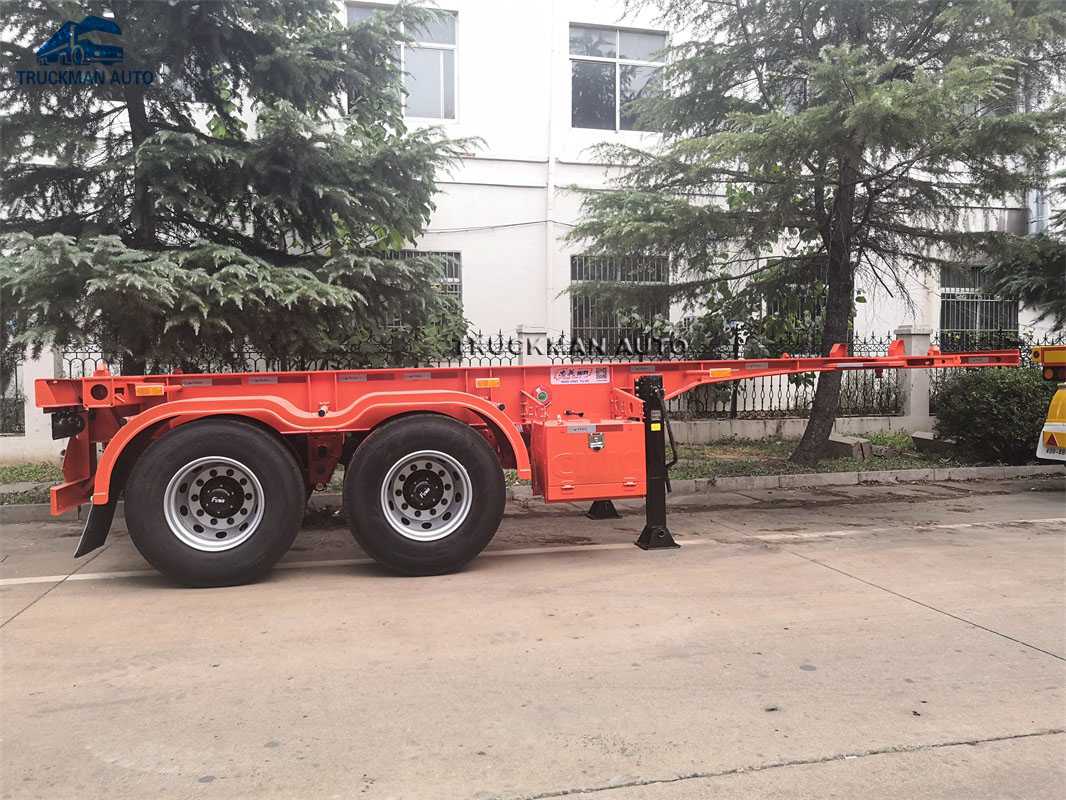

-3. 20FT Container Skeleton Trailer Detail Picture.

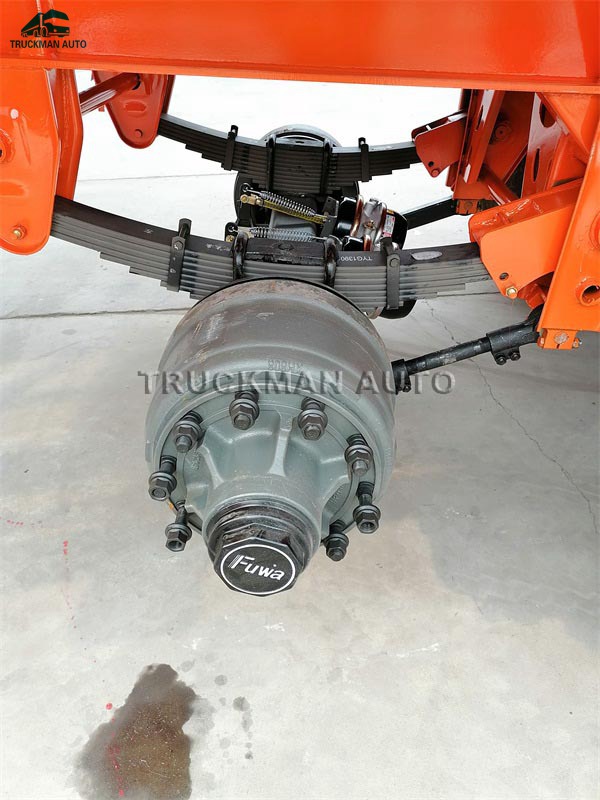

FUWA brand 13 tons axle, total 2 axle. Carry 20-30 tons.

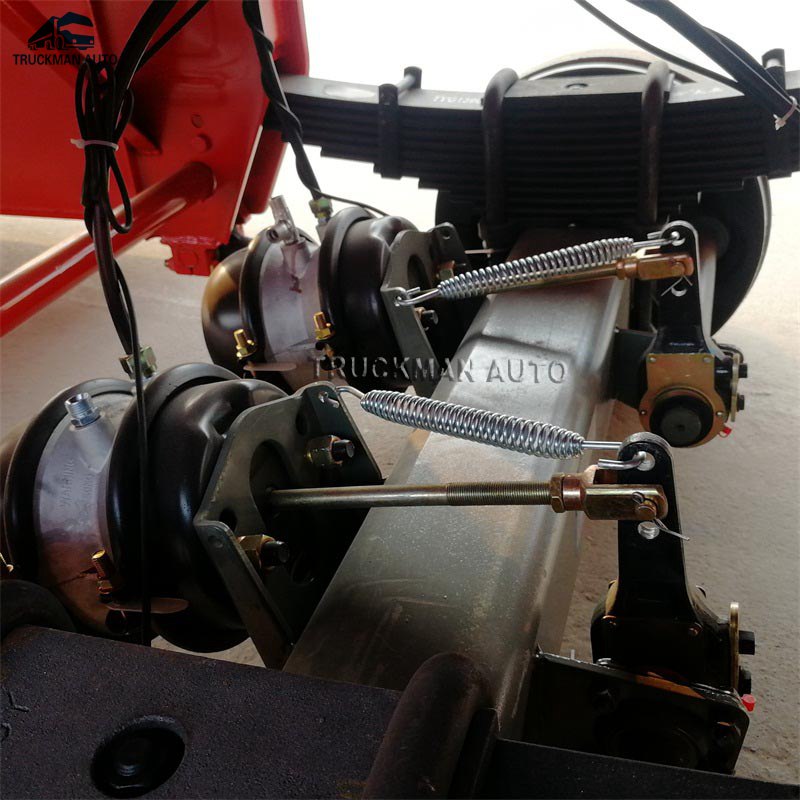

WABCO 6 relay valve; T30/30+T30 Spring brake chamber; one piece of 45L air tanks
