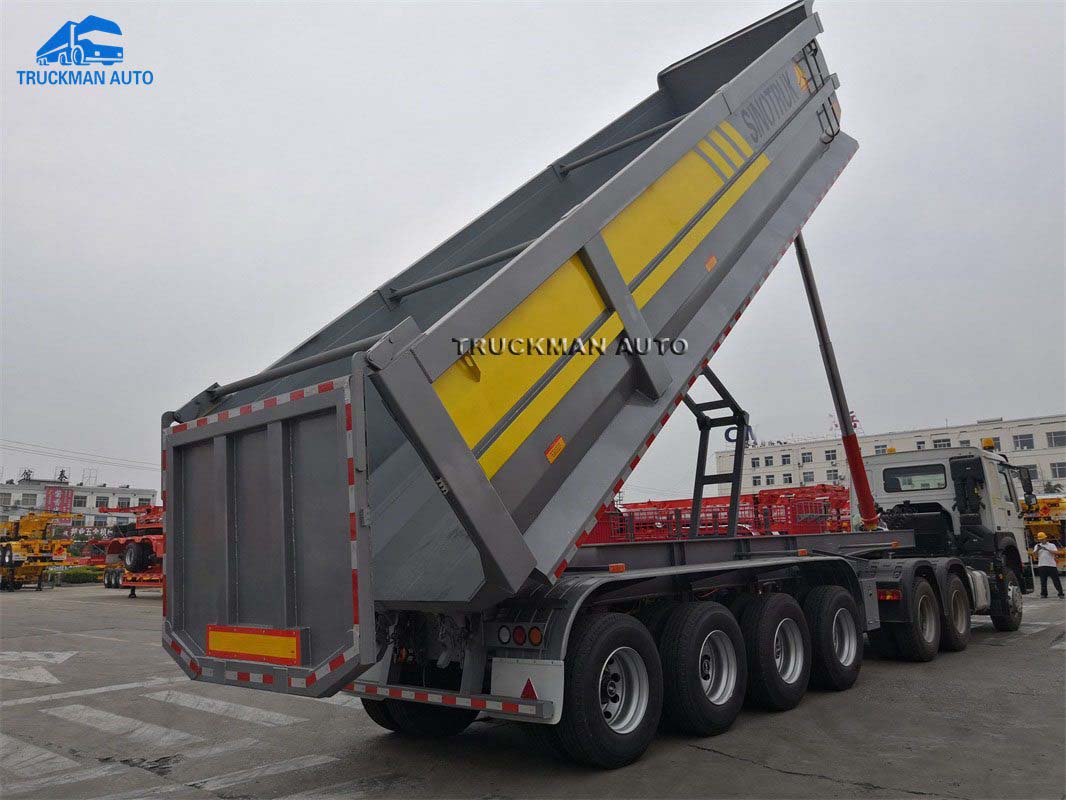

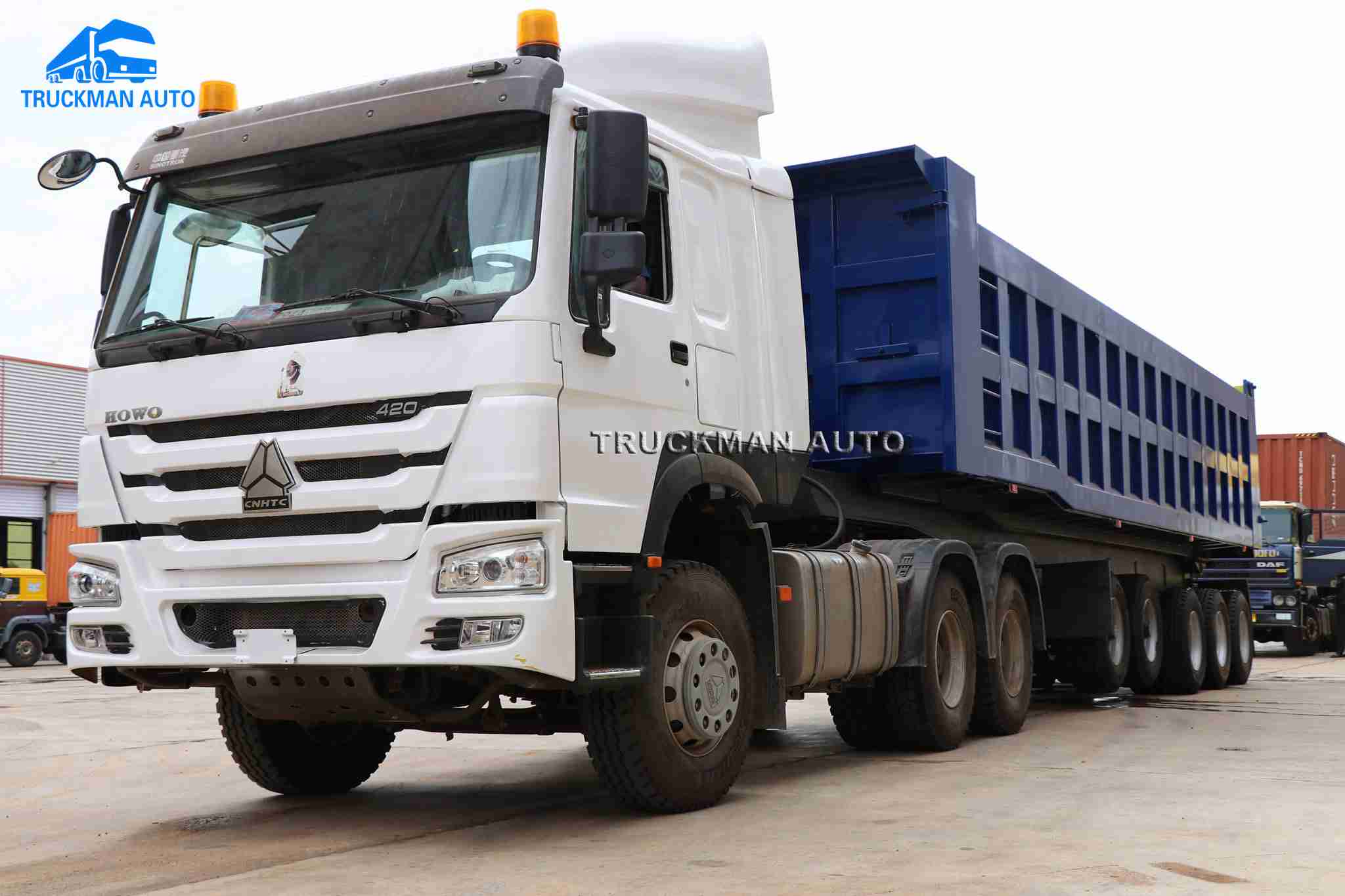

4 Axle 50 Tons Dumping Semi Trailer For Mali Senegal Guinea Ghana
-1. 4 Axle 50 Tons Dumping Semi Trailer Main Detail.
-. Suitable for copper, coal, manganese, iron ore, sand, gravel, stone etc transportation;
-. Use high strength steel Q345 material, confirm the trailer chassis more stronger;
-. Work with FUWA, JOST, LINGLONG and WABCO brand spare parts;
-. Polyurethane paint, more beautiful and prevent corrosion;
-. Lifting system adopt the HYVA brand parts
-2. 4 Axle 50 Tons Dumping Semi Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
4 Axle 50 Tons Dumping Semi Trailer |
|
Loading Weight |
50,000kg |
|
Tare Weight |
10,500kg |
|
Axle |
4 axle, 4x13 tons |
|
Suspension |
America type, 8mm thickness |
|
Leaf Spring |
90x16mmx10pcsx8sets |
|
Rim |
16mm thickness |
|
Tire |
12.00R20, 16 pcs |
|
Brake System |
WABCO brand, ABS and 8 pcs brake chamber |
|
Thickness Of Frame |
Upper plate 16mm, middle 8+8mm lower plate 18mm, “I” type main beam |
|
Material |
Q345, high strength steel |
|
Cargo Box |
9500x2300x1700mm, 37m3 |
|
Dimension |
10500x2500x3750mm |
The specification is only for reference, we could design the 4 axle 50 tons dumping semi trailer according to your request.
-3. Other Model 50 Tons Dump Semi Trailer Picture.

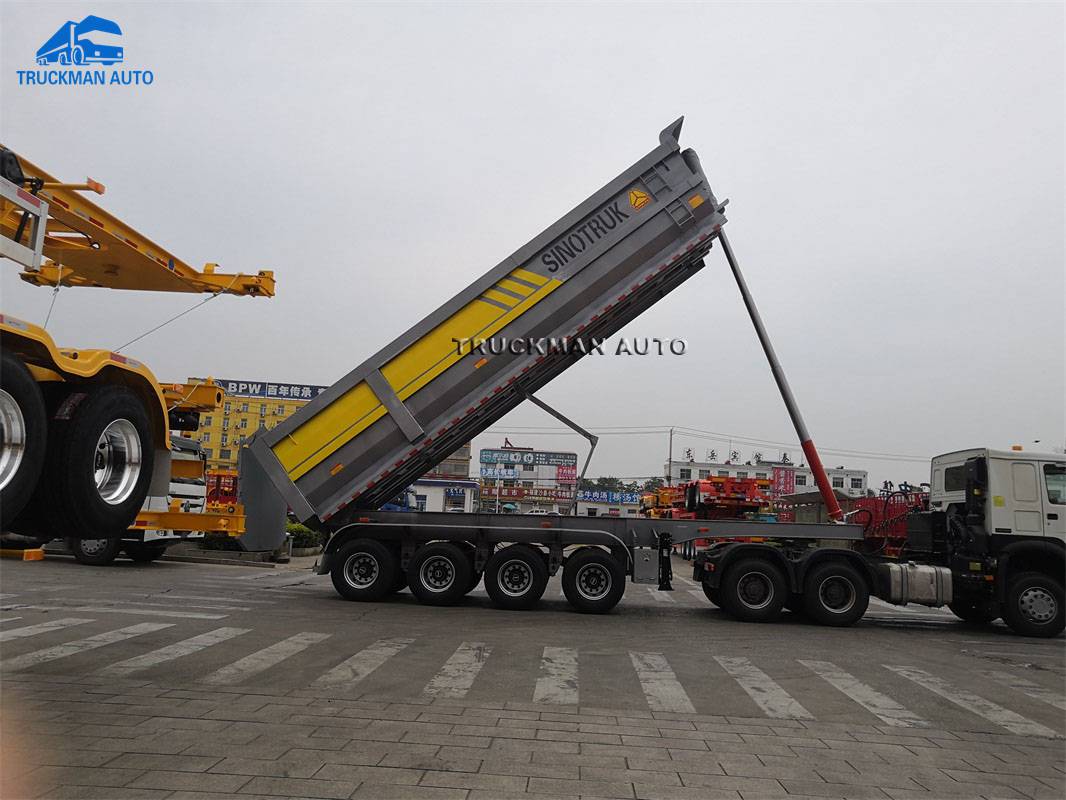

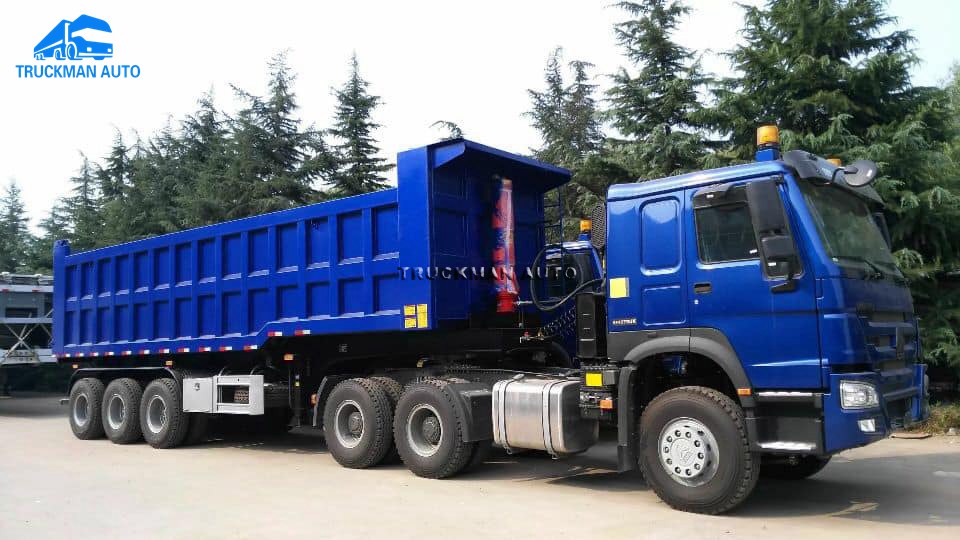

3 axle dump semi trailer

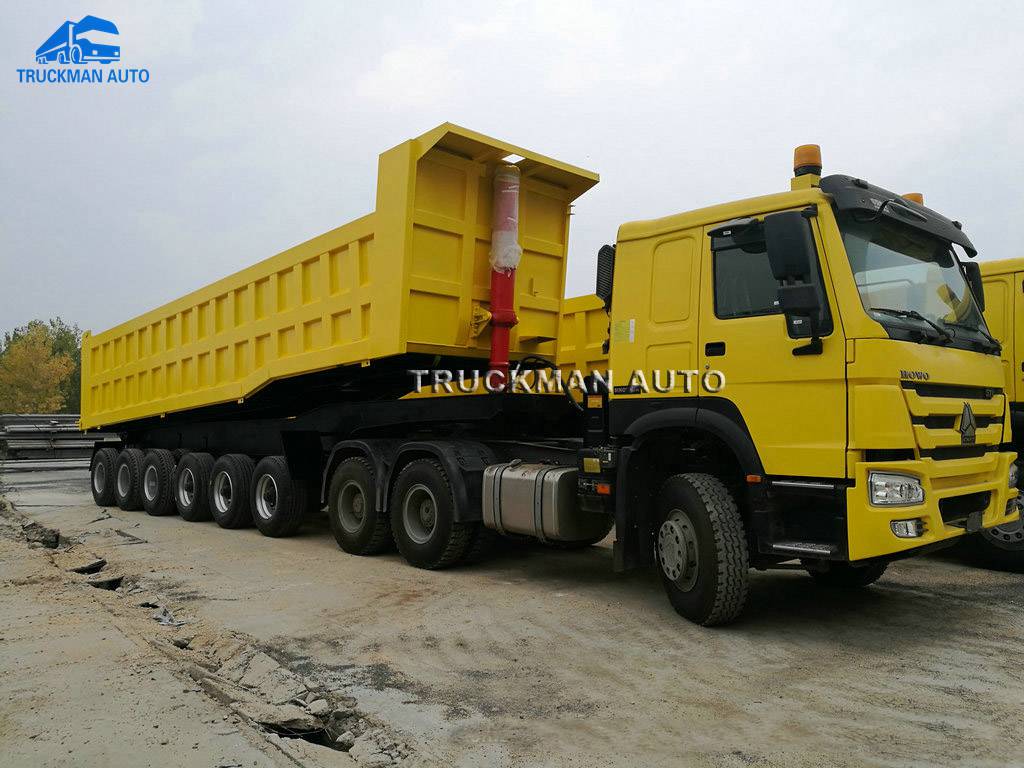

5 axle dump semi trailer, front 2 axle could lifting, air suspension.
6 axle dump semi trailer, front 3 axle could lifting, air suspension.
