40 Ton 3 Axles 40ft Flatbed Container Semi Trailer
-1. TRΛKMAN Brand Flatbed Container Trailer Main Specification
-. 50-70 big loading capacity
-. 3-5 Axles, use FUWA and BPW brand.
-. Transport two pcs 20FT container, one pcs 40FT container
-. Choose stronger tire with TRIANGLE, LINGLONG etc brand tire.
-. Recommended WABCO brake system, for the safety driven.
-. With 12 sets twist lock
|
Type |
Flatbed Container Trailer |
|
Weight |
4500kg-8000ka |
|
Tare weight |
30T-60T |
|
Loading capacity |
13T/16T |
|
Axle number |
Two or three |
|
Axle brand |
Fuwa/hj/bpw |
|
Suspension |
Air suspension or mechanical suspension |
|
Wheel |
11.00R22.5/12.00R22.5 Vacunnm tire/Triangle or double cone brand |
|
King pin |
JOST 2.0 ``or “3.5`` |
|
Dimensions(L*W*H) |
12500*2490*1560mm |
|
Support legs |
28Tons/JOSTD200T |
|
Rim |
8.25*22.5/9.00*22.5 Vacunnm tir zhengxing brand |
|
tire no |
8or 12 |
|
Steel spring |
10/10/10pieces per axles |
|
Twist lock |
12 sets |
|
track |
1840/1840/1840 |
|
Tire number |
Can be choose freely |
|
Spare tire carriers |
2/4 pieces |
|
Material of main beam |
Material SSAB high stress steel .the height of the beam is 450/500mm,the uper and the down plate is 8mm,middle plate is 5mm |
|
Side board |
The height is from 600-1500mm |
|
Platform plate |
3mm flat plate |

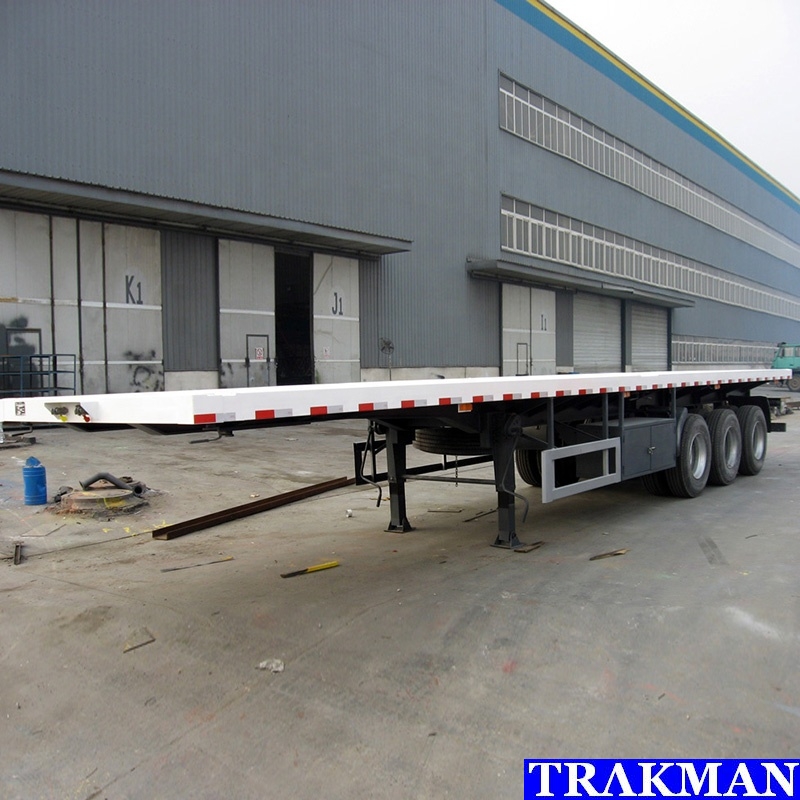

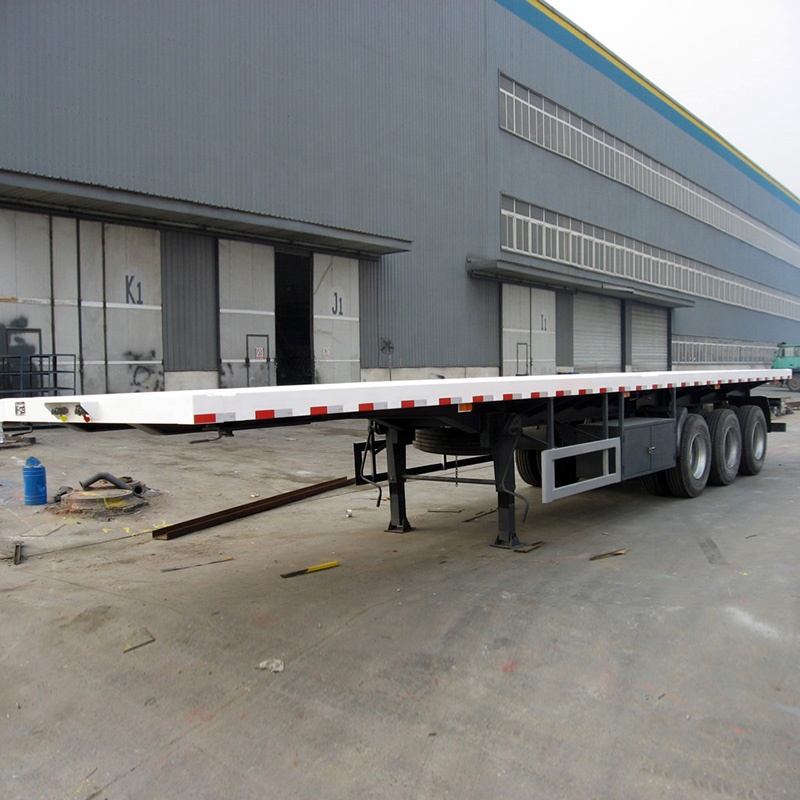

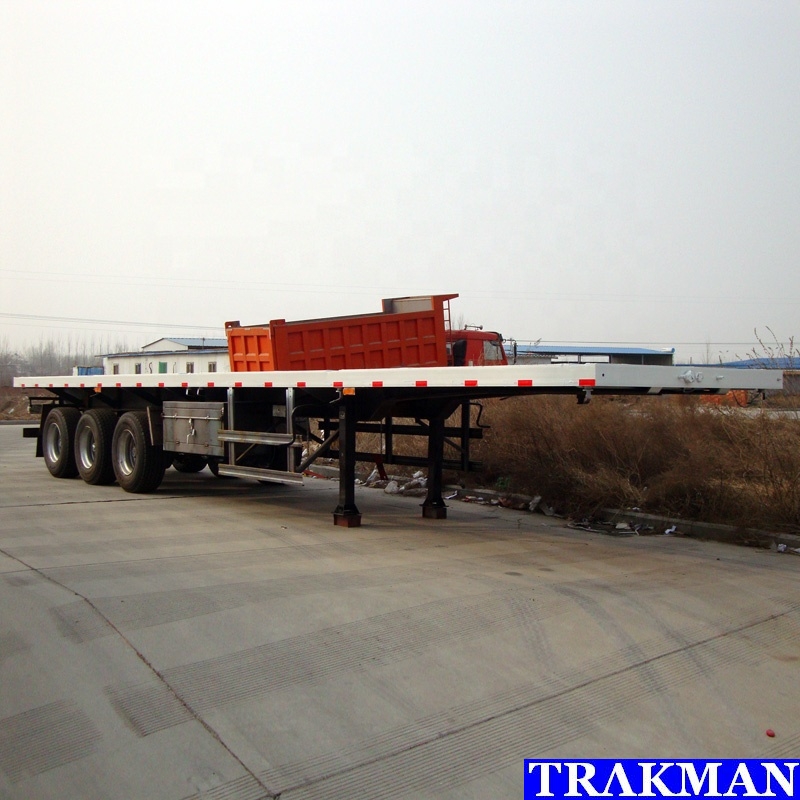

-2. Picture For Reference.
-3. After Sales Service.
Now Our company built one big spare parts warehouse for our customer's machinery, all parts could arrange DHL or TNT as soon. In addition, we also could arrange the engineer for the maintenance.
-4. Customer’s Feedback.
