60 Ton 45 Cubic Meters 6 Axle Dump Trailer With HYVA Lifting System
-1. 45 Cubic Meters 6 Axle Dump Trailer Main Detail.
45 cubic meters 6 axle dump trailer fairly used for transportation the iron ore, klinker, bauxite, manganese ore, limestone from mining area to Tema, Takoradi port. The 6 axle dump trailer could loading 40-60 tons and with the durable material.
-2. 45 Cubic Meters 6 Axle Dump Trailer Main Specification.
|
Item |
Description |
|
Product Name |
45 Cubic Meters 6 Axle Dump Trailer |
|
Axle |
6x13 or 16 Tons |
|
Lifting System |
Front hydraulic lifting system |
|
Structure Material |
High strength steel, Q345 |
|
Support Leg |
JOST brand, 28 tons |
|
Brake System |
WABCO brand, 6 pcs brake chamber |
|
Tire |
LINGLONG tire, 12R22.5 & 12.00R20 & 385/65R22.5 |
|
Loading Tons |
60000kg |
|
Thickness Of Beam |
Upper 18mm, middle 8+8mm, lower 20mm |
-3. 45 Cubic Meters 6 Axle Dump Trailer Shipment Picture.

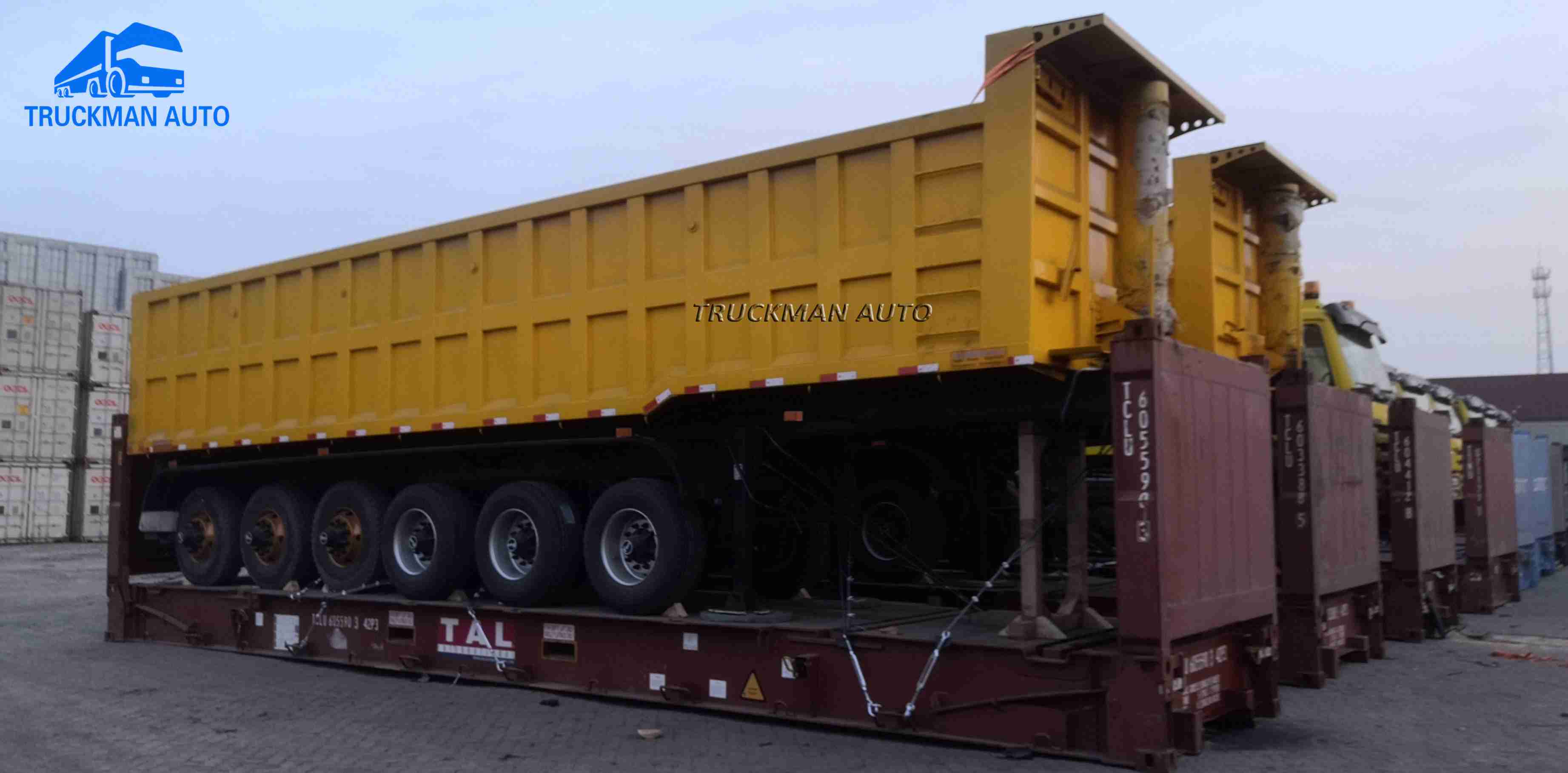

45 cubic meters 6 axle dump trailer shipment via container vessel

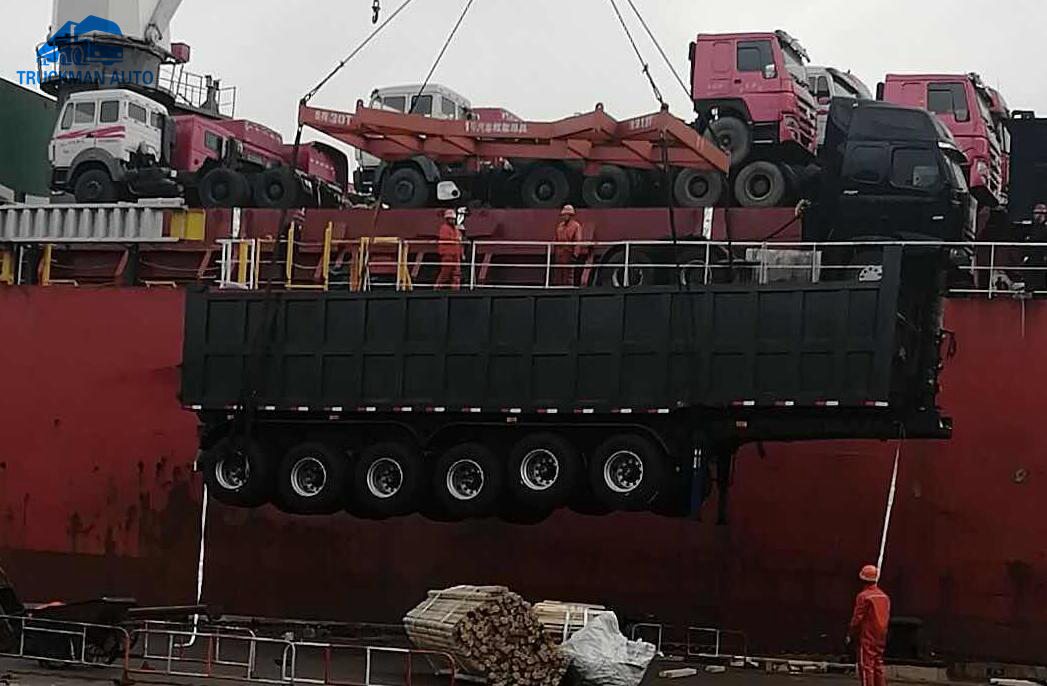

45 cubic meters 6 axle dump trailer shipment via BULK cargo vessel
