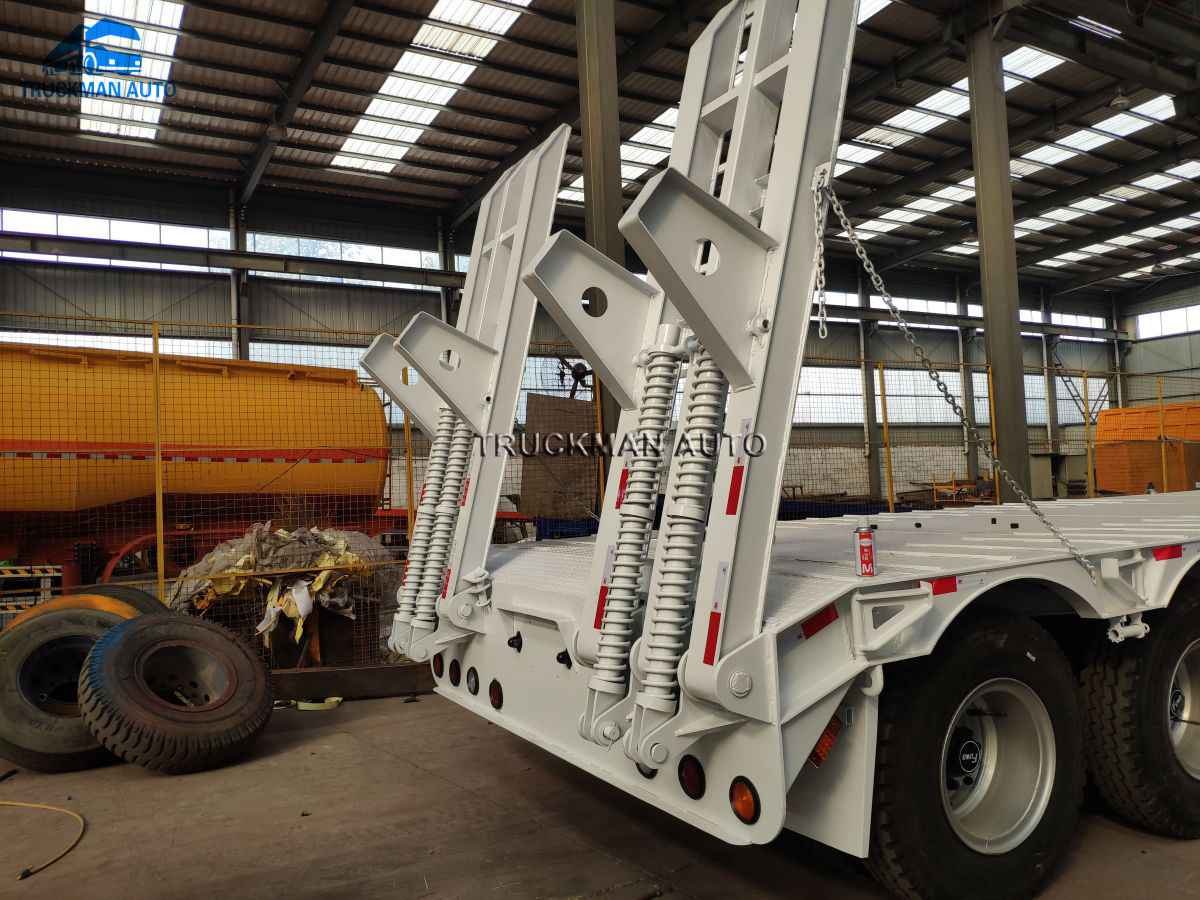

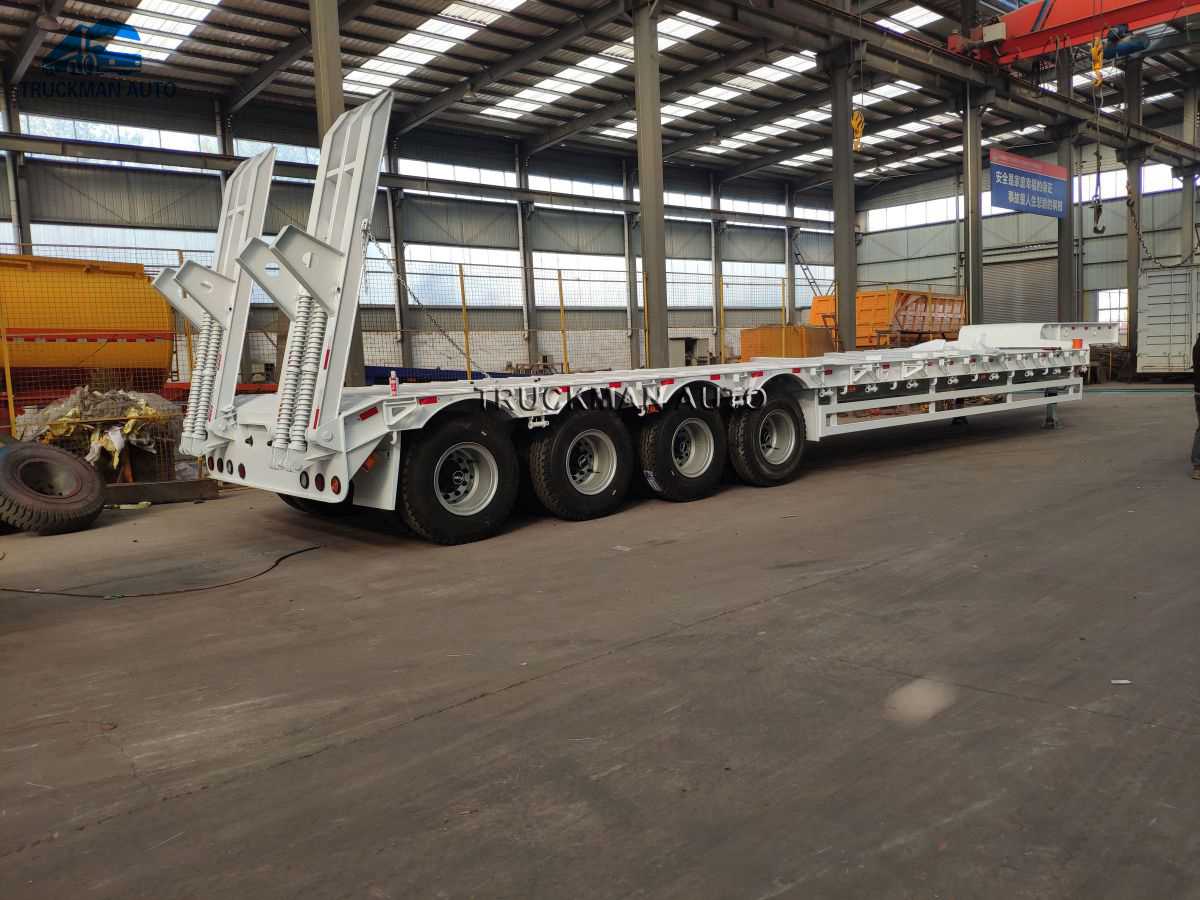

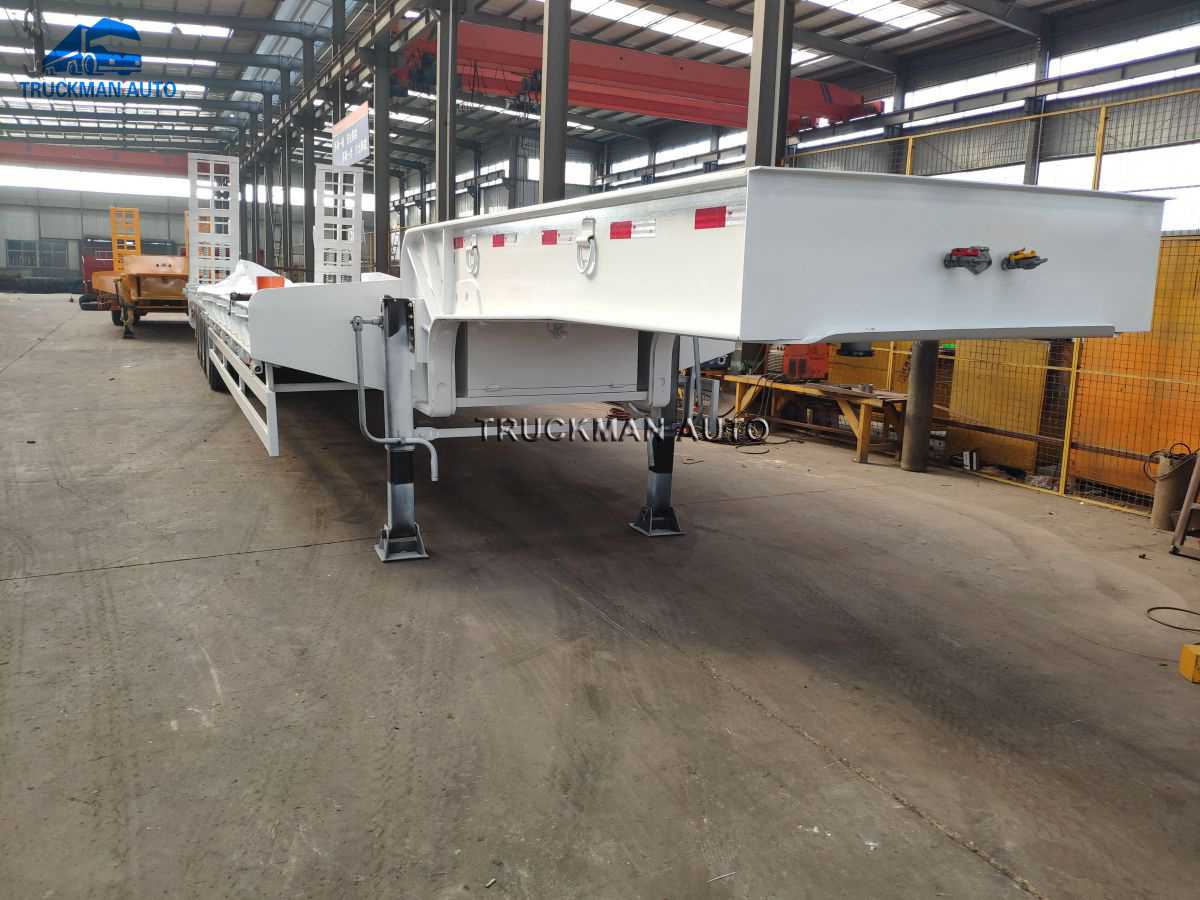

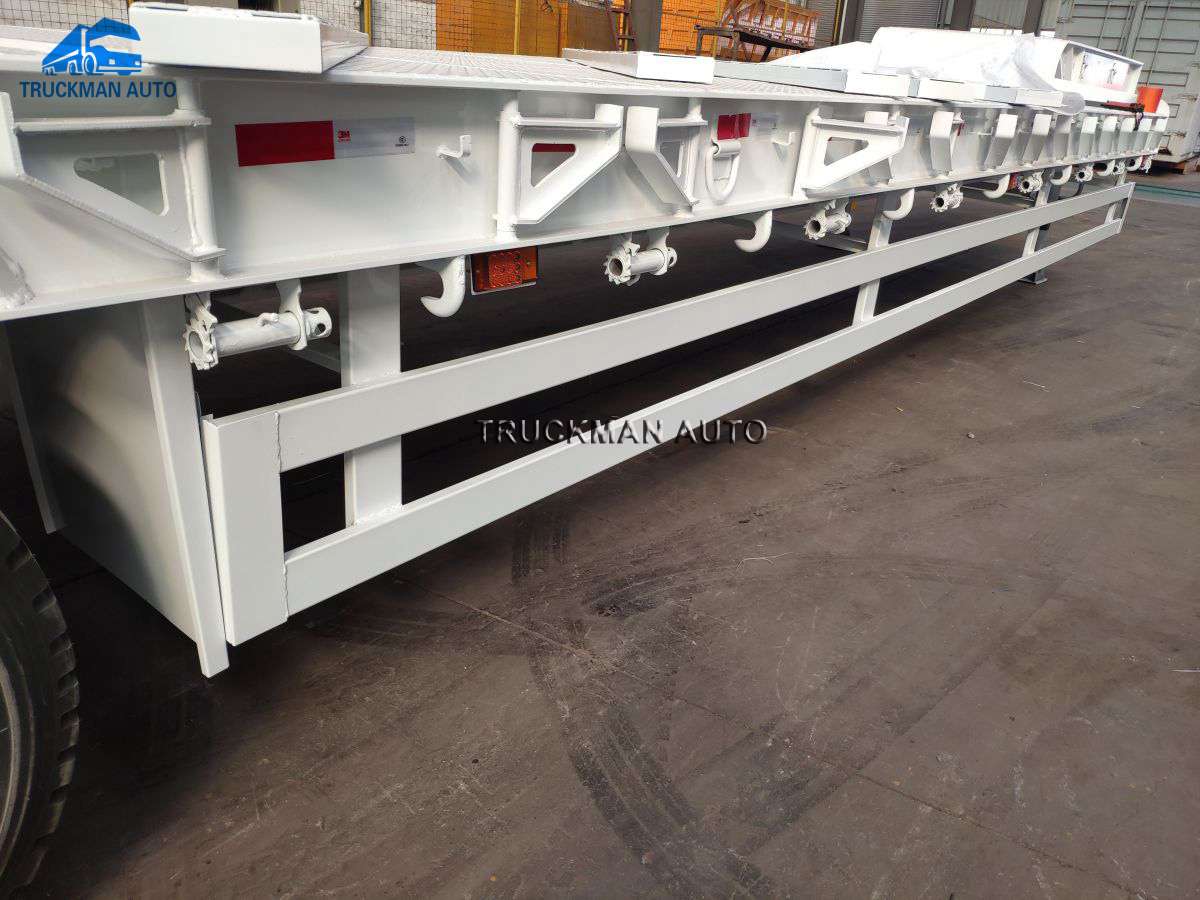

70 Tons Lowboy Semi Trailer For Heavy Machinery Transport
-1. Lowboy Semi Trailer Main Detail.
Low bed semi trailer also called lowboy semi trailer, it’s same function used for the transport the construction machinery, such as the wheel loader, excavator, road roller and bulldozer etc. The width of lowboy semi trailer is 3000mm, also add the 200mm each side for more width machinery transit.
-2. Lowboy Semi Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
Lowboy Semi Trailer |
|
Loading Weight |
70,000kg |
|
Tare Weight |
11,000kg |
|
Axle |
3 axle, 3x16 tons |
|
Suspension |
America type, 8mm thickness |
|
Leaf Spring |
90x16mmx10pcsx6sets |
|
Rim |
16mm thickness |
|
Tire |
12.00R20 or 315/80R22.5, 12 pcs |
|
Brake System |
WABCO brand, ABS and 6 pcs brake chamber |
|
Thickness Of Frame |
Upper plate 16mm, middle 8mm, lower plate 18mm, “I” type main beam |
|
Material |
Q345, high strength steel |
|
Ladder |
Spring type, 800mm |
|
Loading Area |
9000x3000x1350mm |
|
Dimension |
12500x3000x3100mm |
The Lowboy Semi Trailer could design according to your request.
-3. Lowboy Semi Trailer Shipment Picture.
2 units and 3 units ship together could save a lot freight cost, if you worry the rusty issue. We suggest you choose the RO-RO vessel, picture as the follow:
And the advantage of RO-RO vessel is fast shipment time, no rusty issue. And the port cost is very lower.
