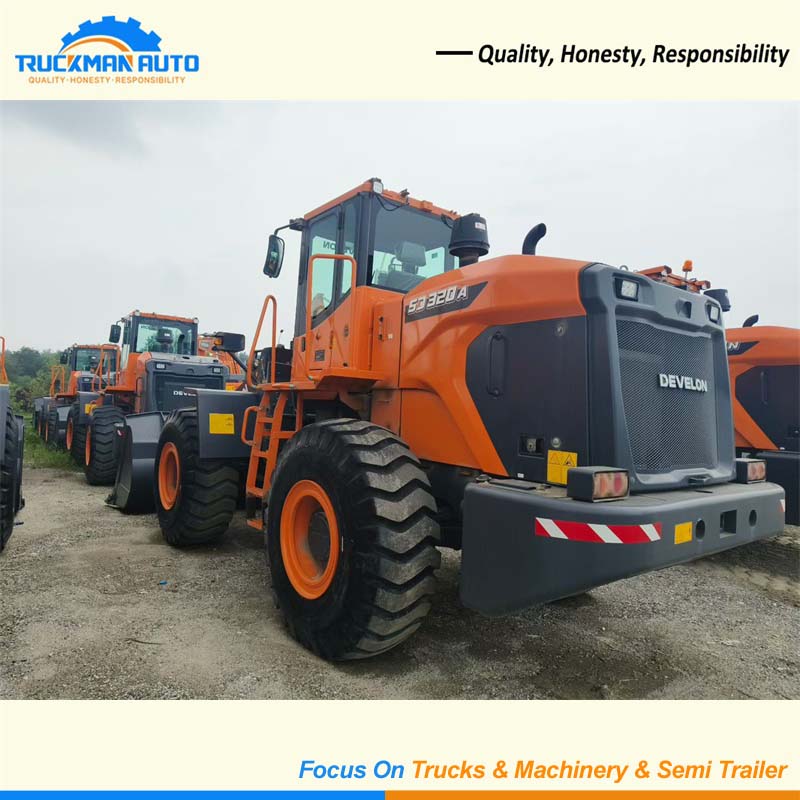

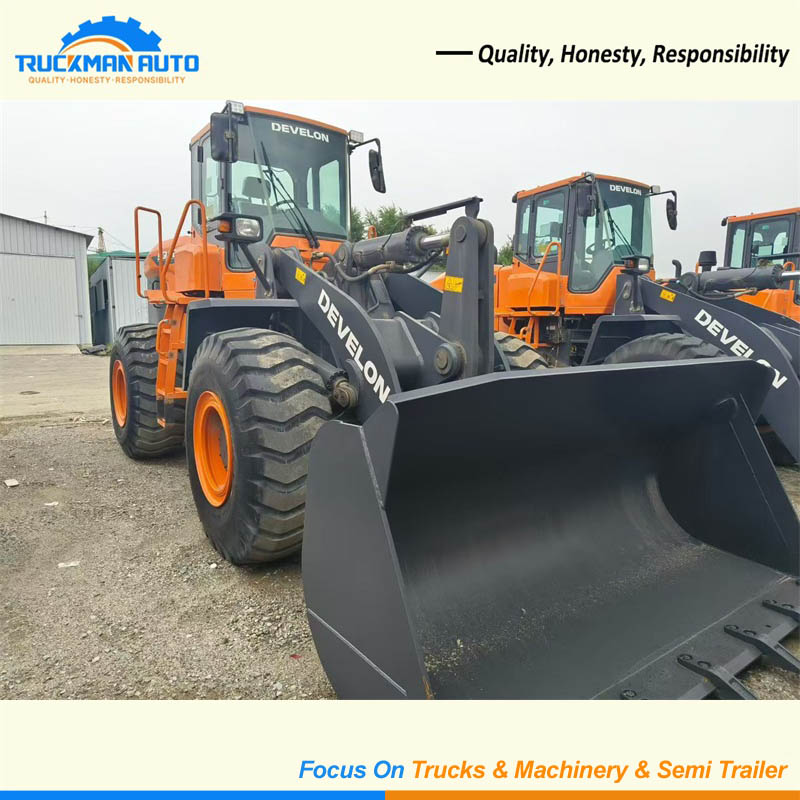

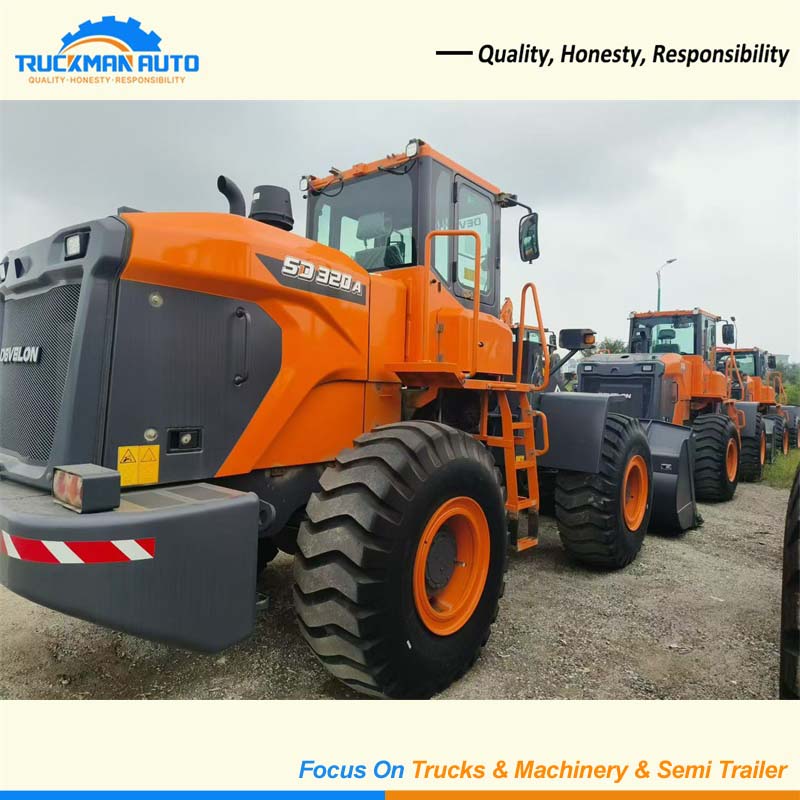

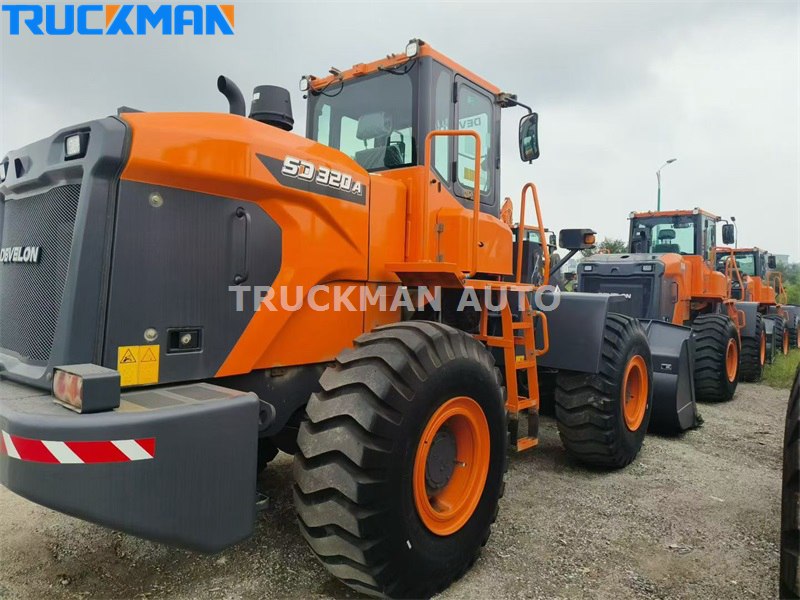

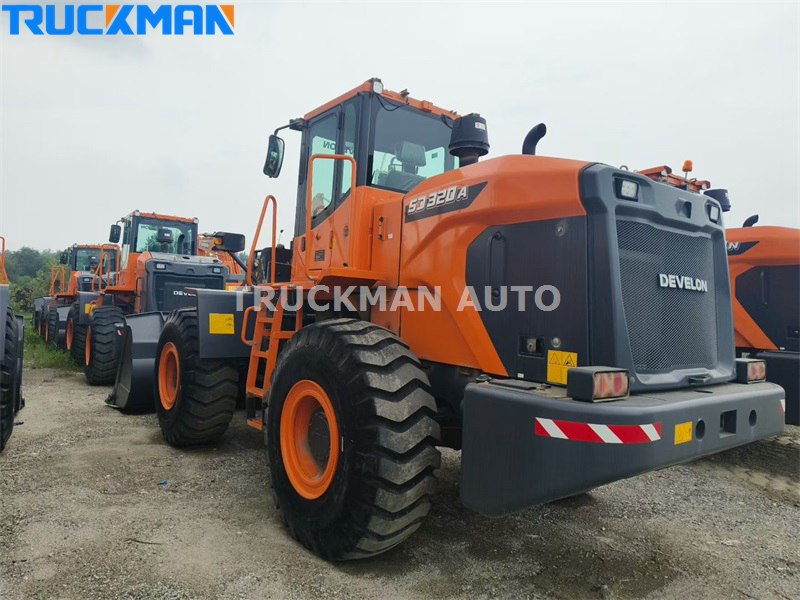

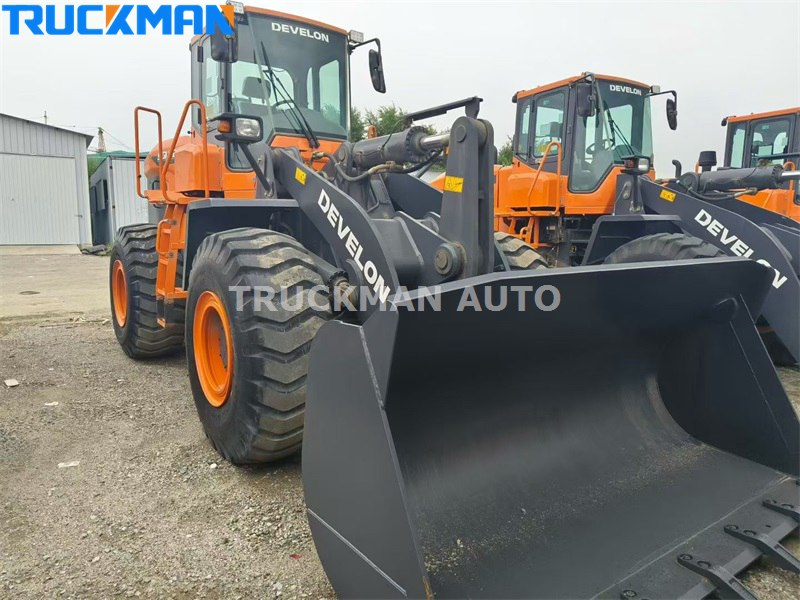

Brand New DEVELON SD320A 3.2 Cubic Meters Bucket Wheel Loader
DEVELON SD320A 3.2 Cubic Meters Bucket Wheel Loader Features
The DEVELON loader features an extended wheelbase for better weight distribution, resulting in shorter cycle times and increased efficiency. The larger wheelbase improves maneuverability and payload capacity, boosting overall productivity. Increased payload capacity: A higher payload of 5.5 tons provides operators with greater cost-effectiveness and performance than ever before. With an increased first gear speed, operators now experience an upgraded maximum first gear speed for faster acceleration than ever before. A tighter turning radius allows operators to maneuver into tight spaces.
DEVELON SD320A 3.2 Cubic Meters Bucket Wheel Loader Specification
|
Description |
Parameter Value |
|
Product Name |
DEVELON SD320A 3.2 Cubic Meters Bucket Wheel Loader |
|
Application |
Construction work |
|

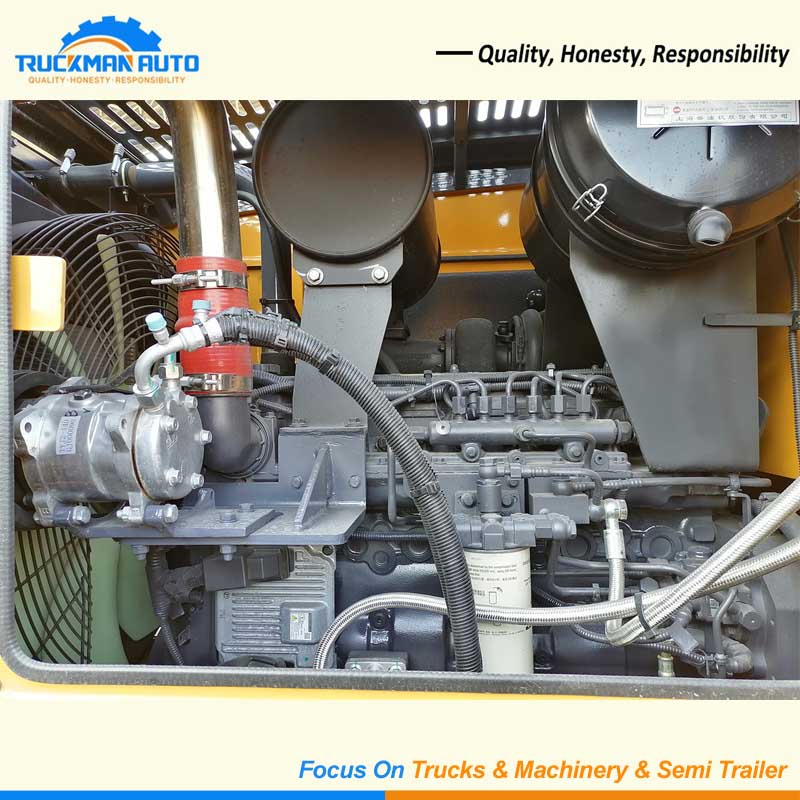

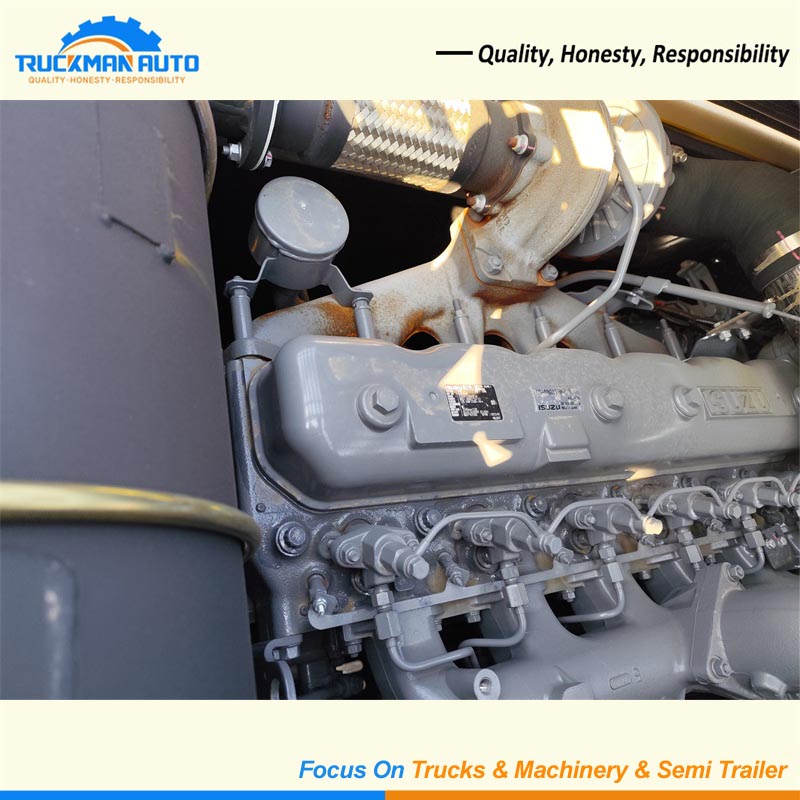

Engine Model |
WD10G220E23 |
|
Rated Power |
162 kW |
|
Operating Weight |
17.2 tons |
|
Bucket Capacity |
3.2 m3 |
|
Tire Size |
23.5-25-16 PR |
|
Dimension |
8150x2992x3520mm |
DEVELON SD320A 3.2 Cubic Meters Bucket Wheel Loader specification only for your reference, we will recommend other Wheel Loader basic your request.
DEVELON SD320A 3.2 Cubic Meters Bucket Wheel Loader Durability
The DEVELON SD320A loader features a durable shaft design, utilizing more durable materials and technology for gear processing. Equipped with reinforced pins, the hinge pin radius of the six-position operating mechanism is 5-10mm larger than comparable products in the industry. The frame structure was designed and analyzed using 3D CAD and FEM technology, enhancing its strength, durability, and reliability. A new pilot main control valve reduces internal leakage and extends service life. A pilot filter has been added to enhance the reliability of the pilot system.
DEVELON SD320A 3.2 Cubic Meters Bucket Wheel Loader Cabin
The SD320A wheel loader's spacious cab offers excellent visibility and intuitive functionality, ensuring a comfortable working experience. The cab also significantly reduces noise and vibration. A high backrest, deep seat position, dual armrests, and multi-stage spring damping ensure a comfortable operating experience. A clear view from the bottom of the front windshield makes front wheel positioning easier. A 20% increase in heating, ventilation, and air conditioning (HVAC) functionality, along with an entertainment system featuring an MP3 player, radio, SD card, and USB slots, enhances the operator's work environment.
