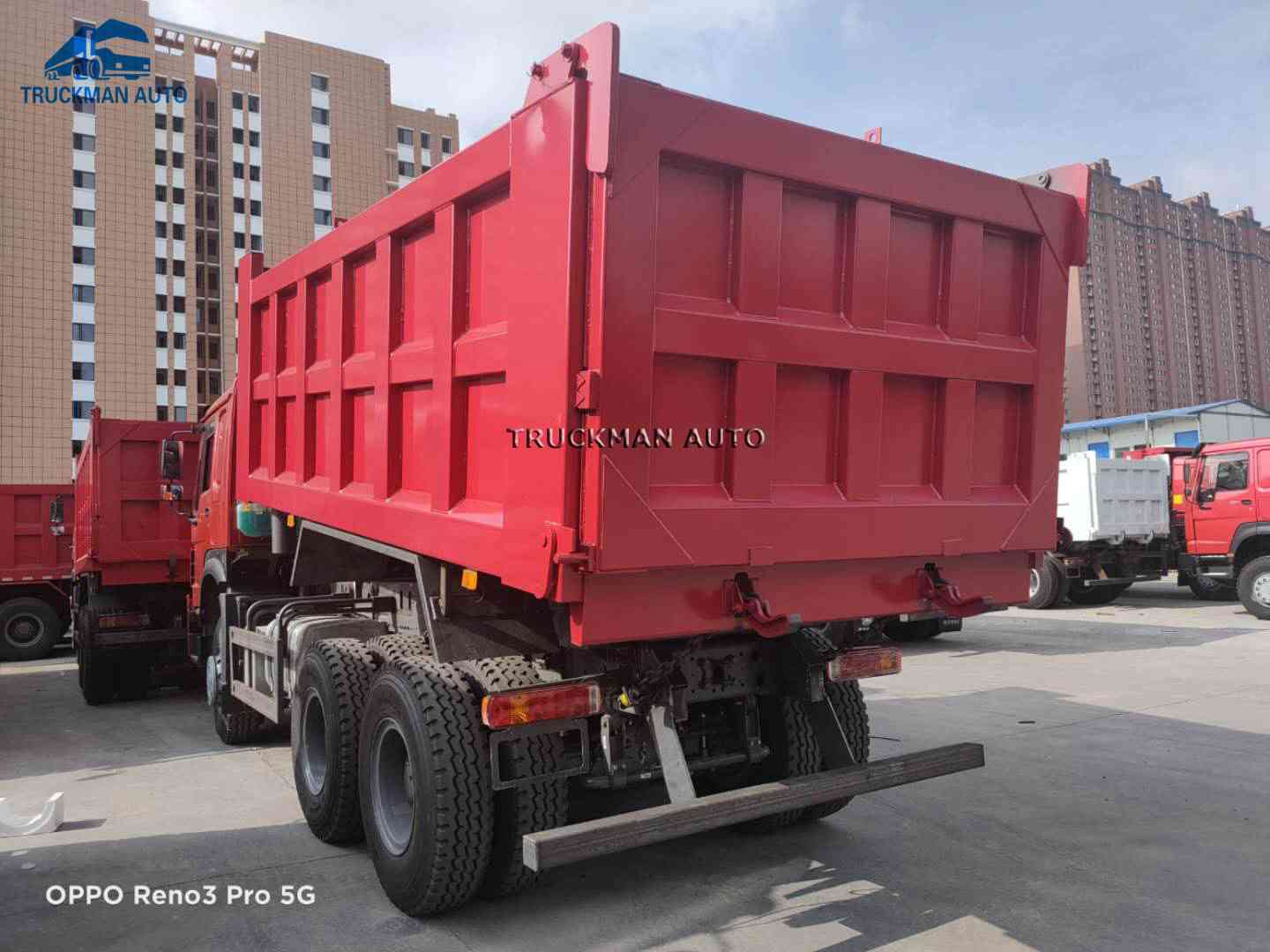

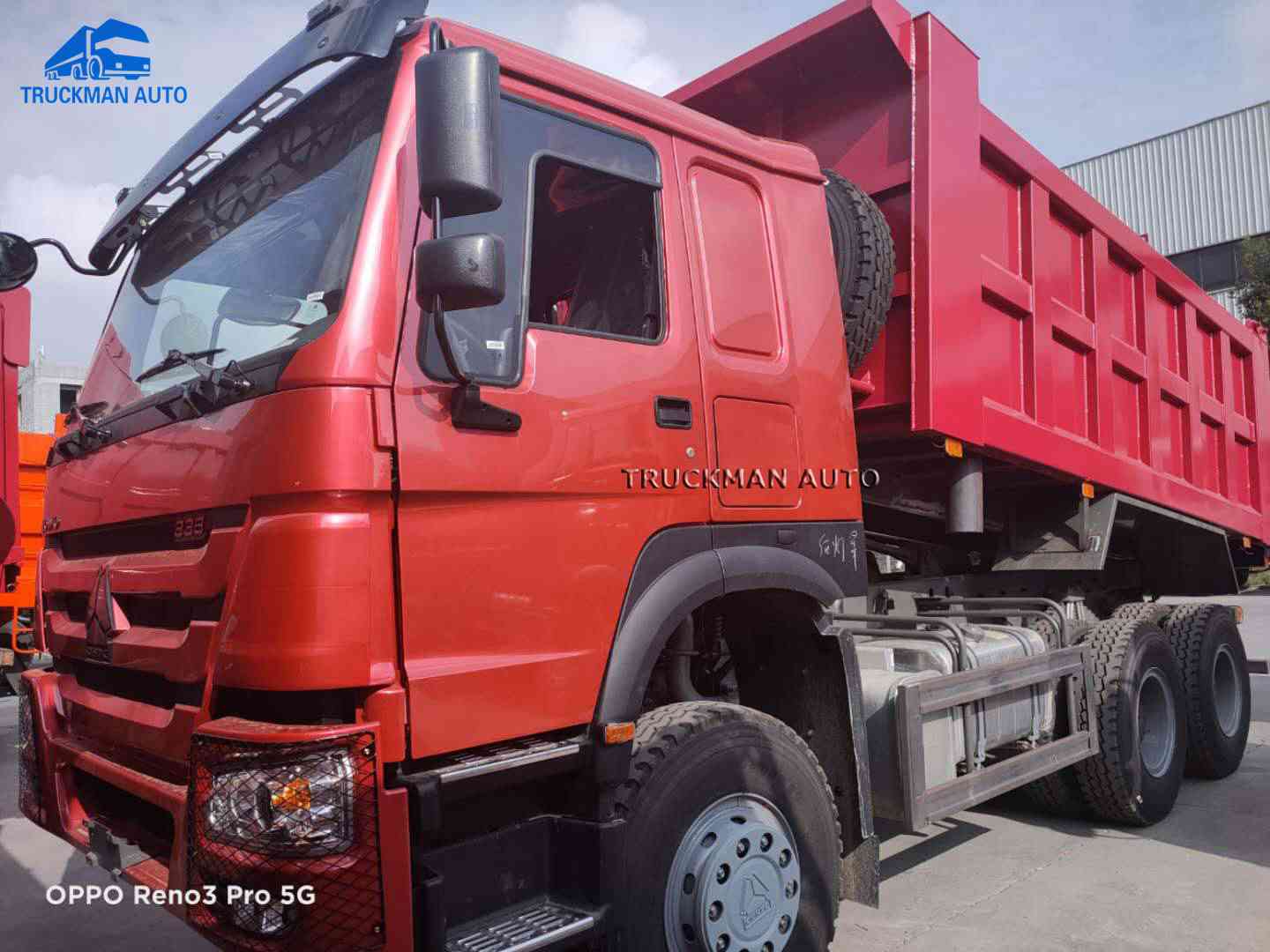

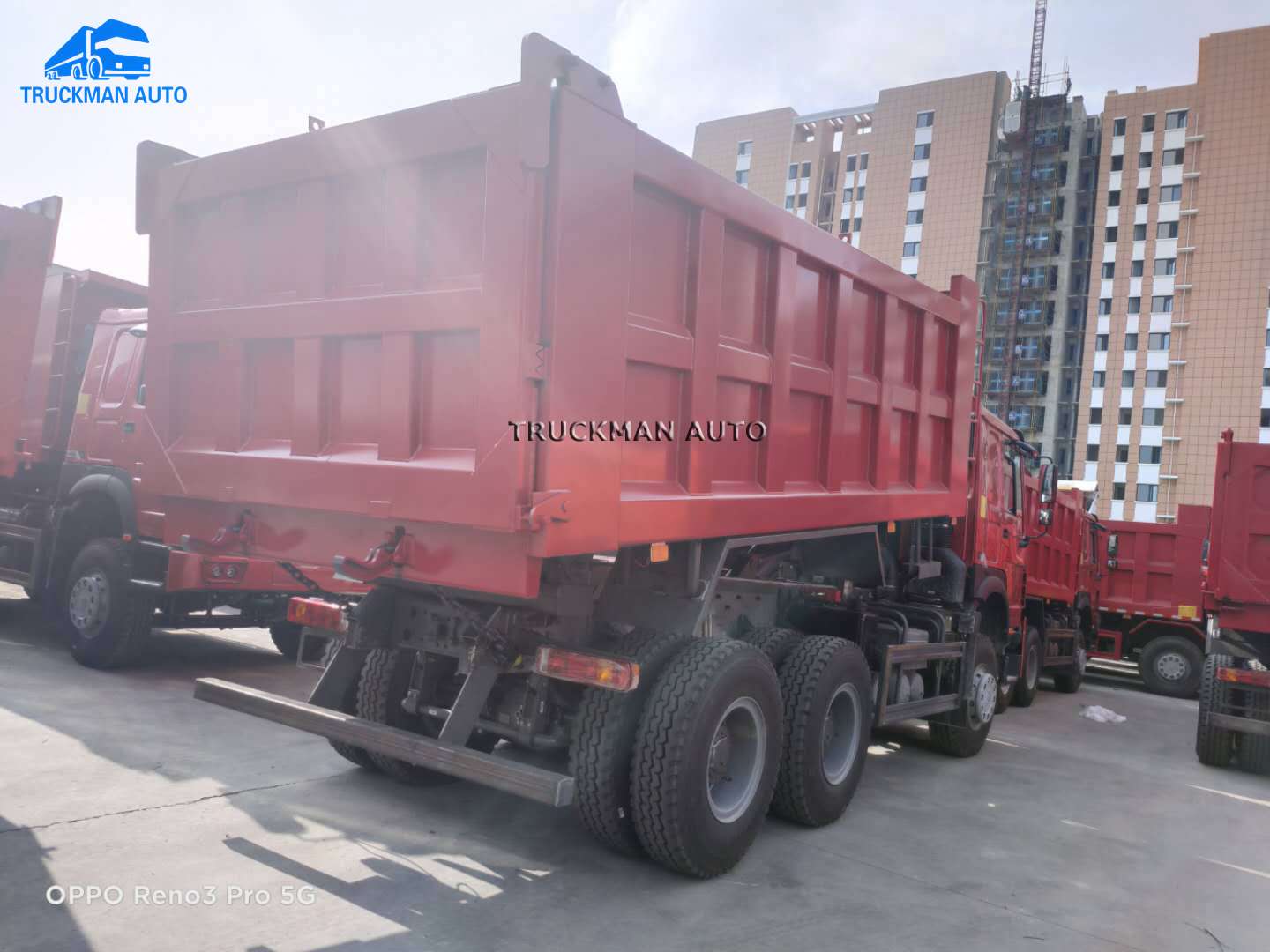

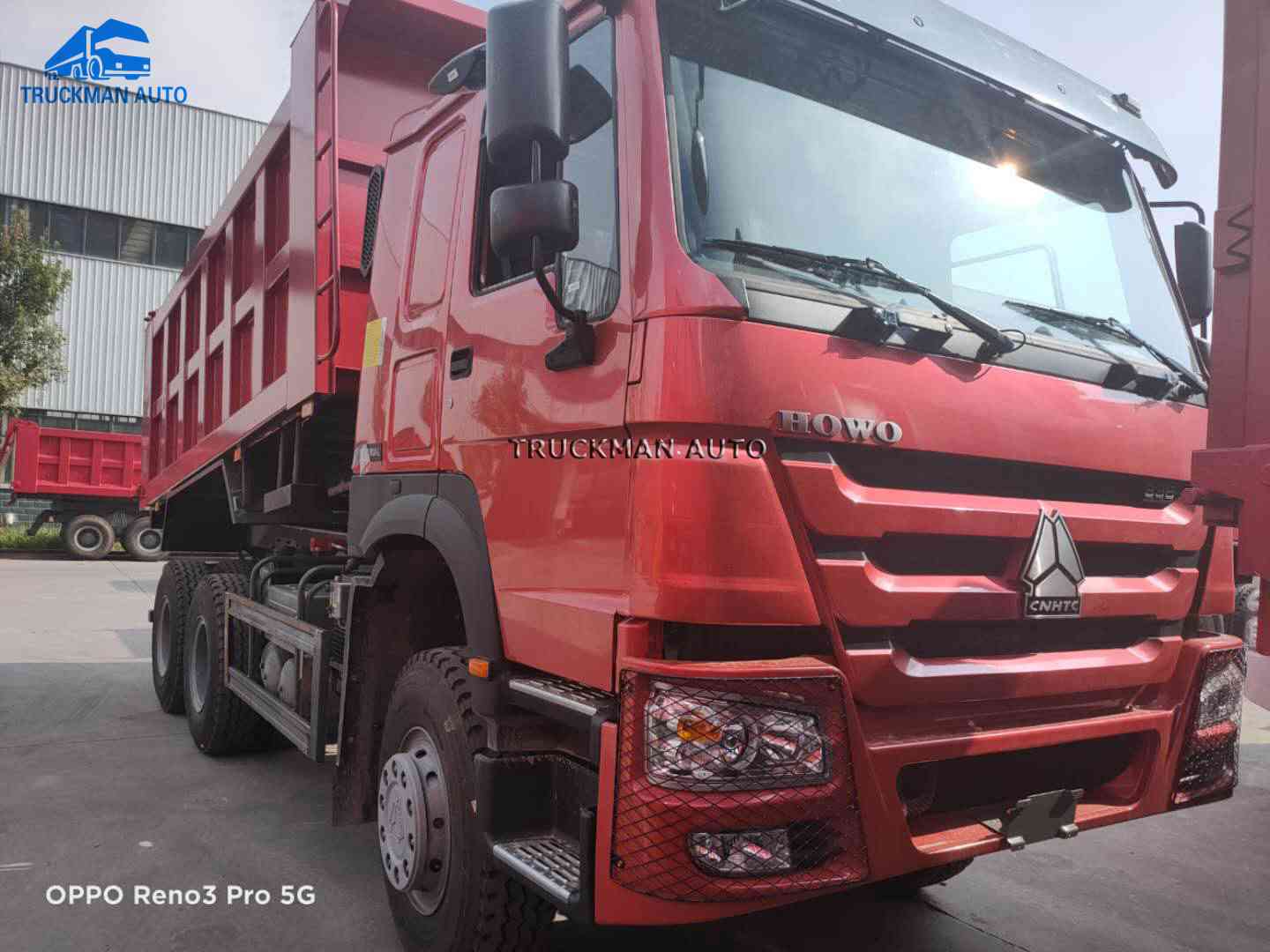

Chinese Brand New 336HP SINO Truck Tipper Truck
-1. Main Information For SINO TRUCK Tipper Truck.
SINO TRUCK tipper truck cargo box is 18m3, transport all kind of sand, gravel, stone etc. and the cargo box material choose the manganese plate, more stronger, adopt the automatic welding. The cargo box size could make it according to your request.
-2. Main Specification For SINO TRUCK Tipper Truck.
|
Model |
SINO TRUCK Tipper Truck |
|
Engine |
WD615.69, 336HP |
|
Cabin |
HW76 cabin, one bed, A/C. |
|
Gearbox |
HW19710, 10 forward and 2 reverse gear |
|
Tire |
12.00R20, 10+1 spare tire, TRIANGLE brand |
|
Cargo Box |
5400x2300x1450mm, 18m3 |
|
Loading Tons |
25-30 Tons |
|
Fuel Tank Capacity |
300L |
|
Max Speed |
75km/h |
|
Warranty |
1 year |

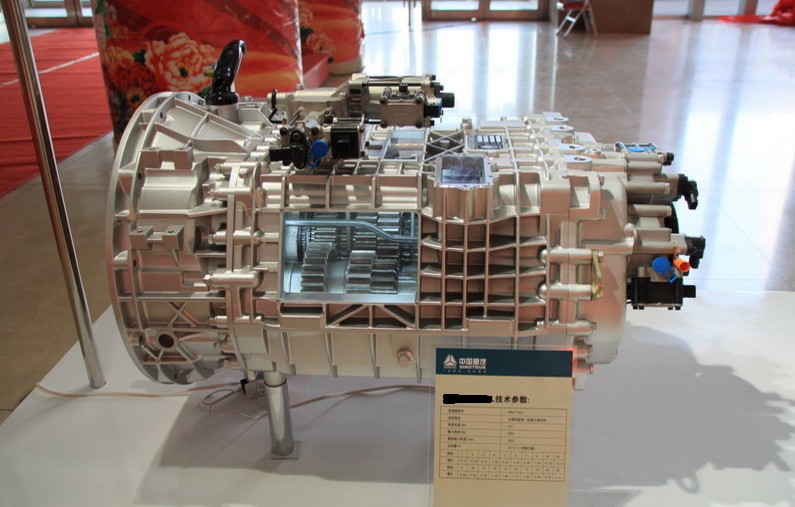

-3. SINO TRUCK Tipper Truck Gearbox Information.
HW19710 Gearbox Detail.
|
Model |
HW19710 |
|
Max.Input Torque |
1900NM |
|
Rated Speed |
2600rpm |
|
Gear |
10 forward and 2 reverse gear |
|
Oil Capacity |
12L |
HW19710 Gearbox Advantage
The HW19710 gearbox with a retarder, which can enable the truck to realize the downhill constant speed function when driving in complex terrain, extend the service life of brake parts and tires, reduce the fatigue strength of the driver, and improve the safety of the vehicle.
