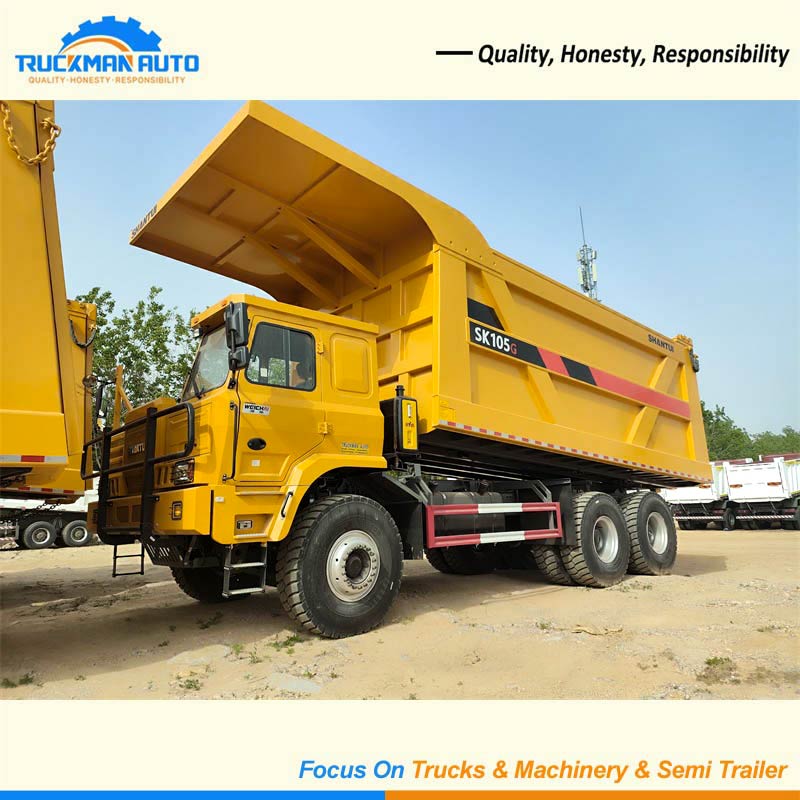

SHANTUI SK105 110-Ton Mining Dump Truck: Unmatched Power for Extreme Haulage



The SHANTUI SK105 110-Ton Mining Dump Truck is engineered to dominate the most demanding mining and heavy-duty haulage environments. With a staggering 70000kg (70-ton) payload capacity and a gross vehicle mass designed for extreme loads, this 10-wheel titan combines brute force from a WEICHAI WP14T high-torque engine with intelligent engineering for superior fuel efficiency, unmatched reliability, and maximum uptime in high-altitude, steep-grade, and high-dust conditions.



---



What Is the SHANTUI SK105 Mining Dump Truck Used For?



The SHANTUI SK105 is used for bulk material hauling in open-pit mining, quarrying, and heavy construction projects where extreme loads and rough terrain conditions are common. Its robust structure and high torque powertrain make it well suited for continuous mining transport tasks with steep gradients up to 33%.



Application Scenarios



The SHANTUI SK105 110 Tons Mining Dump Truck is ideal for:



Open-pit mining material hauling

Large stone and aggregate quarries

Heavy earthwork and infrastructure projects

High-capacity overburden transport

Continuous round-the-clock mining logistics



---



What Are The Key Engineering Features And Technical Specifications Of The SHANTUI SK105 Mining Dump Truck?



Powertrain & Performance



High-Torque WEICHAI Engine

At its core is the WP14TG765E304 engineering-grade diesel engine, delivering a massive 562 kW (753 HP) at 1900 rpm and a peak torque of 2300 N·m. This provides the relentless power needed for fully-loaded uphill hauls.



Optimized Drivetrain

Features an 8DS240A gearbox paired with a large-ratio rear axle and a small-angle driveshaft in a "two small, one large" configuration. This setup maximizes torsional torque transmission, enhances reliability, and improves fuel economy under continuous heavy load.



Exceptional Gradeability

With a 33% maximum climbing grade capability and a top speed of 40 km/h, the SK105 is built to efficiently conquer steep, rugged haul roads commonly found in mining operations.



Durability & Environmental Adaptability



Robust Cooling System

A large-diameter cooling fan coupled with a plate-fin high-capacity cooling module ensures optimal engine temperature control even during sustained high-load operations in high ambient temperatures.



Advanced Air Filtration

The three-stage desert-style air filter offers minimal air resistance, high filtration efficiency, and extended service intervals. This critical feature significantly reduces engine wear and maintenance costs in dusty mining and quarry environments.



Heavy-Duty Construction

Built to SHANTUI's rigorous manufacturing standards, the truck utilizes high-strength materials and durable components throughout its chassis and dump body, ensuring a low failure rate and long service life.





Operational Efficiency & Design

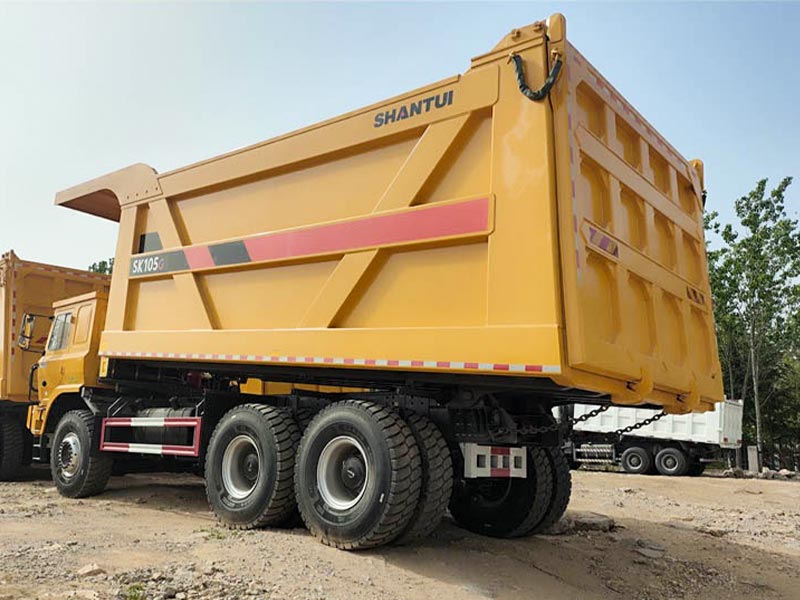

Large Capacity Dump Body

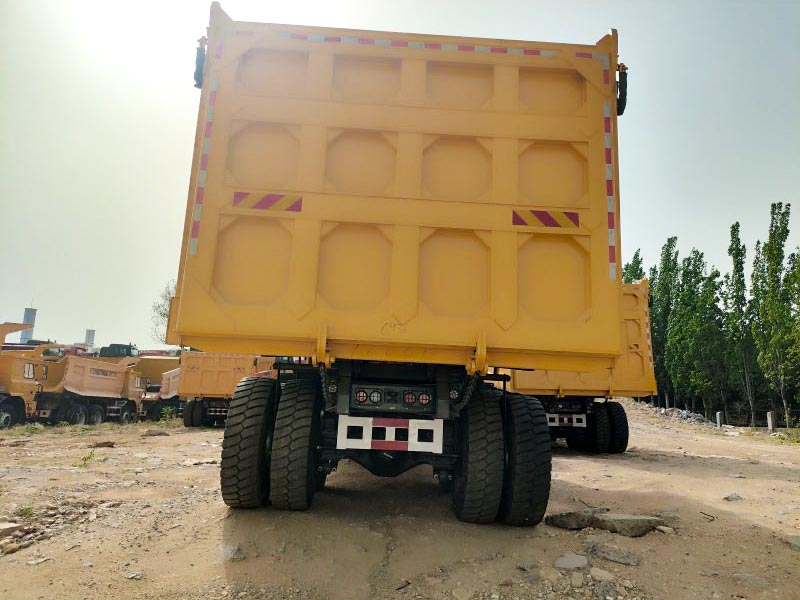

The cargo box offers a 39 m³ struck capacity and 46 m³ heaped capacity, maximizing load volume per cycle to boost productivity.



Extended Operation Support

Equipped with a high-filling port and a high-volume fuel tank to minimize refueling stops, supporting uninterrupted, around-the-clock operation.



Operator-Focused Cabin

The cab provides a spacious, well-sealed, and comfortable environment with excellent visibility, reducing operator fatigue during long shifts in harsh conditions.

---



Detailed Technical Specifications



The table below outlines the core technical specifications of the SHANTUI SK105 Mining Dump Truck.



Category	Specification
Product Name	SHANTUI 10-Wheels Mining Dump Truck
Model	SK105
Payload Capacity	70,000 kg (70 Tons)
Gross Vehicle Weight	37,400 kg (Curb Weight)
Overall Dimension (LxWxH)	9500 x 3760 x 4250 mm
Wheelbase	3950 + 1750 mm
Minimum Ground Clearance	375 mm
Maximum Speed	40 km/h
Maximum Gradeability	33%
Engine Model	WEICHAI WP14TG765E304
Rated Power	562 kW / 1900 rpm
Transmission Model	FAST 8DS240A Gearbox
Cargo Box Capacity	39 m³ (Struck) / 46 m³ (Heaped)
Tire	16.00R25 mining tire



Note: Specifications are for the standard model. We provide customized solutions and can recommend other mining truck models based on your specific material density, haul road profile, and production targets.



Contact Us

Directly to receive full specifications, pricing, and shipping solutions.

We will recommend the most suitable configuration based on the local market conditions in your area.



Related Mining Dump Trucks You May Be Interested In



SHANTUI SK120G 10 Wheels 80 Tons Mining Dump Truck

SINOTRUK 60 Tons Mining Dump Truck

Other Mining Dump Truck Models

---



Why Choose the SHANTUI SK105 for Mining Projects?



You should choose the SK105 because it combines:



Powerful WEICHAI diesel engine with high torque and fuel efficiency

Robust frame and high-strength suspension for heavy-duty cyclic operations

Efficient cooling and desert-style filtration for long work cycles

High climb performance and stable operation on uneven terrain

Large cargo body to maximize payload per cycle



This combination delivers reliable, long-term performance with lower operational costs, making SK105 a cost-effective choice for mining and quarry fleets.



---



Frequently Asked Questions (FAQ)



Q1: What makes the SHANTUI SK105 suitable for extreme mining conditions?

Its combination of a high-torque 562kW engine, 33% gradeability, and a desert-grade air filtration system makes it uniquely capable. It is engineered to maintain power on steep climbs, operate reliably in intense dust, and withstand the vibrations of rugged haul roads.



Q2: Can the truck operate continuously in harsh environments?

Yes, the advanced cooling system and rugged design allow continuous high-intensity operations in hot, dusty mine conditions.



Q3: How does the "two small, one large" drivetrain design benefit operations?

This design, utilizing a small-ratio gearbox, large-ratio rear axle, and small-angle driveshaft, maximizes torque delivery to the wheels while reducing stress on components. The result is enhanced traction for heavy loads, improved fuel efficiency, and greater overall drivetrain reliability and longevity.



Q4: What are the key features that reduce maintenance costs?

Three primary features drastically cut downtime and cost: the high-efficiency three-stage air filter (protects the engine), the oversized cooling system (prevents overheating), and the use of universally durable components throughout the chassis and hydraulics, which are easy to service and source.



Q5: Can this truck be configured for different materials or site requirements?

Yes. While the SK105 is a superb standard platform, we can discuss body liner options for abrasive materials, tire choices for specific ground conditions, and other site-specific adaptations to optimize performance and lifespan for your unique operation.



Q6: Is spare parts and service support available?

Yes, global spare parts supply and technical support are available through SHANTUI dealer networks.
