SINO TRUCK 371HP 50 Ton HOWO Dump Truck For Guinea
-. Main Information For 50 Ton HOWO Dump Truck.

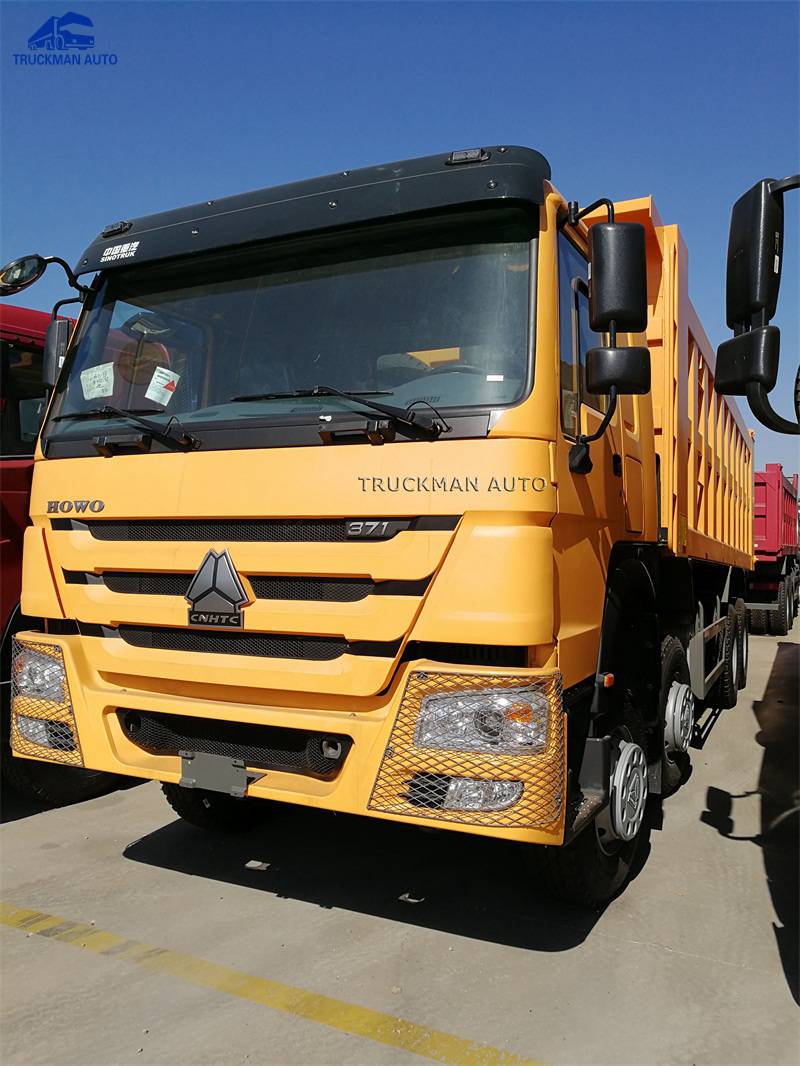

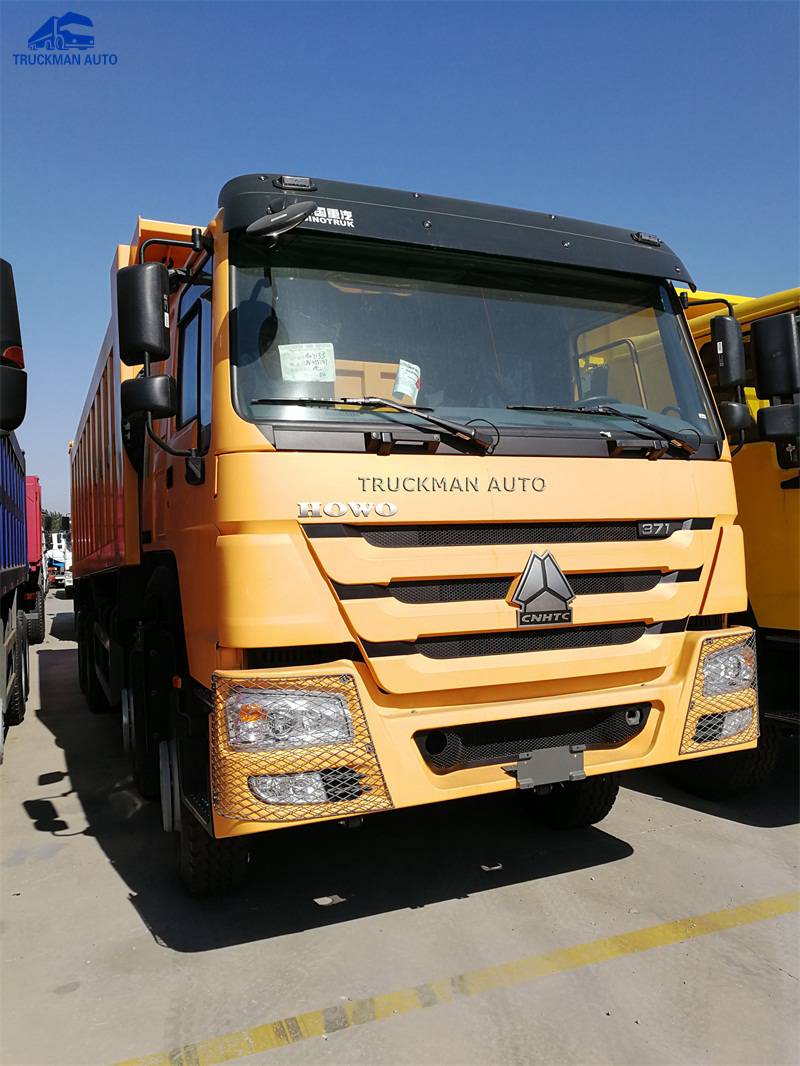

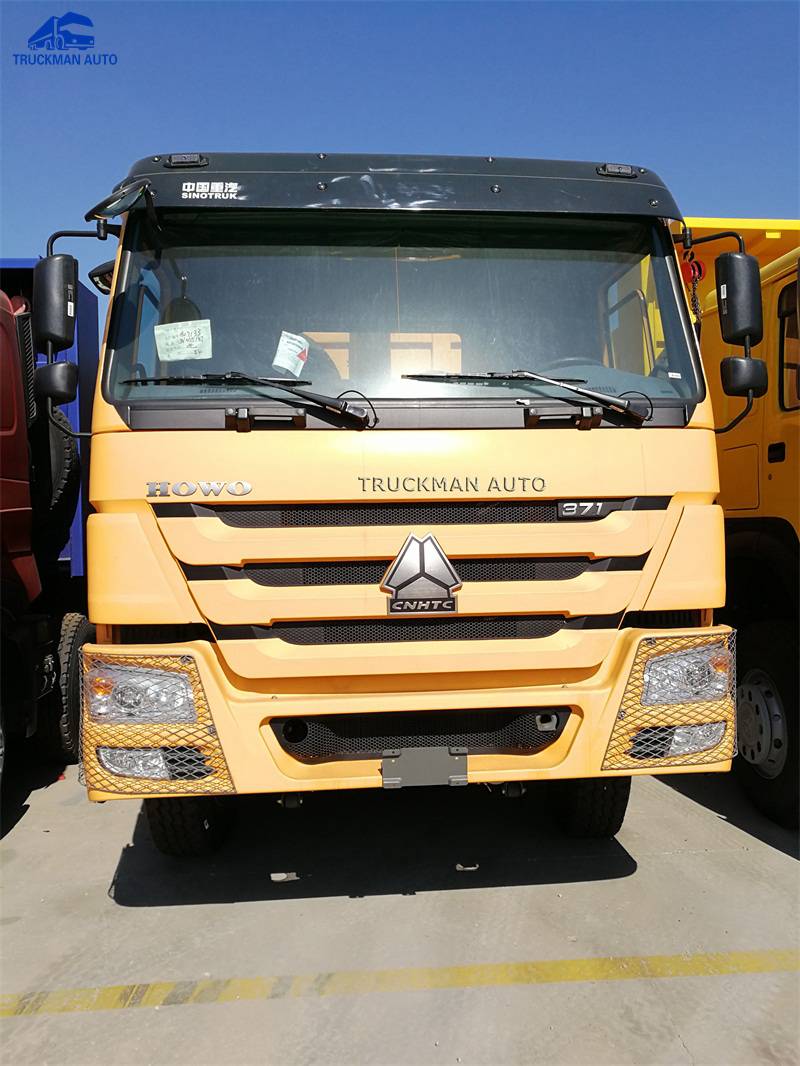

50 Ton HOWO dump truck used for mining business, transport the bauxite, manganese ore etc material in Guinea. The details and picture of 50 ton HOWO dump truck as follow:

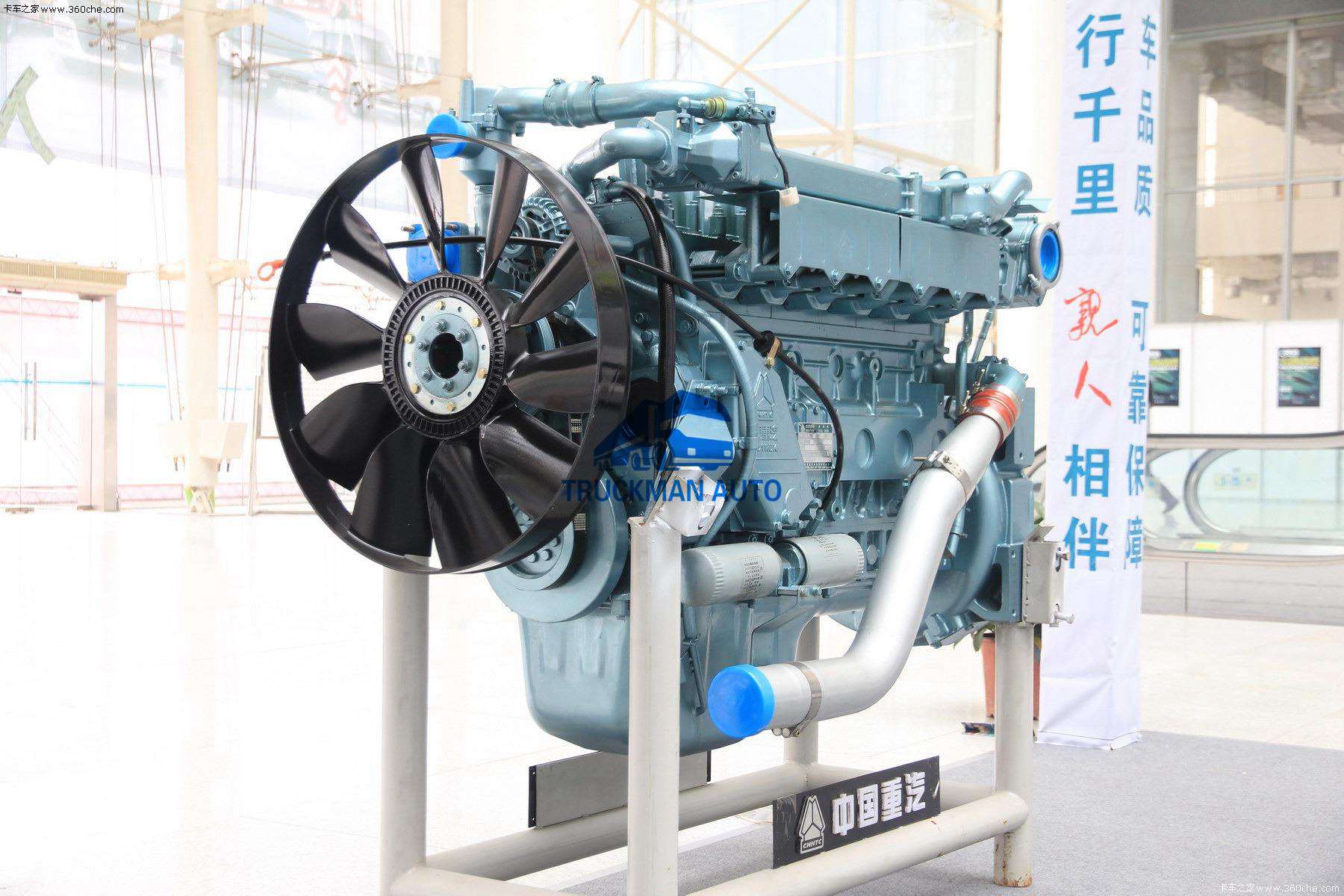

-. Engine - WD615.47
With 371HP engine, The engine also add the EVB (exhaust valve brake) improve the braking safety !

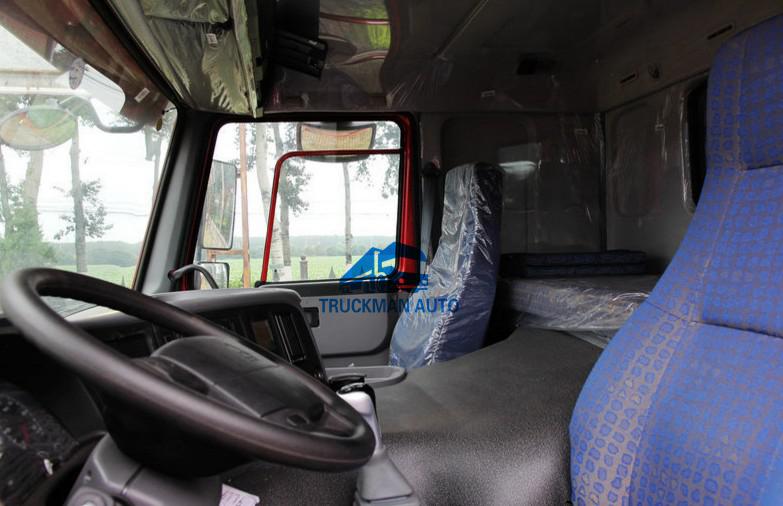

-. Cabin - HW76
HW76, with one bed, A/C. Drive seat could option the air suspension

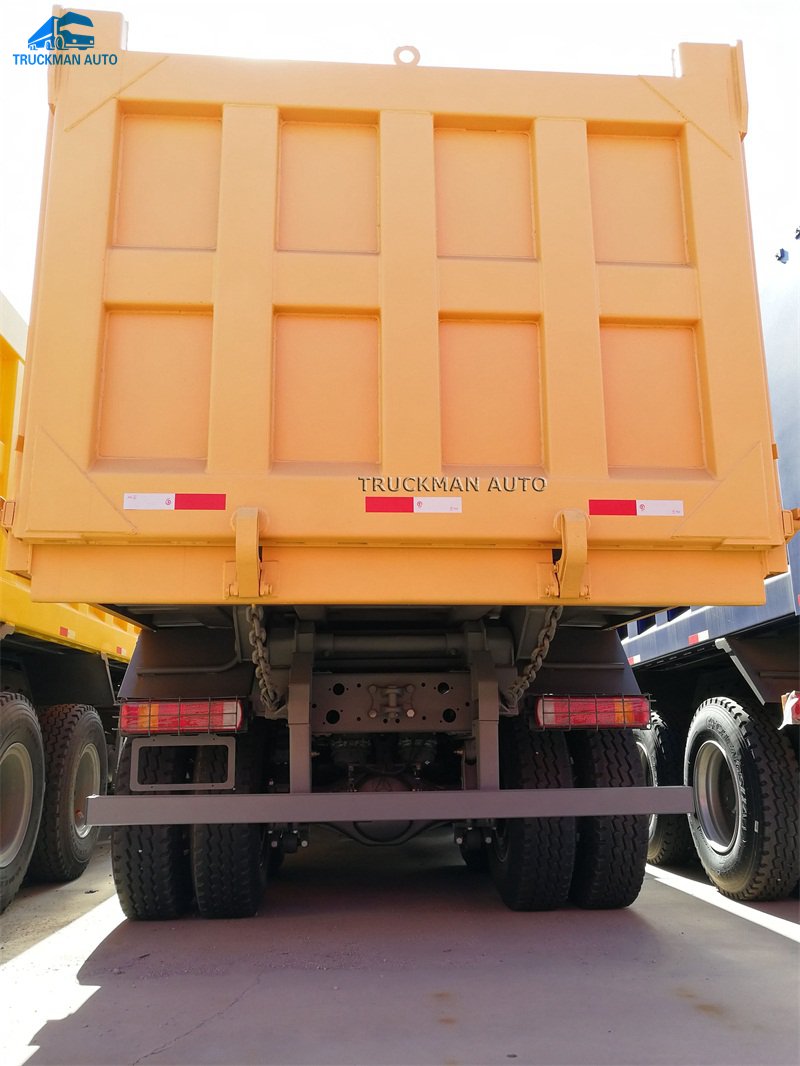

-. Cargo Box - Manganese Plate
7000x2300x1500mm, bottom 8mm side 6mm, HYVA brand front lifting system

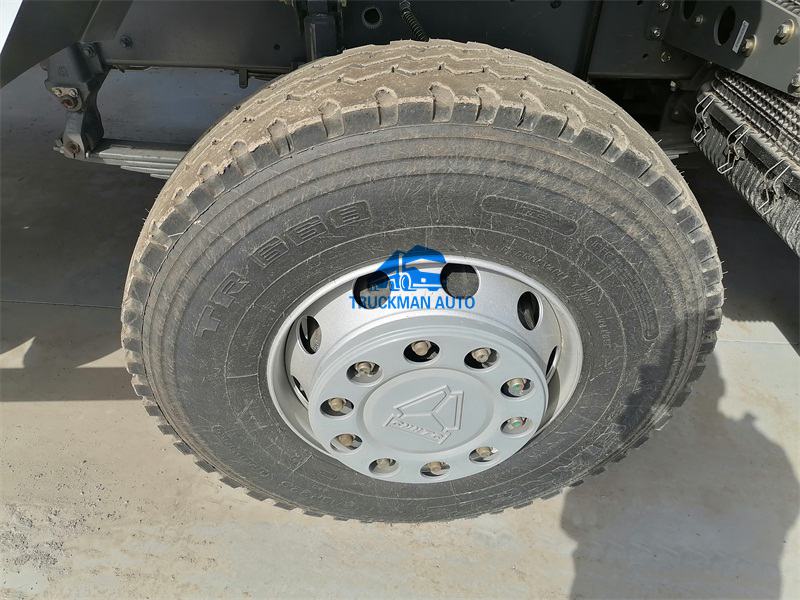

-. Tire - Tubeless Model
13R22.5 tubeless tire for hot work condition needed.
-. Main Specification For 50 Ton HOWO Dump Truck.
|
Product Name |
50 Ton HOWO Dump Truck |
|
Chassis Model |
ZZ3317N3567W |
|
Driving Type |
LHD (RHD is optional) |
|
Cabin |
HW76 cabin with one sleeper |
|
Engine |
WD615.47, 371HP, with EVB |
|
Transmission |
HW19710, 10 forward and 2 reverse gear |
|
Front Axle |
9 Tons |
|
Rear Axle |
16 Tons |
|
Tyres |
13R22.5, TRIANGLE brand, tubeless tire, 12+1 pcs |
|
Fuel Tank |
300L |
|
Cargo Body |
7000*2300*1500mm, Floor 8mm Side 6mm |
|
Overall Dimension |
10500×2500×3450mm |
