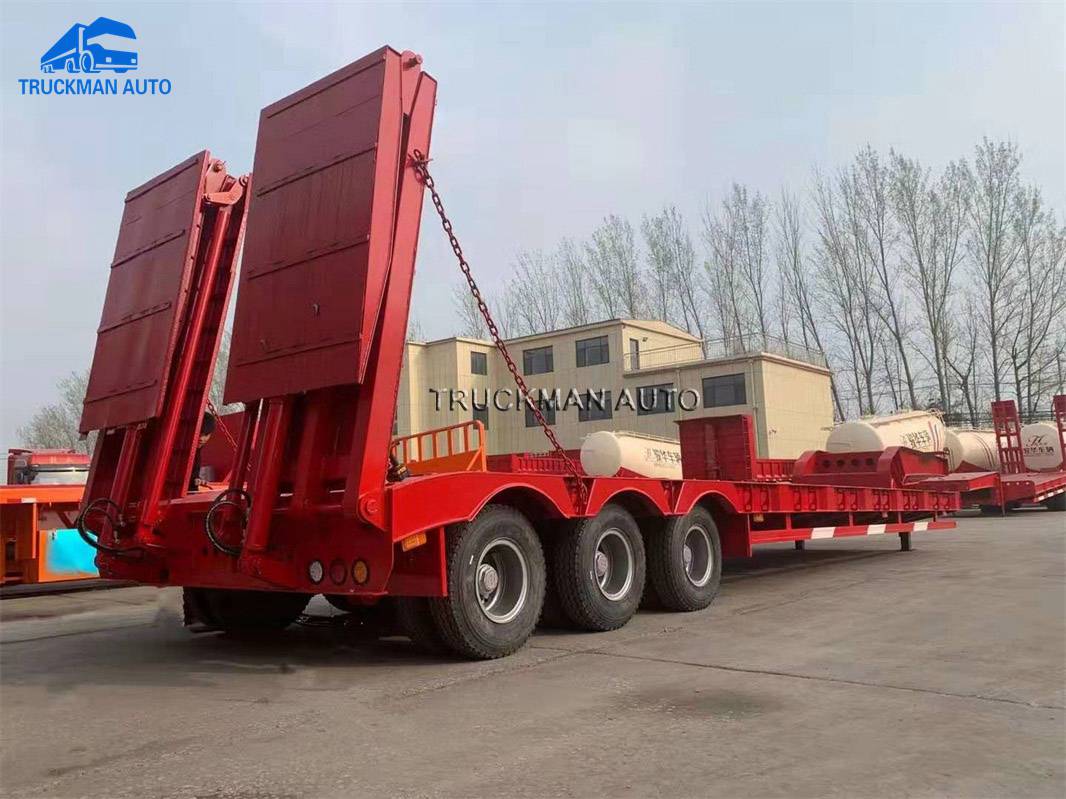

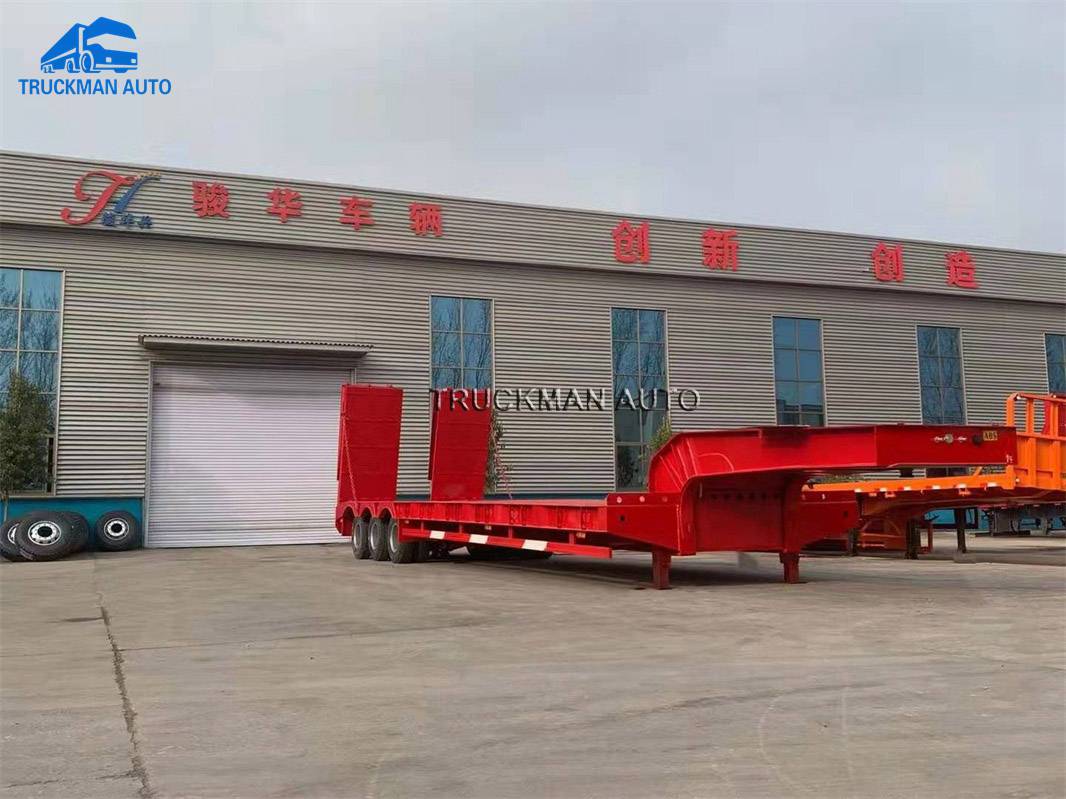

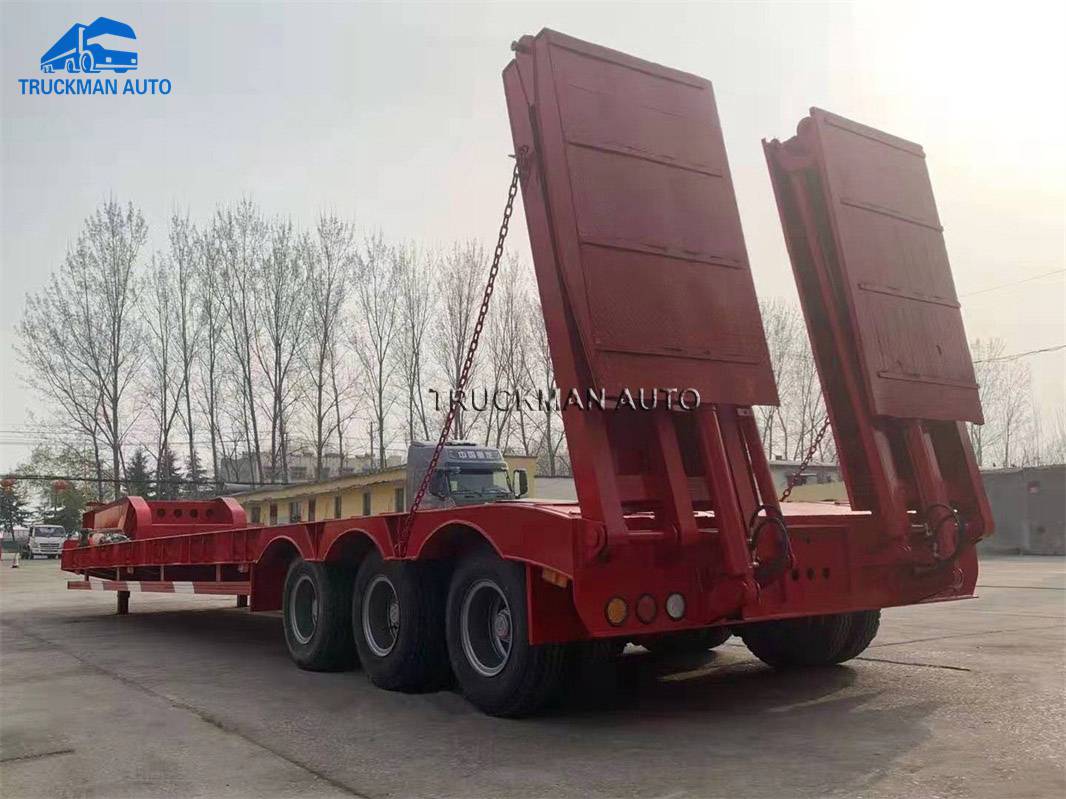

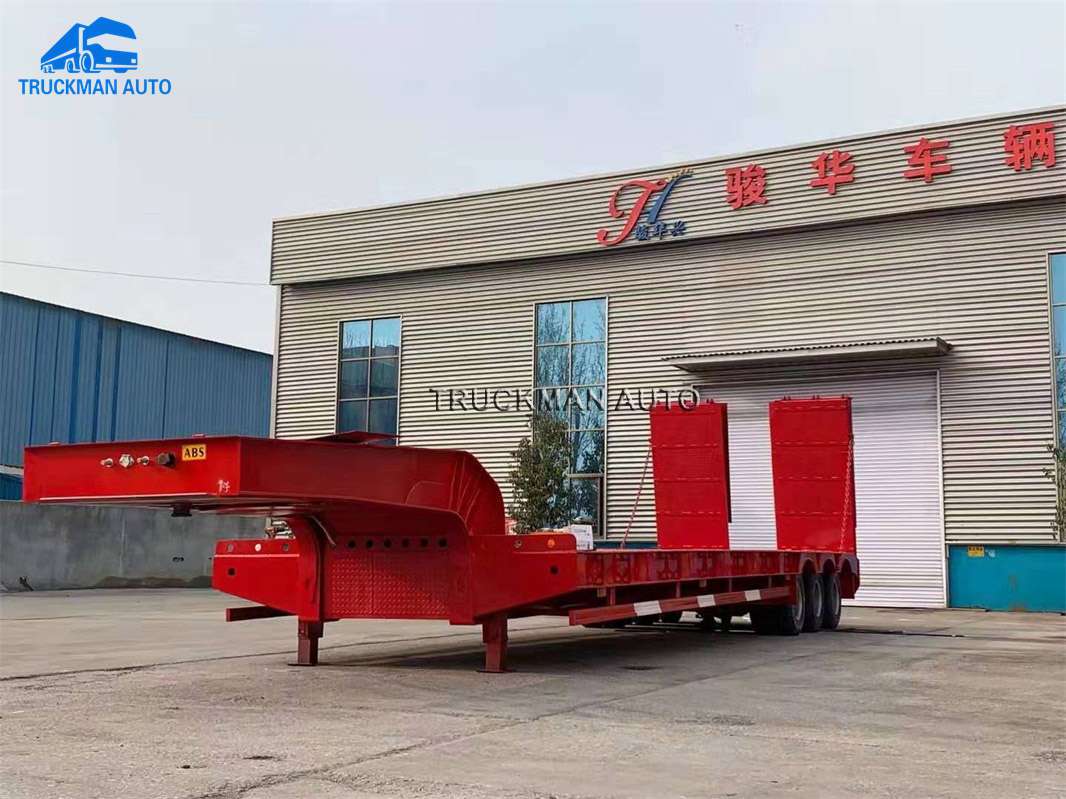

TRUCKMAN AUTO New Model 60 Tons Lowboy Semi Trailer With Warranty
-1. Lowboy Semi Trailer Main Advantage.
-. checkered board avoid the slip when transport machinery
-. Stronger hooks tie up the machinery, more safety.
-. All wires are bundled together for easy maintenance and neat.
-. Main parts work with famous brand factory and adopt the automatic welding.
-2. Lowboy Semi Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
Lowboy Semi Trailer |
|
Loading Weight |
60,000kg |
|
Tare Weight |
11,000kg |
|
Axle |
3 axle, 3x13 tons |
|
Suspension |
America type, 8mm thickness |
|
Leaf Spring |
90x16mmx10pcsx6sets |
|
Rim |
16mm thickness |
|
Tire |
12R22.5, 12 pcs |
|
Brake System |
WABCO brand, ABS and 6 pcs brake chamber |
|
Thickness Of Frame |
Upper plate 16mm, middle 8mm lower plate 18mm, “I” type main beam |
|
Material |
T700, high strength steel |
|
Dimension |
13000x3000x3100mm |
The specification is only for reference, we could design the lowboy semi trailer according to your request.

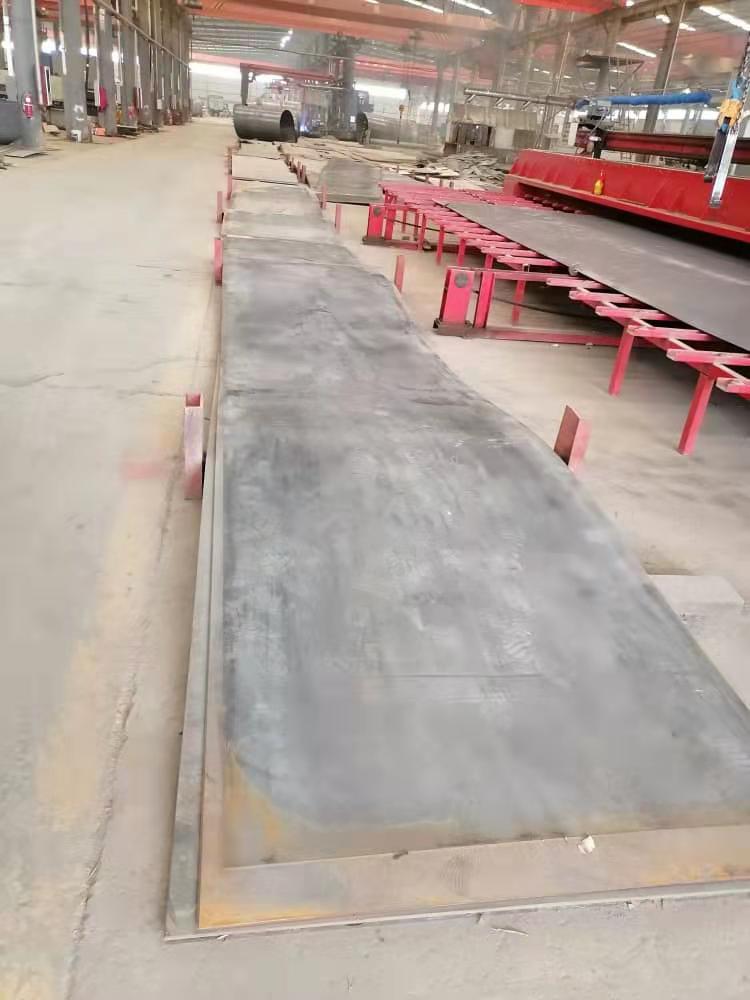

-3. Lowboy Semi Trailer Material.
Lowboy semi trailer material could optional the Q345 and T700 or other model steel. T700 now is very popular model steel for semi trailer production, the yield strength: above 620MPa, tensile strength: 700MPa or more.
