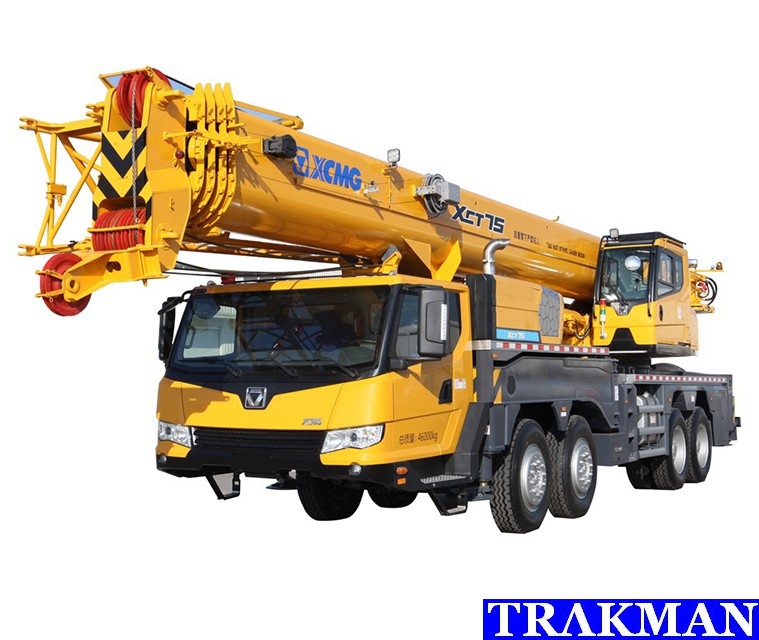

XCMG 75 Ton Hydraulic Truck Mounted Crane
-1. XCMG 75 Ton hydraulic truck mounted crane
-. Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.
-. Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
-. Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.
-. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.
|
Description |
Unit |
Parameter value |
|
|
Overall length |
mm |
13900 |
|
|
Overall width |
mm |
2800 |
|
|
Overall Height |
mm |
3575 |
|
|
Axle base |
1st ,2nd axle |
mm |
1470 |
|
2nd ,3rd axle |
4105 |
||
|
3rd ,4th axle |
1350 |
||
|
Wheel Base |
mm |
2304+2075 |
|
|
Total vehicle mass in travel configuration |
kg |
43000 (not including auxiliary counterweight of 1t) |
|
|
Axle load |
1st and 2nd Axle |
kg |
17000 |
|
3rd and 4th Axle |
26000 |
||
|
Engine Model |
|
WD615.338 |
|
|
Engine rated power |
kw/(r/min) |
276/2200 |
|
|
Engine rated torque |
N.m/(r/min) |
1500/1400 |
|
|
Engine rated rotational speed |
r/min |
2100 |
|
|
Max. travel speed |
km/h |
80 |
|
|
Min. steady travel speed |
km/h |
3 |
|
|
Min. turning diameter |
m |
24 |
|
|
Min. turning diameter at boom tip |
m |
29 |
|
|
Min. ground clearance |
mm |
327 |
|
|
Max. grade ability |
% |
40 |
|
|
Approach angle |
° |
19 |
|

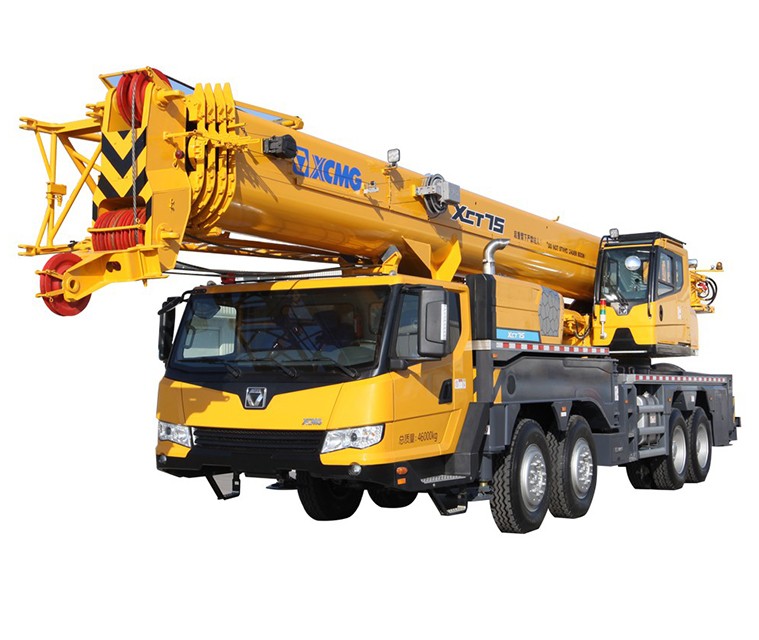

-2. Picture For Reference.
-3. Detail Picture.

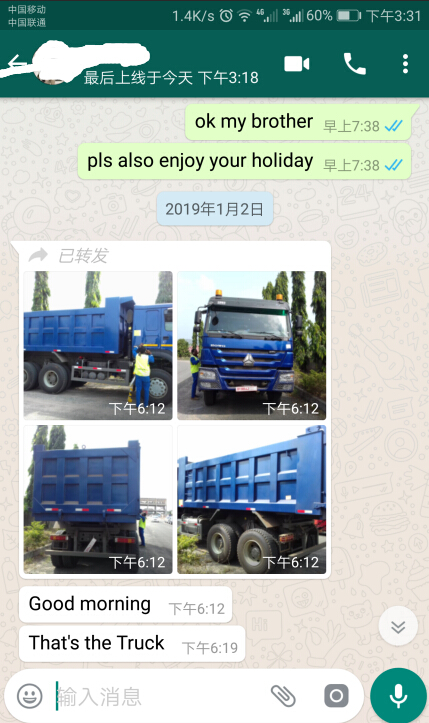

-4. Customer’s Feedback.
