XCMG XE470D 47 Tons Crawler Excavator
-1. XCMG XE470D 47 Ton Crawler Excavator
-. The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
-. The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
-. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
-. The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.
|
Description |
Unit |
Parameter value |
|
|
Operating weight |
Kg |
46900 |
|
|
Bucket capacity |
m³ |
2.2-2.5 |
|
|
Main performance |
Travel speed(H/L) |
km/h |
5.4/3.2 |
|
Rotating speed |
r/min |
9 |
|
|
Gradeability |
° |
70 |
|
|
Ground pressure |
kPa |
83 |
|
|
Bucket digging force |
kN |
287 |
|
|
Arm crowd force |
kN |
221 |
|
|
Maximum traction |
kN |
338 |
|
|
Appearance size |
Dimension (LxWxH) |
mm |
12090x3582x3860 |
|
Width of platform |
mm |
2995 |
|
|
Length of crawler |
mm |
5353 |
|
|
Overall width of chassis |
mm |
3582 |
|
|
Width of crawler |
mm |
600 |
|
|
Crawler gauge |
mm |
2750 |
|
|
Clearance under counterweight |
mm |
1324 |
|
|
Min. ground clearance |
mm |
519 |
|
|
Dozer blade width/height |
mm |
1920/340 |
|
|
Working scope |
Max. digging height |
mm |
10812 |
|
Max. dumping height |
mm |
7533 |
|
|
Max. digging depth |
mm |
7881 |
|
|
Max. vertical wall digging depth |
mm |
6870 |
|
|
Min. swing radius |
mm |
4802 |
|
|
Max. digging reach |
mm |
12066 |
|

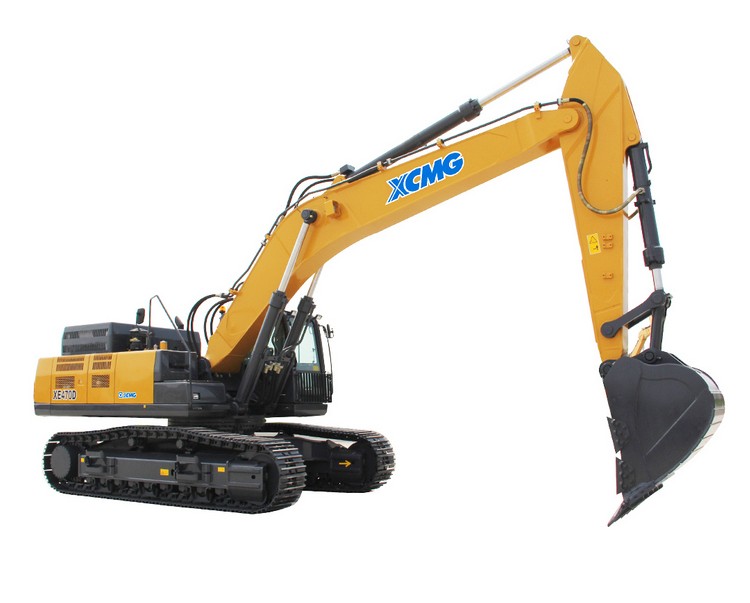

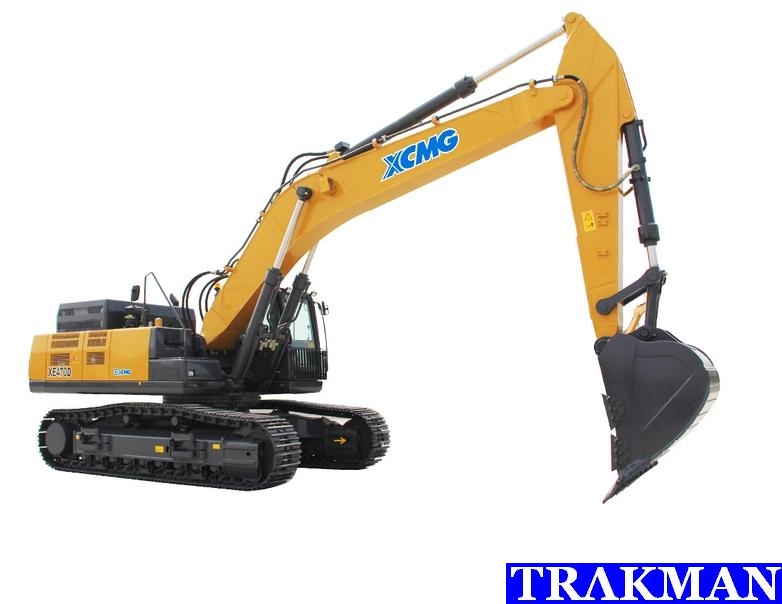

-2. Picture For Reference.

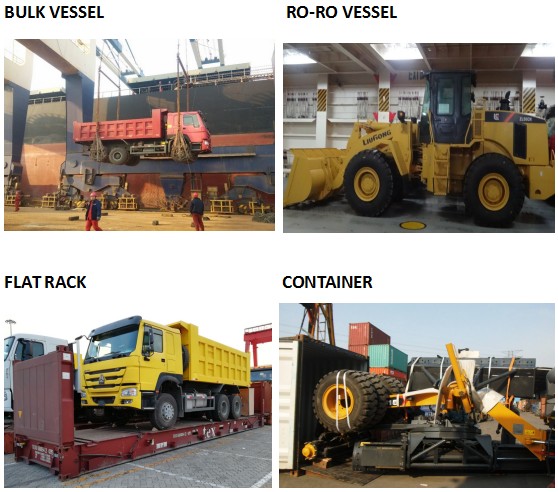

-3. Shipment Picture.
Now our machinery could adopt the RO-RO, BULK, FRAME Vessel, we will recommend to you according to your request.
-4. After Sales Service.
Now Our company built one big spare parts warehouse for our customer's machinery, all parts could arrange DHL or TNT as soon.In addition, we also could arrange the engineer for the maintenance.
