Against the backdrop of rapid development in Africa’s mining and infrastructure sectors, demand for heavy equipment transportation continues to grow, copper-cobalt mines in the Democratic Republic of the Congo, wind farms and the Mombasa-Nairobi Railway in Kenya, oil fields in Nigeria, industrial parks in Ethiopia, etc. The transportation of heavy equipment, including excavators, bulldozers, transformers, and drilling machine, is heavily dependent on low bed semi trailers.



However, the African continent is vast in area, and its road network shows significant north-south division and regional differences, these include high-quality, well-maintained highways in countries such as Namibia, South Africa, and Morocco, as well as unpaved roads in countries like Benin and Nigeria, where the pavement coverage rate is less than 20%, and even rugged access roads and steep inclines in mining areas and construction sites, this is undoubtedly a huge challenge for low bed semi trailers, which are the core equipment for infrastructure construction, mineral transportation, and heavy equipment transfer in Africa.





The Transportation Situation in Africa



Road Conditions Vary Greatly

The conditions of the main roads continue to improve, but the "last few kilometers" leading to construction sites are often unpaved roads, with common red soil surfaces, which become slippery when wet, deep ruts, and steep sections where water is crossed.



Harsh Climate and Environment

Intense ultraviolet radiation accelerates the aging of cables and rubber components.

High humidity in coastal areas such as Mombasa, Dar es Salaam, and Douala exacerbates corrosion.

Inland regions are subject to persistent dust and sand intrusion.



Harsh Operating Conditions

Actual loads often exceed the rated load by 20% to 50%.



Limited Maintenance Conditions

Professional maintenance resources are scarce, so semi trailers must be designed to be repairable in remote areas using only basic welding and mechanical repair methods.



Policy Differences

Countries have different regulations on axle load, dimensions, and emission standards.



These factors collectively constitute the ultimate test for transportation equipment, and standard configurations low bed semi trailers often develop serious malfunctions within 6 - 12 months. therefore, low bed semi trailers intended for the African market must undergo a systematic redesign.

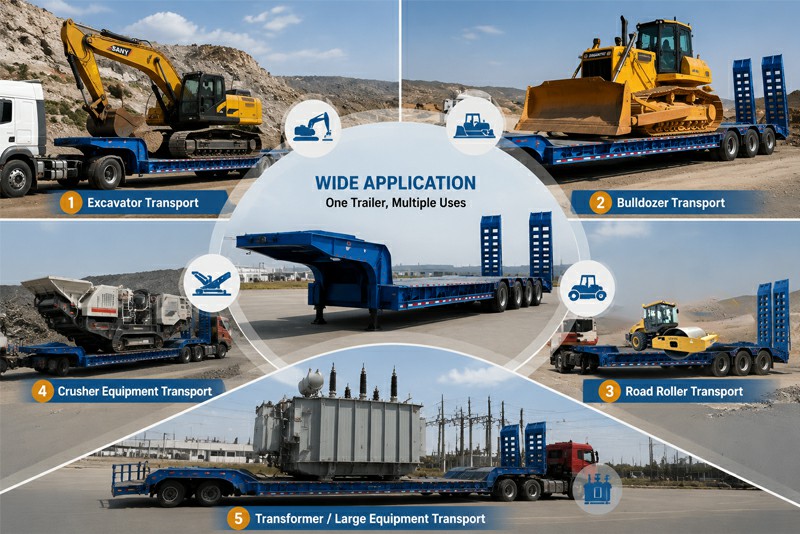

Application Scenarios



Low bed semi trailers are widely used in:



Transportation of mining equipment

Excavator

Crushing Equipment

Drilling Machine



Engineering machinery transportation

Bulldozer

Road Roller

Loader



Transportation of large-scale equipment

Power Generation Equipment

Factory Equipment

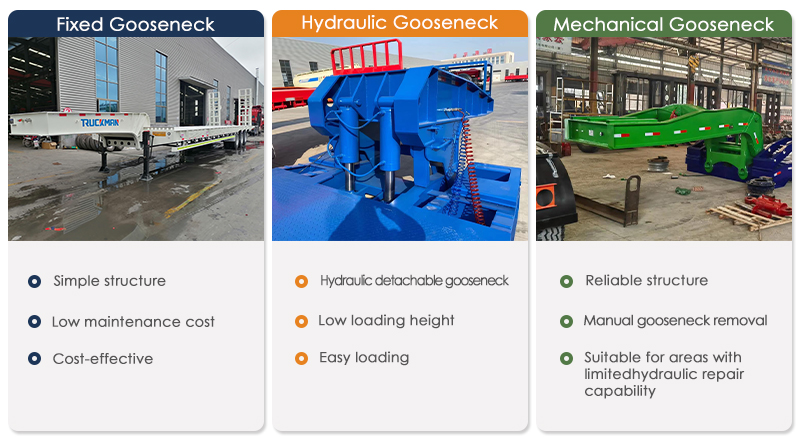

Low Bed Semi Trailer Types



Fixed Gooseneck Low bed Semi Trailer

Suitable for general engineering construction (excavators, loaders). The structure is simple, has low maintenance costs, and is cost-effective.



Hydraulic Gooseneck Low Bed Semi Trailer

The gooseneck is detachable, allowing the platform to be lowered to the ground so that tracked or wheeled equipment can drive on and off on its own, recommended for loads of 30 tons or more.



Mechanical Gooseneck Low Bed Semi Trailer

A choice that lies between the two mentioned above. It is highly reliable, but disassembling the gooseneck requires manual operation, suitable for use in areas with limited hydraulic repair capabilities.





Analysis of Key Technical Specifications



Axle Configuration

The number of axles and the suspension configuration directly affect the service life of the semi trailer.

The following table compares axles and load capacities:



Configuration	Load Range	Best Application Scenarios	Durability Information
Three Axles	50-80 tons	General engineering construction, highway transportation	Suitable for use on highways. On soft ground, the ground pressure is high
Four Axles	80-120 tons	Mining, large-scale earthwork projects	The weight distribution is better. It should be noted whether the turning radius is suitable for the roads in the African jungle.
More than four Axles	100-150 tons	Transportation of Heavy-Duty Mining and Power Transformers	Long goods have excellent maneuverability. Essential for oversize transportation.



Recommended Axles

For axle brand recommendations, well-known brands such as FUWA and BPW are suggested. For the African market, 3-axle and 4-axle axles are recommended.



Load Capacity

For the African market, it is recommended to choose: 80T–100T.



Suspension System

Mechanical suspension (leaf springs): Offers high overload capacity and can be repaired by any local welder or mechanic.

Air suspension: It provides effective shock absorption for delicate cargo (such as transformers), but it requires a clean air system and special accessories, which are difficult to obtain outside major cities, therefore, it should be selected with caution.

Mechanical suspension is recommended for the African market.



Tire Specifications

Tire Type: Radial tires (12.00R20 / 315/80R22.5, Level ≥ 18) are preferable for unpaved roads. Featuring deep treads and thickened sidewalls, they deliver excellent wear and puncture resistance for gravel and muddy roads to reduce flat tires. 1-2 spare tires are recommended.

Spare Tire Recommendations: Standardize fleet tire sizes to simplify spare parts management, avoiding mixed-spec tires common in remote areas.

Tire Pressure Management: Equip portable inflators and extended valve stem tubes. Properly lower tire pressure for soft sand and muddy sections to improve trafficability.

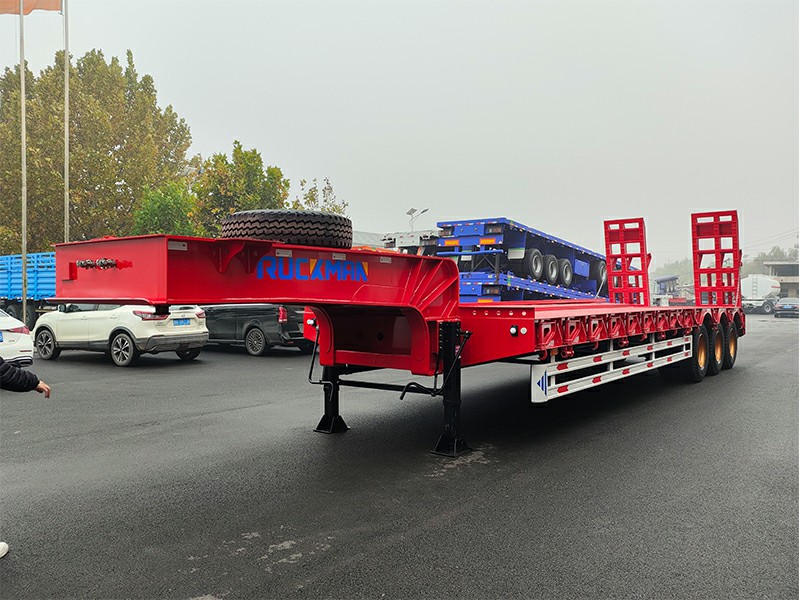

3 Axles 80 Tons Low Bed Semi Trailer

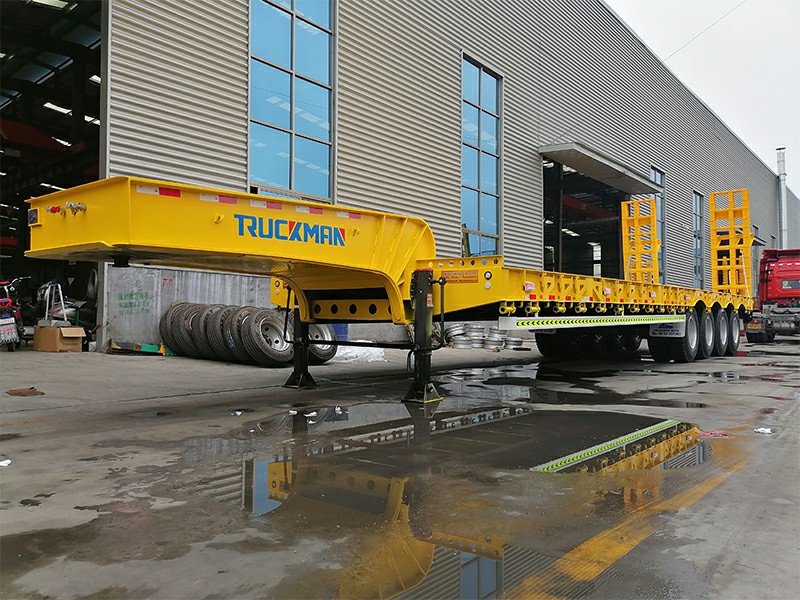

4 Axles 90 Tons Low Bed Semi Trailer



Scenario-based Load Matching



When selecting a low-bed semi trailer in Africa, the process must begin with a clear understanding of the specific transportation scenario, avoid the mistake of “overkill” or “bite off more than it can chew”:



Transportation Scenarios	Typical Loads	Key Requirements	Recommended Configuration
Transportation of Minerals and Heavy Equipment	32–100 tons	high load-bearing capacity, torsional rigidity	high strength steel double layer main beams, low center of gravity cargo deck, telescoping design
Transportation for Infrastructure Projects	20–60 tons	universality, load redundancy	3 axles standard configuration, reinforced chassis, anti slip cargo platform
General Logistics and Transportation	10–30 tons	lightweight, compliance	standard number of axles, container adapters, and air suspension available as options



Regional road condition adaptation

Transportation conditions vary drastically across different regions of Africa, so vehicle selection must be tailored accordingly to prevent premature vehicle damage caused by mismatched road conditions:



Southern Africa (South Africa, Namibia, Botswana)

Southern Africa has well-paved and intact road networks. Standard low bed semi trailers can be used. No chassis reinforcement is required, while anti-corrosion treatment is necessary for humid coastal environments.

Recommended Configuration: Follow the axle load limit (single axle ≤ 10 tons)



West Africa (Nigeria, Benin, Ivory Coast)

West Africa is dominated by unpaved roads, which turn muddy, potholed and gravel-covered during rainy seasons. Heavy-duty semi-trailers with strong passability are required. The cargo platform shall be equipped with anti-slip and anti-scratch protection to resist gravel impact.

Recommended Configuration: High-ground-clearance chassis, mechanical suspension, reinforced checker plate, and rock guard.



North Africa (Morocco, Egypt, Algeria)

The road network in coastal areas is well-developed, while some sections in inland areas are Gobi deserts and gravel roads, a low-bed semi trailer that balances high-speed travel and complex road conditions needs to be selected, which can be equipped with optional air suspension and mechanical suspension configurations.

Recommended Configuration: Two suspension options are available (mechanical/air).



Mine-specific scenarios

Mine access roads feature steep gradients, loose gravel, and narrow spaces.

Recommended Configurations: short wheelbase design, hydraulic steering axle, reinforced gooseneck structure, and retarder system.



Tractor Trailer Combinations



The performance of a low bed semi trailer depends largely on the tractor. Common configurations in Africa include:



Power

For low-bed operations on unpaved roads, 6×4 or 8×4 tractors with 420HP to 460HP are recommended. tractors with insufficient power will find it extremely difficult to climb slopes on soft roads.

For paved roads, 371HP to 400HP is recommended.



Cooling

Ensure that the tractor is equipped with an oversized cooling fan and a transmission oil cooler. Off-road driving at low speeds with high torque generates a significant amount of heat.



Axle Load Distribution

For hydraulic gooseneck trailers, a tractor with a shorter rear overhang (the distance from the rear axle to the fifth wheel) should be selected, an excessively long rear overhang can cause the front axle to lift off the ground under heavy loads, resulting in a loss of steering ability.

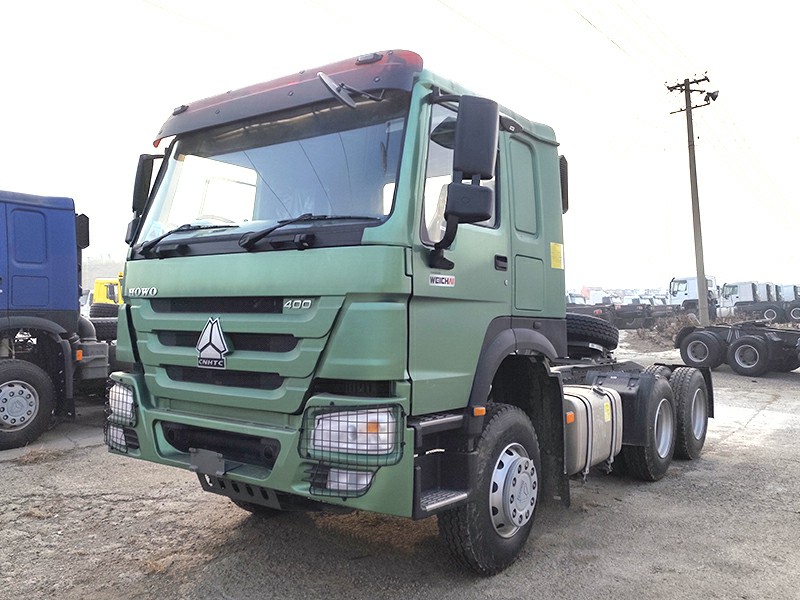

SINOTRUK HOWO 400HP Tractor Truck

SHANMAN X3000 450HP Tractor Truck



Durability Maintenance: Solutions Tailored for Africa



In Africa, the service life of low-bed semi trailers largely depends on the level of daily maintenance. Here are some proven maintenance tips:



Daily Check List



Key Structures	Gooseneck welds, frame connections, suspension steel plates
Walking System	Tire pressure, wheel nut tightness
Braking System	Whether the pipeline is leaking air and whether the brake shoes are worn
Electrical System	Are all the lights working properly
Connection Point	Is the connection between the drawbar pin and the gooseneck secure



Regular Maintenance Specifications



Maintenance Project	Cycle	Specific Requirements
Grease Filling	every 500 kilometers or daily	for parts such as suspension pins, saddles, and turntables, high-temperature resistant lithium-based grease should be used.
Weld Inspection	every week	focus on checking the gooseneck and the frame connection. if cracks are found, promptly weld and repair them.
Chassis Cleaning	after each mine/coastal transportation	high-pressure water gun washing to remove mineral dust and salt stains
Anticorrosive Treatment	every 3 months	in coastal areas, it is increased to once every 2 months to touch up damaged coatings.
Replacement Of Vulnerable Parts	based on the condition of the parts	tires, brake pads, bearings, etc., insist on using genuine parts.



Common Problems and Solutions in African Transportation



Malfunction	Reason	Solution
Frame cracking	overloading + poor road conditions	strengthen the main beam
Suspension damage	long-term overload	overloaded suspension
Tires wear out quickly	rough road surface	wear-resistant tires
Difficulty loading and unloading	the equipment is too heavy	hydraulic ladder
