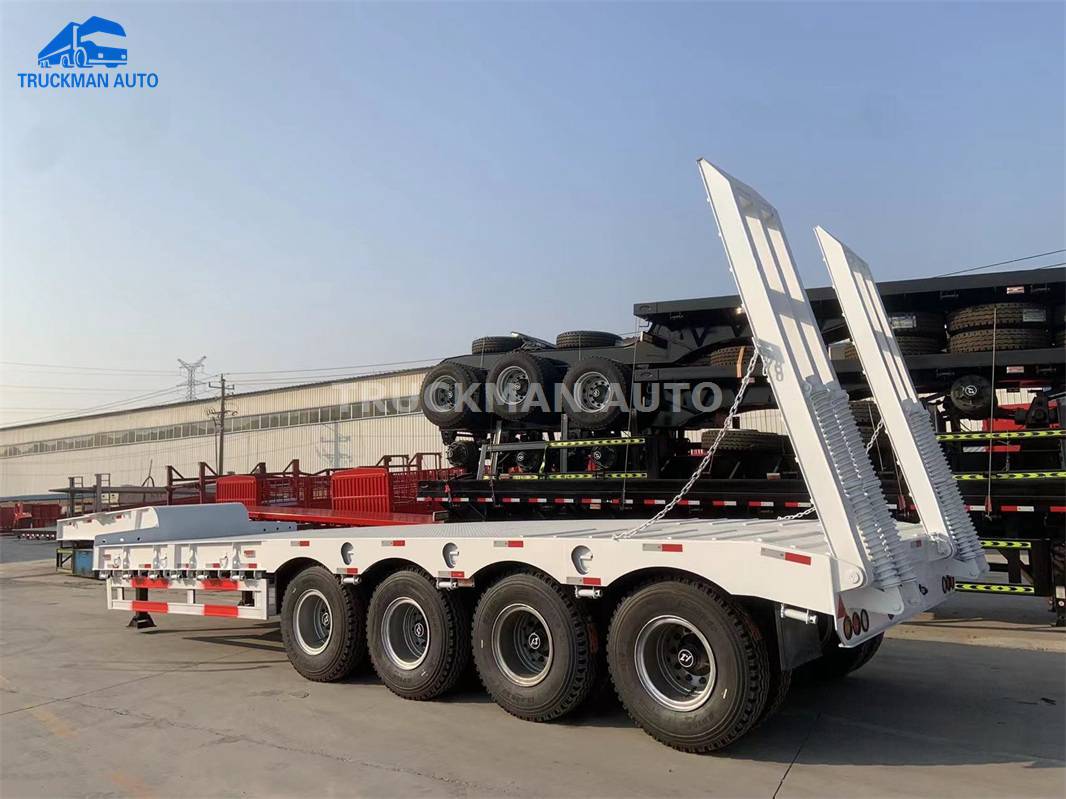

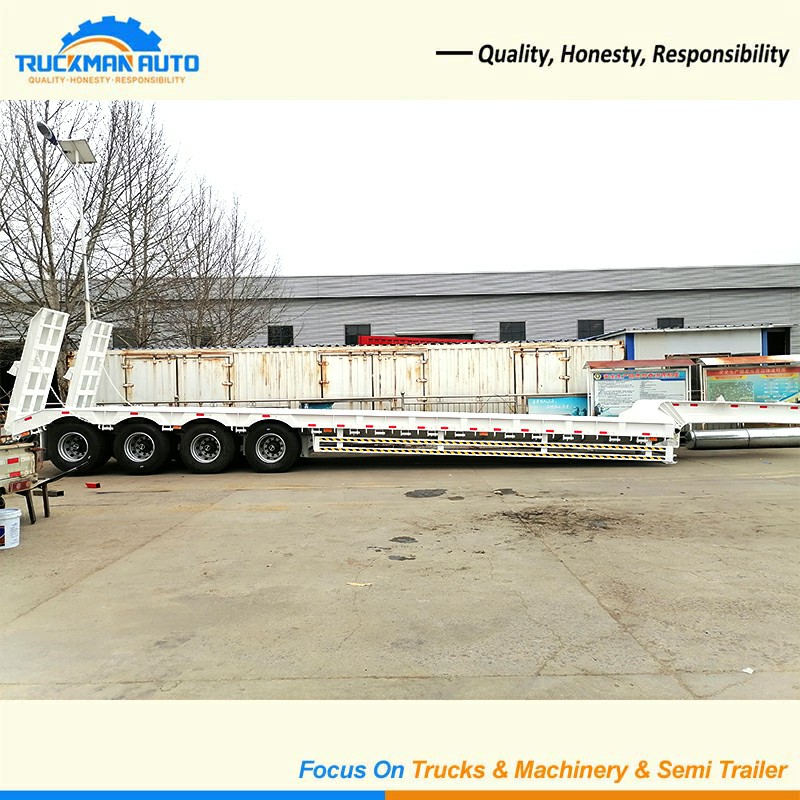

TRUCKMAN 4 Axle 90 Ton Lowboy Semi Trailer is designed for heavy-duty transportation of excavators, bulldozers, road rollers and other large construction and mining machinery. With a 90-ton loading capacity and reinforced trailer structure, it provides a reliable solution for transporting heavy equipment between construction sites, mining areas, equipment yards and project locations.

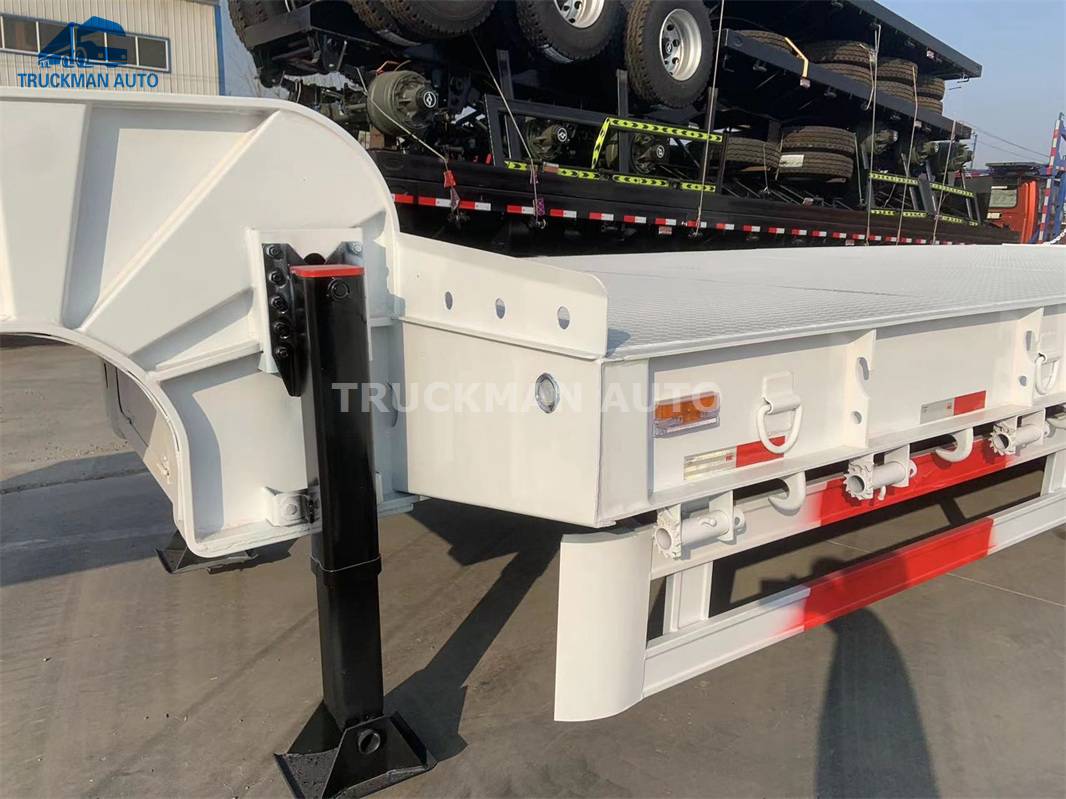

The trailer is equipped with 4×16-ton axles, heavy-duty suspension, reinforced leaf springs, 12.00R20 radial tires, JOST landing legs and JOST 90# king pin. The wheel rim is available in 16 mm or 18 mm thickness, with the 18 mm configuration recommended for poor road conditions.





Key Features of 4 Axle Lowboy Semi Trailer



Designed for Heavy Equipment Transportation



The 4 axle lowboy semi trailer is mainly used for transporting heavy machinery such as:



● Excavators	● Bulldozers	● Road rollers
● Wheel loaders	● Mining equipment	● Other construction machinery

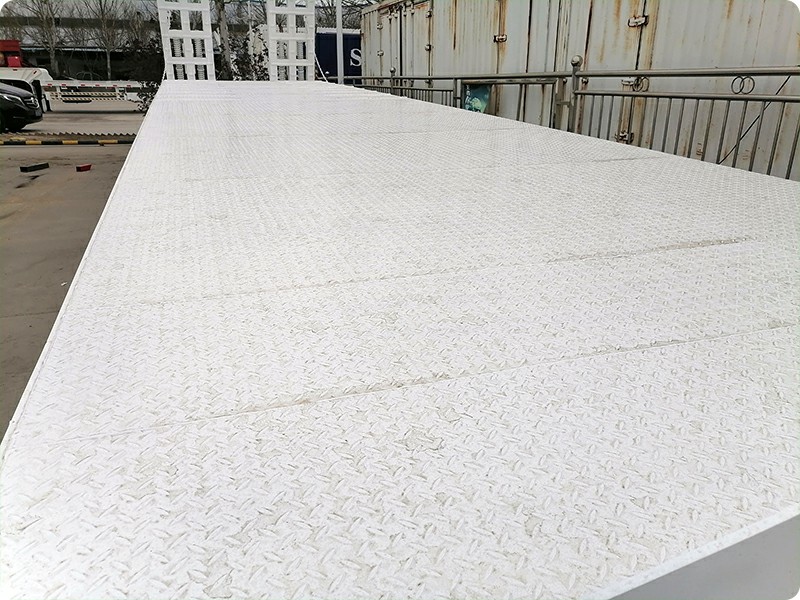

The low-platform design helps reduce the overall loading height and provides convenient access for heavy equipment loading.

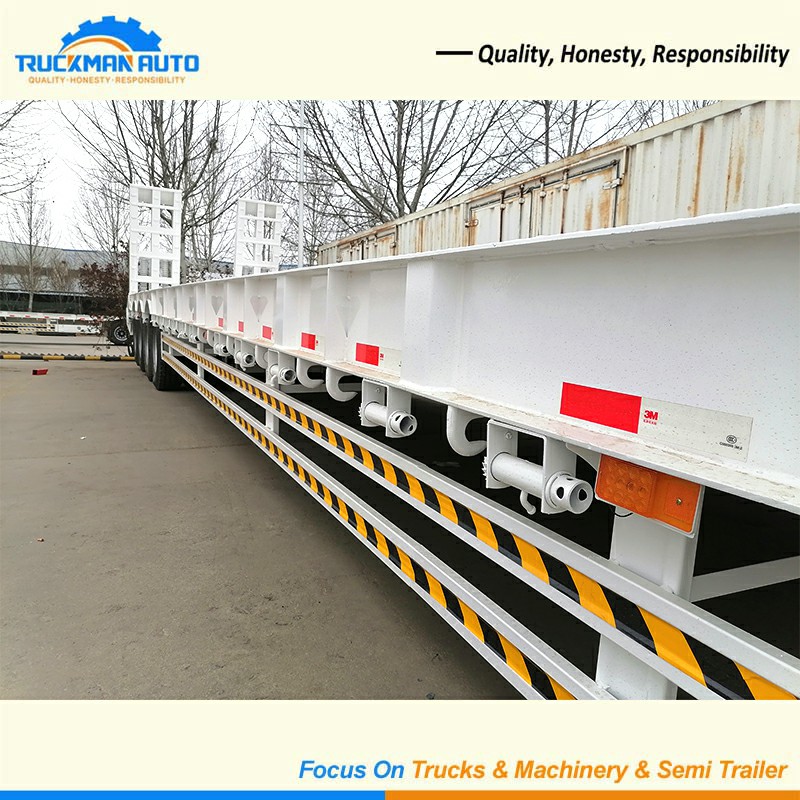

Heavy-Duty Trailer Chassis



The trailer chassis uses reinforced structural components to improve stability during heavy-duty transportation.

The original configuration uses enhanced suspension brackets, leaf springs and wheel rims to provide a stronger chassis structure.

This design is particularly suitable for customers operating heavy equipment on construction sites, mining projects and challenging road conditions.

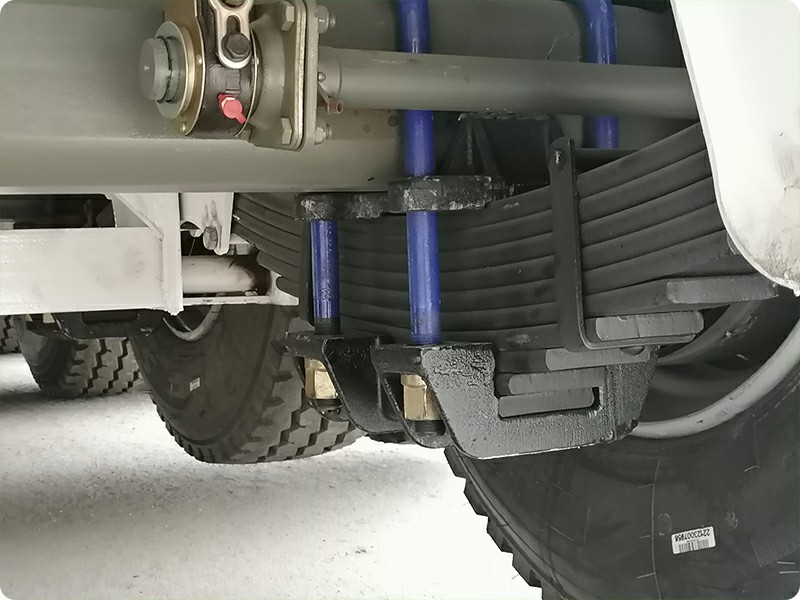

Reinforced Suspension System



The lowboy trailer can be equipped with a heavy-duty mechanical suspension system.

A reinforced suspension structure helps distribute the equipment load and improve trailer stability during transportation.

For heavy-duty applications, the suspension configuration can be selected according to the equipment weight and road conditions.



Heavy-Duty Leaf Springs



The reference configuration uses 90×16 mm leaf springs, 10 pcs×8 sets, providing strong load-bearing capability for heavy-duty transportation.

The leaf spring configuration can be adjusted according to the required trailer capacity and operating conditions.

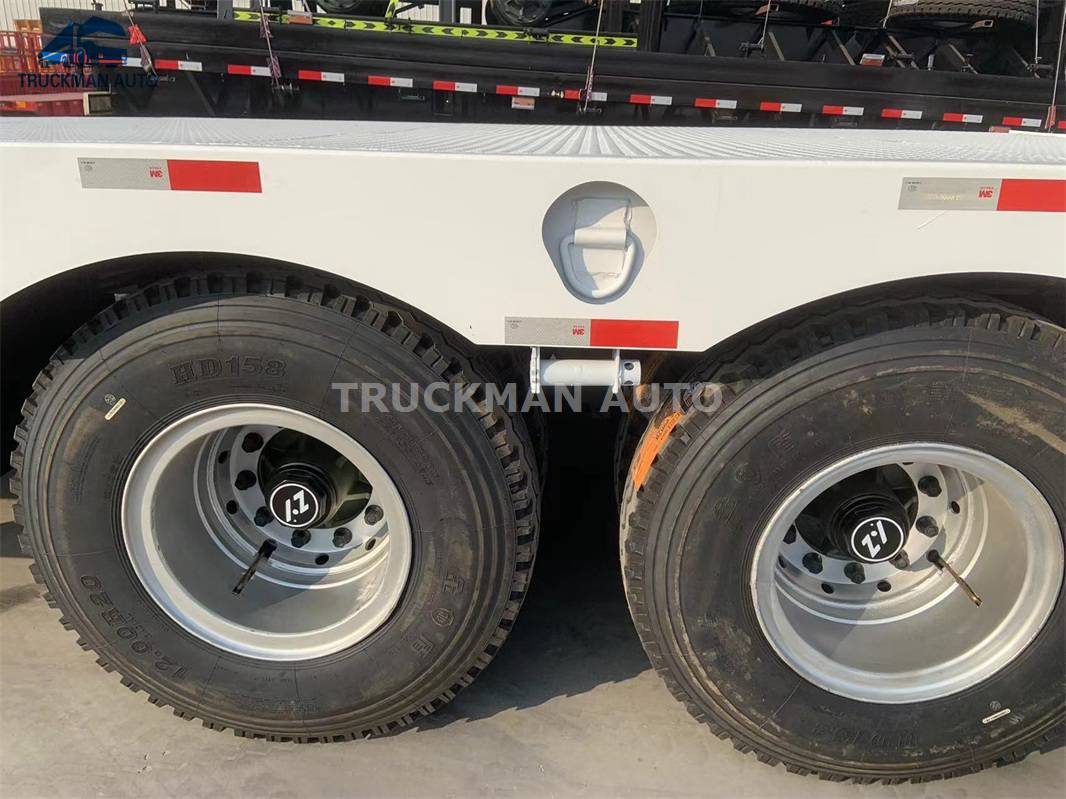

Heavy-Duty Wheel Rims



The lowboy semi trailer can use reinforced wheel rims for demanding transportation conditions.

A 16 mm rim is suitable for good road conditions, while an 18 mm rim is more suitable for poor road conditions.

For customers operating in mining areas or regions with poor road conditions, a thicker rim configuration can provide additional structural strength.

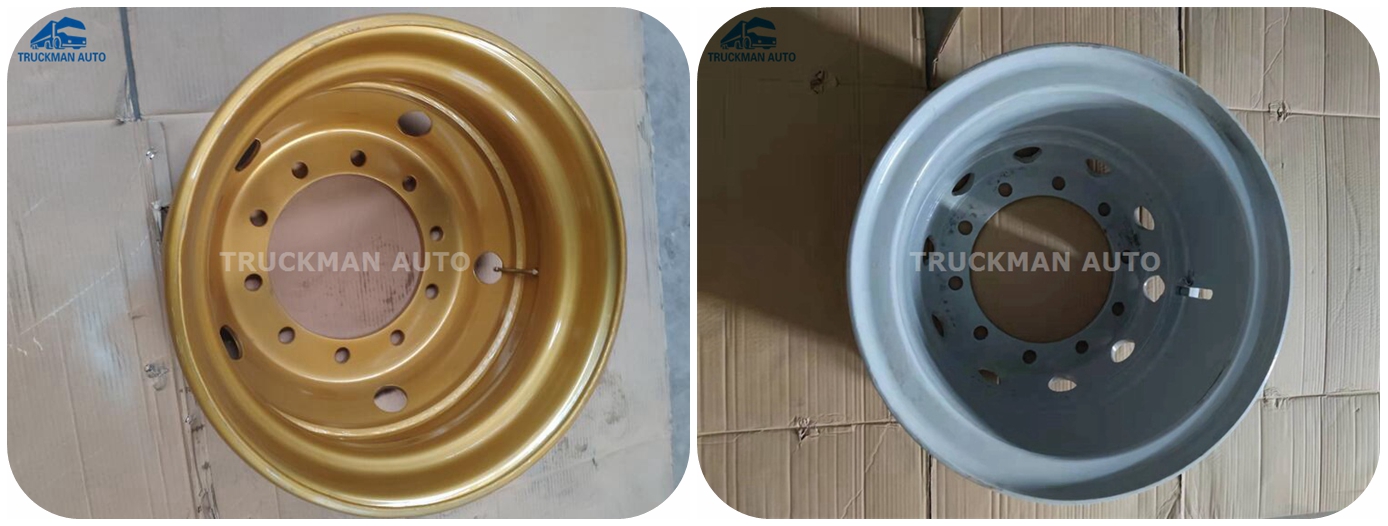

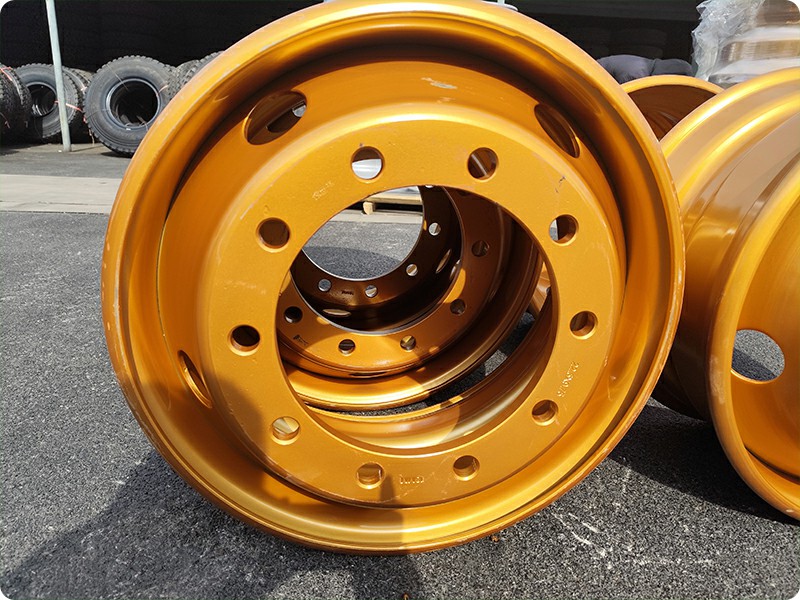

18 mm Wheel Rims

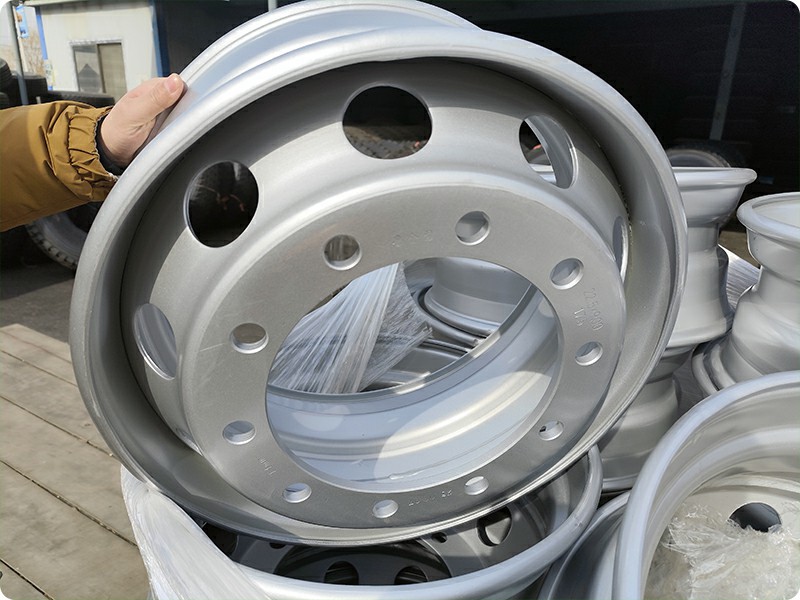

16 mm Wheel Rims





4 Axle Lowboy Semi Trailer Specifications



Item	Specification
Product Name	4 Axle 90 Tons Lowboy Semi Trailer
Application	Excavator, Bulldozer, Road Roller
Loading Capacity	90 Tons
Axle	4 Axles, 4 × 16 Tons
Suspension	Heavy-Duty, 8 mm Thickness
Leaf Spring	90 × 16 mm, 10 pcs × 8 Sets
Tire	12.00R20, 16 pcs, Radial
Wheel Rim	18 mm Thickness
Landing Gear	JOST, 28 Tons
King Pin	JOST 90#

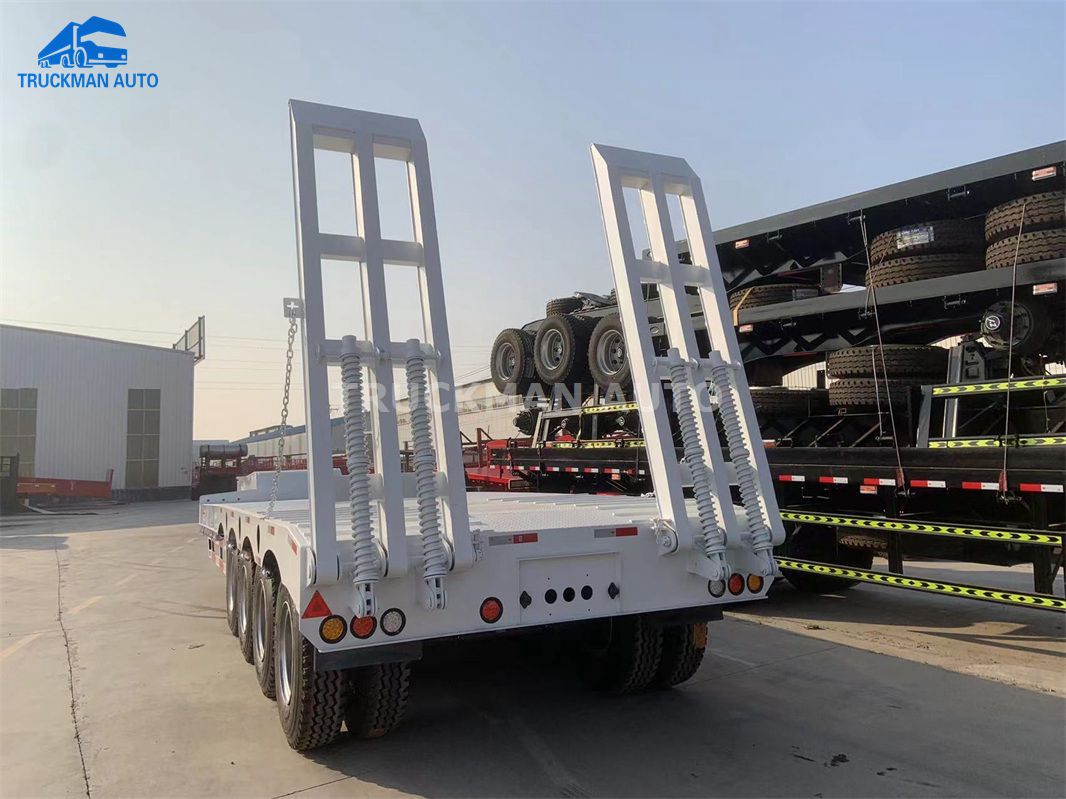

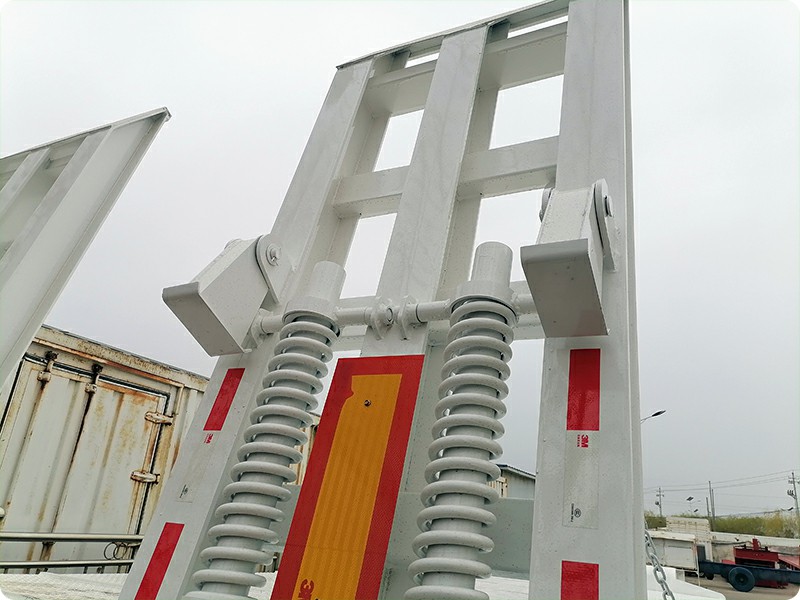

Ladder	Spring Mechanical Type
Overall Dimension	13000 × 3000 × 1750 mm



The 4 axle lowboy semi trailer specification only for your reference, we will recommend other model lowboy semi trailer according to your request.





Lowboy Semi Trailer for Heavy Machinery



Excavator Transport



The lowboy trailer provides a practical solution for transporting excavators between construction sites, mining areas, equipment yards and project locations.

Its low loading platform makes it suitable for transporting large construction equipment while maintaining a relatively low overall loading height.



Bulldozer Transportation



Heavy bulldozers require a strong trailer chassis and reliable suspension system.

The reinforced lowboy structure can be configured according to the bulldozer's operating weight and dimensions.



Road Roller Transportation



The trailer can also be used to transport road rollers between road construction projects and equipment storage locations.

The trailer configuration can be adjusted according to the machine dimensions and required loading capacity.





Lowboy Semi Trailer for Mining and Construction Projects



TRUCKMAN lowboy semi trailers are suitable for heavy equipment transportation in:



● Mining projects	● Road construction	● Infrastructure projects
● Quarry operations	● Construction sites	● Equipment rental fleets
● Heavy machinery transportation



For customers operating in Africa and other markets with demanding road conditions, trailer components such as suspension, leaf springs, axles and wheel rims can be selected according to the working environment.





Customized 4 Axle Lowboy Trailer Solutions



Not every customer requires the same lowboy trailer configuration.

TRUCKMAN can recommend a suitable trailer based on:



● Equipment Weight

Tell us the operating weight of your excavator, bulldozer, road roller or other equipment.



● Equipment Dimensions

Provide the overall length, width and height of the machine so that the trailer platform can be properly configured.



● Road Conditions

For poor road conditions, reinforced suspension and thicker wheel rims can be considered.



● Destination Country

Trailer specifications can be adjusted according to local transportation regulations and customer requirements.







Get a Quote for 4 Axle Lowboy Semi Trailer



Are you looking for a 4 axle lowboy semi trailer for excavator, bulldozer or road roller transportation?

Send us your equipment weight, dimensions and destination country. TRUCKMAN will recommend a suitable lowboy trailer configuration and provide the corresponding quotation.



Learn more about TRUCKMAN products and solutions.
Chat with a TRUCKMAN Trailer Expert on WhatsApp.





Why Choose TRUCKMAN Lowboy Semi Trailer?



● Heavy-Duty Structure

Reinforced suspension brackets, leaf springs and wheel rims are available for heavy-duty applications.



● Multiple Axle Options

ZY, FUWA and BPW axle solutions are available according to the required configuration.



● Flexible Configuration

Axle quantity, loading capacity, suspension and other components can be configured according to the customer's requirements.



● Suitable for Challenging Roads

For poor road conditions, the reference specification recommends 18 mm wheel rims instead of the 16 mm option.



● Heavy Equipment Applications

Designed for transporting excavators, bulldozers, road rollers and other heavy machinery.

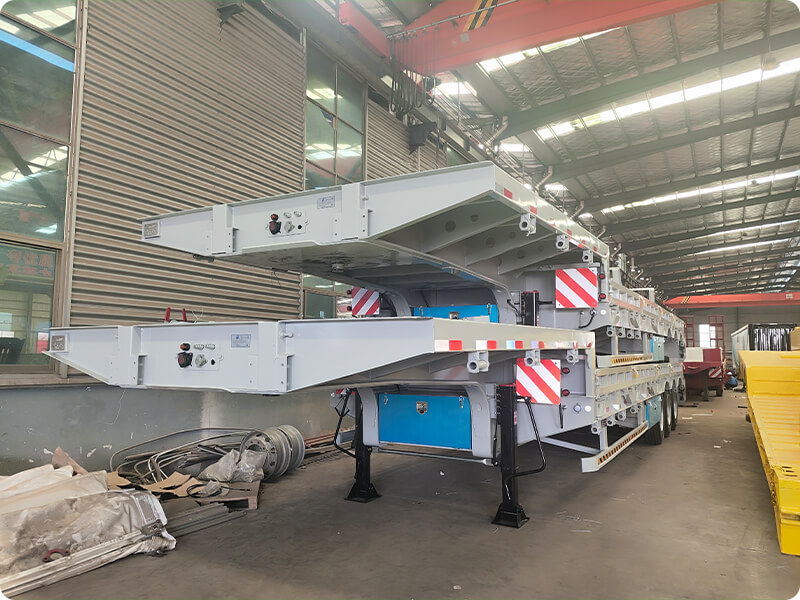

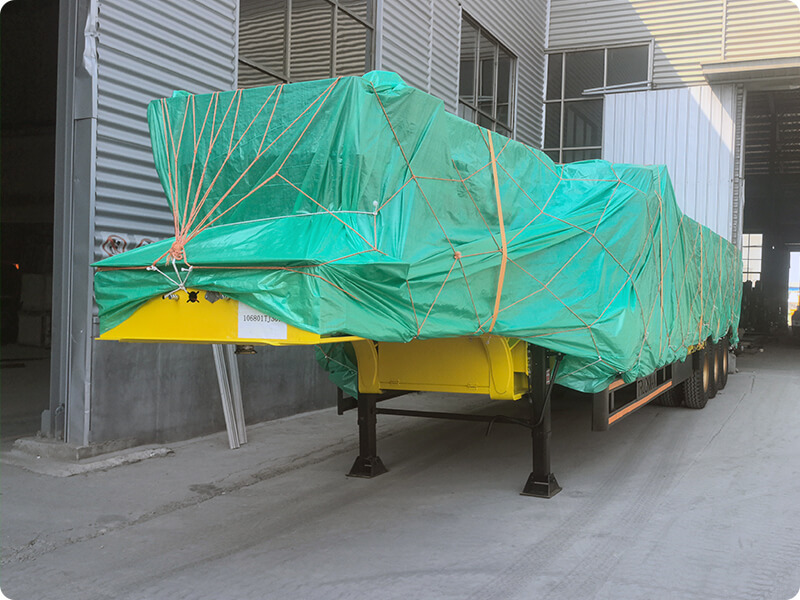

4 Axle Lowboy Semi Trailer Shipping



TRUCKMAN provides international export support for lowboy semi trailers.

Before shipment, we can confirm:



● Trailer dimensions	● Loading configuration	● Destination port
● Shipping method	● Required documents	● Spare parts requirements



The trailer specification can be finalized according to your destination country and transportation requirements.







Related Products



3 Axle 60 Ton Lowboy Semi Trailer

HOWO 400HP Tractor Truck



Related Reading



“Low-Bed Semi-Trailers for African Road Conditions A Comprehensive Guide to Selection, Configuration, and Maintenance”

“Mining Transportation Solutions in Guinea Selection Guide for Dump Trucks, Tractors and Dump Semi-Trailers”

“Transportation Solutions for Mining Operations in Liberia A Comprehensive Analysis of TRUCKMAN Mining Vehicles”





FAQ



1. What is a 4 axle lowboy semi trailer used for?

A 4 axle lowboy semi trailer is mainly used to transport heavy construction and mining equipment, such as excavators, bulldozers and road rollers.



2. What axle brands are available for TRUCKMAN lowboy trailers?

TRUCKMAN can provide axle solutions from brands including ZY, FUWA and BPW, according to the required configuration.



3. Can the 4 axle lowboy trailer be customized?

Yes. TRUCKMAN can recommend the appropriate axle capacity, suspension, wheel rim, platform dimensions and other configurations according to the equipment being transported.



4. What wheel rim thickness is recommended for poor roads?

According to the reference specification, 16 mm rims are suitable for good road conditions, while 18 mm rims are more suitable for poor road conditions.



5. Can you provide a lowboy trailer with different loading capacities?

Yes. TRUCKMAN lowboy semi trailers can cover a broad 30-150 ton loading range, with the final configuration determined according to the customer's requirements.
