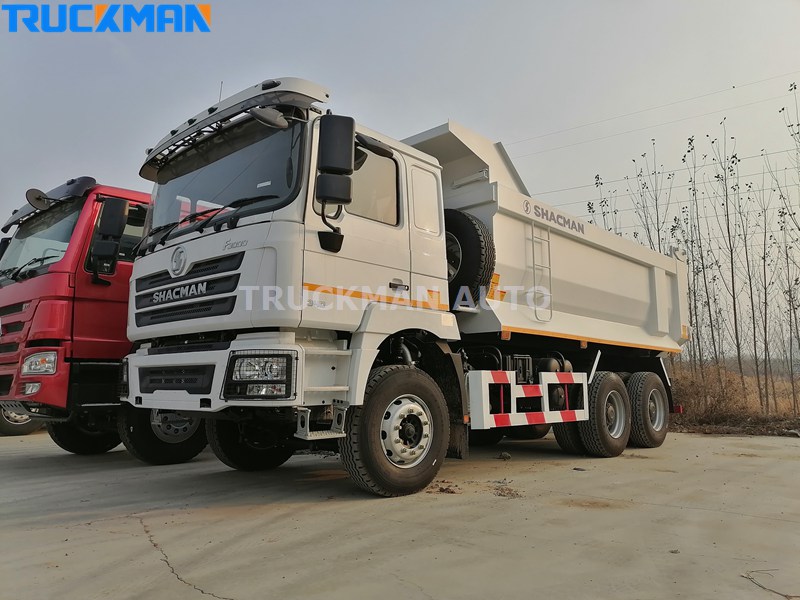

Uganda customer like SHACMAN F3000 dump truck very much, he said that the SHACMAN truck cab was very much like a MAN truck and that he had done a lot of research and discussed the technical specifications of the SHACMAN dump truck with us in detail before buying it. And this SHACMAN dump truck will work at sand and gravel plants for sand, gravel etc transportation.

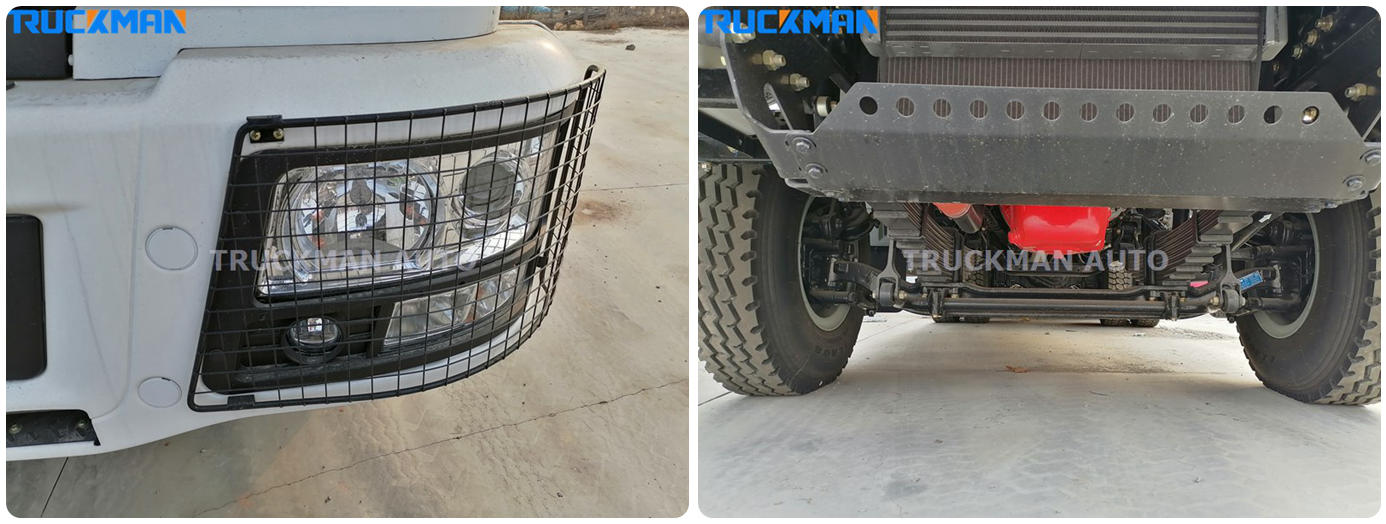

The customer said his planet road not good, need more durable dump truck. We are pay more attention for dump truck tire and chassis, the dump truck tire is 12.00R20, radial model. This type tire very wear resistant, which can meet the bad road condition driving request, brand is LINGLONG, it’s China TOP 5 truck tire company, quality can be assurance. In addition, we also add many product cover for truck chassis, like intercooler, lamp, engine, oil pan and fuel tank protect cover.

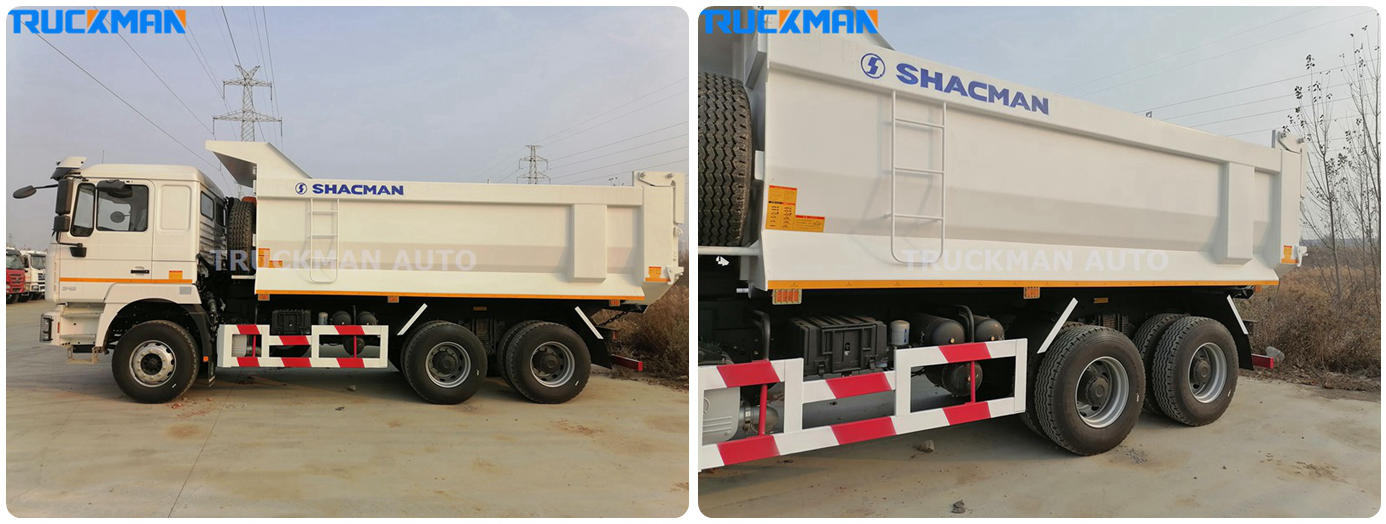

And consider the dump truck will transport the sand and gravel, we choose the manganese plate Q355 for cargo box, and bottom thickness is 8mm, side is 6mm. Q355 manganese plate yield strength is 355Mpa, compare with Q235 normal plate, the Q355 material stronger and more suitable as a cargo box. This cargo box lifting system adopt the HYVA brand, which can guarantee the more quickly lifting speed, and stable quality. U shape cargo box can reduced cargo residue and low centre of gravity for greater safety when lifting.

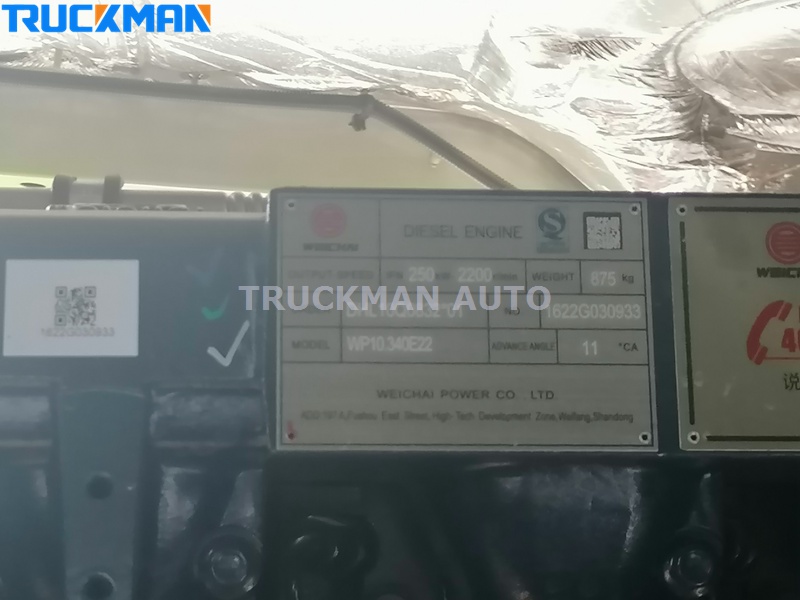

For the SHACMAN dump truck power chain, the engine is WEICHAI brand, max. output: 250kW, max. horsepower: 340hp, max. torque: 1250N.m. and application with FAST brand 10 forward and 2 reverse gearbox. The axle is HANDE brand, front axle loading capacity is 9500kg, rear axle loading capacity is 16000kg. smaller axle housings, fewer accessories for maintenance and increased chassis throughput.
