100 Tons Gooseneck Lowboy Low Bed Semi Trailer
-1. TRΛKMAN Brand Low Bed Semi Trailer Main Specification
-. 50-150 big loading capacity
-. 3-8 Axles, use FUWA and BPW brand.
-. Transport heavy machinery, such as excavator, bulldozer, road roller etc.
-. Choose stronger tire with TRIANGLE, LINGLONG etc brand tire.
-. Recommended WABCO brake system, for the safety driven.
|
Type |
Low Bed Trailer |
|
Weight |
7500kg-8000kg |
|
Loading capacity |
50000kg-70000kg |
|
Axle number |
Three |
|
Axle brand |
FUWA and BPW |
|
Suspension |
Mechanical suspension |
|
Wheel |
11.00R22.5/12.00R22.5 Vacunnm tire/Triangle or double cone brand |
|
King pin |
JOST 2.0 ``or “3.5`` |
|
Dimensions(L*W*H) |
13000/12500*2500*2700 |
|
Support legs |
28Tons/JOSTD200T |
|
Rim |
8.25*22.5/9.00*22.5 Vacunnm tir zhengxing brand |
|
Wheelbase |
6750+1310+1310mm,6550+1310+1310 |
|
Steel spring |
10/10/10pieces per axles |
|
Twist lock |
4 pieces |
|
Track |
1840/1840/1840 |
|
Tire number |
Can be choose freely |
|
Spare tire carriers |
2/4 pieces |
|
Material of main beam |
Material SSAB high stress steel .the height of the beam is 450/500mm,the uper and the down plate is 8mm,middle plate is 5mm |
|
Side board |
The height is from 600-1500mm |
|
Platform plate |
3mm flat plate |

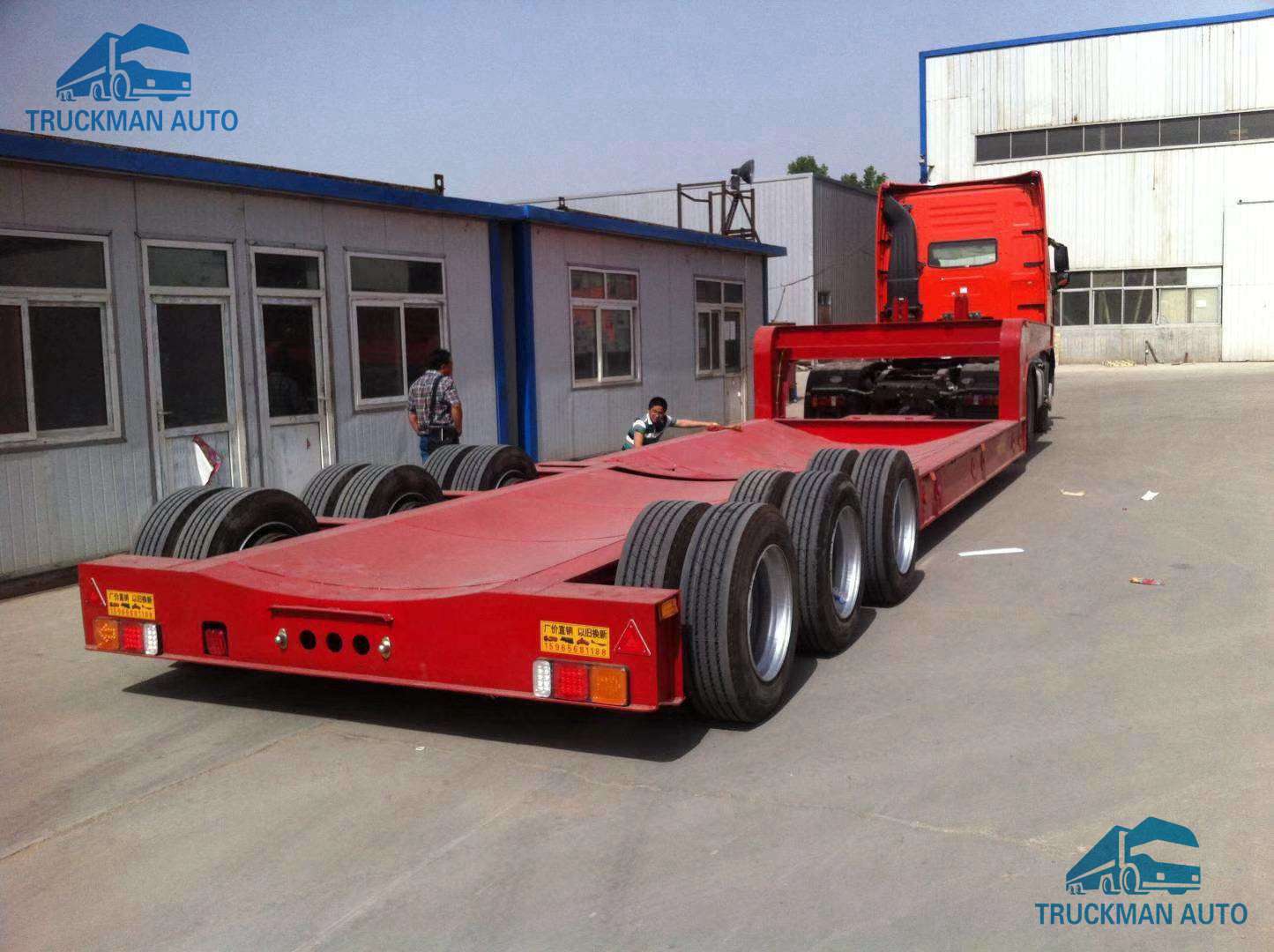

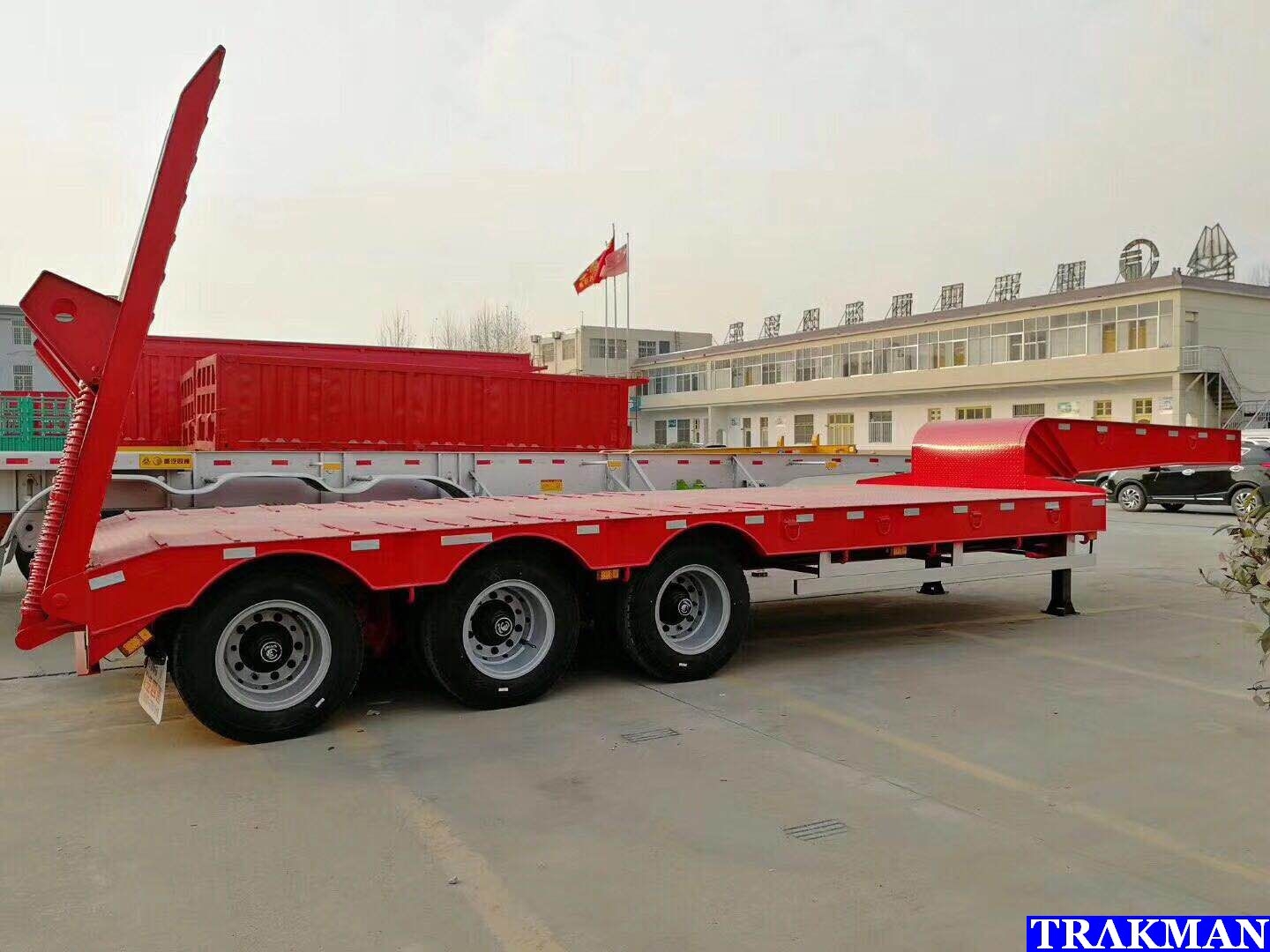

-2. Picture For Reference.
-3. Shipment Picture.
Now our trailers could adopt the RO-RO, BULK, FRAME Vessel, we will recommend to you according to your request.
-4. After Sales Service.
Now Our company built one big spare parts warehouse for our customer's machinery, all parts could arrange DHL or TNT as soon. In addition, we also could arrange the engineer for the maintenance.
