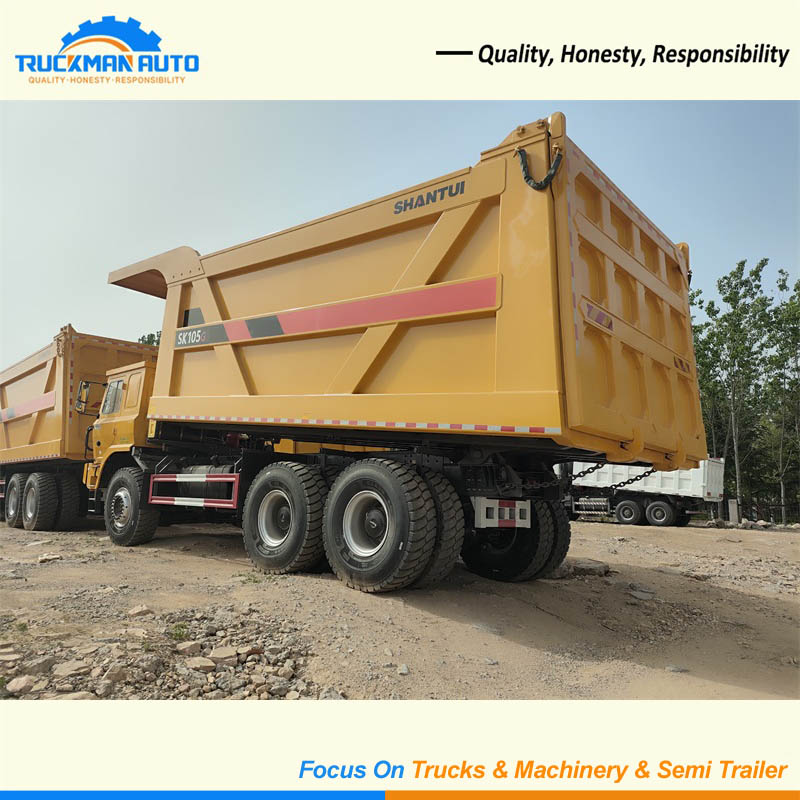

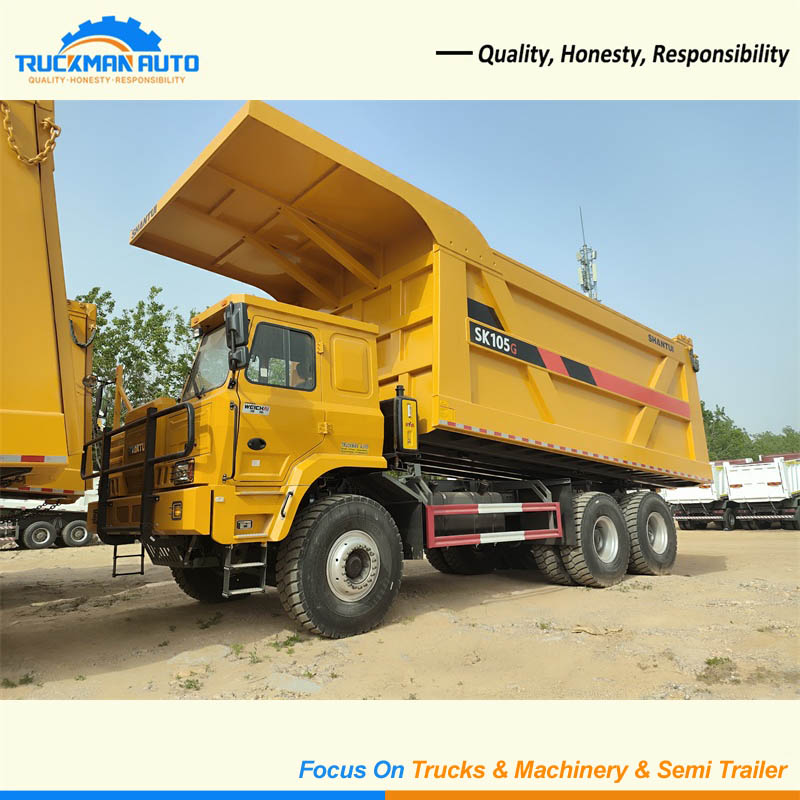

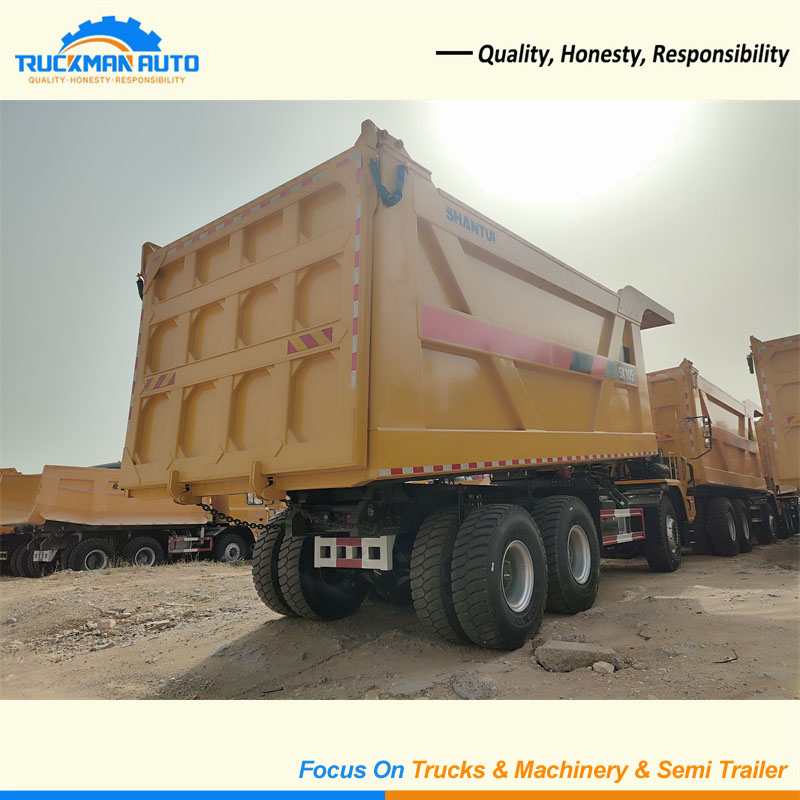

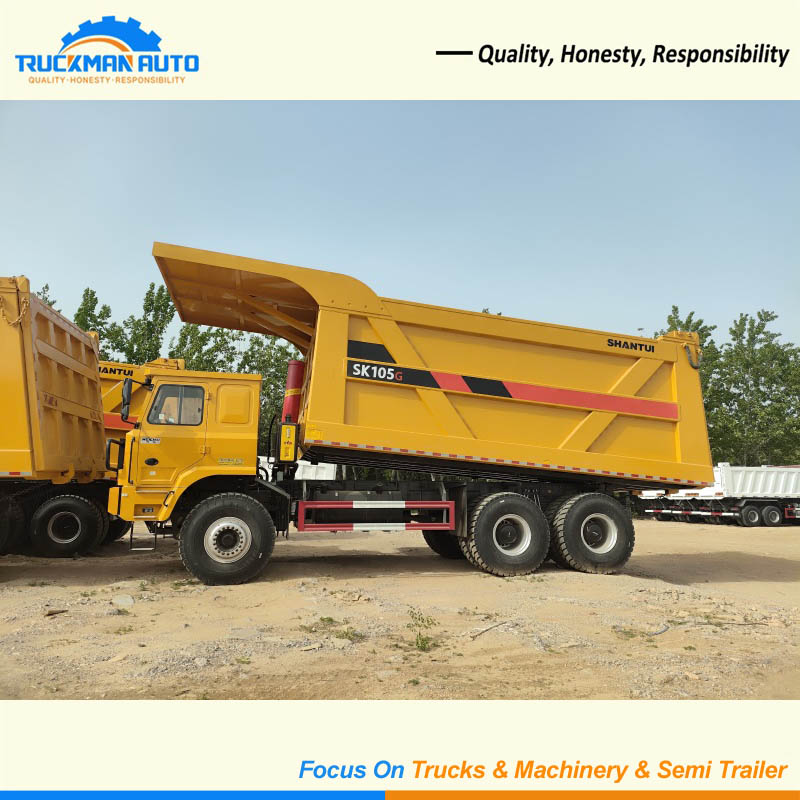

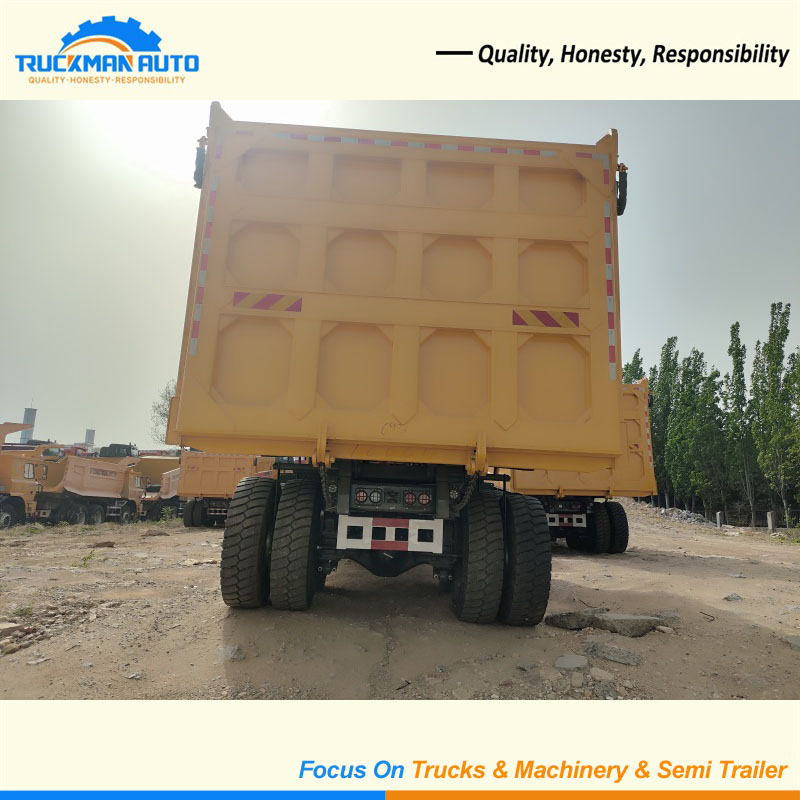

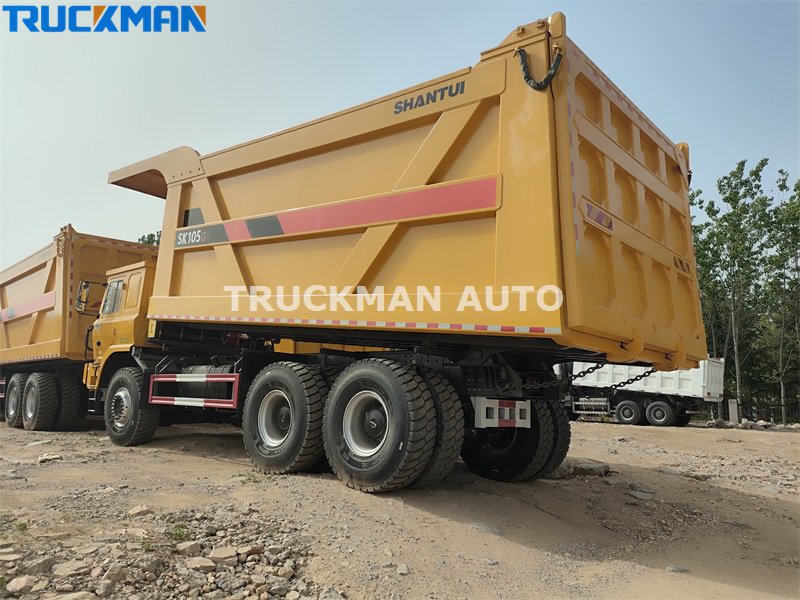

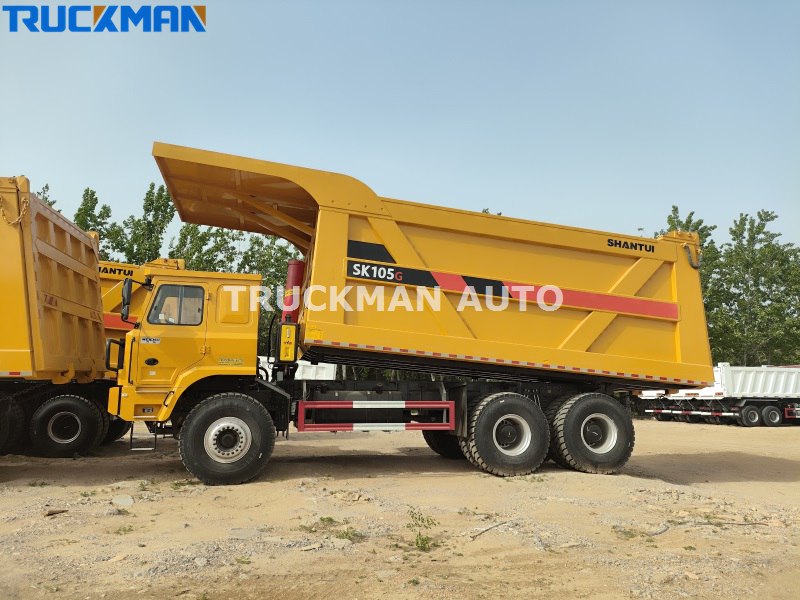

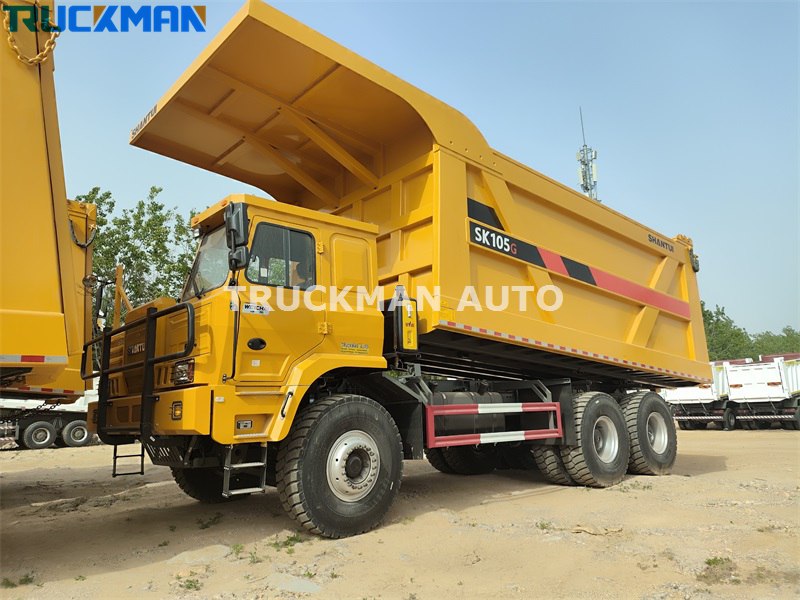

110 Tons Tipper Truck SHANTUI SK105 10 Wheels Mining Truck For Mining
110 Tons Tipper Truck SHANTUI SK105 10 Wheels Mining Truck Features
SHANTUI SK105 mining truck is equipped with WEICHAI WP14T engineering version engine, with a maximum torque of 2300N·m. SHANTUI SK105 mining truck has strong power and excellent fuel efficiency, and can complete loading tasks quickly and efficiently. Large diameter cooling fan + plate-fin type large cooling module, strong environmental adaptability, suitable for high-load and heavy-load uphill operation in mining areas.
110 Tons Tipper Truck SHANTUI SK105 10 Wheels Mining Truck Specification
|
Description |
Parameter Value |
|
Vehicle dimensions (mm) |
9500×3760×4250 |
|
Wheelbase (mm) |
3950+1750 |
|
Minimum ground clearance (mm) |
375 |
|
Mass parameters Rated load (kg) |
70000 |
|
Vehicle curb weight (kg) |
37400 |
|
Maximum speed (km/h) |
40 |
|
Maximum climbing grade (%) |
33 |
|
Engine Model |
WP14TG765E304 |
|
Rated power (kW/rpm) |
562/1900 |
|
Gearbox Model |
8DS240A |
110 Tons Tipper Truck SHANTUI SK105 10 Wheels Mining Truck specification only for your reference, we will recommend other model SINO TRUCK truck basic your request.
110 Tons Tipper Truck SHANTUI SK105 10 Wheels Mining Truck Features
The cargo box of SHANTUI SK105 mining truck can be flat-packed with 39m3 and stacked with 46m3.SHANTUI SK105 mining truck is equipped with a small speed ratio gearbox + a large speed ratio rear axle + a small angle transmission shaft arrangement. The "two small and one large" achieves higher reliability and greater torsional torque. SHANTUI SK105 mining truck is also designed with a three-stage desert-style air filter, which has small air resistance, high efficiency, and good filtration, reducing the user's maintenance cost; SHANTUI SK105 mining truck is also equipped with a high-filling port and a high-volume fuel tank to ensure that the vehicle can run uninterruptedly all day.
110 Tons Tipper Truck SHANTUI SK105 10 Wheels Mining Truck Advantage
Maneuverability and adaptability:
SHANTUI mining truck is designed with good climbing ability and strong adaptability to working conditions, and can easily cope with complex transportation environments with steep slopes. The cab has a large space and good sealing, and the operating environment is comfortable.
Durability and reliability:
SHANTUI mining truck adopts high-quality manufacturing standards and durable components, which greatly reduces the failure rate and maintenance requirements, ensuring the long-term stable operation of the equipment.
