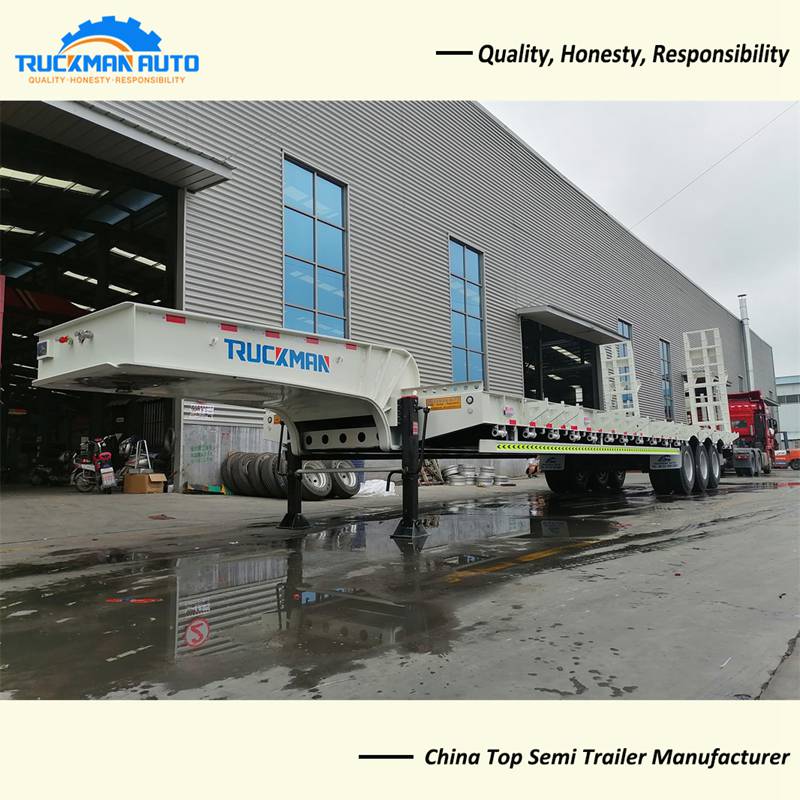

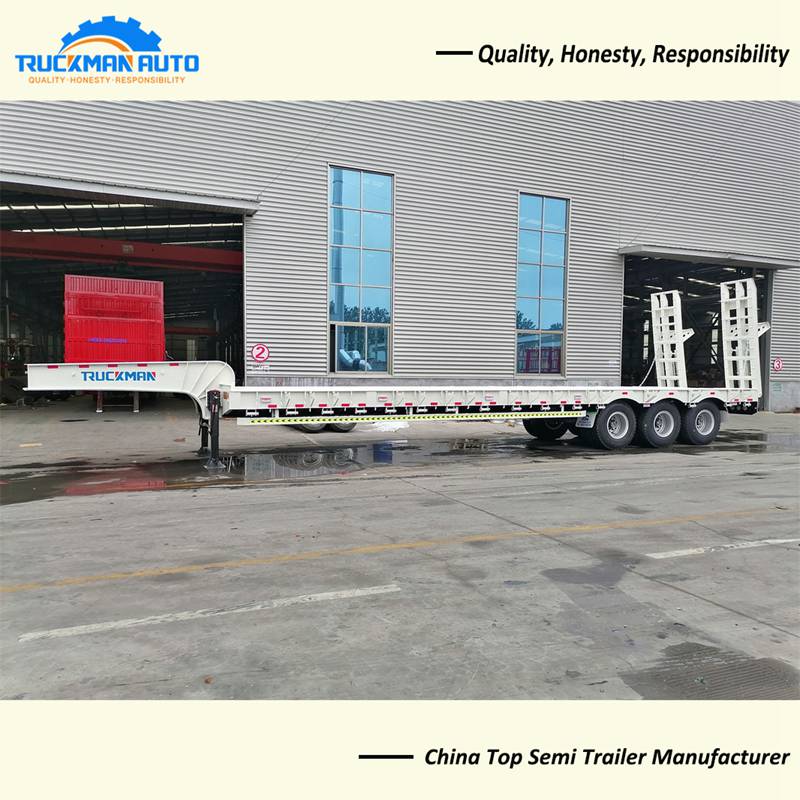

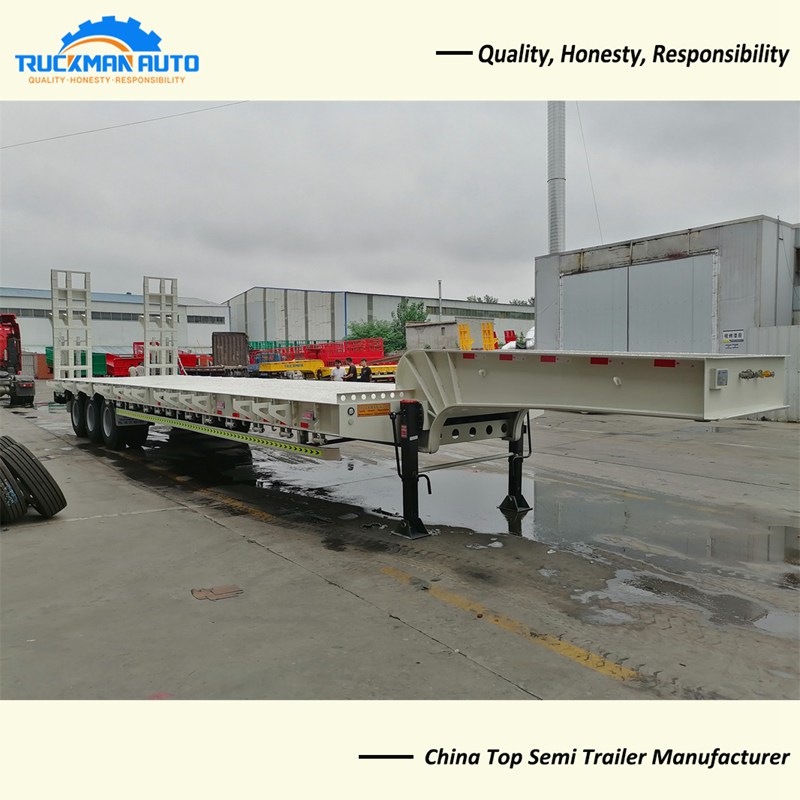

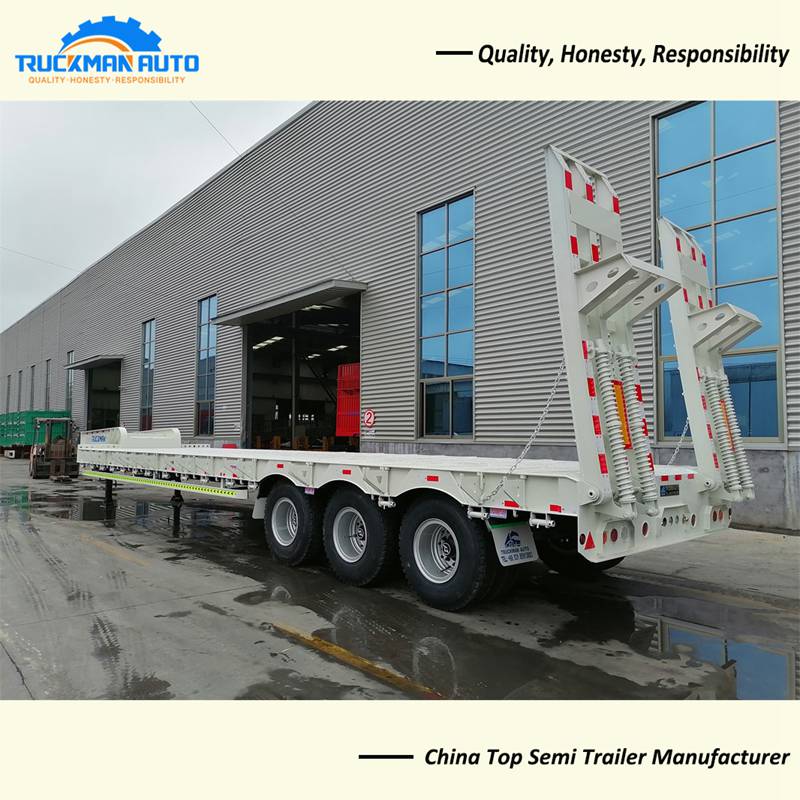

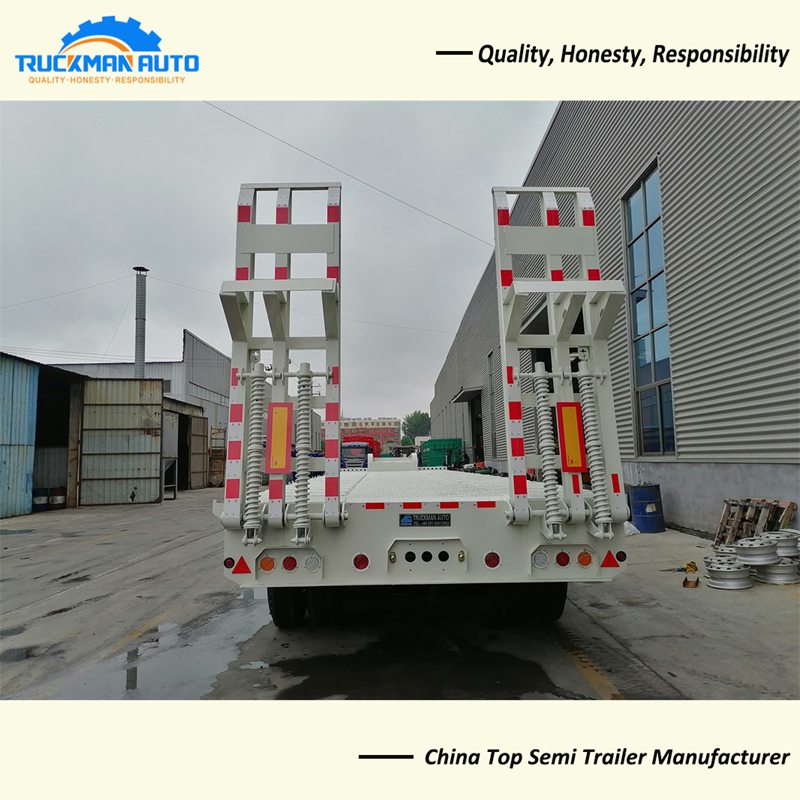

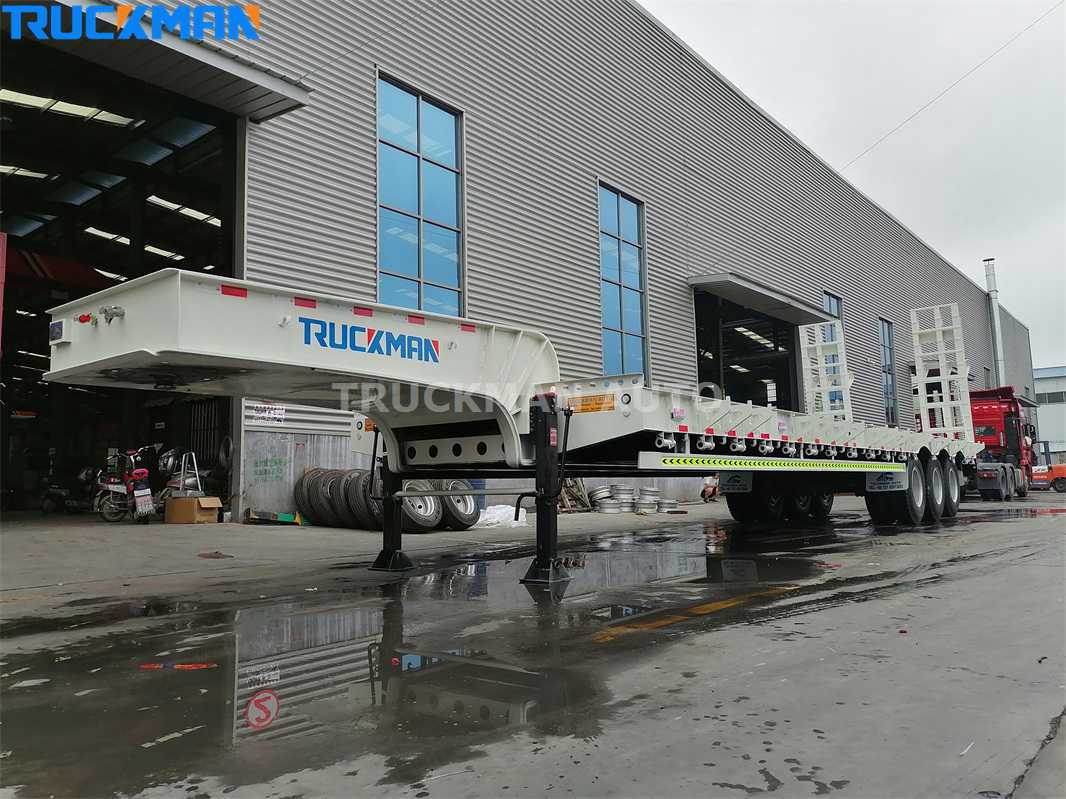

3 Axle 80 Tons Lowbed Trailer For Machinery Transportation
3 Axle 80 Tons Lowbed Trailer Detail.
80 tons lowbed trailer mainly used for transport all kind of construction machinery, the lowbed trailer loading platform adopt the checkered plate design, helps to increase friction and Improve security, dimension can made according to machinery model.
-. Lowbed trailer also called low boy trailer, the axle quantity will increased according to the loading capacity.
-. Adopt the heavy duty model support leg, can support swap trailer transport.
3 Axle 80 Tons Lowbed Trailer Specification.
|
Description |
Parameter Value |
|
Product Name |
3 axle 80 tons lowbed trailer |
|
Application |
Heavy machinery transport |
|
Loading Tons |
80,000kg |
|
Axle |
3 axle, 3x16000kg |
|
Support Leg |
28 tons, JOST brand |
|
Tractor Pin |
90#, 3.5 inch |
|
Tire |
315/80R22.5, 12 pcs |
|
Brake System |
WABCO brand |
|
Material |
T700, high strength steel |
|
Dimension |
13500x3100+400x3800mm |
The 3 axle 80 tons lowbed trailer specification only for your reference, we will recommend other model lowbed trailer basic your request.

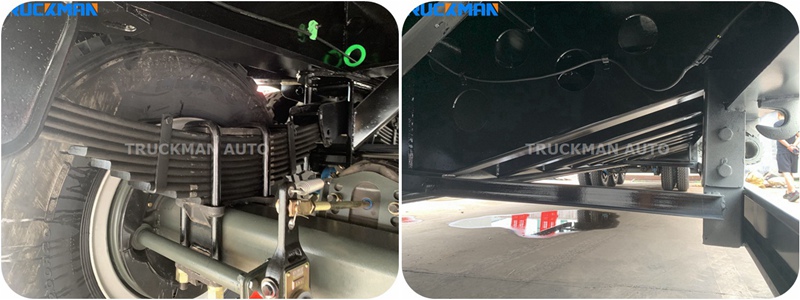

3 Axle 80 Tons Lowbed Trailer Chassis Detail.
In order to meet the different road driving condition, our TRUCKMAN 3 axle 80 tons lowbed trailer special enhanced the trailer chassis. Adopt the 90x16mmx10pcs leaf spring, famous brand, can effectively reduce the impact force generated by driving on bad road conditions. The support beam adopt the big model, thickness reach to 8mm.
