3 Axles 50 Tons Flatbed Semi Trailer For Suriname
3 Axles 50 Tons Flatbed Semi Trailer Features
3 axles flatbed trailer are ideal for transporting large machinery, heavy construction materials, and other cargo requiring high load capacity. The multi-axle design allows for better vehicle balance during travel, reducing the risk of sway and rollover caused by factors such as a shifted center of gravity or uneven road surfaces. This improves safety during transport, and the stability advantage is particularly pronounced when traveling at high speeds or cornering.
3 Axles 50 Tons Flatbed Semi Trailer Specification
|
Description |
Parameter Value |
|
Product Name |
3 Axles 50Tons Flatbed Semi Trailer |
|
Application |
Logistics work |
|
Loading Capacity |
50tons |
|
Axle |
3 axle, 3x16000kg,ZY brand |
|
Support Leg |
28 tons, JOST brand |
|
Tire |
12R22.5, 12+1 pcs, TRIANGLE Brand |
|
Tractor Pin |
2 inch, JOST brand |
|
Brake System |
WABCO Brand valve and brake chamber |
|
Color |
Optional |
|
Dimension |
12500x2550x1600mm |
3 Axles 50 Tons Flatbed Semi Trailer specification only for your reference, we will recommend other model Semi Trailer basic your request.
JINAN TRUCKMAN AUTOMOBILE CO., LTD was founded in 2018, it is dedicated to the R&D, production and sales of various semi-trailers and full trailers, and is your trusted first-choice partner.
How can I choose the correct semi-trailer type based on the local actual situation?
Please visit Guide To Bulk Transport Semi-trailer Types to learn how to correctly choose your semi-trailer type.

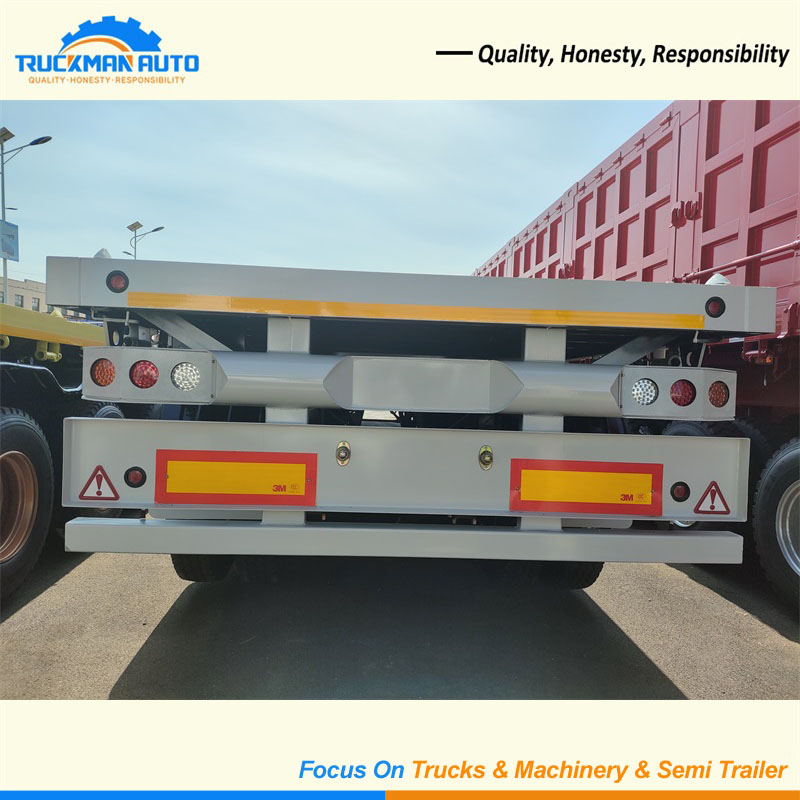

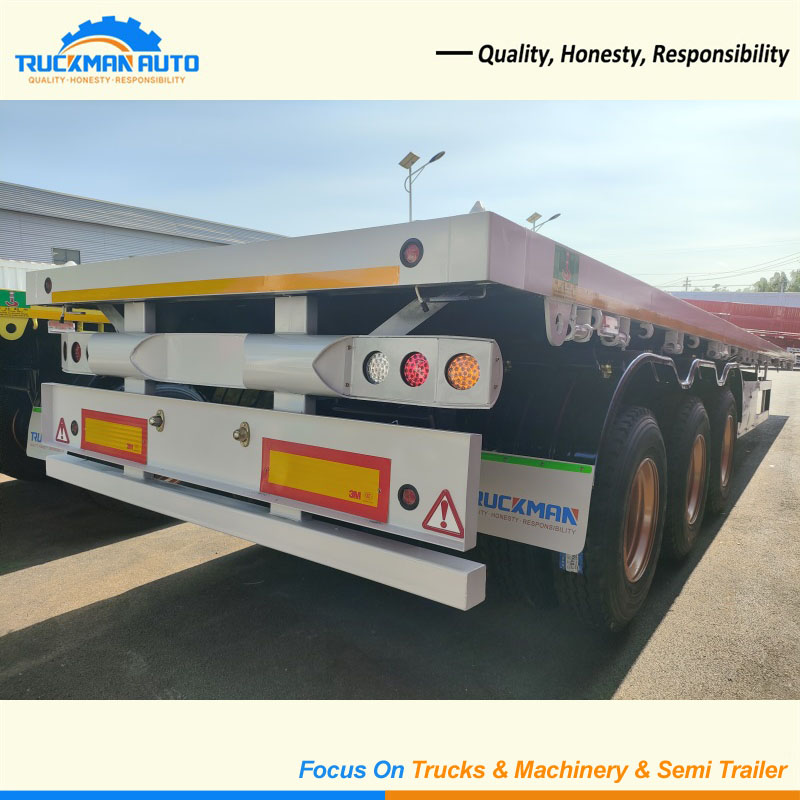

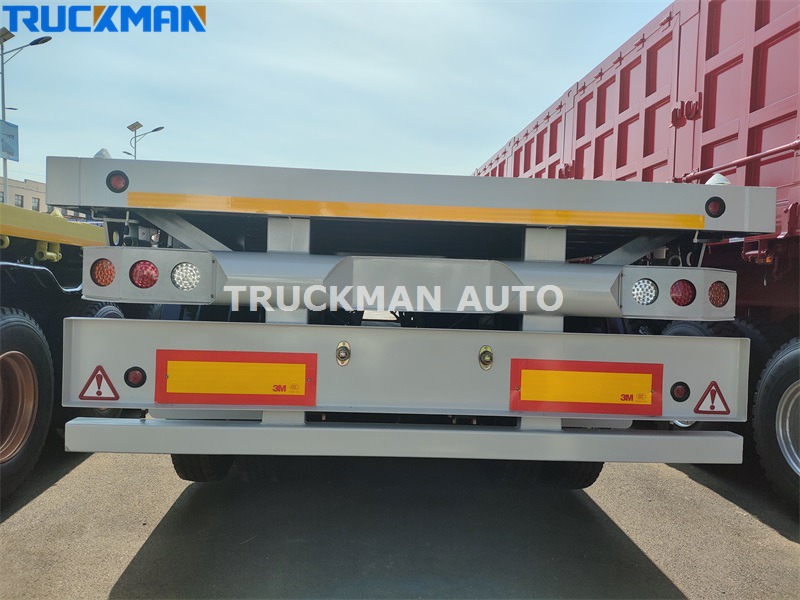

3 Axles 50 Tons Flatbed Semi Trailer Bumper Design
The rear of a 50 tons flatbed trailer features a multi-track bumper design. In the event of an impact, this design distributes the force across multiple locations, preventing damage to a single point due to excessive stress. For example, in a rear-end collision, this design distributes the impact force across different components, minimizing damage to the trailer's main structure. Compared to a single-track bumper, a multi-track bumper offers increased structural complexity and strength, providing better resistance to deformation from external forces. In the event of collisions or scrapes during driving, this design effectively maintains the rear end's shape and minimizes deformation.

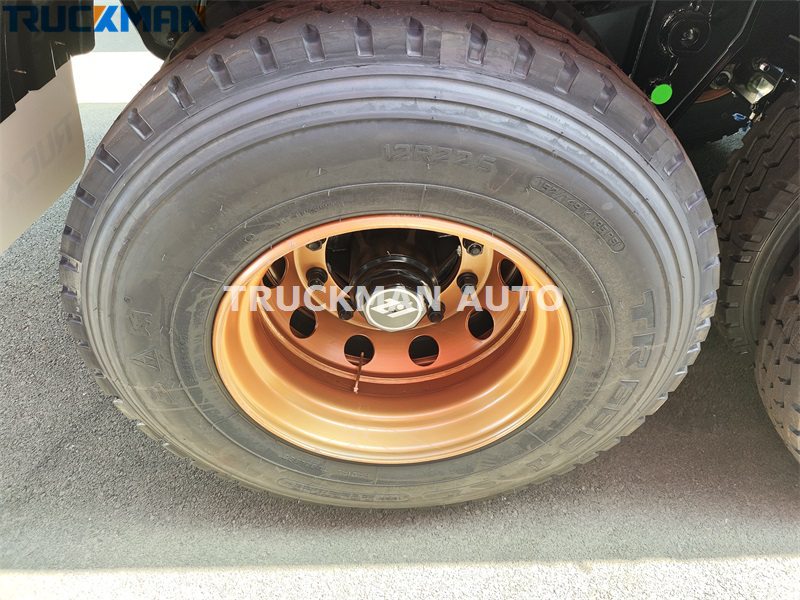

3 Axles 50 Tons Flatbed Semi Trailer Tire
The 3-axles flatbed trailer uses 12R22.5 tires and thicker 16mm gold wheels. The larger wheel size and wider tires increase the vehicle's contact area with the ground, improving vehicle stability during driving, especially when driving at high speeds or cornering. They can effectively reduce vehicle roll and sway, lower the risk of vehicle loss of control, and improve driving safety.The 16mm thick steel ring has a stronger load-bearing capacity and is suitable for users to use when pulling heavy loads.
