35cbm Compressor Bulk Cement Tank Trailer
-1. TRΛKMAN Brand Compressor Bulk Cement Tank Trailer Main Specification
-. 35-54m³ tank body.
-. 3 Axles, use FUWA and BPW brand.
-. Transport cement etc
-. Carbon steel material
-. Choose stronger tire with TRIANGLE, LINGLONG etc brand tire.
-. Recommended WABCO brake system, for the safety driven.
-. DEUTZ / WEICHAI Compressor engine
|
Trailer Model |
45 M3 BULK CEMENT SEMI TRAILER |
|
Overall Dimension (Lx W x H)(mm) |
10700x2500x3950mm |
|
Function |
transport bulk powder |
|
Loading Weight( KG) |
54000 |
|
Thickness(mm) |
Tank body: Q235 5mm carbon steel End plate: Q235 5mm carbon steel |
|
Air compressor |
12m3/minute Bohai brand |
|
Engine |
Diesel engine: Weichai Tianhe 4102 |
|
Compartment |
1 inner fluidized bed: air bag |
|
Axle |
3x13Ton, FUWA or BPW brand |
|
Suspension system |
Mechanical leaf spring suspension |
|
Leaf spring |
90(W)mm*13(Thick)mm*10 Layer |
|
Manhole cover |
500mm manhole cover. 2 sets |
|
Landing Gear |
28Ton, double speed,Yahua brand |
|
Tire |
12R22.5, LINGLONG brand 12units |
|
Traction Pin |
2” or 3.5” bolts in, changable |
|
Spare Wheel Bracket |
2 pieces |
|
Tool Box |
1 Standard |
|
Side guard |
According to customer’s requirement |
|
Brake system |
Dual Line braking system |
|
Emergency valve |
WABCO |
|
Brake air chamber |
Six big double air chambers |
|
Electrical system |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
|
Tail lamp with turn signal, brake light & reflector, side lamp etc. |
|
|
One set 6-core standard Cable. |
|
|
Painting |
Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish. |
|
Packing |
Polish with wax before shipping |

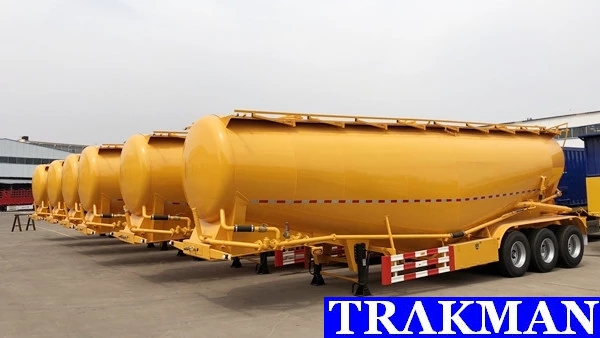

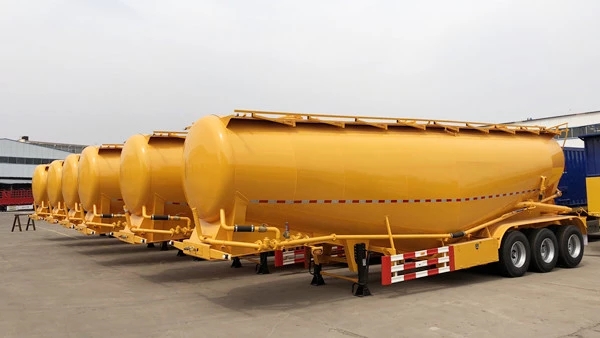

-2. Picture For Reference.
-3. Detail Picture.
-4. Others Product

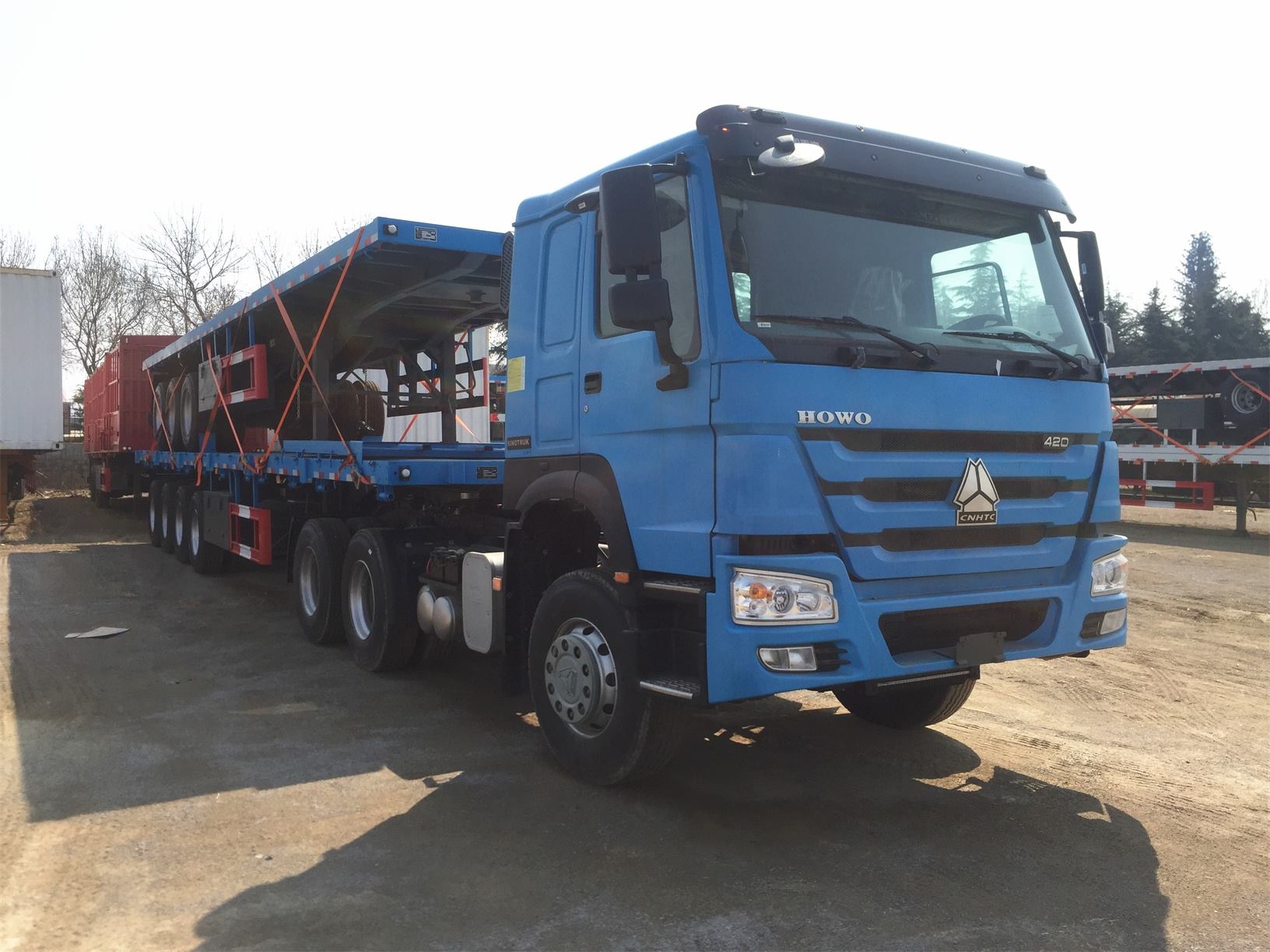

Now our company also deal with HOWO prime mover, the machinery can loading within 50-90 tons. Big horsepower, easy operation, also the maintenance cost is lower.
