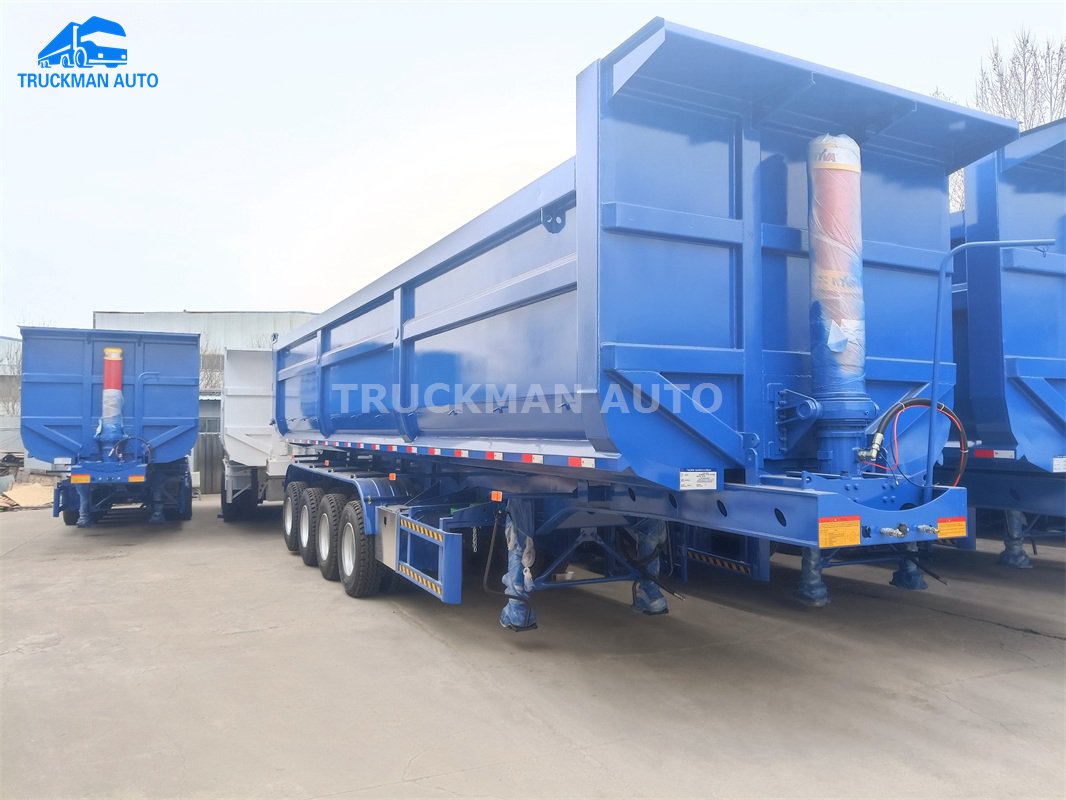

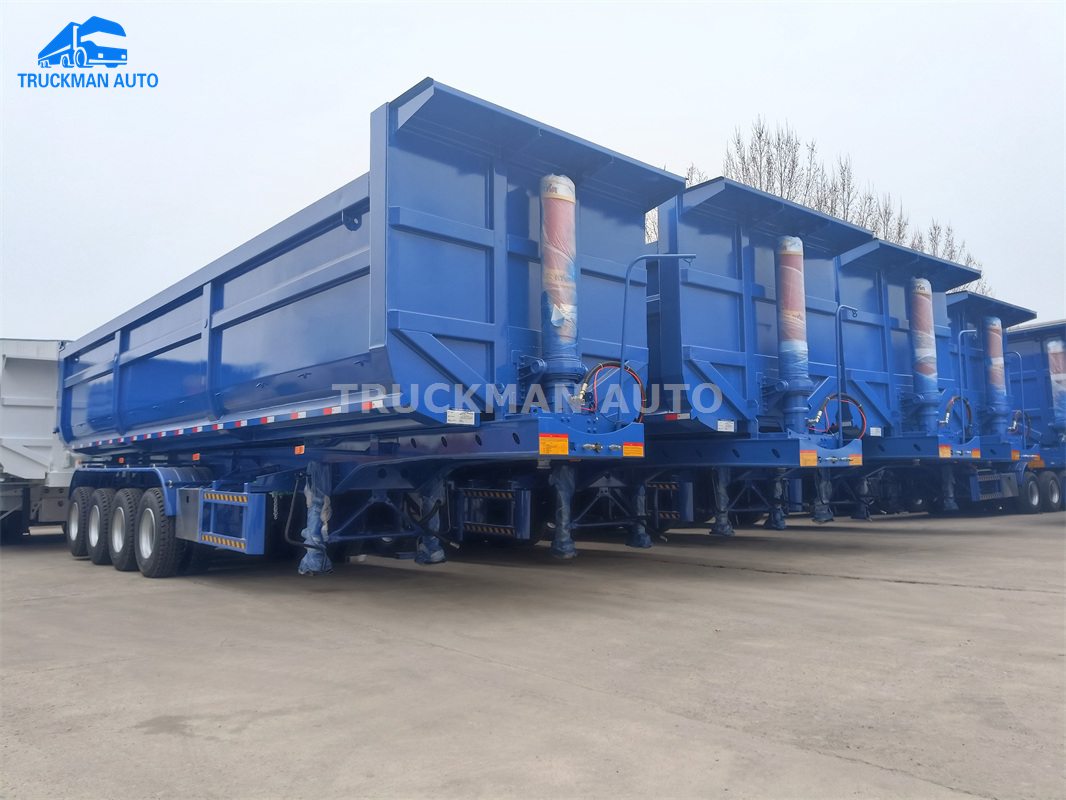

4 Axle 60 Tons U Shape Tipper Trailer Truck For Guinea
-1. U Shape Tipper Trailer Truck Detail.
The U shape tipper trailer truck mainly used for mining material haulage, the cargo box material adopt the Q355 high strength steel. The tire is adopt the tubeless model tire for mining site and high temperature work condition.
-. Adopt the 16 tons axle, FUWA brand for heavy duty loading.
-. U shape bucket is more better than rectangle model bucket when transport sand and gravel etc material.
-2. U Shape Tipper Trailer Truck Specification.
|
Description |
Parameter Value |
|
Product Name |
U Shape Tipper Trailer Truck |
|
Application |
For mining material haulage |
|
Axle |
4 axle, 4x16000kg. |
|

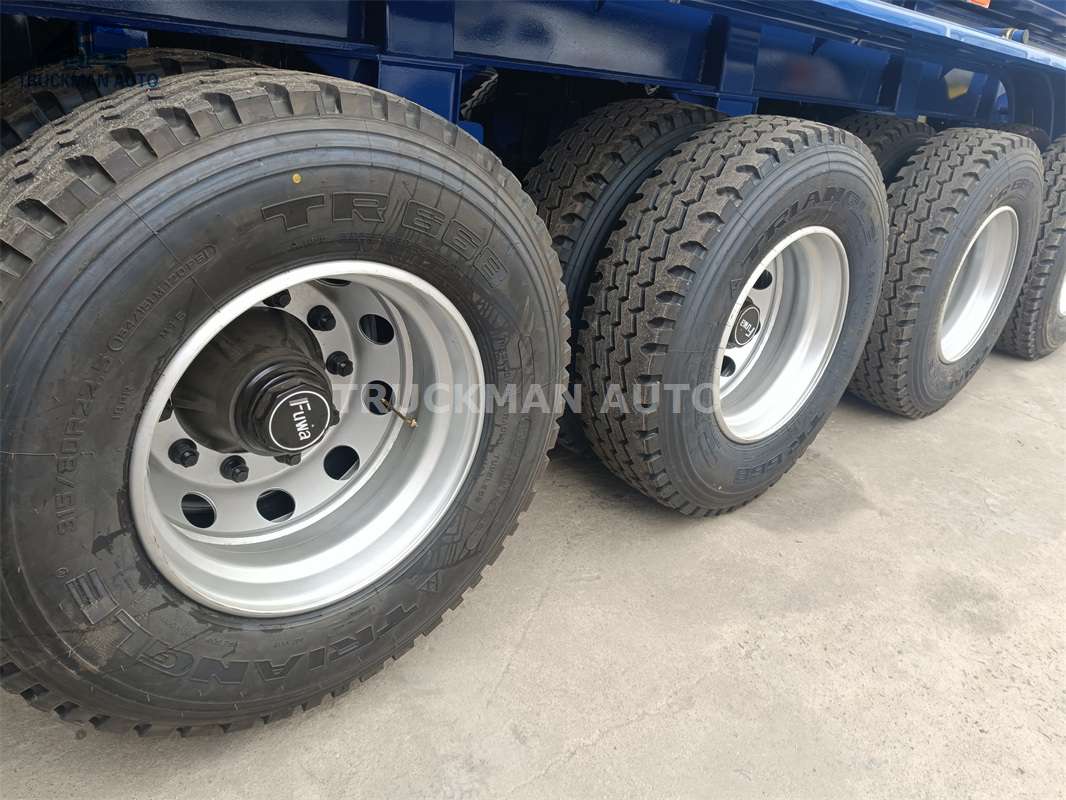

Tire |
315/80R22.5, 16 pcs |
|
Suspension |
Heavy duty mechanical suspension |
|
Tractor Pin |
90#, 3.5 inch |
|
Brake System |
WABCO brand |
|
Cargo Box |
11000x2300x1600mm, 40m3, U shape |
|
Loading Tons |
50-70 tons |
|
Dimension |
12000x2550x3650mm |
The U shape tipper trailer truck specification only for your reference, we will recommend other model tipper trailer truck according to your request.

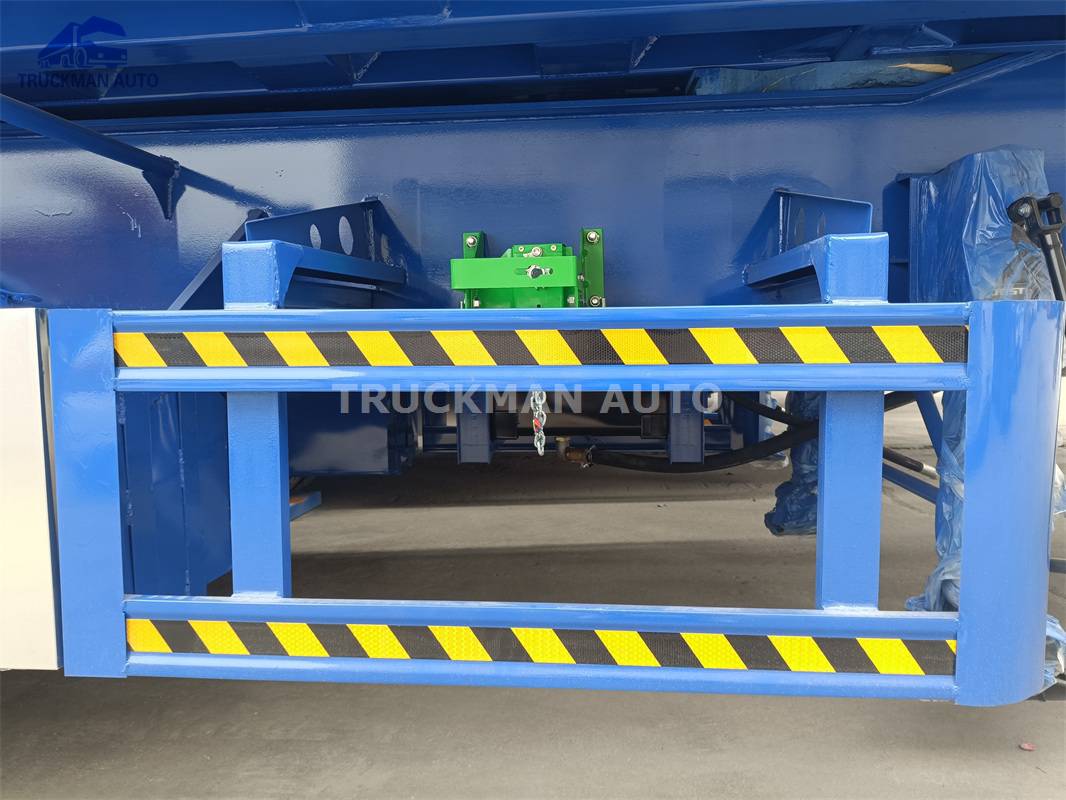

-3. U Shape Tipper Trailer Truck Spare Tire Carrier.

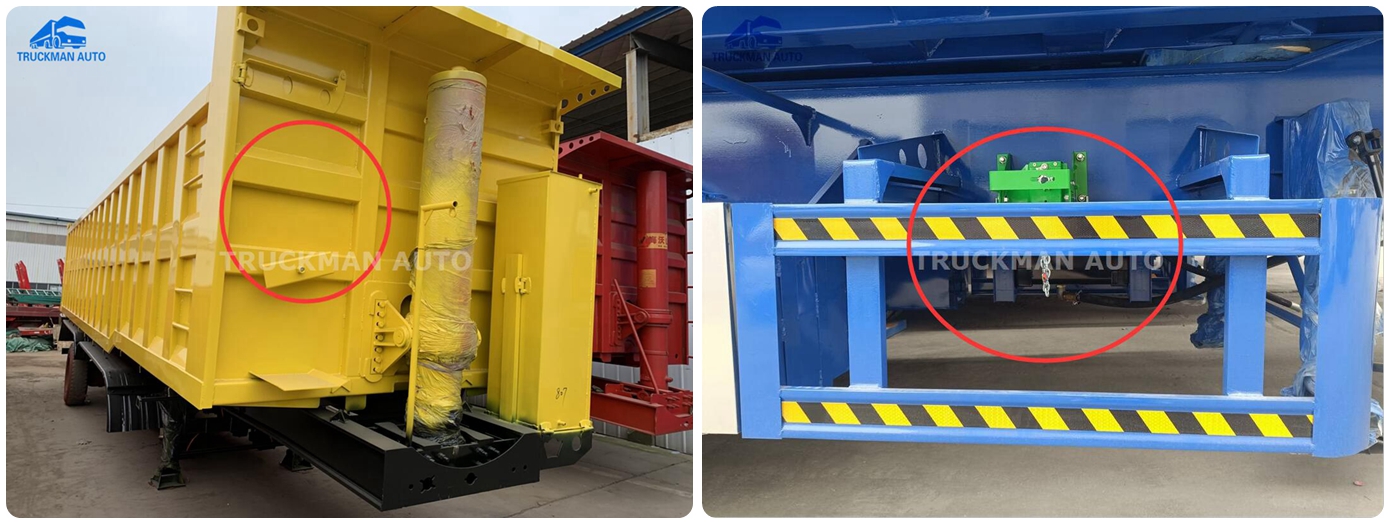

The U shape tipper trailer truck spare tire carrier have two model, one is placed on both sides of the lift cylinder, and the other is placed under the semi-trailer chassis. The first way of installing the spare tire rack is suitable for the semi trailer chassis without installation space, but the operation is inconvenient. The second type of spare tire carrier is the most common and saves time and effort when loading and unloading tires.
U Shape Tipper Trailer Truck Spare Tire Carrier
