40 Tons 3 Axle Container Trailer For 20FT Container Transport

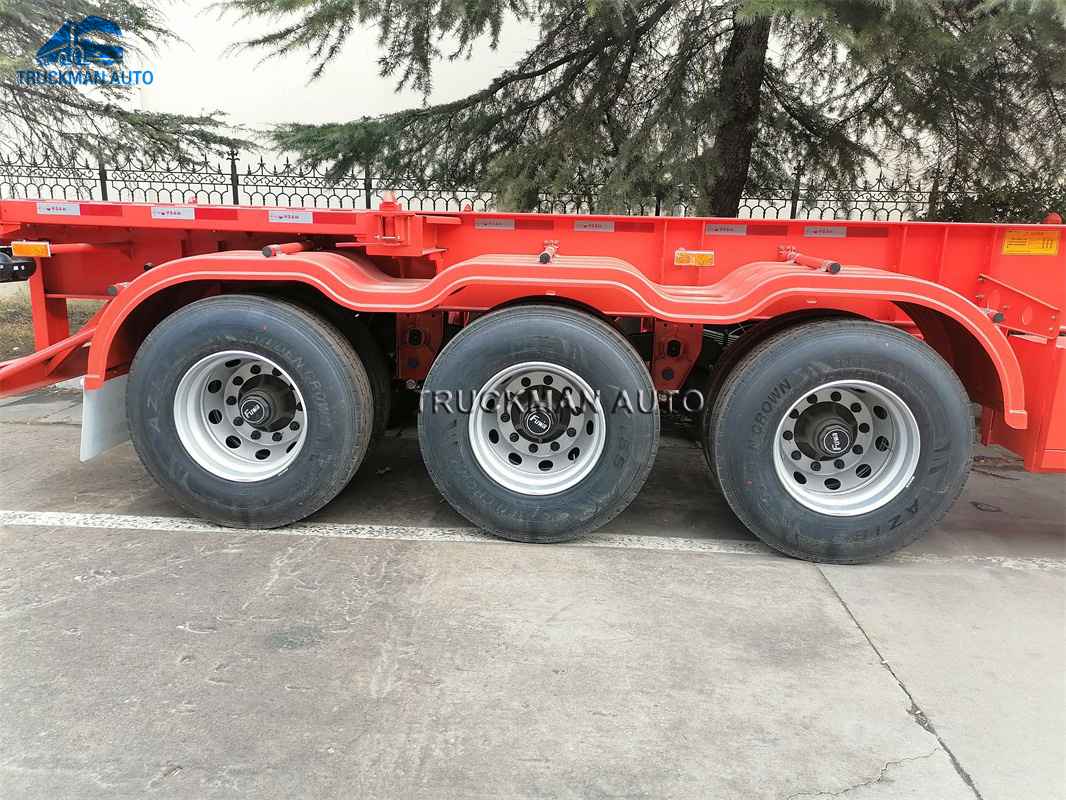

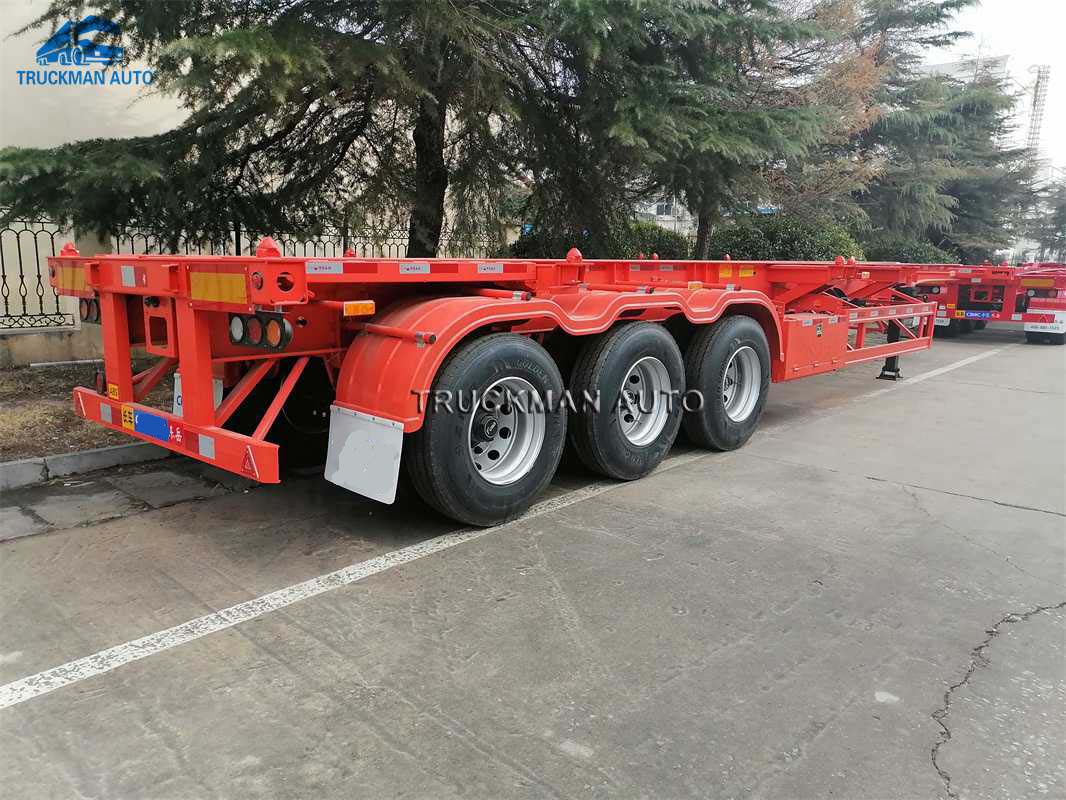

-1. 3 Axle Container Trailer Main Detail.
-. Container trailer have flatbed container trailer and skeleton container trailer.
-. ABS, WABCO and 6 pcs big brake chamber for more safety.
-. Radial and tubeless tire for optional.
-. 3x13000kg, 3 axle. Brand is FUWA or BPW.
-2. 3 Axle Container Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
3 Axle Container Trailer |
|
Loading Weight |
40,000kg |
|
Tare Weight |
7,500kg |
|
Axle |
3 axle, 3x13 tons |
|
Suspension |
America type, 8mm thickness |
|
Leaf Spring |
90x13mmx10pcsx6sets |
|
Rim |
16mm thickness |
|
Tire |
12.00R20, 12 pcs |
|
Brake System |
WABCO brand, ABS and 6 pcs brake chamber |
|
Thickness Of Frame |
Upper plate 14mm, middle 8mm lower plate 16mm, “I” type main beam |
|
Material |
Q345, high strength steel |
|
Dimension |
12500x2500x1300mm |
The specification is only for reference, we could design the 3 axle container trailer according to your request.

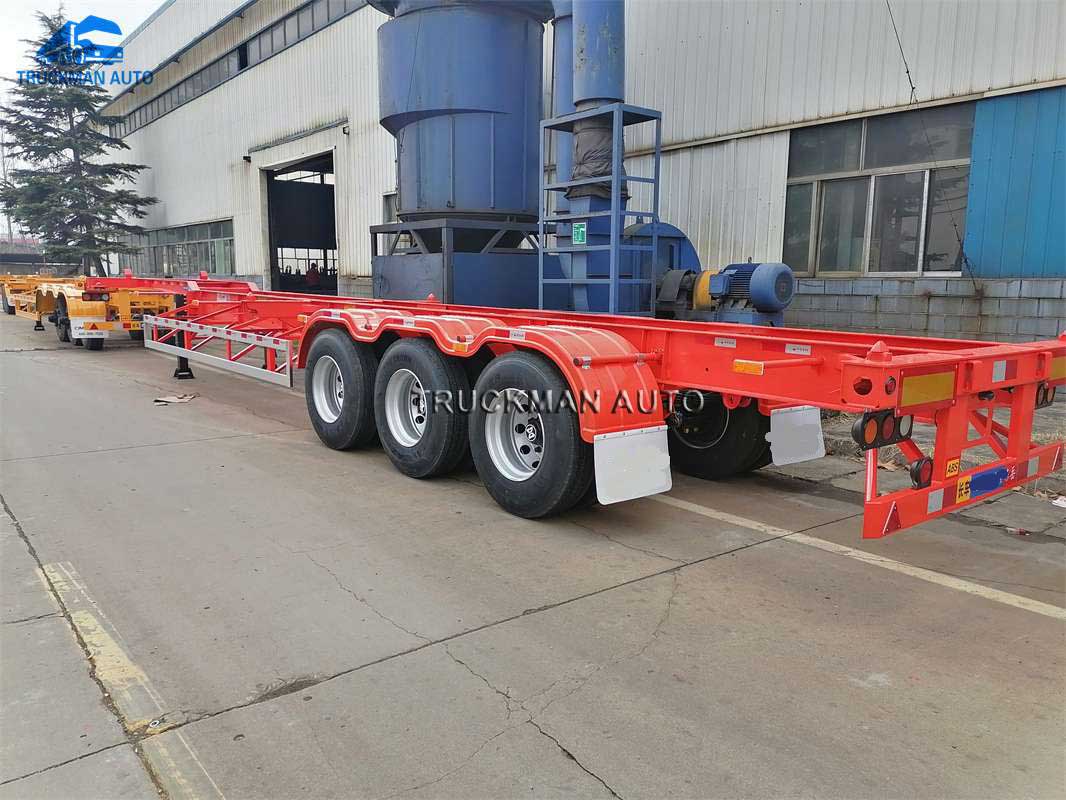

-3. Other Model 3 Axle Container Trailer Picture.

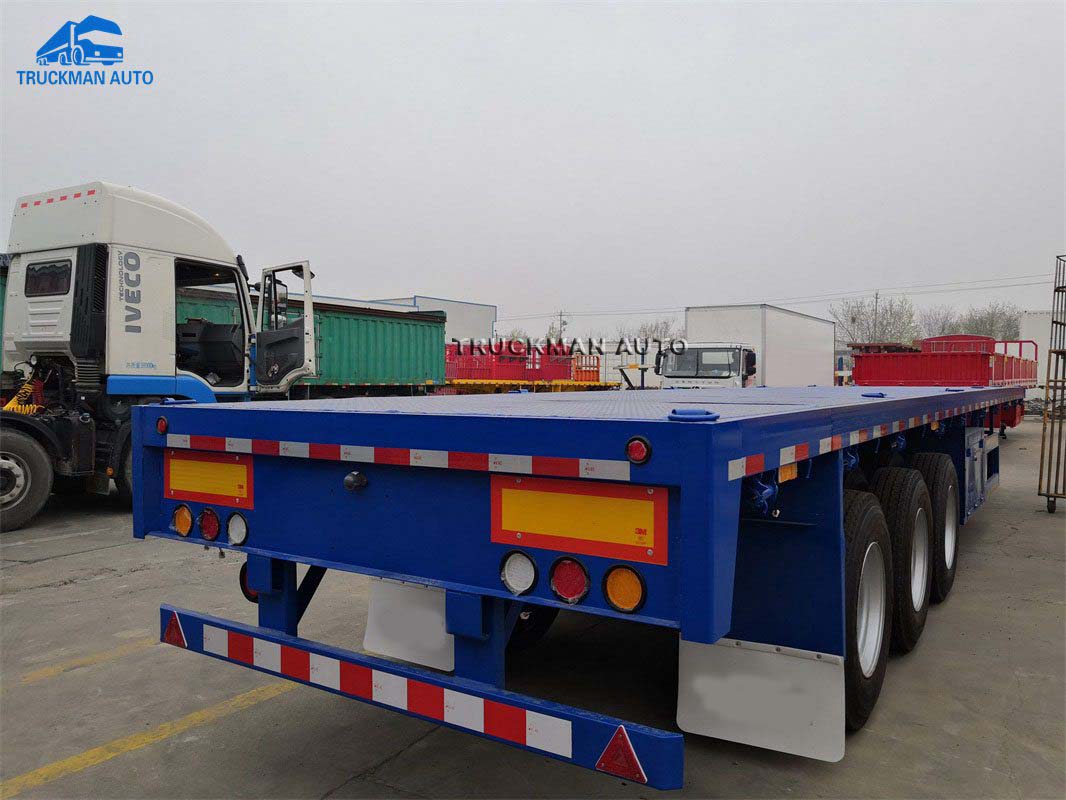

Flatbed container trailer not only transport 20FT, 40FT container, but also could transport bulk cargo, like cement etc..
