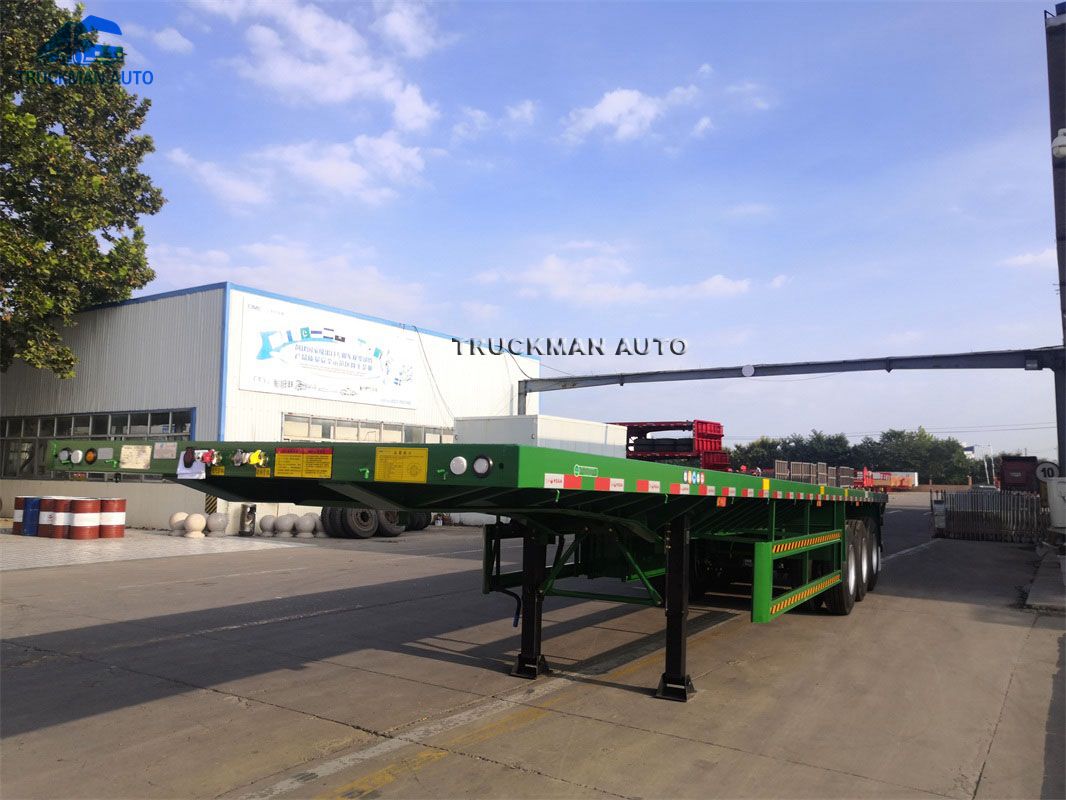

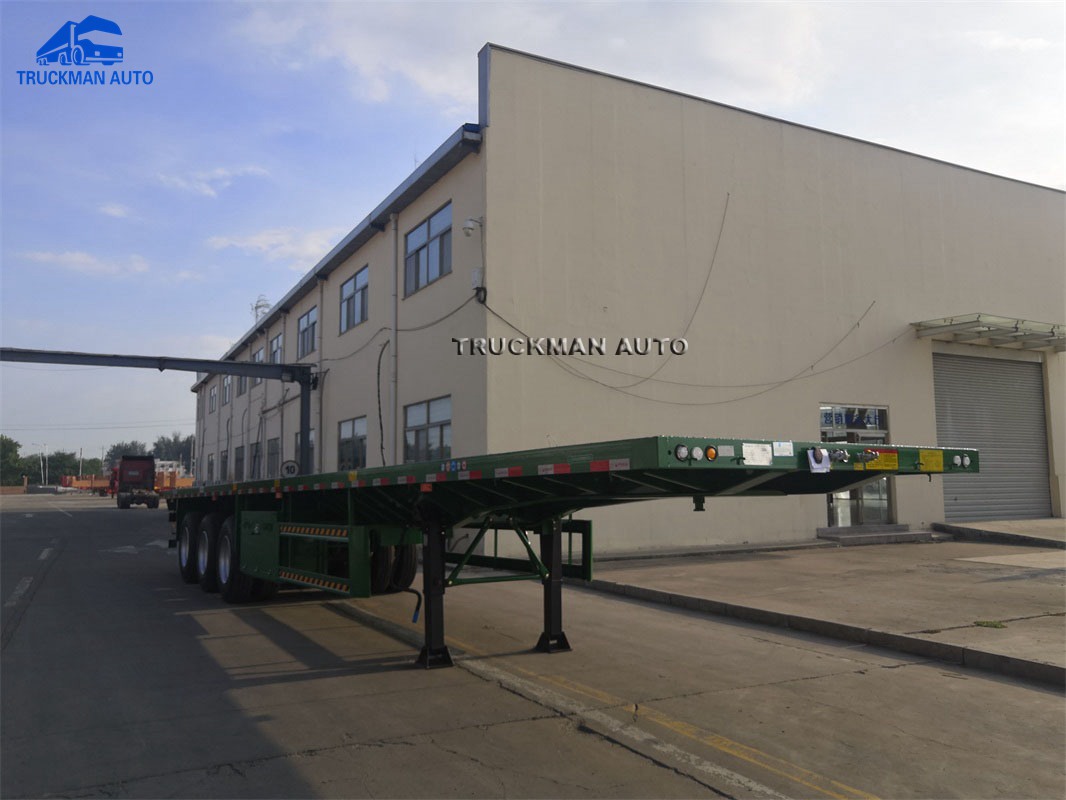

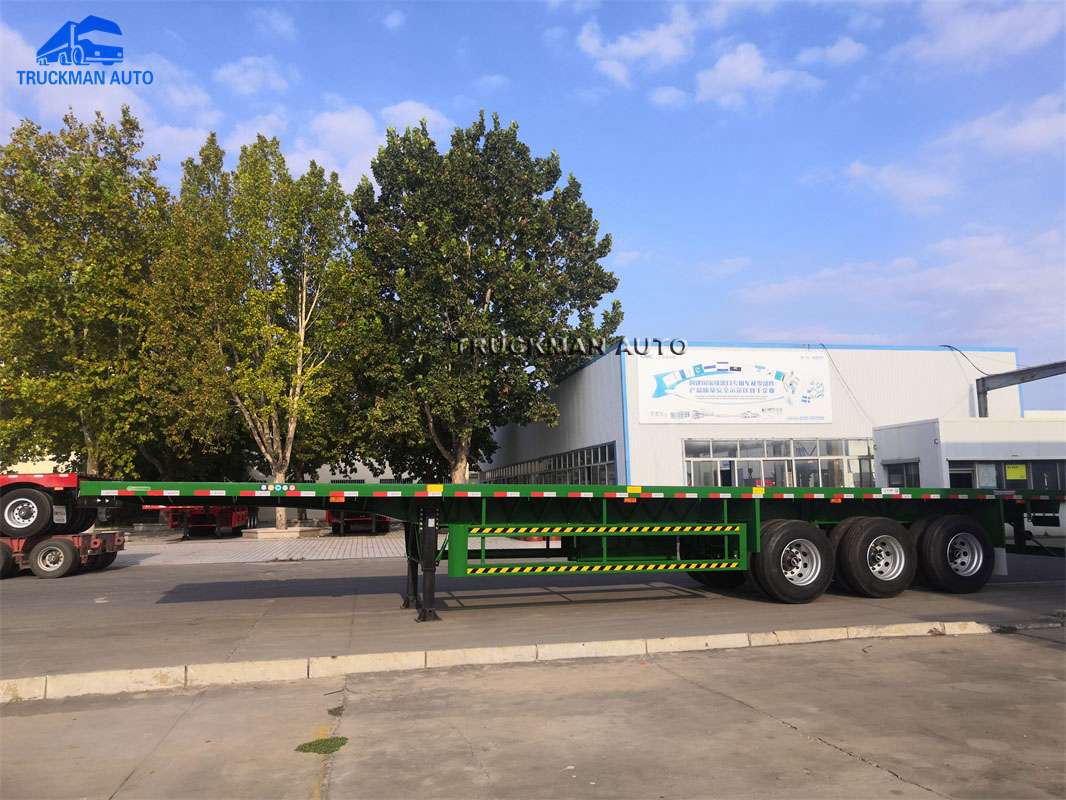

40 Tons Container Flatbed Trailer For Bulk Cargo Haul
-1. Container Flatbed Trailer Main Advantage.
-. Checkered board avoid the slip when transport container
-. Stronger hooks, rope tightener and container lock, more safety
-. Heavy duty type leaf spring, rim, suspension and trailer chassis.
-. Suitable transport 20FT, 40FT and 45FT container.
-2. Container Flatbed Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
Container Flatbed Trailer |
|
Loading Weight |
40,000kg |
|
Tare Weight |
8,000kg |
|
Axle |
3 axle, 3x13 tons |
|
Suspension |
America type, 8mm thickness |
|
Leaf Spring |
90x16mmx10pcsx6sets |
|
Rim |
16mm thickness |
|
Tire |
12R22.5, 12 pcs |
|
Brake System |
WABCO brand, ABS and 6 pcs brake chamber |
|
Thickness Of Frame |
Upper plate 12mm, middle 8mm lower plate 14mm, “I” type main beam |
|
Material |
Q345, high strength steel |
|
Dimension |
12500x2500x1600mm |
The specification is only for reference, we could design the container flatbed trailer according to your request.
-3. Container Flatbed Trailer Matching Product.
Container flatbed trailer need a truck to pull, TRUCKMAN AUTO also could supply SINOTRUCK HOWO 371HP truck head and 420HP truck head, we will recommend the suitable truck head according to your container flatbed trailer specification.

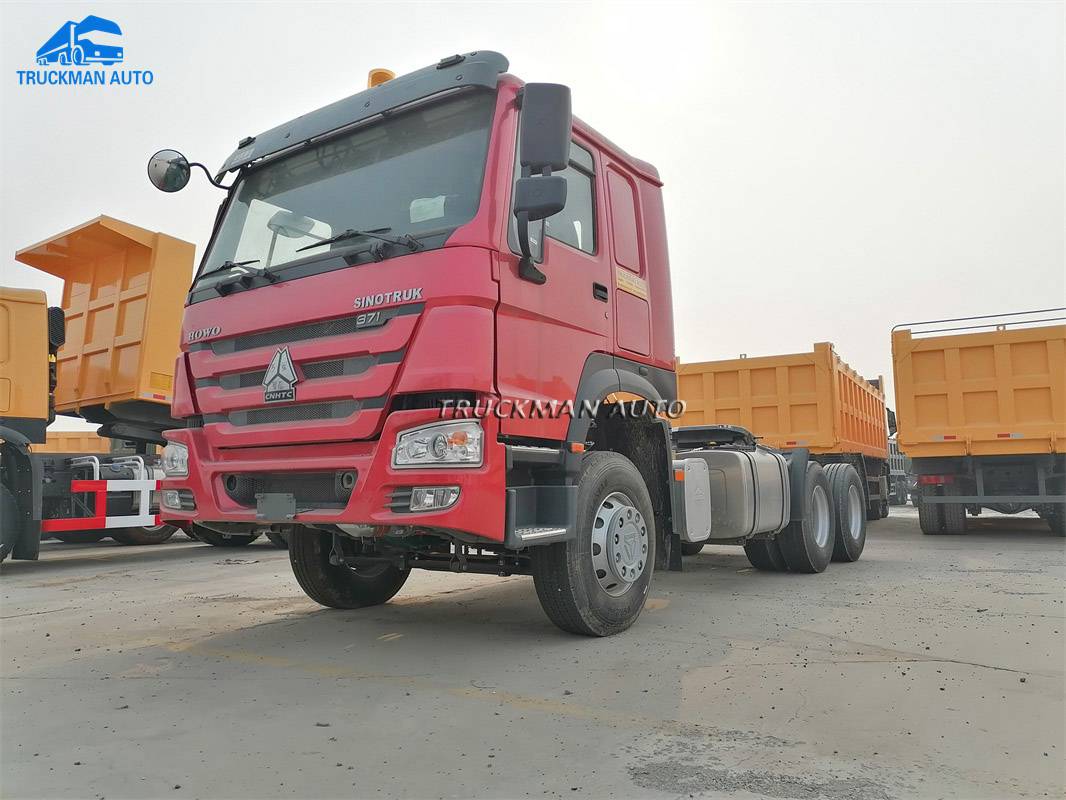

SINOTRUCK HOWO 371HP Truck Head

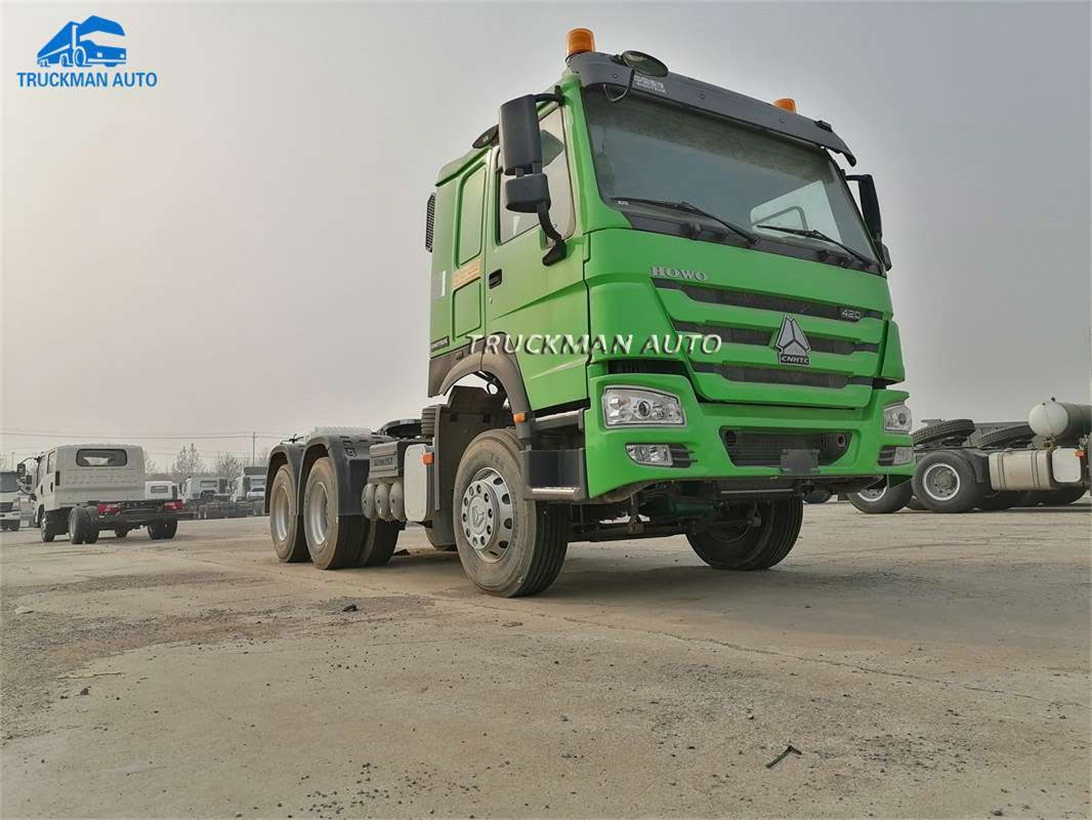

SINOTRUCK HOWO 420HP Truck Head
