60 Ton Gooseneck Lowbed Trailer With Stronger Suspension
-1. 60 Ton Gooseneck Lowbed Trailer Main Advantage.
-. Gooseneck could remove design, easier loading and unloading goods.
-. Tire adopt the 12.00R20 engineering tire, with big pattern.
-. Adopt the 8mm thickness suspension for heavy duty loading.
-. WABCO brand brake system and 6 pcs brake chamber, more safety.
-2. 60 Ton Gooseneck Lowbed Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
60 Ton Gooseneck Lowbed Trailer |
|
Loading Weight |
60,000kg |
|
Tare Weight |
10,500kg |
|
Axle |
3 axle, 3x13 tons |
|
Suspension |
America type, 8mm thickness |
|
Leaf Spring |
90x16mmx10pcsx6sets |
|
Rim |
16mm thickness |
|
Tire |
12.00R20, 12 pcs |
|
Brake System |
WABCO brand, ABS and 6 pcs brake chamber |
|
Thickness Of Frame |
Upper plate 16mm, middle 8mm lower plate 18mm, “I” type main beam |
|
Material |
Q345, high strength steel |
|
Dimension |
13000x3000x1600mm |
The specification is only for reference, we could design the 60 ton gooseneck lowbed trailer according to your request.
-3. 60 Ton Gooseneck Lowbed Trailer Working Picture.

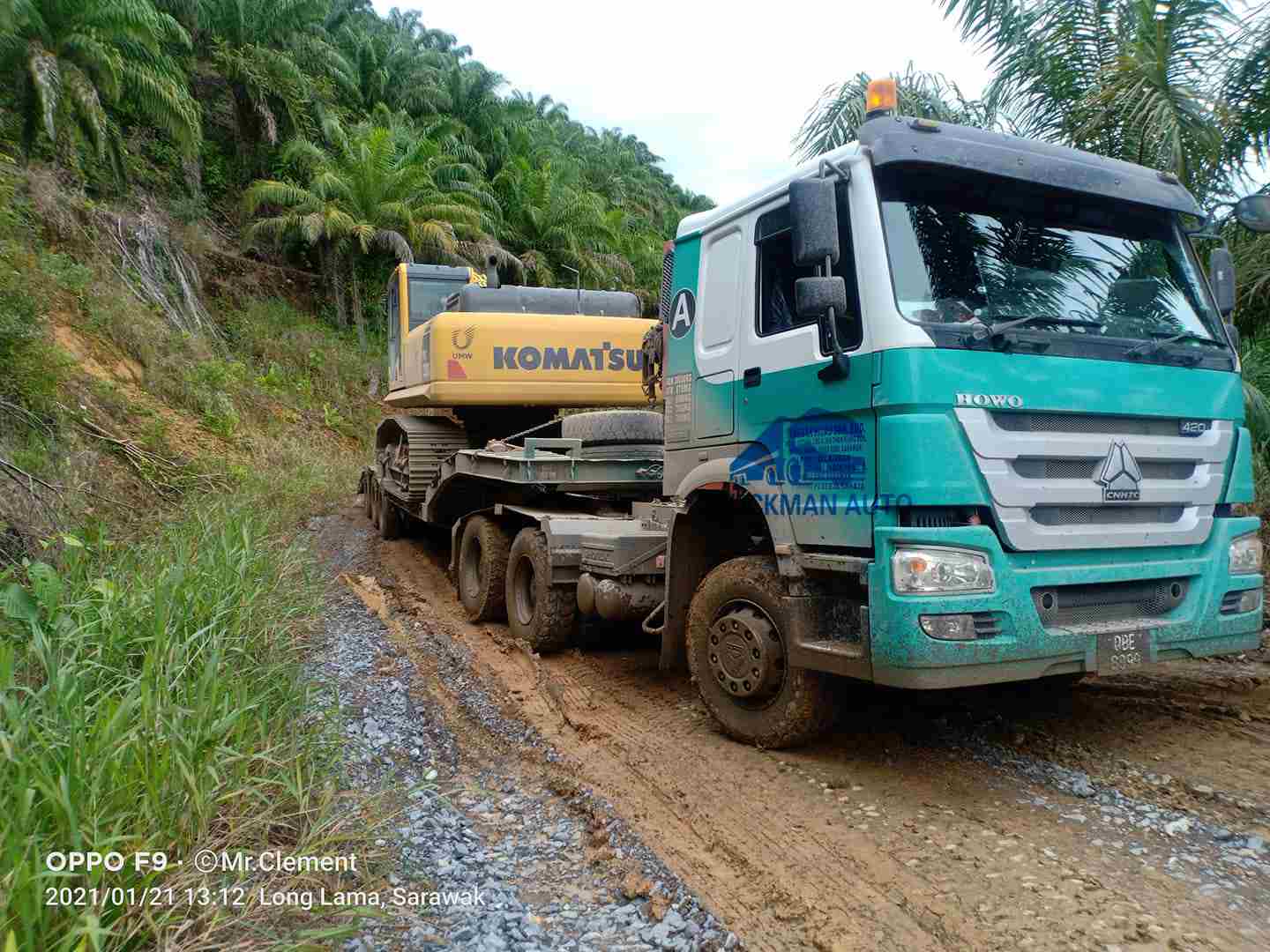

This picture from our Malaysia customers, the gooseneck lowbed trailer working at rainforest area, very bad road condition. So we recommend the customers use 12.00R20 model tire with mining pattern for trailer easier climbing.
