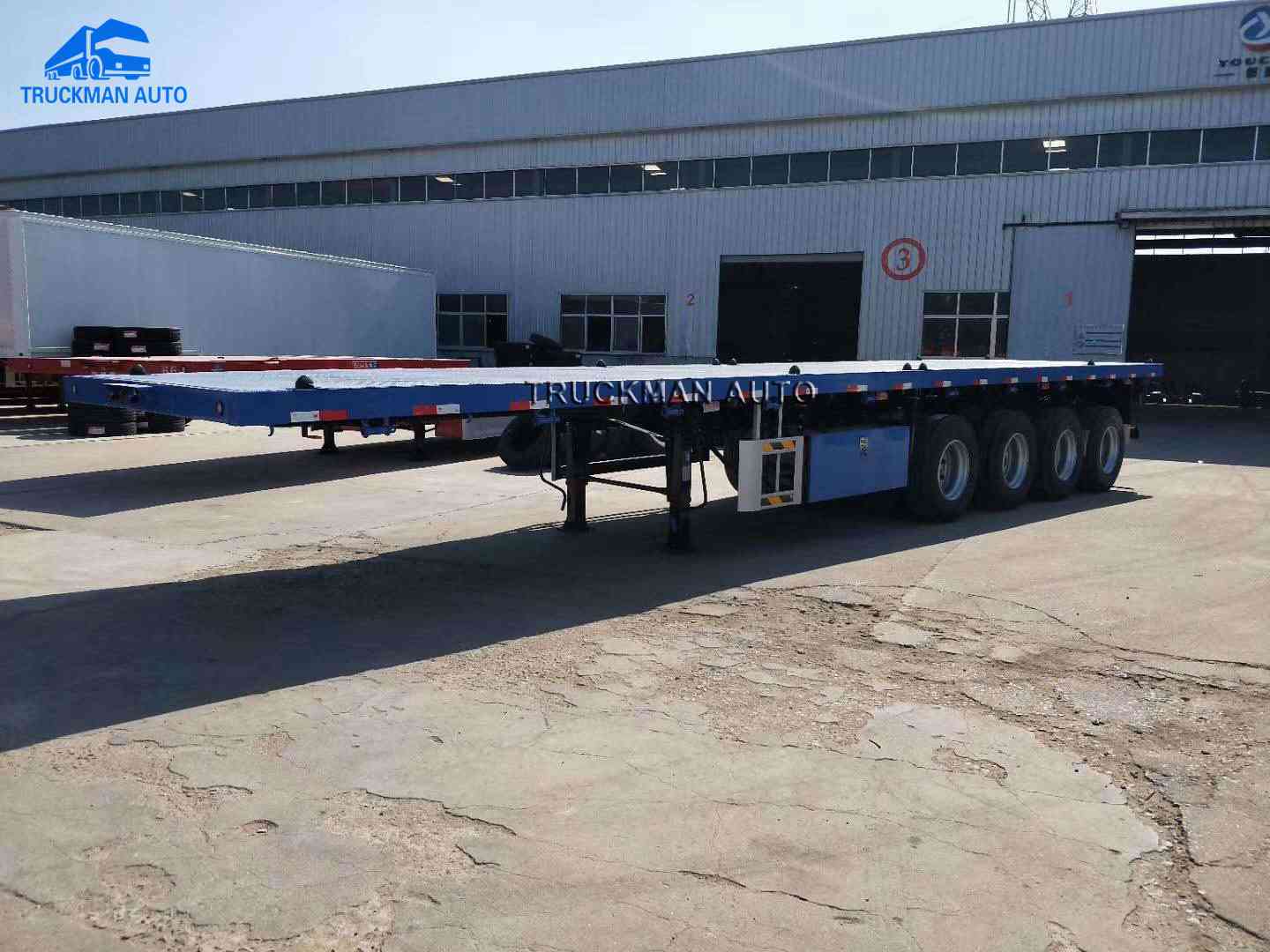

50 Tons 4 Axle Flatbed Trailer For Ghana
-1. 4 Axle Flatbed Trailer Main Detail.
Due to some countries have a loading tons limit, so the flatbed trailer suspension adopt the air lifting type is necessary. 4 axle flatbed trailer is our design new trailer for Ghana, Senegal, Mali etc countries. The front axle could lifting, the rear 3 axle adopt the mechanical suspension
-2. 4 Axle Flatbed Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
4 Axle Flatbed Trailer |
|
Loading Weight |
60,000kg |
|
Tare Weight |
11,000kg |
|
Axle |
4 axle, 4x13 tons |
|
Suspension |
America type, 8mm thickness |
|
Leaf Spring |
90x16mmx10pcsx6sets |
|
Rim |
16mm thickness |
|
Tire |
12.00R20 or 315/80R22.5, 16 pcs |
|
Brake System |
WABCO brand, ABS and 8 pcs brake chamber |
|
Thickness Of Frame |
Upper plate 16mm, middle 8mm, lower plate 18mm, “I” type main beam |
|
Material |
Q345, high strength steel |
|
Others |
12 pcs container lock, 24 pcs rope tightener |
|
Dimension |
12500x2500x1550+800mm |
The specification is only for reference, we could design the flatbed trailer according to your request.

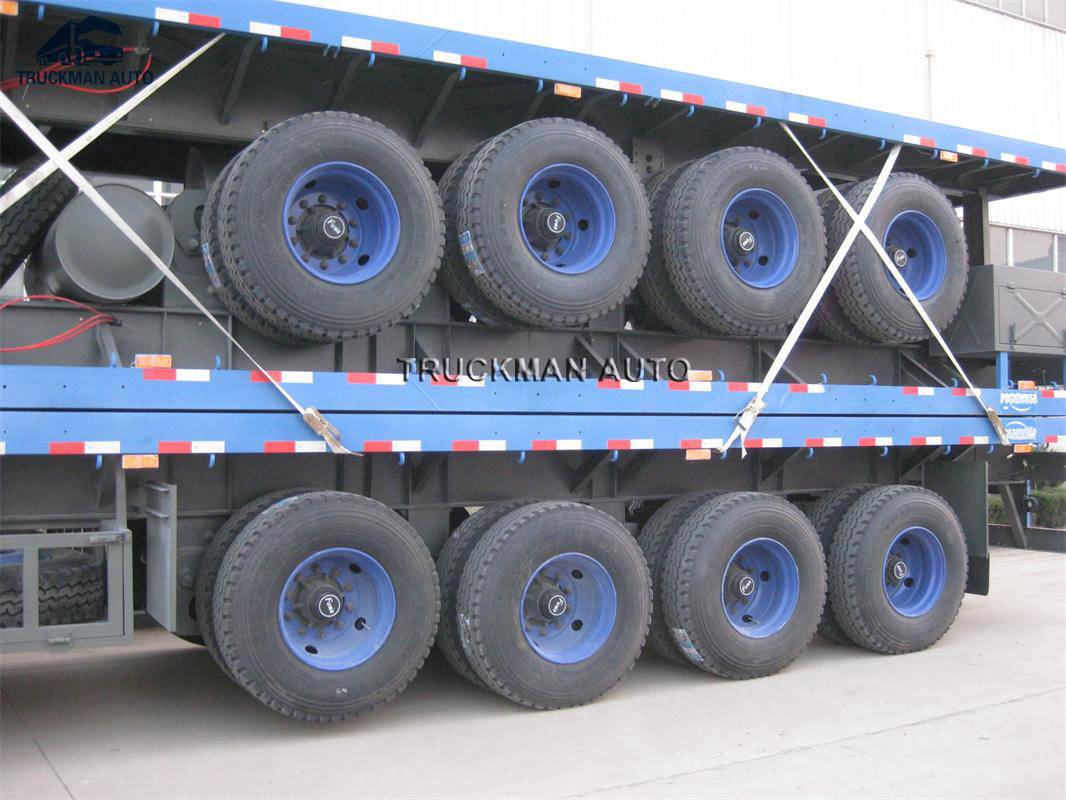

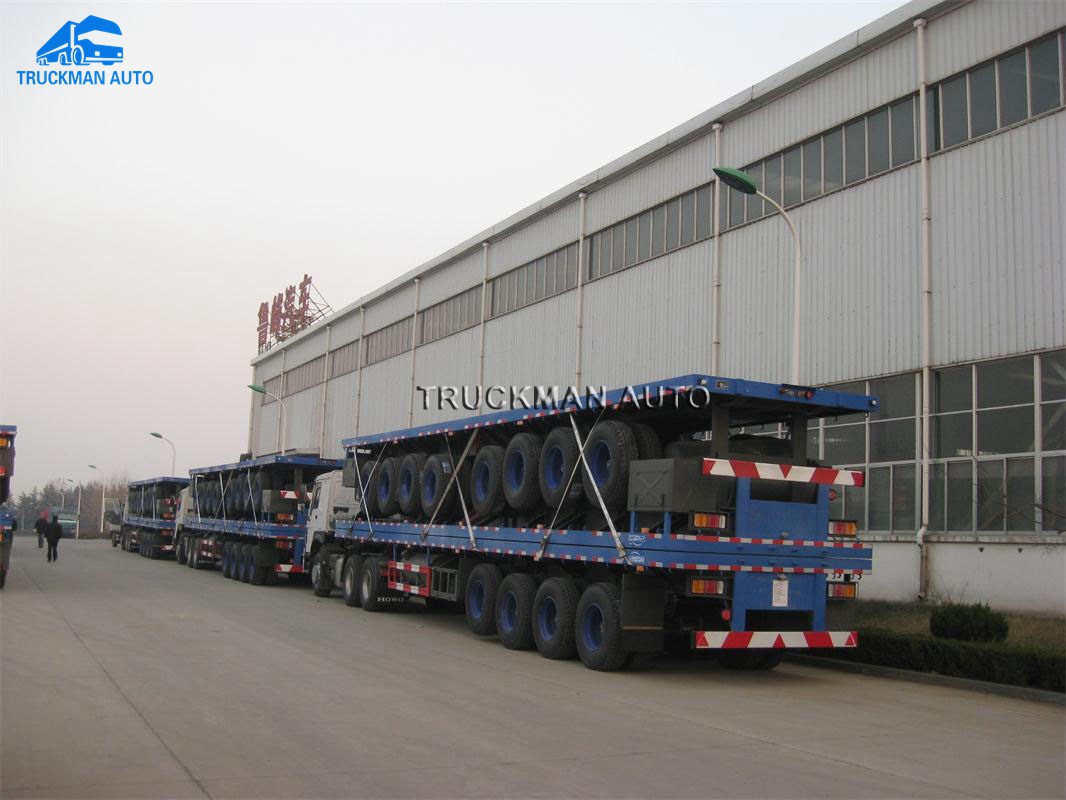

-3. 4 Axle Flatbed Trailer Detail Picture.

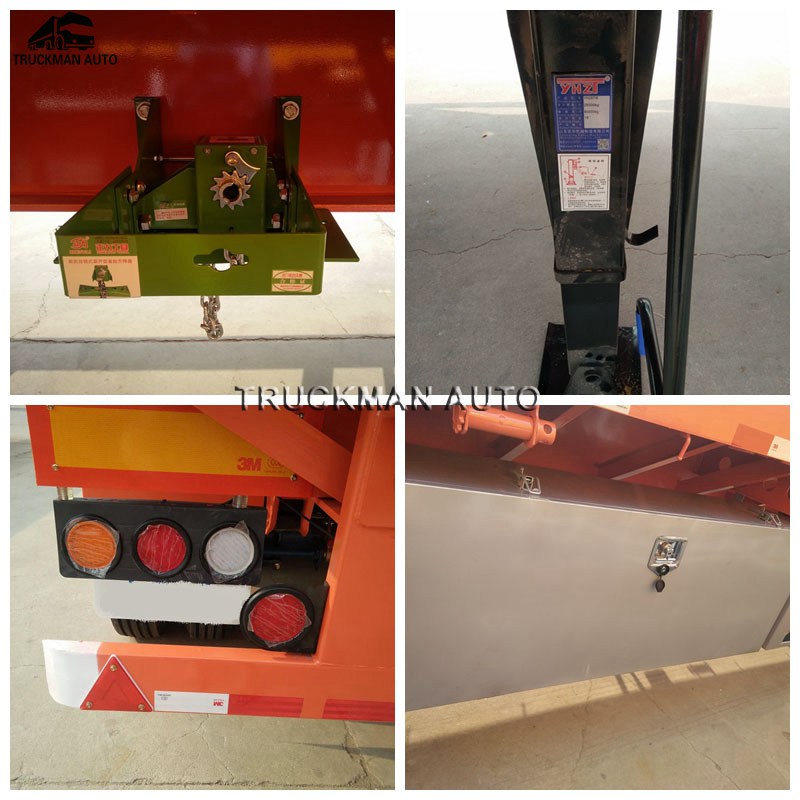

our TRUCKMAN AUTO brand 4 axle flatbed trailer main spare parts work with famous brand, such as JOST support leg and tractor pin, LINGLONG brand tire, WABCO brake system etc.
