50 Tons Side Wall Flatbed Trailer For Cocoa Transport
-1. Side Wall Flatbed Trailer Main Detail.
Flatbed trailer could add 600mm or 800mm height side wall for the bulk cargo transport, and the thickness of side wall 1.5mm or more thicker. Total 24 pcs rope tightener and stronger hooks.
-2. Side Wall Flatbed Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
Side Wall Flatbed Trailer |
|
Loading Weight |
50,000kg |
|
Tare Weight |
8,500kg |
|
Side Wall |
600mm or 800mm height |
|
Axle |
3 axle, 3x13 tons |
|
Suspension |
America type, 8mm thickness |
|
Leaf Spring |
90x16mmx10pcsx6sets |
|
Rim |
16mm thickness |
|
Tire |
12.00R20 or 315/80R22.5, 12 pcs |
|
Brake System |
WABCO brand, ABS and 6 pcs brake chamber |
|
Thickness Of Frame |
Upper plate 14mm, middle 8mm, lower plate 16mm, “I” type main beam |
|
Material |
Q345, high strength steel |
|
Dimension |
12500x2500x1550mm |
The Side Wall Flatbed Trailer could design according to your request.

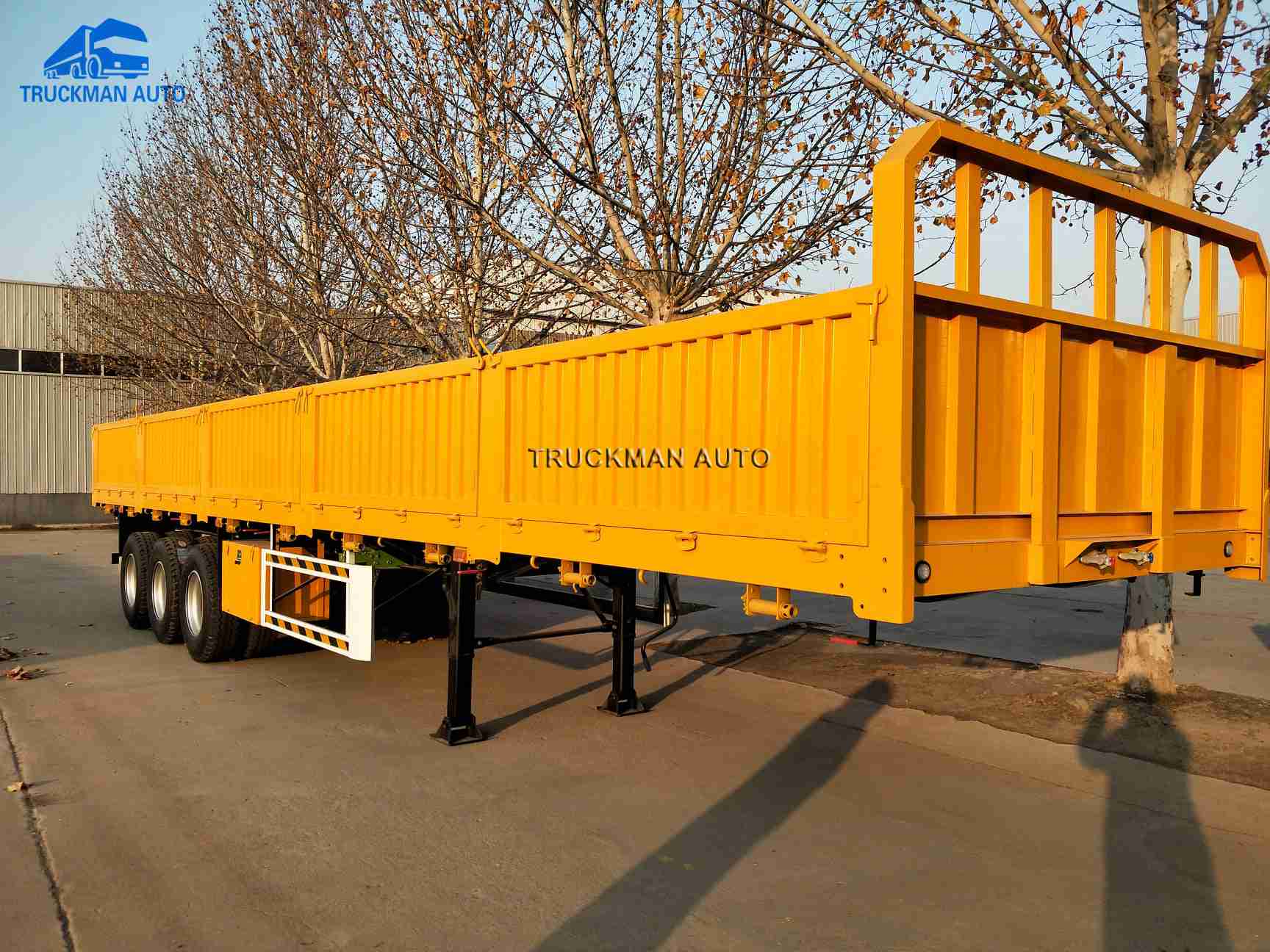

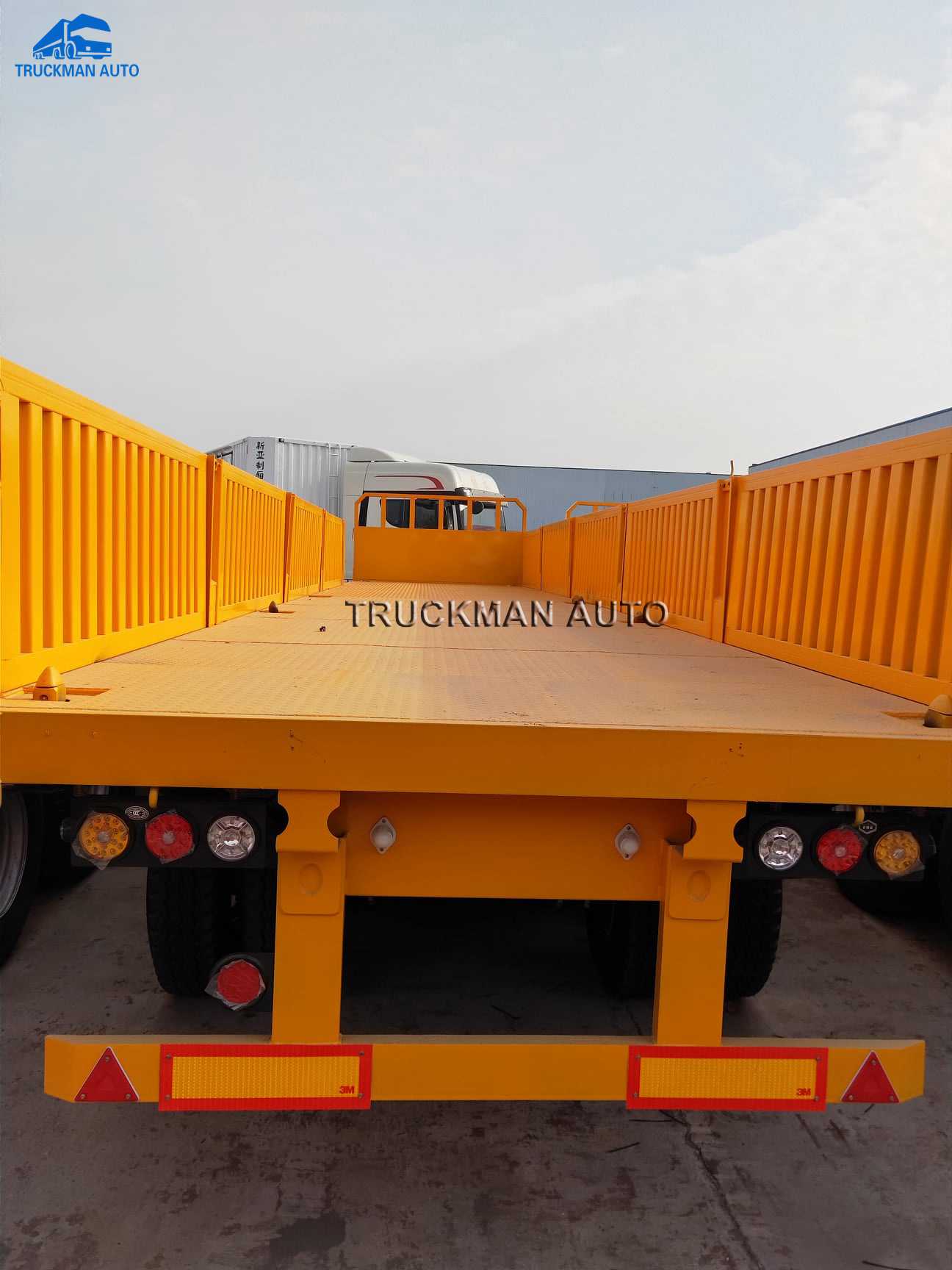

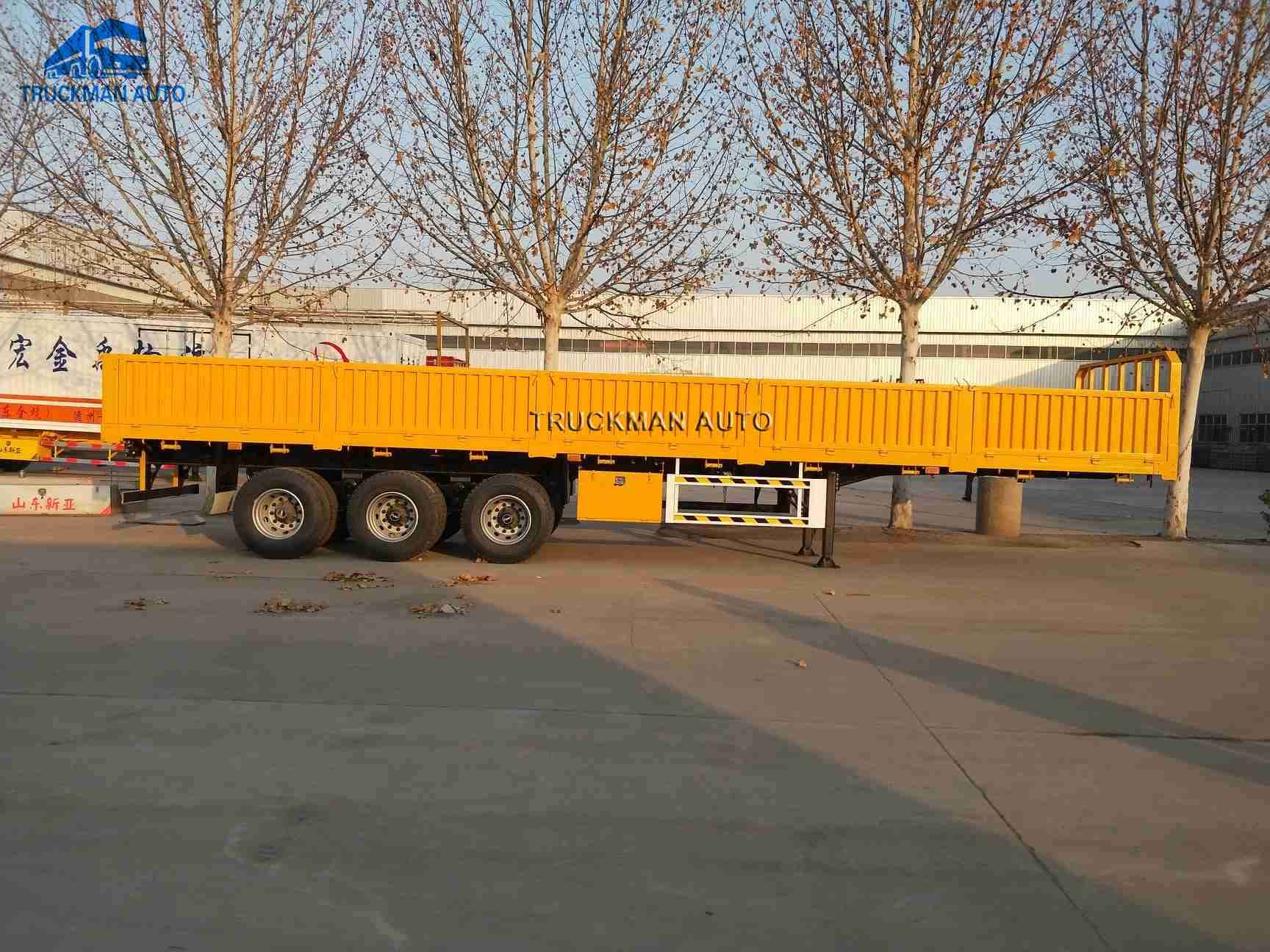

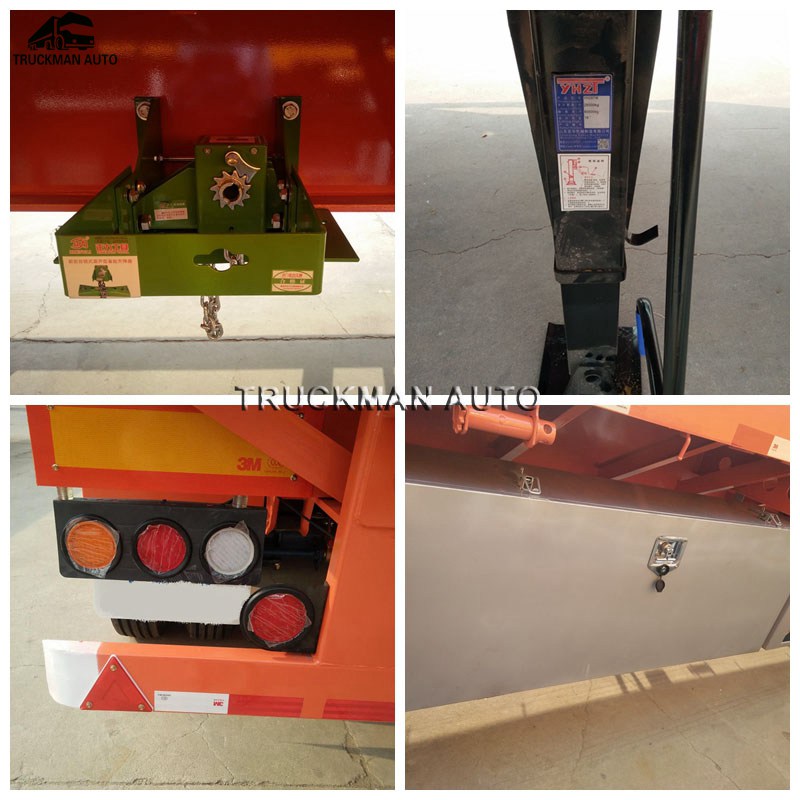

-3. Side Wall Flatbed Trailer Details Picture.
Our TRUCKMAN AUTO side wall flatbed trailer is very popular in Ghana, Tanzania, Ethiopia, Senegal, Mali etc countries, welcome be our agent.
