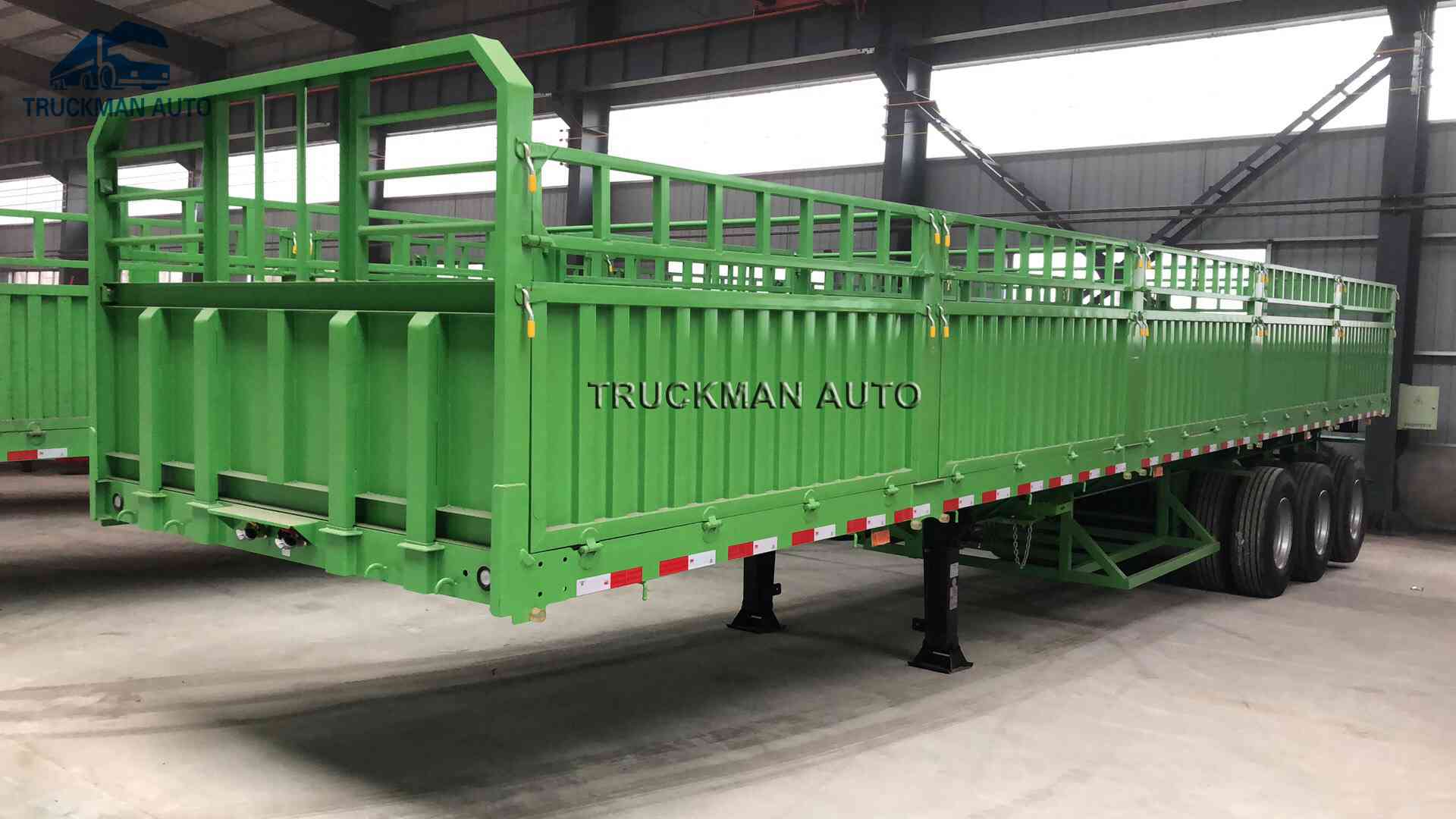

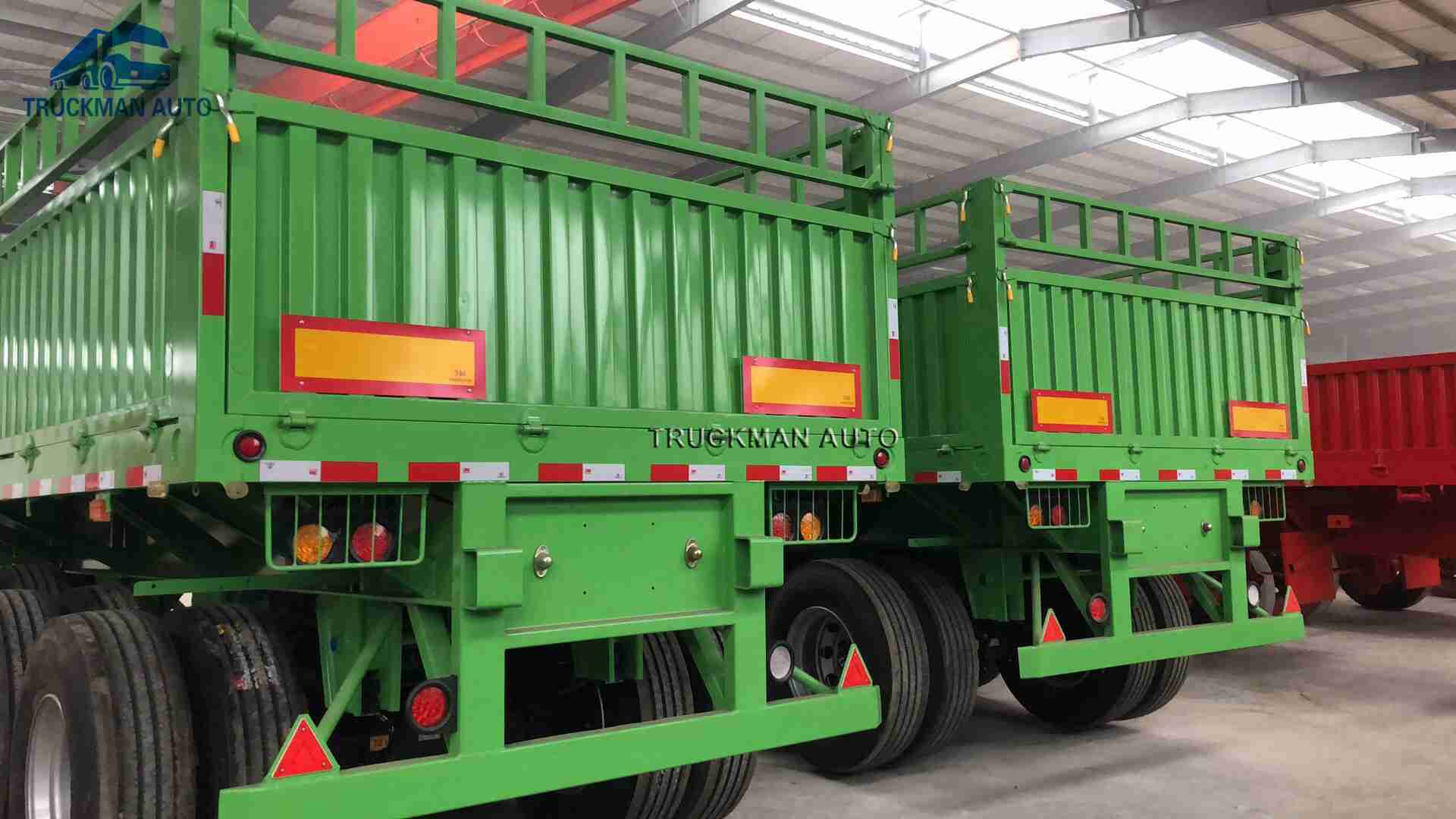

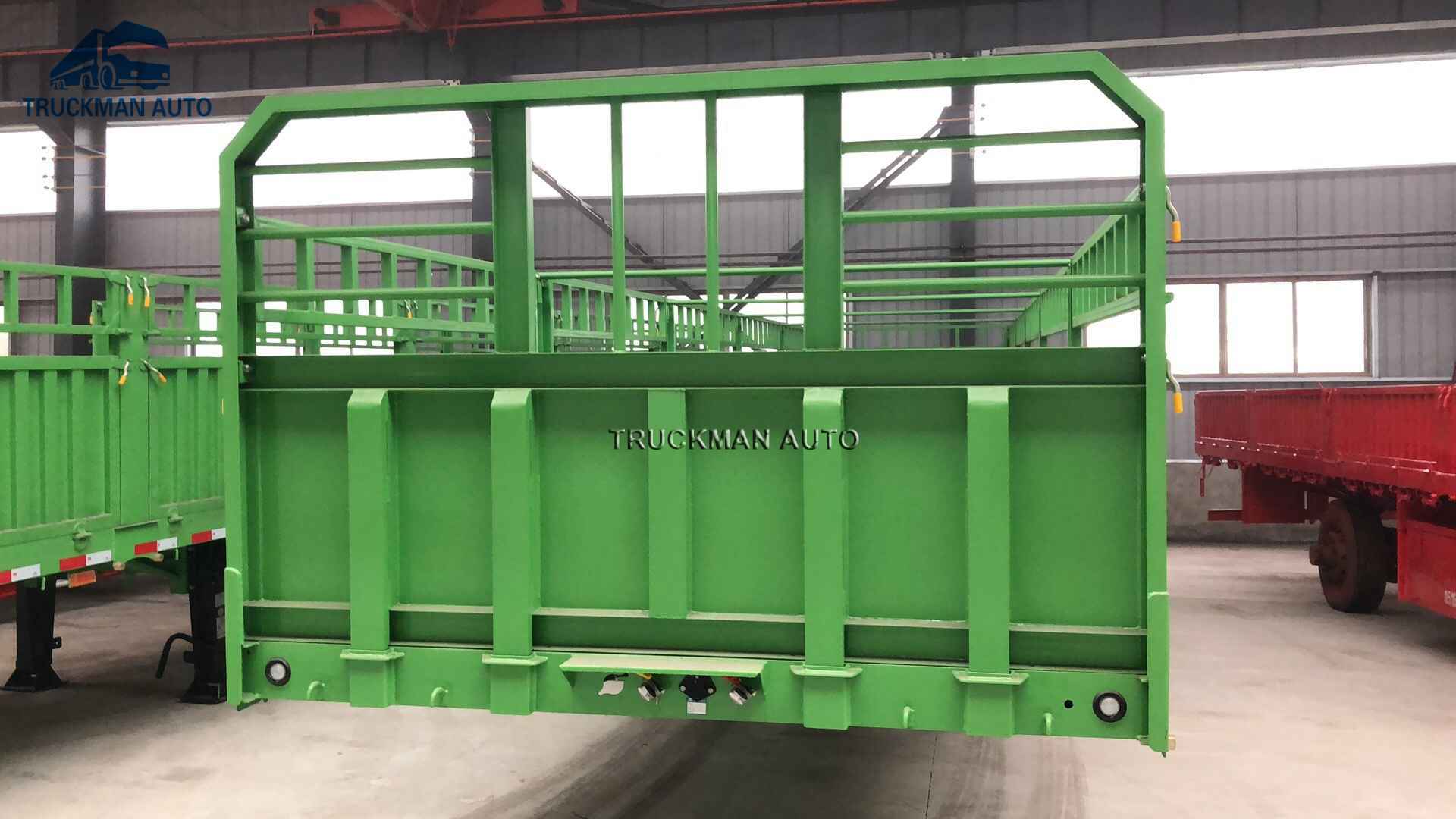

60 Tons Flatbed Semi Trailer With Side Wall For Ghana
-1. Flatbed Semi Trailer With Side Wall Main Detail.
The flatbed semi trailer mainly used for the 20FT, 40FT and 40GP container transport, there are some customers want the flatbed semi trailer also could do bulk cargo transport, so we add the 800mm height side wall for trailer. Don’t need remove the side wall when transport the container, it’s very convenient. And also add total 24 pcs rope tightener for goods tie.
-2. Flatbed Semi Trailer With Side Wall Main Specification.
|
Description |
Parameter value |
|
Product Name |
Flatbed semi trailer with side wall |
|
Loading Weight |
60,000kg |
|
Tare Weight |
11,000kg |
|
Axle |
3 axle, 3x16 tons |
|
Suspension |
America type, 8mm thickness |
|
Leaf Spring |
90x16mmx10pcsx6sets |
|
Rim |
16mm thickness |
|
Tire |
12.00R20 or 315/80R22.5, 12 pcs |
|
Brake System |
WABCO brand, ABS and 6 pcs brake chamber |
|
Thickness Of Frame |
Upper plate 16mm, middle 8mm, lower plate 18mm, “I” type main beam |
|
Material |
Q345, high strength steel |
|
Others |
12 pcs container lock, 24 pcs rope tightener |
|
Dimension |
12500x2500x1550+800mm |
-3. Flatbed Semi Trailer With Side Wall Electric System.
our TRUCKMAN AUTO brand flatbed semi trailer electric with high copper content, protect well, long time using. and all of lamp with protect cover.
