JINAN TRUCKMAN AUTOMOBILE CO.,LTD

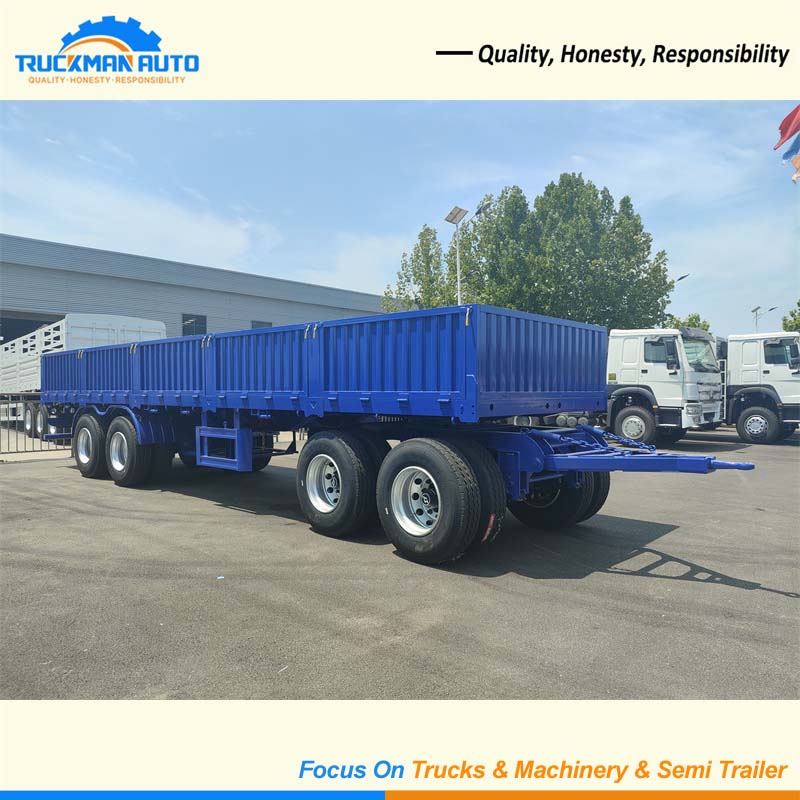

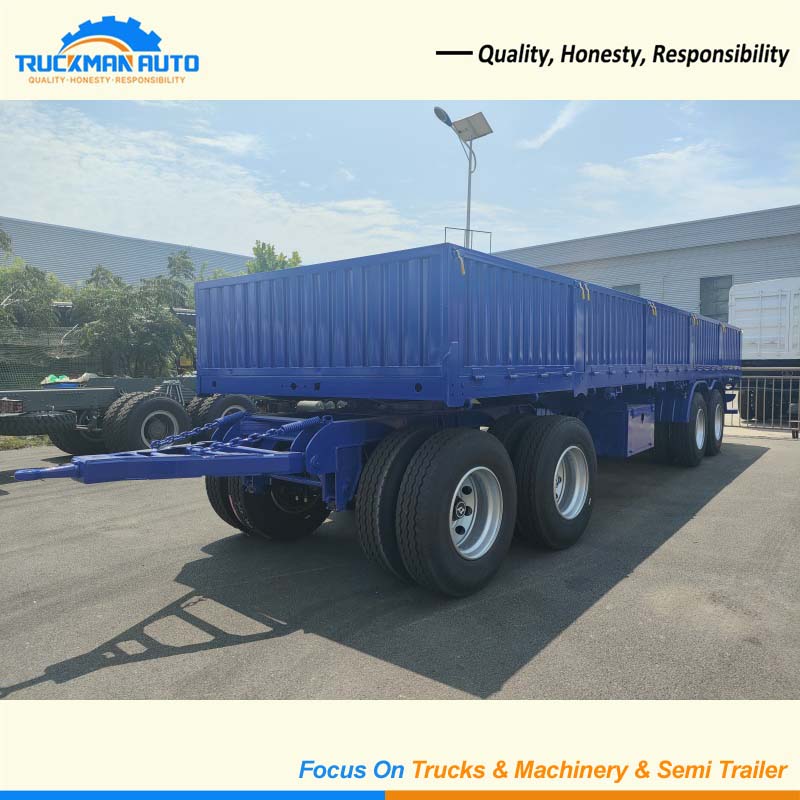

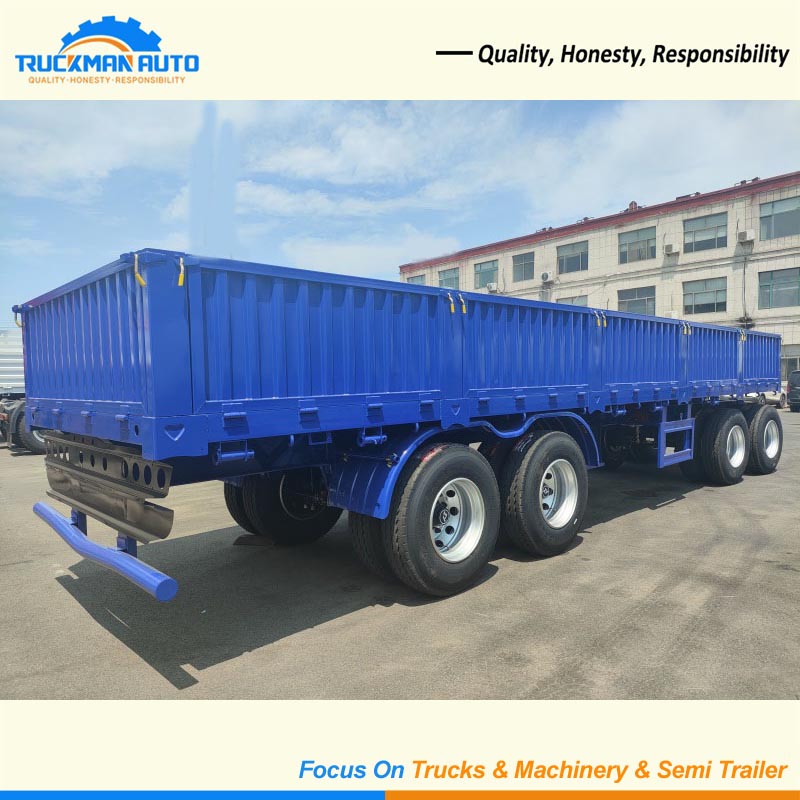

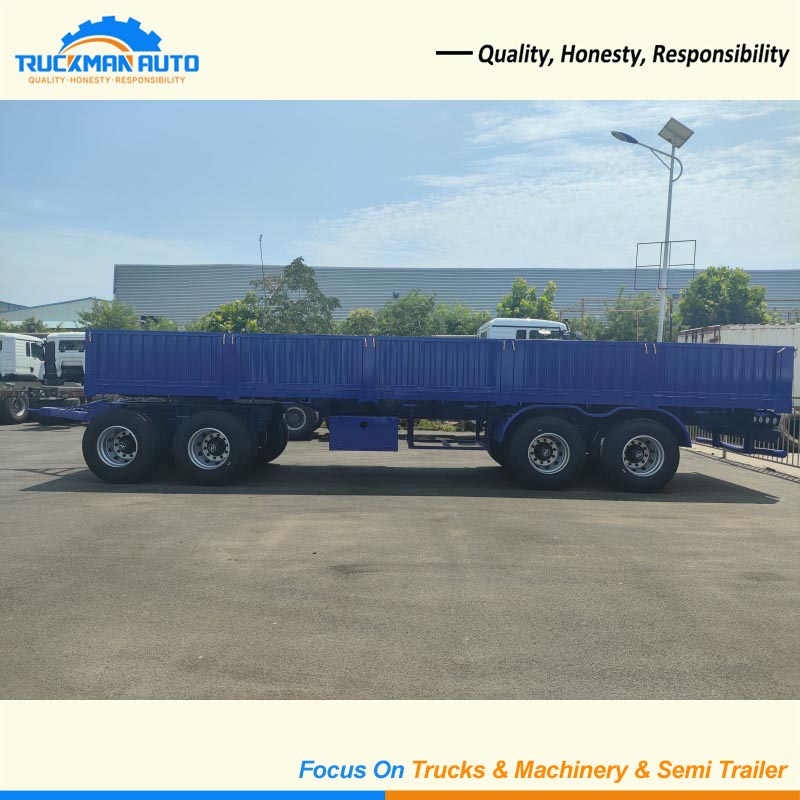

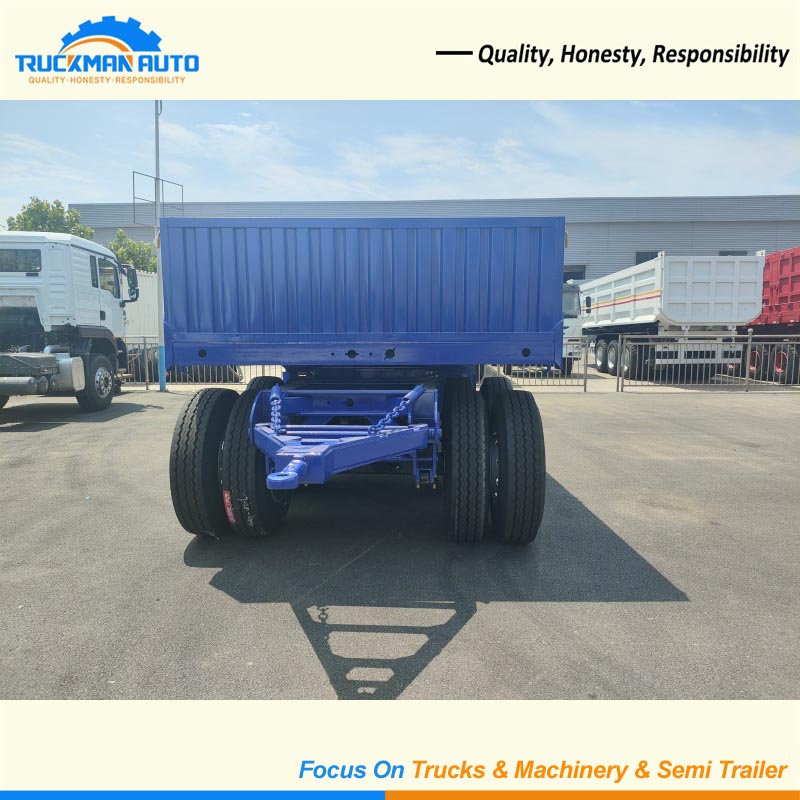

Brand New 4 Axles 80 Tons Drawbar Fence Cargo Trailer Features

The drawbar fence cargo trailer can stand on their own, their loads are borne by themselves, and they are connected to the tractor by hooks; they are of various types, and their basic frame, body and traveling system are basically the same as those of trucks. Full trailers are mainly used for short-distance transportation in factories, ports, terminals, warehouses and other sites. Because the traction bar can be swung flexibly relative to the body of the vehicle, the drawbar fence cargo trailer has the advantage of traveling in mountainous areas or on rugged roads, with strong climbing ability.

Brand New 4 Axles 80 Tons Drawbar Fence Cargo Trailer Specification

Brand New 4 Axles 80 Tons Drawbar Fence Cargo Trailer specification only for your reference, we will recommend other trailer basic your request.

JINAN TRUCKMAN AUTOMOBILE CO., LTD was founded in 2018, it is dedicated to the R&D, production and sales of various semi-trailers and full trailers, and is your trusted first-choice partner.

How can I choose the correct semi-trailer type based on the local actual situation?

Please visit Guide To Bulk Transport Semi-trailer Types to learn how to correctly choose your semi-trailer type.

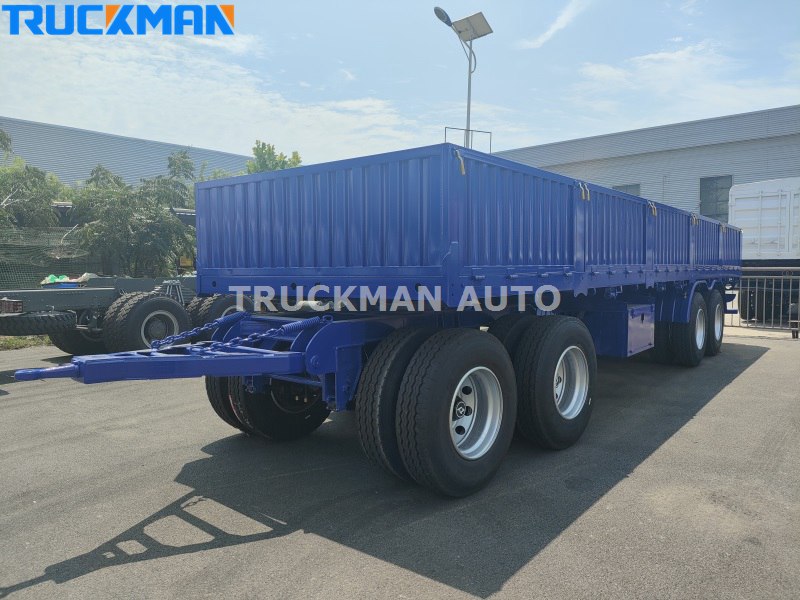

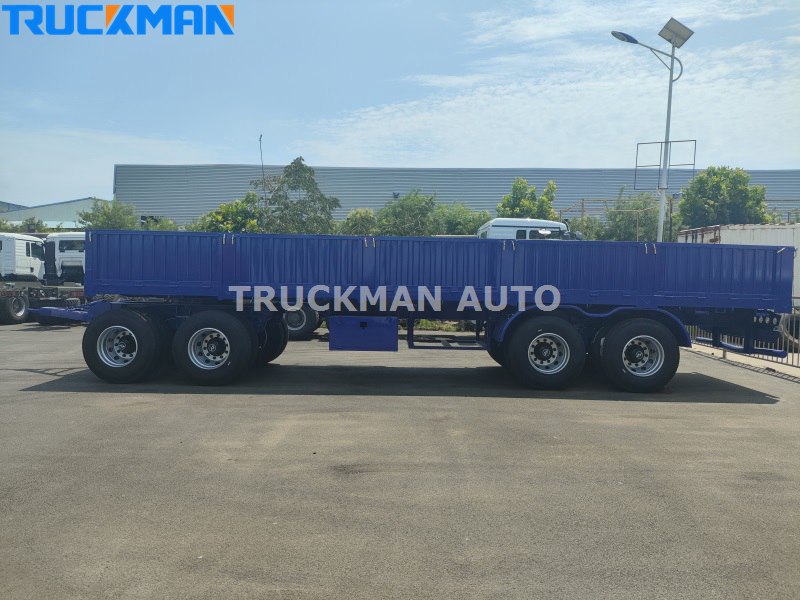

Brand New 4 Axles 80 Tons Drawbar Fence Cargo Trailer Structural Composition

The drawbar fence cargo trailer is generally composed of frame, body, traction device, steering device, suspension, traveling system, braking system, signaling system and so on. The trailer cargo platform floor is flat, the ground clearance is generally high, and the longitudinal passability is good. The main frame beam, supporting beams and side beams are welded parts with box section, which have large torsional rigidity. The crossbeam connecting the main beam extends out to both sides, and is a variable cross-section I-beam welded structure with high transverse bending strength. A turntable mechanism for mounting the balance suspension is provided under each supporting beam to realize all-wheel steering.

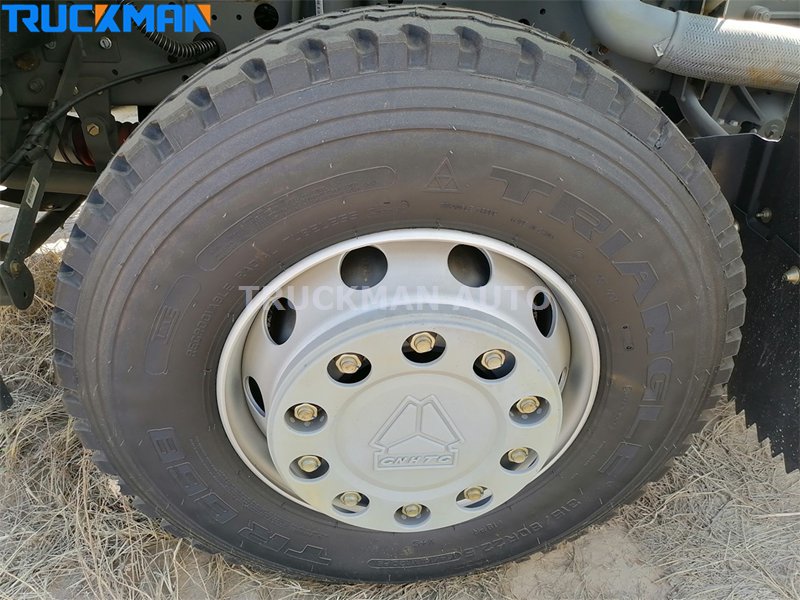

Brand New 4 Axles 80 Tons Drawbar Fence Cargo Trailer Tire

The cargo trailer adopts 315/80R22.5 tires, equipped with advanced crown bead balancing technology, which can balance the force on the tires and increase the carrying capacity by 30%, which can easily cope with the transportation of heavy-duty transport tasks. Tubeless design, tires and wheel rims are sealed as one, when the vehicle is running at high speed, the high temperature generated by the friction between tires and road surface can be directly dissipated by the steel rims, which can quickly reduce the tire temperature, thus prolonging the service life of the tires. Reinforcement of the belt bundle layer structure, forming a dense mesh structure, the strength of the tire crown is increased by 13%, which effectively reduces the failure of the tire crown.
