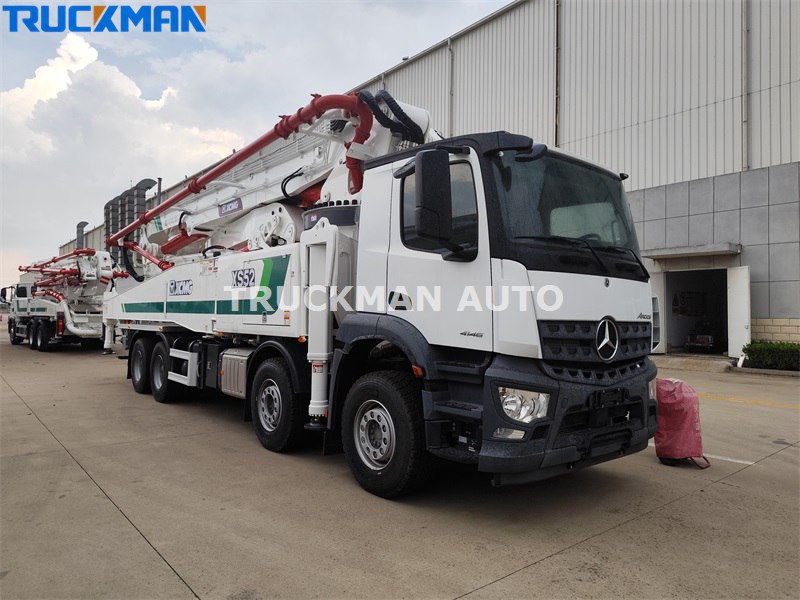

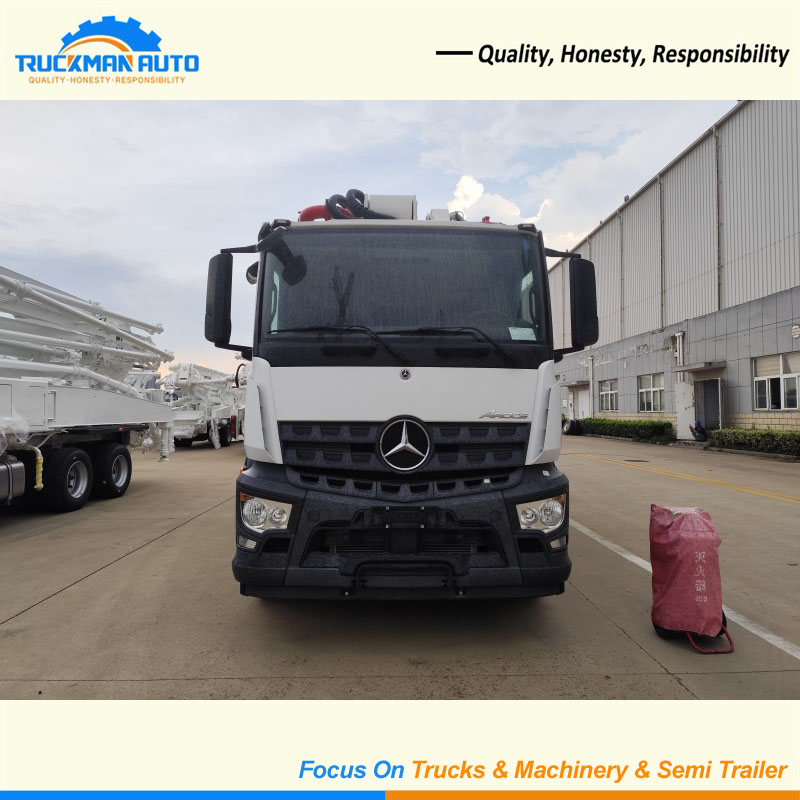

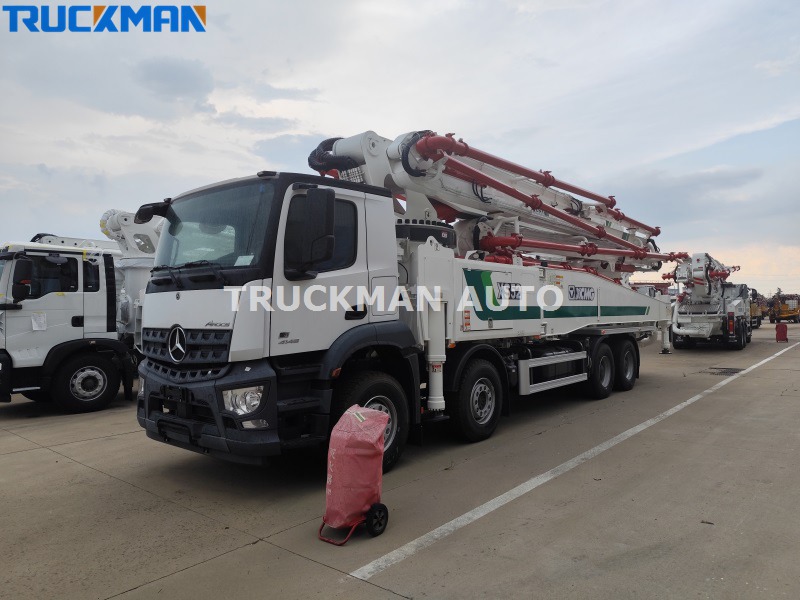

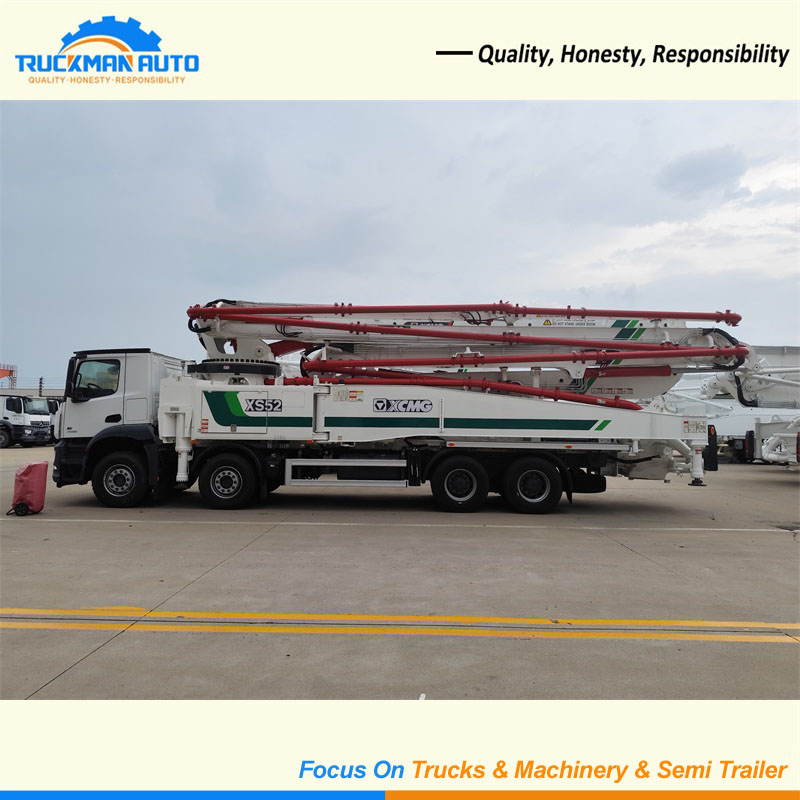

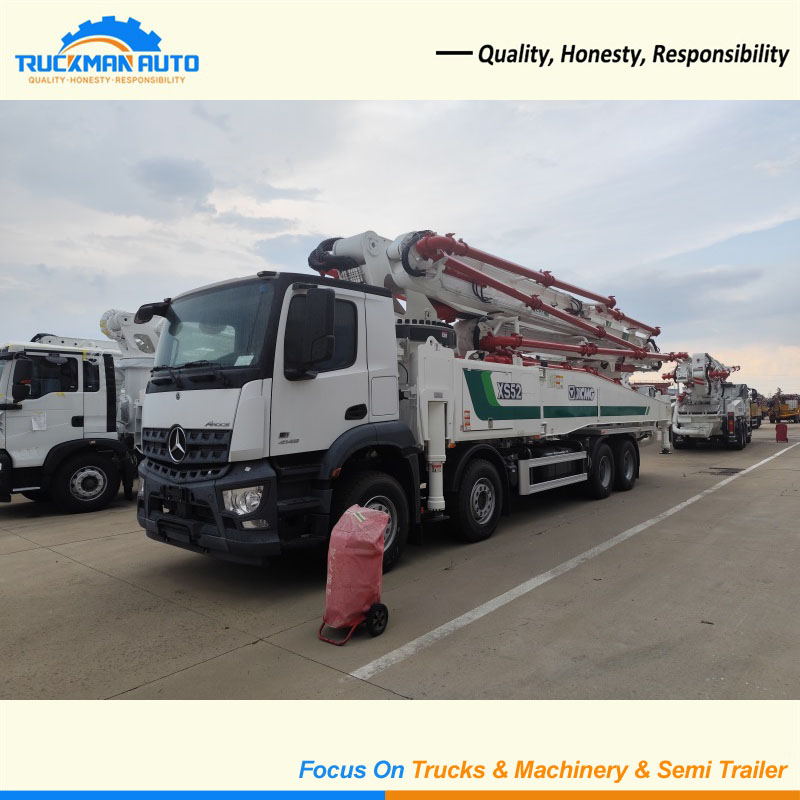

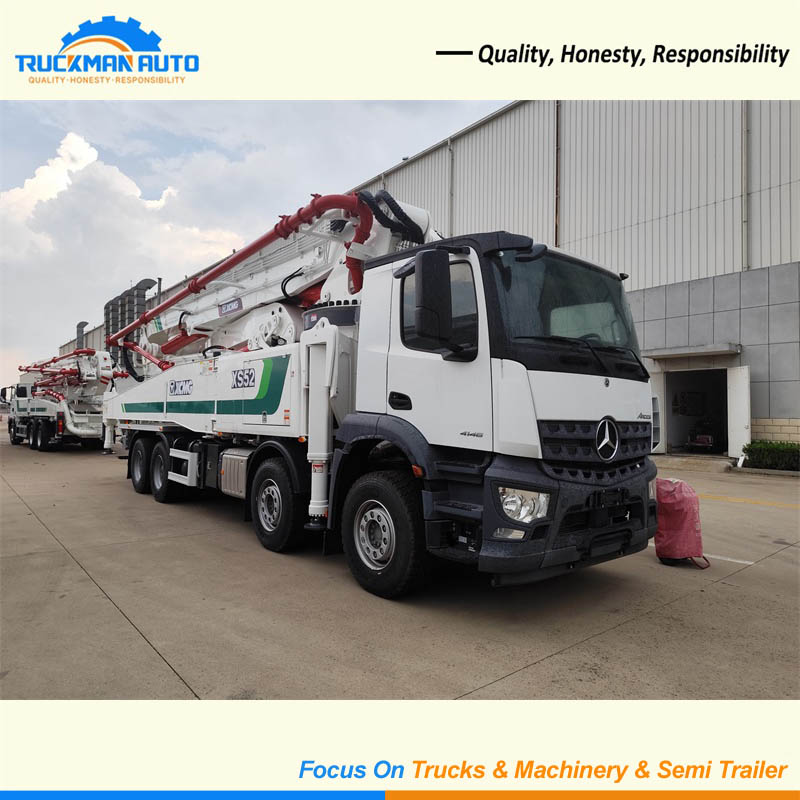

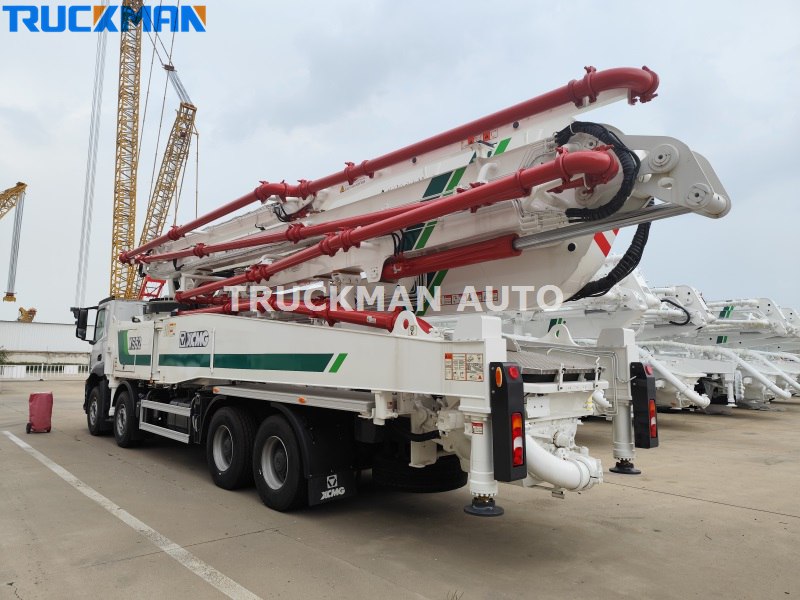

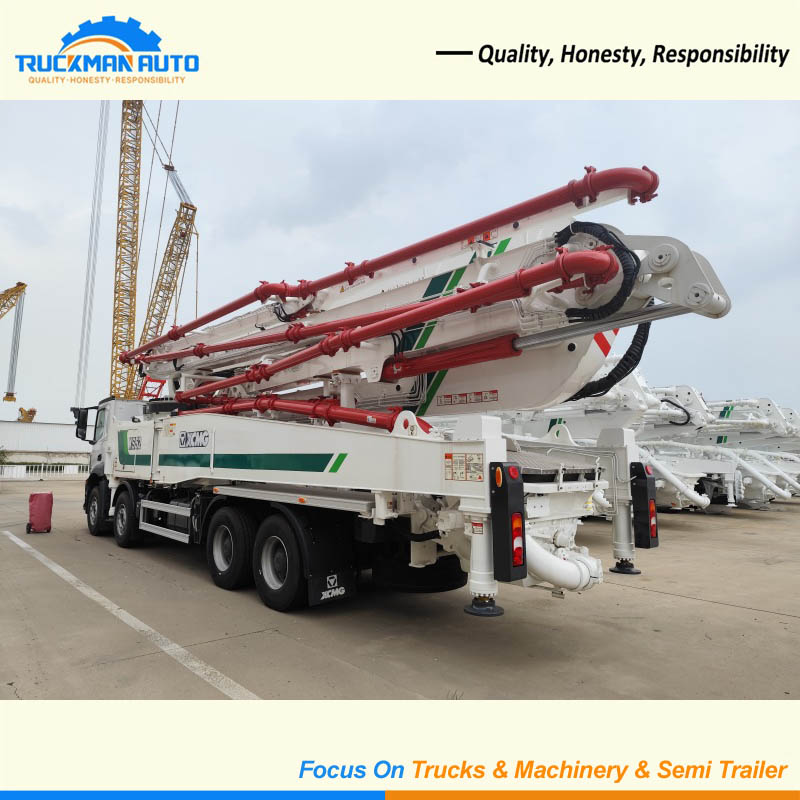

MERCEDES BENZ 8x4 52m XS52 XCMG Schwing Concrete Pump Truck
MERCEDES BENZ 8x4 52m Concrete Pump Truck Features
The MERCEDES BENZ pump truck can precisely deliver concrete to heights exceeding 50 meters, meeting the demands of pouring beams, slabs, and columns in high-rise buildings. This reduces the tedious manual transport and crane lifting processes, improving construction efficiency. The MERCEDES BENZ pump truck's flexible, retractable and rotating boom allows it to operate in complex environments such as narrow streets and hillsides, adapting to different angles and directions of concrete placement and reducing construction complexity.
MERCEDES BENZ 8x4 52m Concrete Pump Truck Specification
|
Description |
Parameter Value |
|
Product Name |
MERCEDES BENZ 8x4 52m XS52 XCMG Schwing Concrete Pump Truck |
|
Application |
Logistics work |
|
Max.Power |
324kW,Euro 3 |
|
Cabin |
With one bed, A/C |
|
Theoretical |
170m³/h |
|
Concrete Pumping Pressure |
8MPa |
|
Theoretical Pumping Times |
23～26Times/min |
|
Delivery Cylinder Diameter × Stroke |
φ260×2000mm |
|
Reach Height |
51.2m |
|
Dimension |
13000x2540x4000mm |
MERCEDES BENZ 8x4 52m XS52 XCMG Schwing Concrete Pump Truck specification only for your reference, we will recommend other model Pump Truck basic your request.
MERCEDES BENZ 8x4 52m Concrete Pump Truck Advantages
The 52m concrete pump truck utilizes a Mercedes-Benz chassis that meets Euro 3/5 emission standards. It boasts high power, high torque, strong off-road capabilities, and excellent driving stability and flexibility. Its short length and compact design make it suitable for operation in narrow urban streets. The 52m concrete pump truck is equipped with a six-section "RZ" folding boom, which allows for minimal deployment, making it suitable for construction in confined locations such as tunnels and indoor spaces.
MERCEDES BENZ 8x4 52m Concrete Pump Truck Outrigger System
The MERCEDES BENZ pump truck is equipped with SCHWING's unique arc-shaped telescopic outrigger technology. The front stage is arc-shaped and telescopic, and the rear stage is swing-type outrigger structure. Compared with traditional X-type outriggers, the outrigger deformation is 50% smaller and the leg lifting amount is 52% smaller, which significantly improves the working stability of the whole vehicle. The outriggers have a simple structure, high reliability, long service life, and support unilateral operation, adapting to the needs of small sites.
