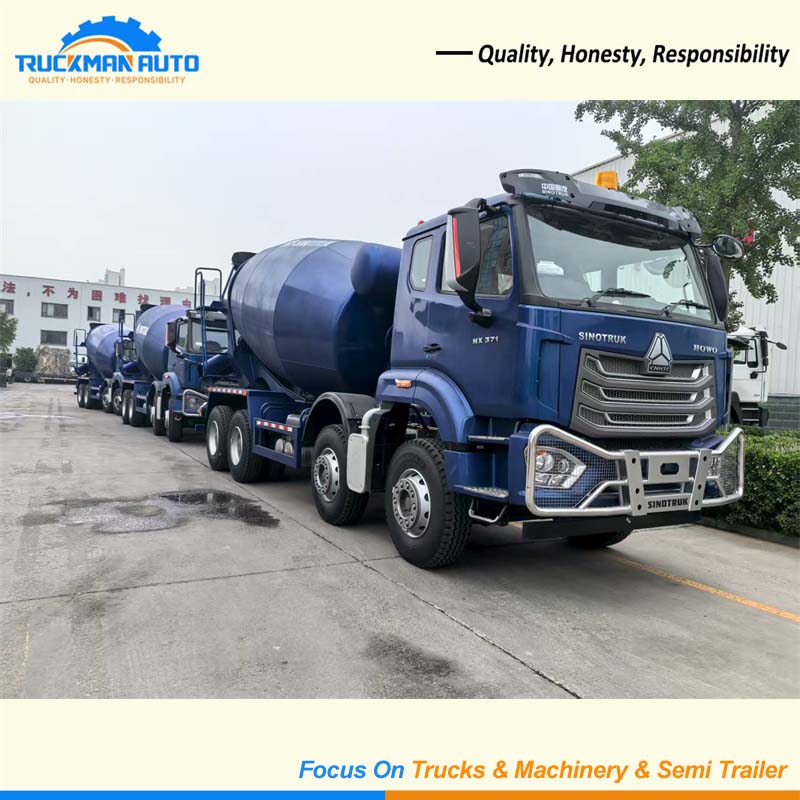

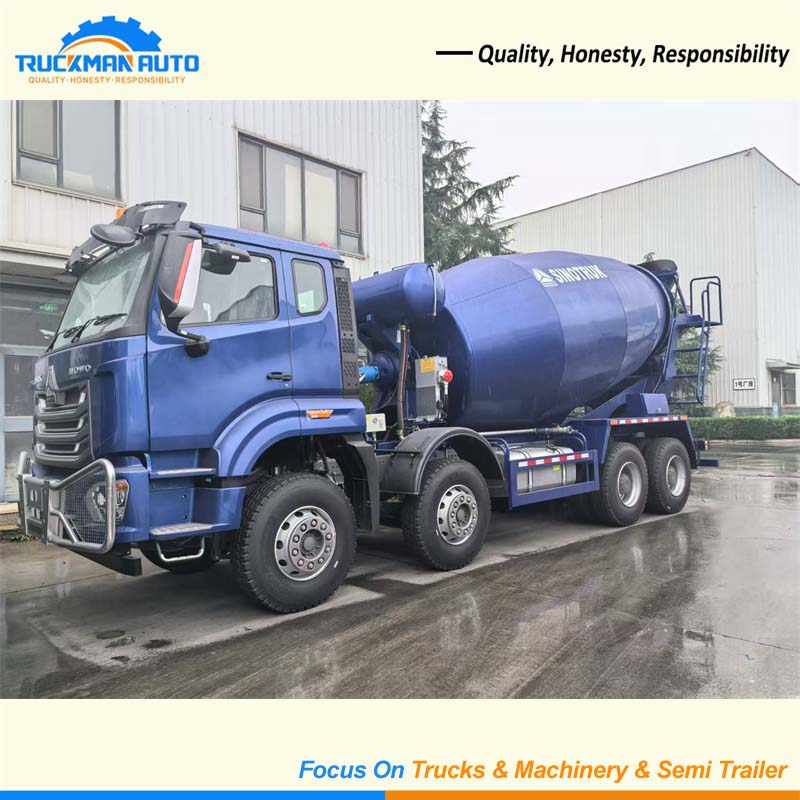

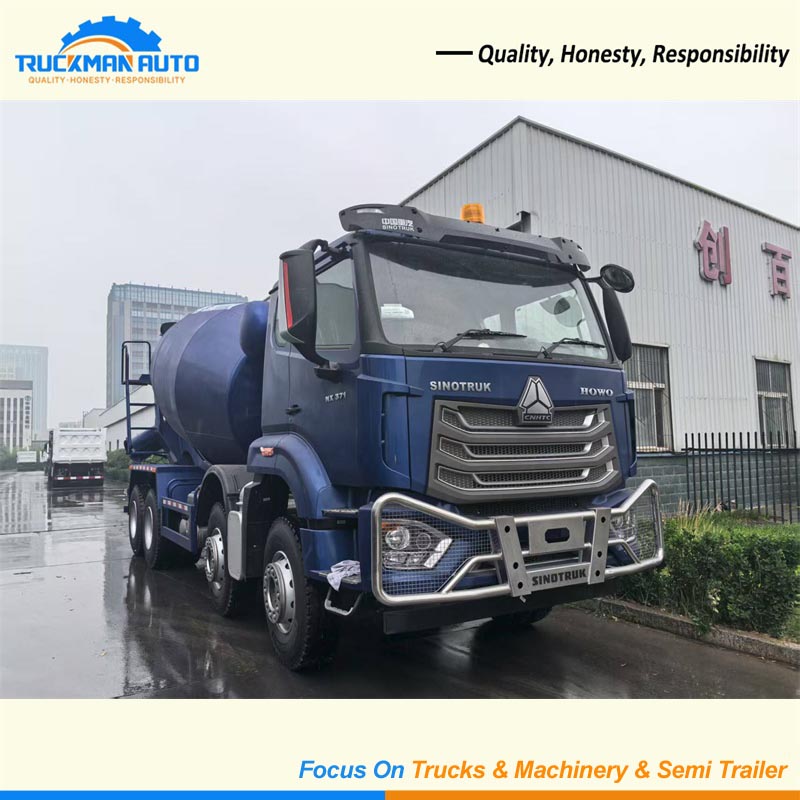

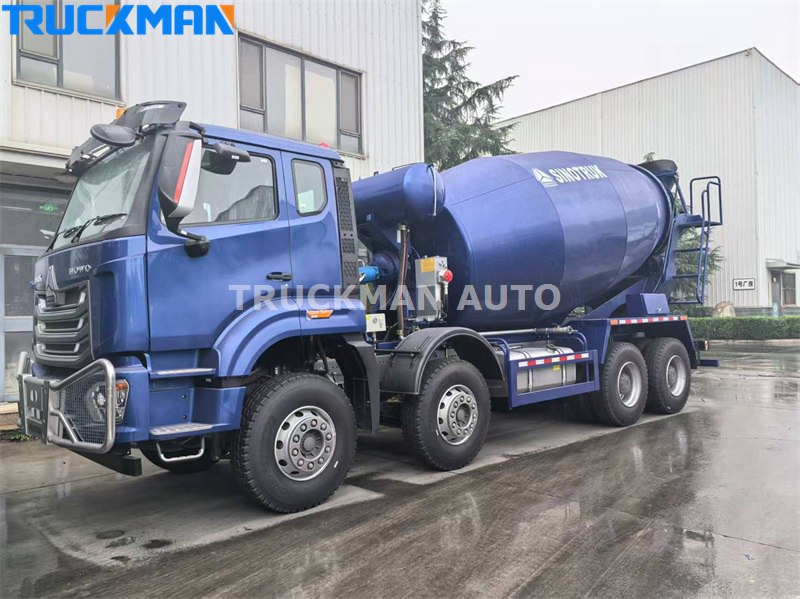

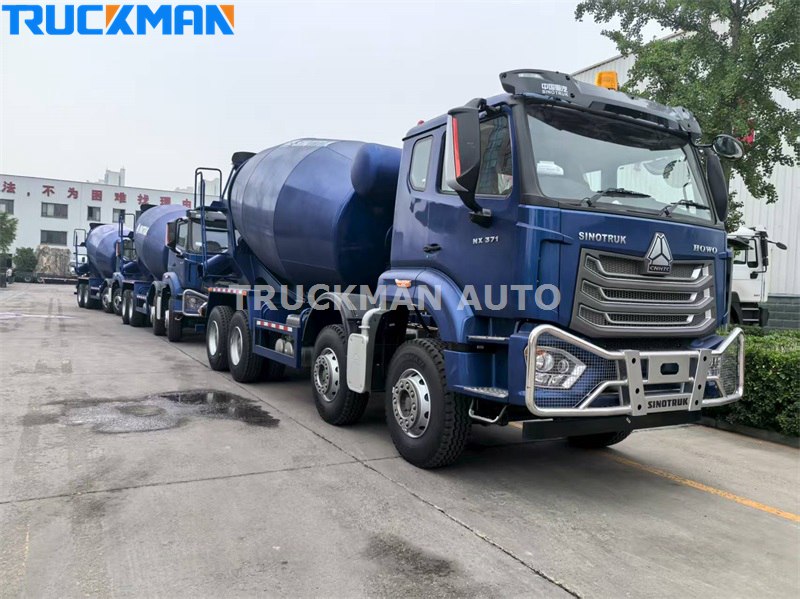

SINOTRUK HOWO NX 371HP Cement Mixer Truck Features

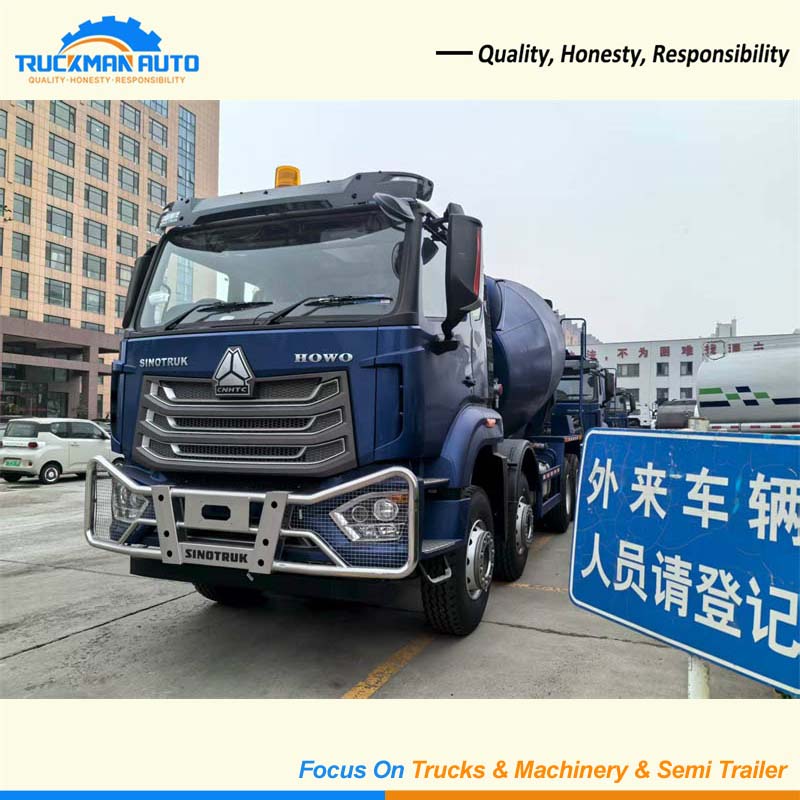

The SINOTRUK concrete mixer truck, applied to a variety of site scenarios in engineering construction, is responsible for the mixing and transportation of concrete, the chassis follows the technology and design of SINOTRUK, with stronger carrying capacity and stability, the tank is mostly pear-shaped design, the material is made of alloy steel manganese steel, which is wear-resistant and has a long service life, and the lengthened discharging chute can be rotated by 180 degrees, which makes the discharging of materials simple and convenient. The front of the cab is equipped with bumper, which can reduce the impact of collision on the cab and improve the service life.

SINOTRUK HOWO NX 371HP 8x4 Cement Mixer Truck Specification

SINOTRUK HOWO NX 371HP 8x4 14 Cubic Meters Cement Mixer Truck specification only for your reference, we will recommend other Cement Mixer Truck basic your request.

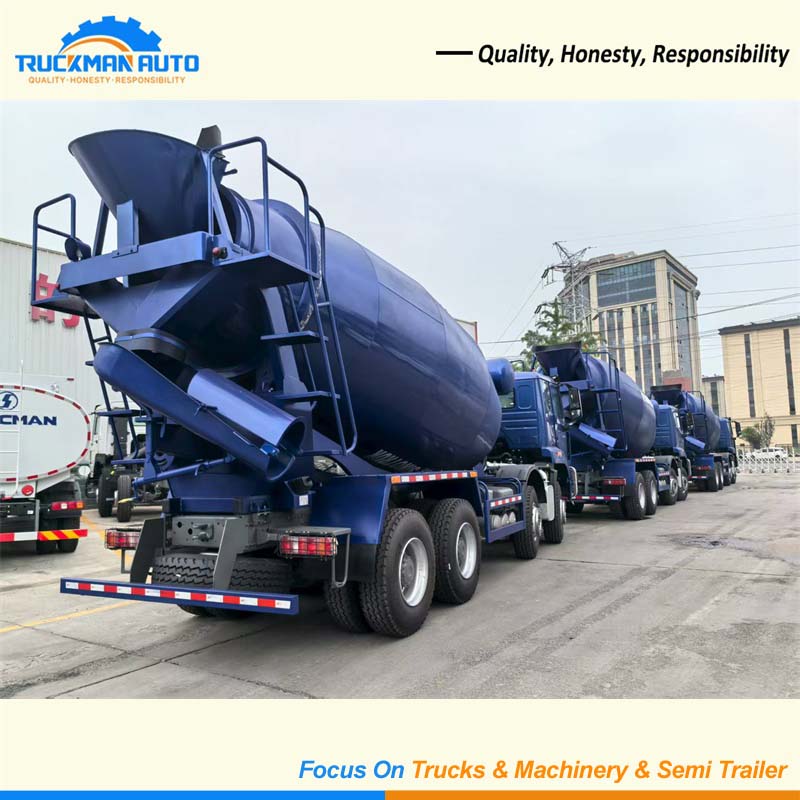

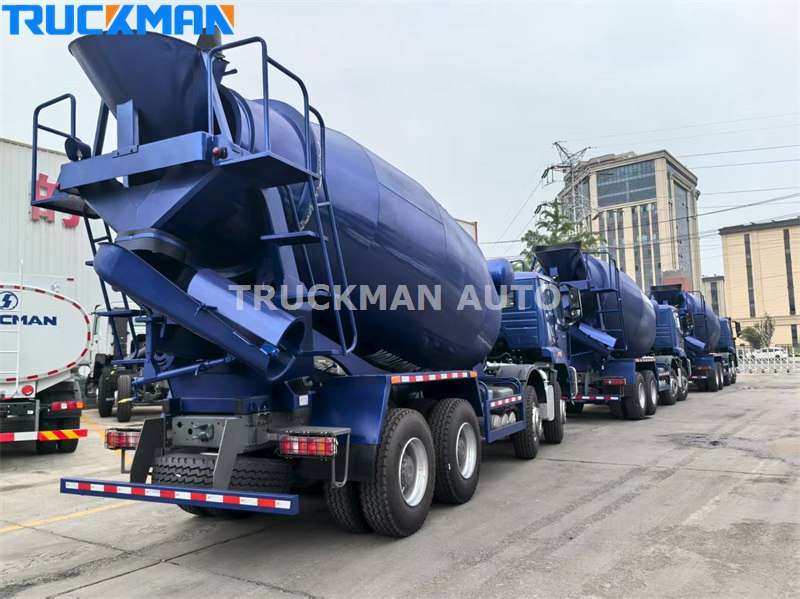

SINOTRUK HOWO 14 Cubic Meters Cement Mixer Truck Cargo Body

Like other concrete mixer trucks, the truck's tank features a pear-shaped structure constructed from 6mm-thick high-quality manganese alloy steel for durability and wear resistance. It utilizes tooling for assembly, with both circumferential and longitudinal seams welded automatically, ensuring a superior workmanship and aesthetically pleasing appearance. The feed port is located at the top rear of the tank. The large feed hopper allows for rapid feeding, making it suitable for a variety of concrete mixing plant equipment. A lighting system is also installed underneath to monitor the feed status and avoid concrete waste. The tank's raceway features a reinforced design, and the supporting rollers are cast steel for enhanced wear resistance.

SINOTRUK HOWO NX 371HP Mixer Truck Hydraulic System

The mixer truck's hydraulic pump converts mechanical energy into hydraulic energy and transmits it to the motor. The motor then converts the hydraulic energy into mechanical energy, ultimately completing the power transfer. The hydraulic transmission system allows for stepless control of speed and direction. The operator can fully control the system with a single handle to start, stop, and rotate forward or reverse. The handle controls the pump's swash plate angle. By changing the variable pump's swash plate angle, the pump outputs a certain flow rate, which is transmitted to the motor via a high-pressure pipe. The pump's flow rate and the motor's displacement together determine the motor's output shaft speed.
