Introduction



The HOWO fuel tanker truck is a primary vehicle for energy transport export to Guinea, Ghana, and the Democratic Republic of the Congo.



The tank truck is primarily used to transport petroleum derivatives—such as gasoline, diesel, crude oil, lubricating oil, and coal tar—facilitating the inter-regional movement and end-user distribution of energy.



Tanker trucks can function as mobile pumping stations, allowing them to flexibly travel to areas lacking fixed refueling facilities to provide on-site refueling services for vehicles and machinery.







What Is A 10 Wheels Fuel Tanker Truck?



This dump truck is equipped with a 400HP engine, a 16-ton drive axle, and a high-mounted bumper.



Compared to other tanker trucks, SINOTRUK versions feature:



●Double-layer frame

●Road-spec intake system

●Reinforced multi-leaf springs (front and rear)



These features enable the truck to be suitable for various working environments.







Technical Specifications



Description	Parameter Value

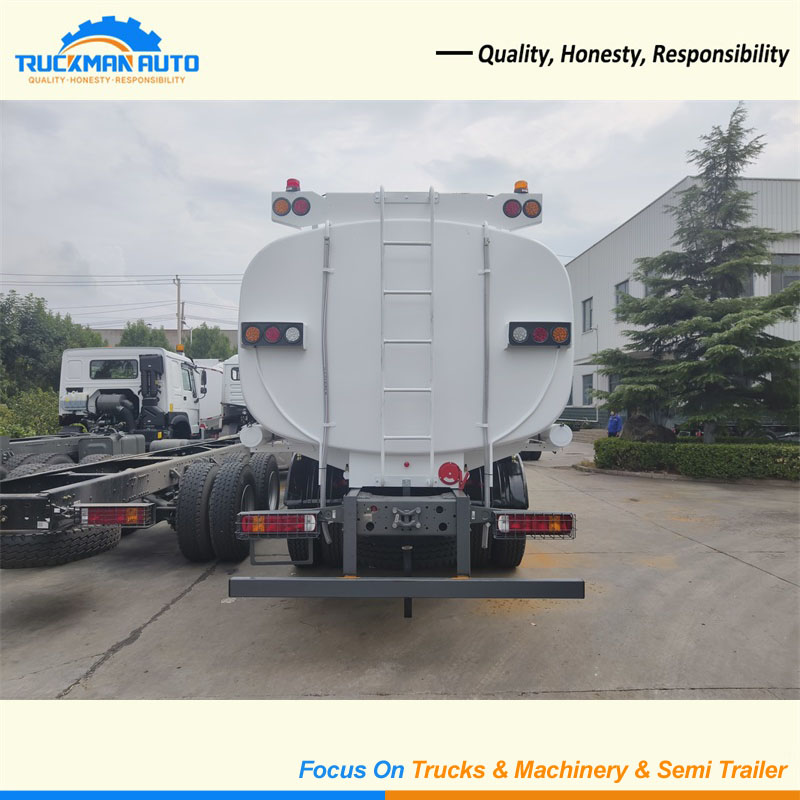

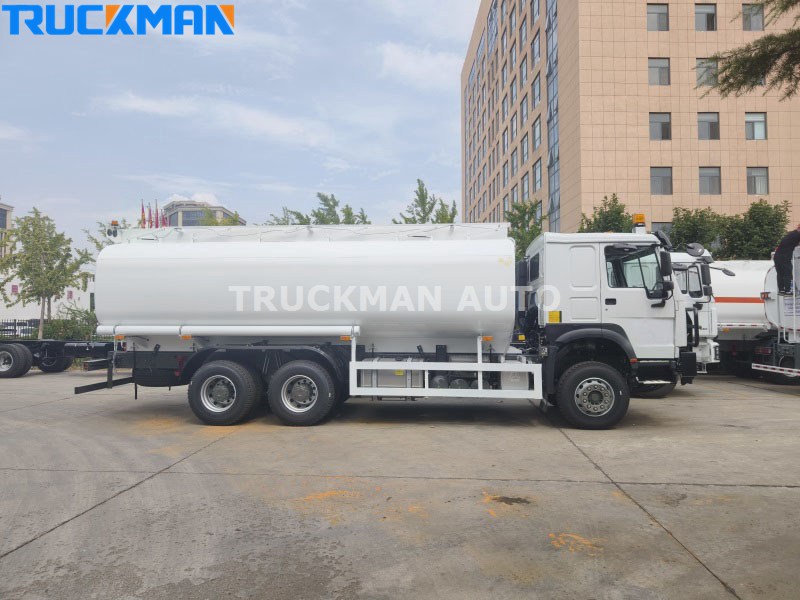

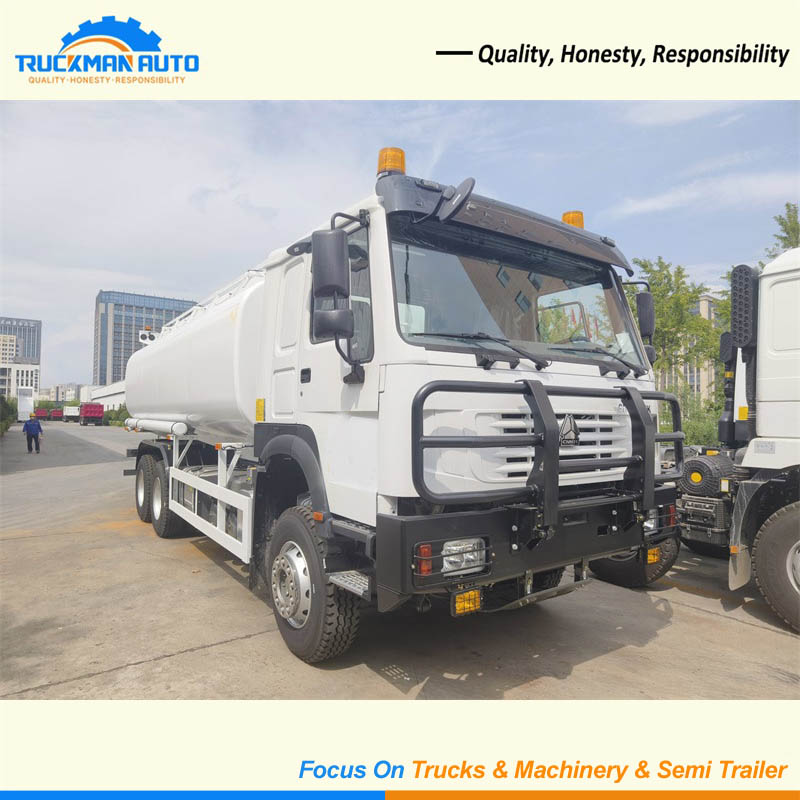

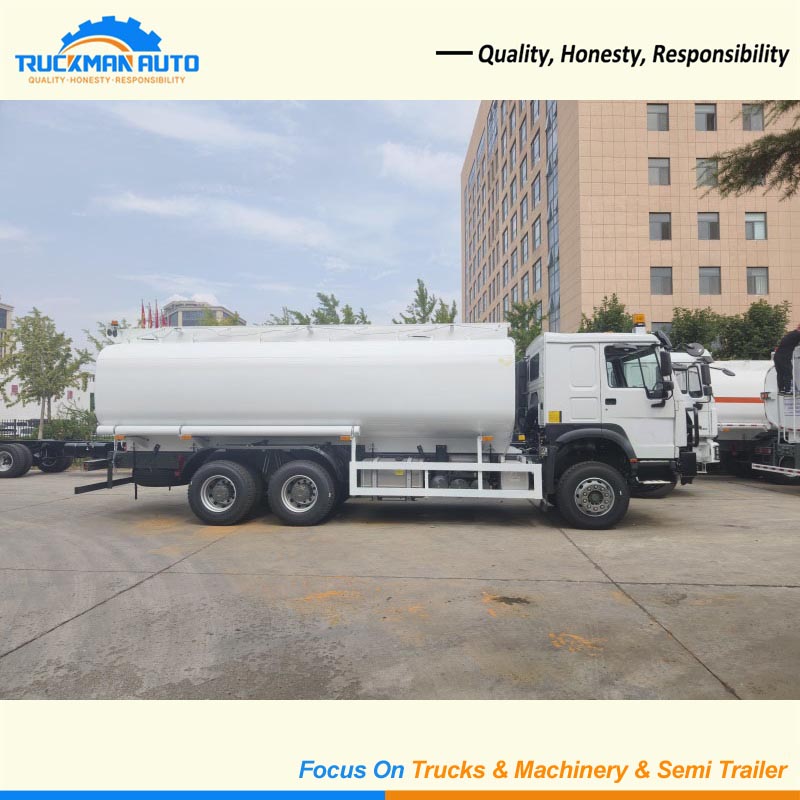

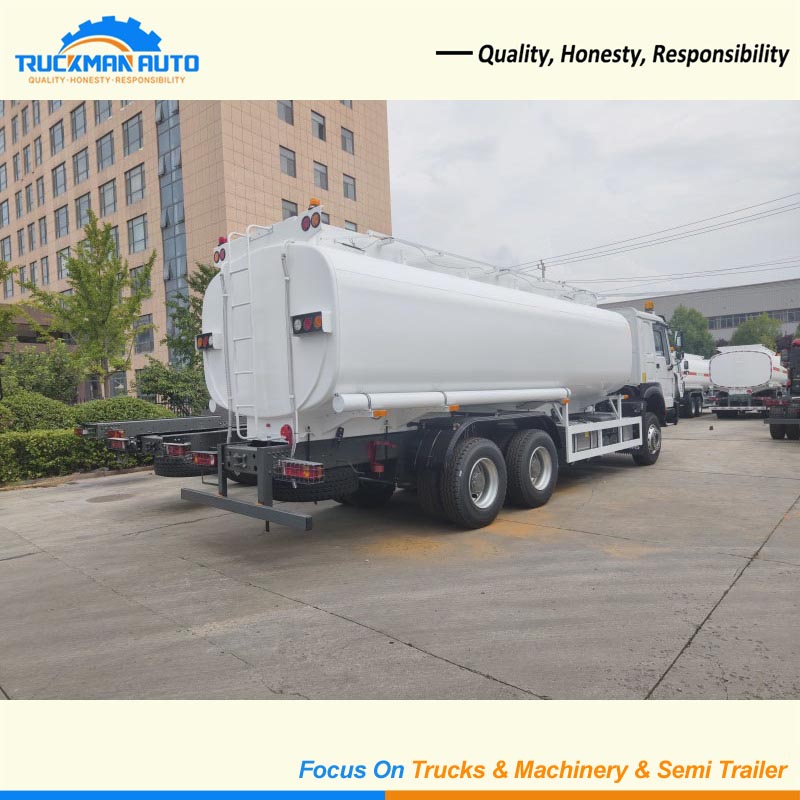

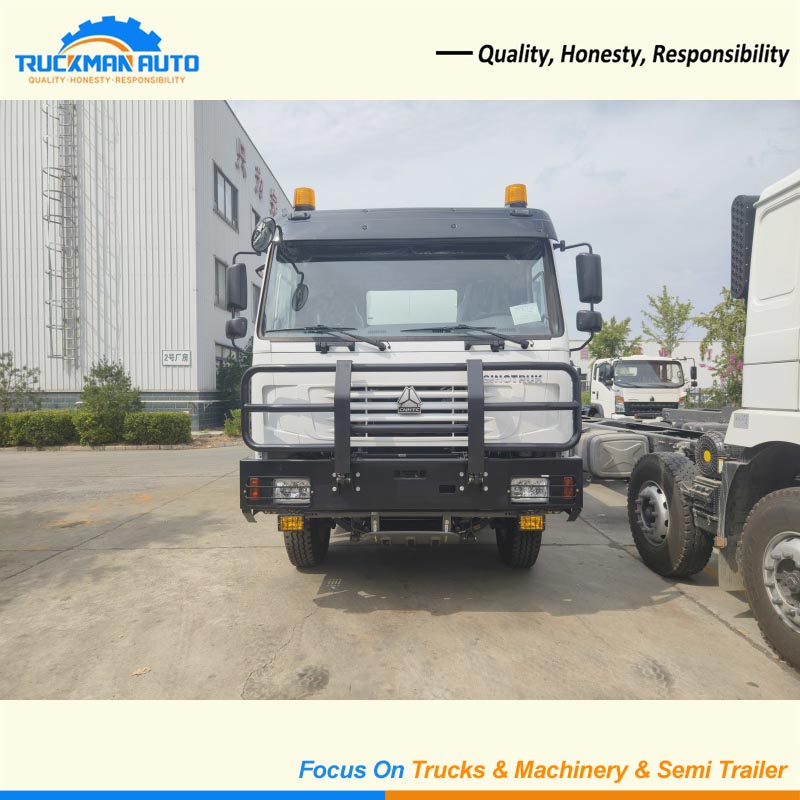

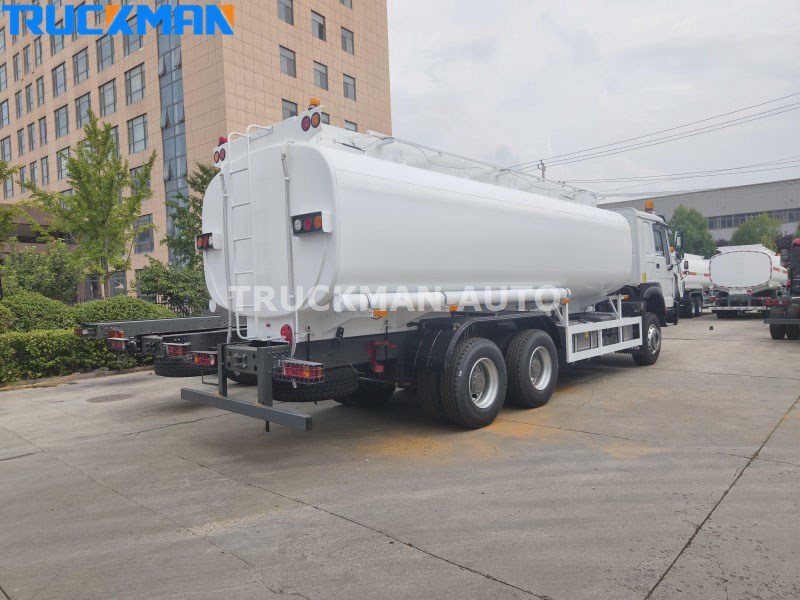

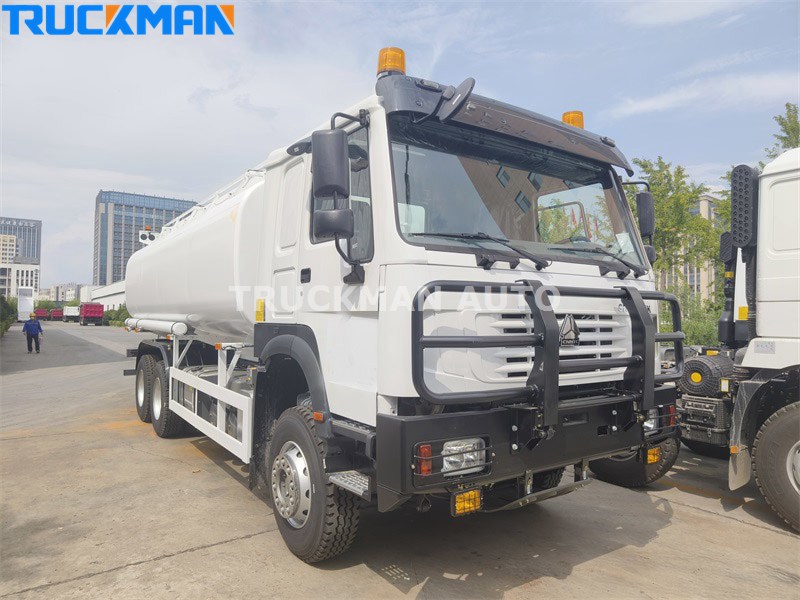

Product Name	SINOTRUK HOWO 10 Wheels 400HP 25000 Liters Fuel Tanker Truck
Application	Fuel transportation
Engine	WP12.400E201
Cabin	With one bed, A/C
Gearbox	10 forward and 2 reverse gear
Tire	315/80R22.5 , 10+1 pcs
Drive Axle	16000kgs
Fuel Tank	400L
Tank Body	25000 Liters



How Can The Safety Of Oil Transport By Tanker Trucks Be Ensured?



1.Tank Body Design

●Oval-shaped exterior

●Multi-compartment design

●Baffle plate design



The tank features an elliptical shape to distribute pressure and minimize stress concentration. A multi-compartment design is employed, with partition plates installed between compartments to reduce liquid surge.



2.Fuel Tank Design



●Aluminum alloy construction

●Front and rear partitions

●Reinforced with straps



The aluminum alloy fuel tank generates less static electricity, enhancing safety. Baffles installed at the front and rear of the tank prevent small stones kicked up by the tires from puncturing it, thereby extending the tank's service life.



3.Design Of Safety Accessories



●Emergency shut-off valve

●Safety valve

●Overfill prevention system



In the event of an emergency, these devices can immediately cut off the flow, enhancing driving safety.





25000 Liters vs 40000 liters Fuel Tanker Truck Comparison



Model	25000 Liters	40000 Liters
Fuel Consumption	Lower	Higher
Purchase Cost	Lower	Higher
Load-bearing Capacity	Good	Excellent
Maintenance Cost	Lower	Higher



For most fuel transport operations, 25000 Liters fuel tanker truck provides better cost-performance balance.



Transportation Efficiency Cost Model (Example):



Assumptions:

● Distance per trip: 45 km

● 4 trips per day

● Diesel consumption: 38 liters/100 km

● Diesel price: $1.2/liter



Estimated daily fuel cost:



≈ $82/day



Within one year, optimized route planning can reduce costs by 8%–12%.



Export Case



Country: Guinea

Client Type: Transportation company manager

Quantity: 01 Unit

Application: Fuel transportation

Feedback:After 15 months of operation, major components remained stable, with minimal downtime..

For more information, please visit SINOTRUK HOWO 10 Wheels 400HP 25000 Liters Fuel Tanker Truck For Guinea



Frequently Asked Questions





Q1: What Is The Price Of a SINOTRUK 25000 Liters Fuel Tanker Truck?



Price varies by configuration, carrying capacity and shipping destination. Contact Us for an FOB, CIF, or CFR quotation.



Q2: How Long Does Shipping Take To Africa, Southeast Asia, Or South America?



Standard delivery is 45-55 days.Customized modules may require 65-70 days.



Q3: What Is Mini Quantity For A Order?



Minimum order for one unit.



Q4: Do You Provide After-Sales Service And Spare Parts Support?



Yes, we offer global spare parts supply, technical support.



Q5: How Can We Get The Price Of A Fuel Tanker Truck?



Sent us a inquiry on the website or contact us by Whats app and then we will share you a quotation according to your requirement.
