TRΛKMAN Brand 3 Axles 45000 Liters Oil Tank Semi Trailer
-1. TRΛKMAN Brand Fuel Tank Trailer Main Specification
-. 35000-54000 liter tank body.
-. 3-5 Axles, use FUWA and BPW brand.
-. Transport fuel, oil, diesel, gasoline, ethanol etc
-. 1-8 compartment, with manhole cover.
-. Carbon steel or aluminum material
-. Choose stronger tire with TRIANGLE, LINGLONG etc brand tire.
-. Recommended WABCO brake system, for the safety driven.
|
General |
|
|
Overall dimension(MM) |
12000*2500*3900 |
|
Function |
Transport fuel, oil, diesel |
|
Loading weight (KG) |
40,000 |
|
Volume(L) |
45000 |
|
Compartment |
Three - Eight |
|
Tank body |
|
|
Manhole cover |
500mm manhole cover. 3 sets with 3 breath valve. |
|
Discharge valve |
4'' disc valve |
|
Discharge pipe |
4'' seamless steel tube |
|
Bottom or emergency valve |
Three pieces |
|
Tank body thickness |
Q235/ 5mm steel |
|
End plate |
Q235/ 6mm steel |
|
Chassis |
|
|
Main beam(MM) |
Opting for high tensile steel Q345B welded by |
|
automatic submerged-arc processes |
|
|
Axle brand |
FUWA 13ton |
|
Axle number |
3 |
|
suspension system |
Leaf spring system |
|
Leaf spring |
2010/10/10 |
|
Traction pin |
50mm or 90mm |
|
Landing gear |
standard 28Ton |
|
Tyre |
12R22.5 12pieces, can choose TRIANGLE brand |
|
Appendix |
tool box |
|
spare wheel bracket |
|
|
Electrical& others |
|
|
Electric system |
1.Voltage: 24V 2. Receptacle: 7 ways( 7 wire harness) |
|
Tail lamp with turn signal, brake light& reflector and side lamp |
|
|
One set 6-core standard standard cable |
|
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |

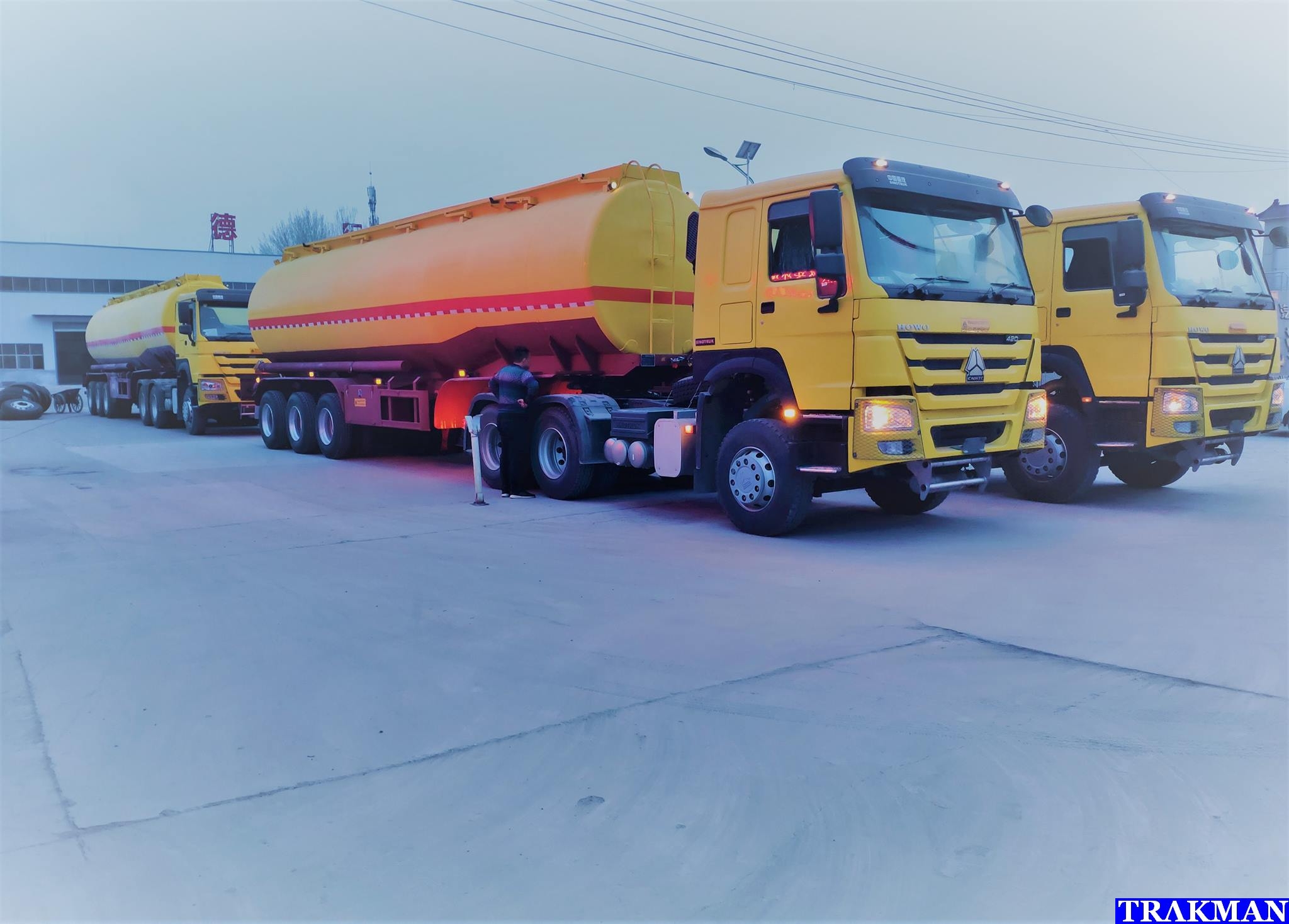

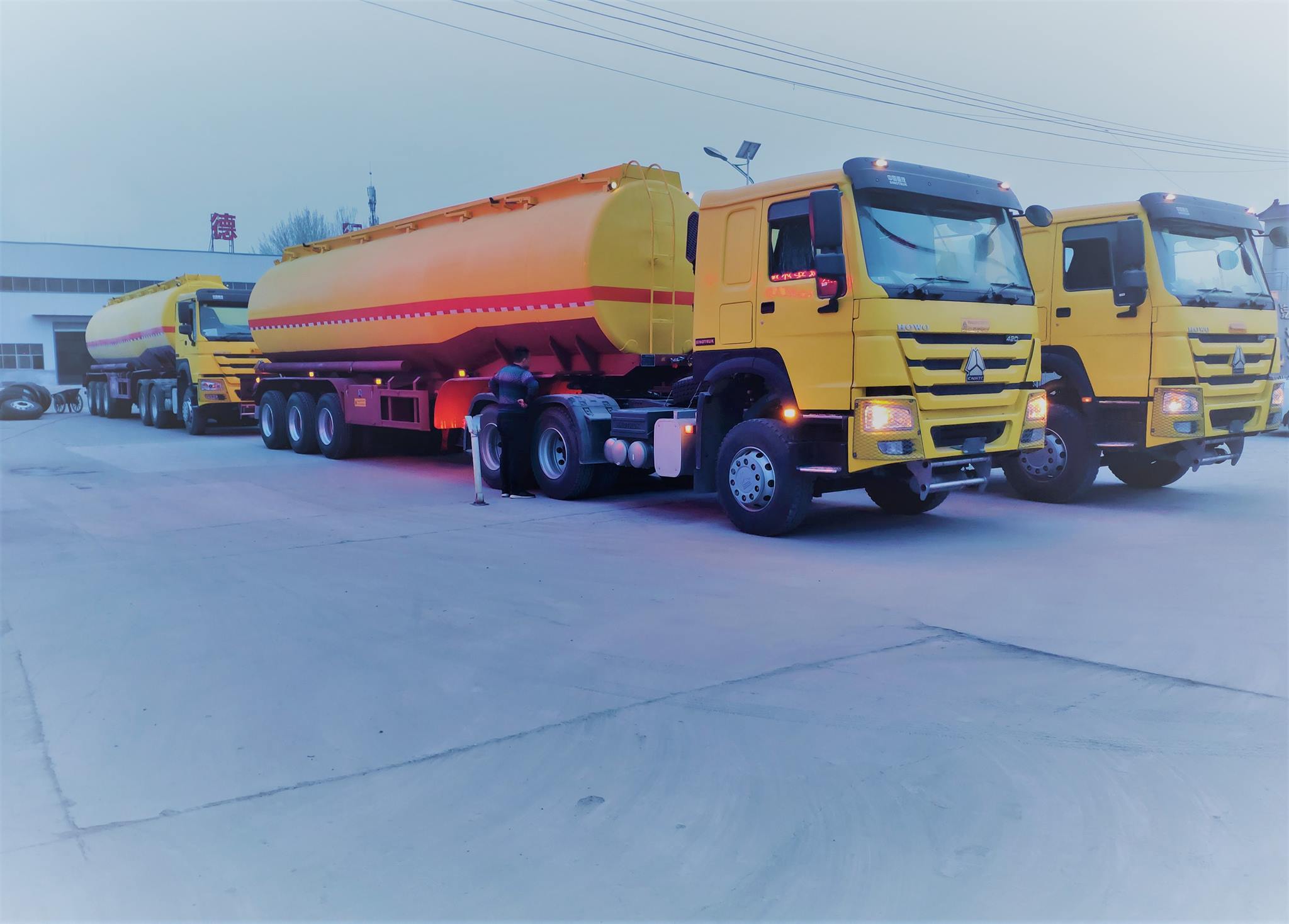

-2. Picture For Reference.
-3. Detail Picture.

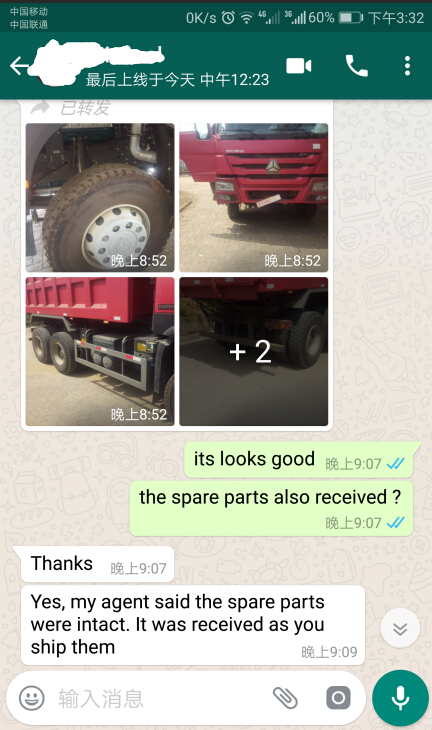

-4. Customer’s Feedback.
