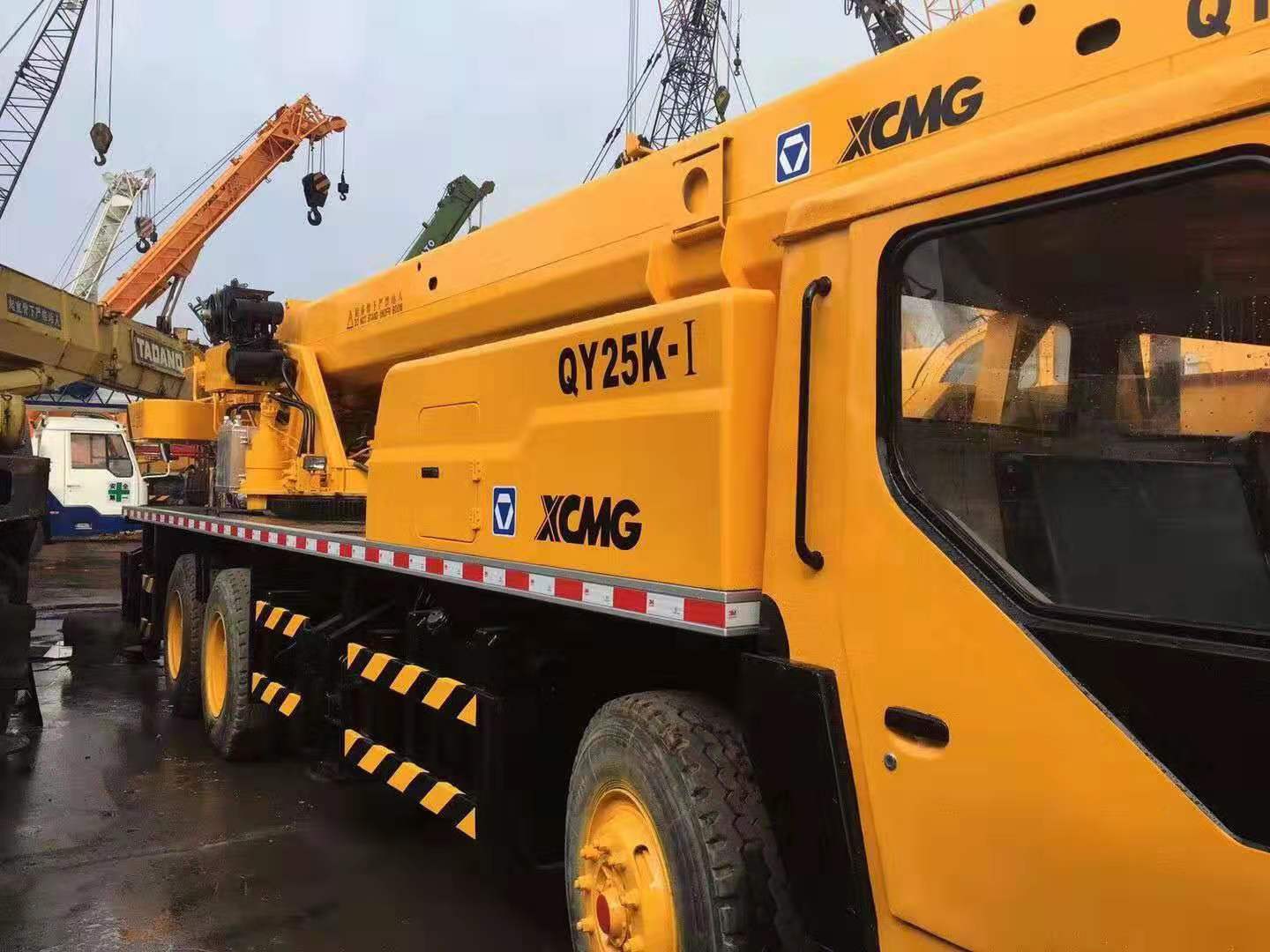

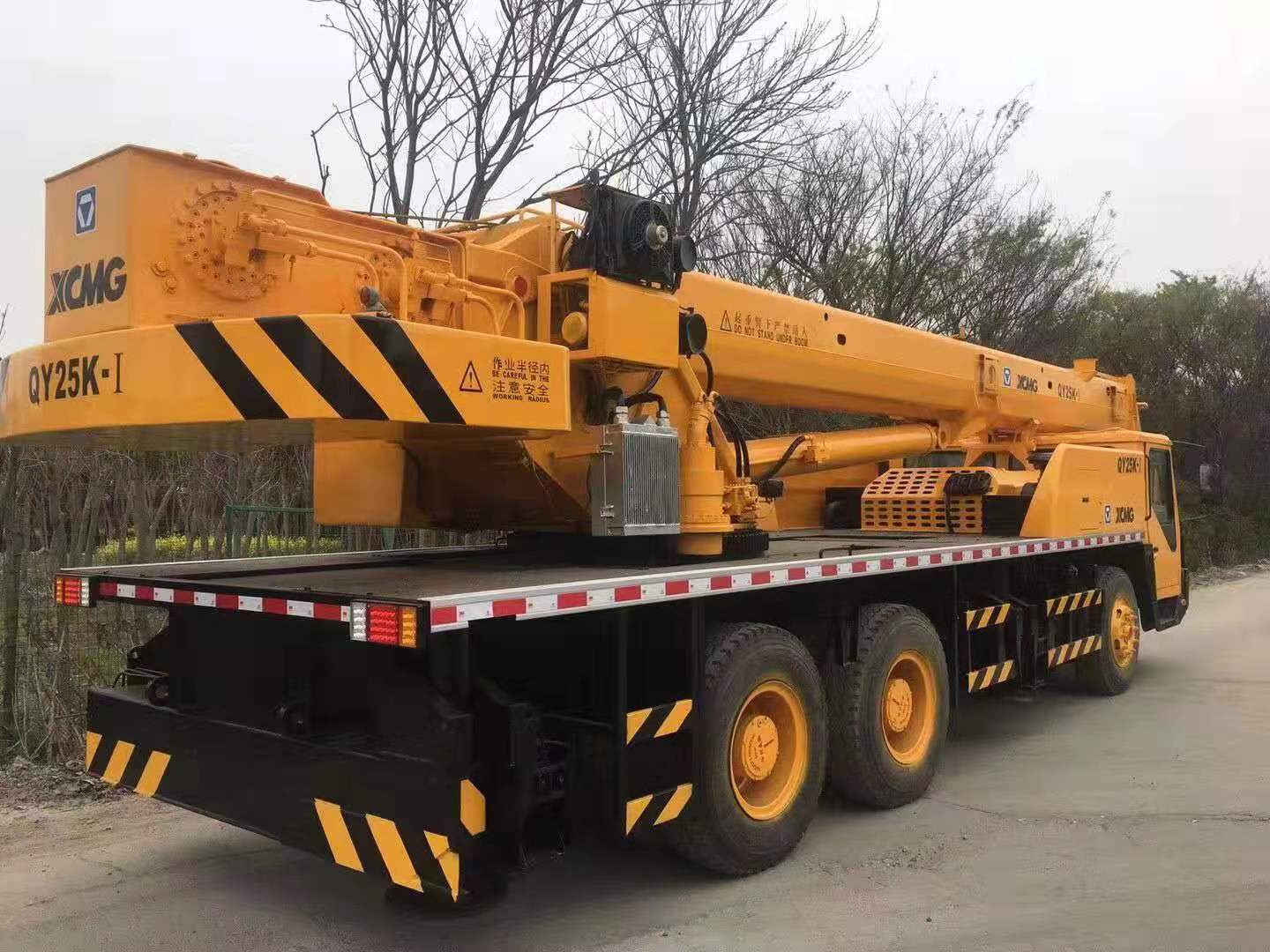

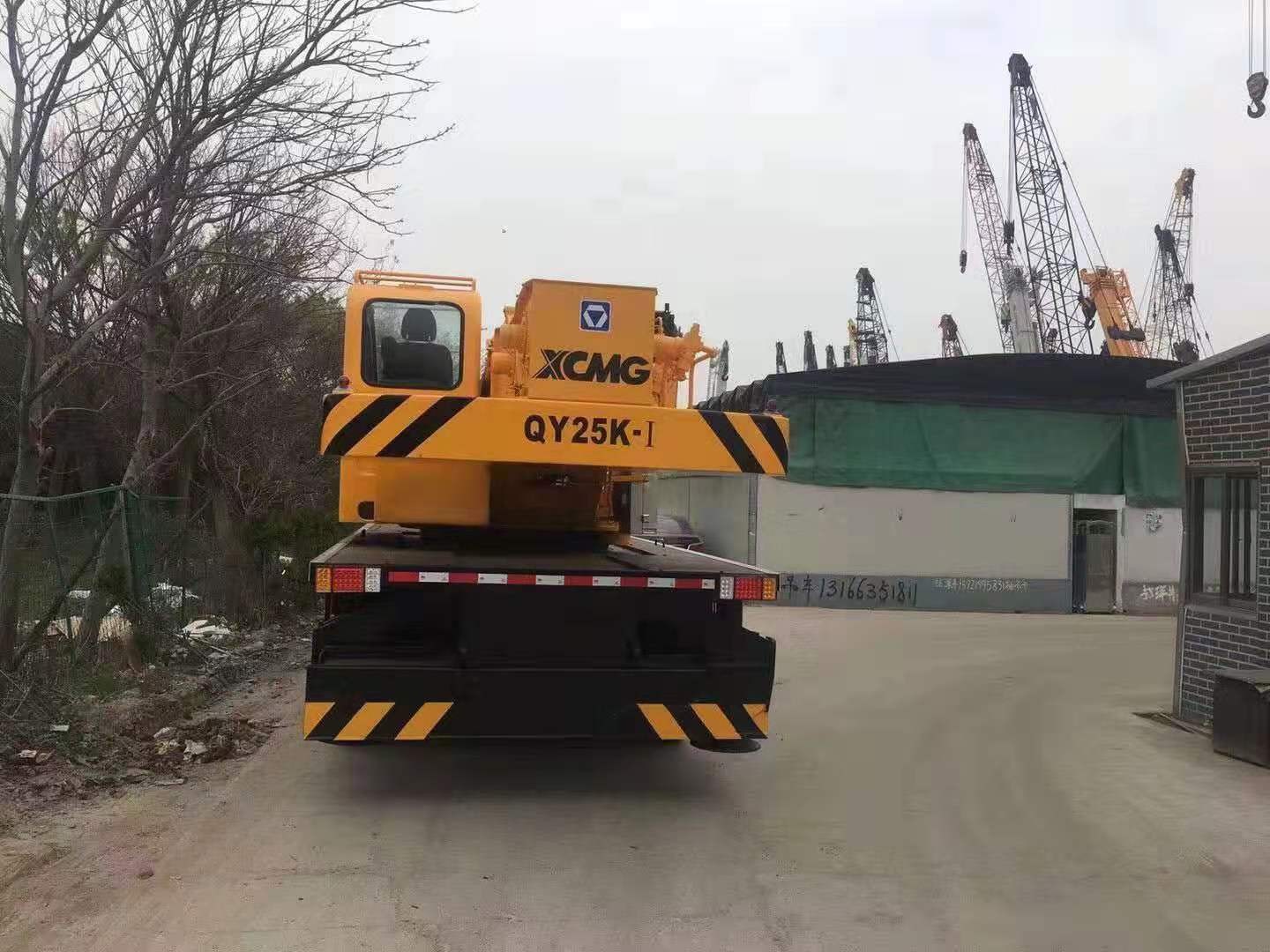

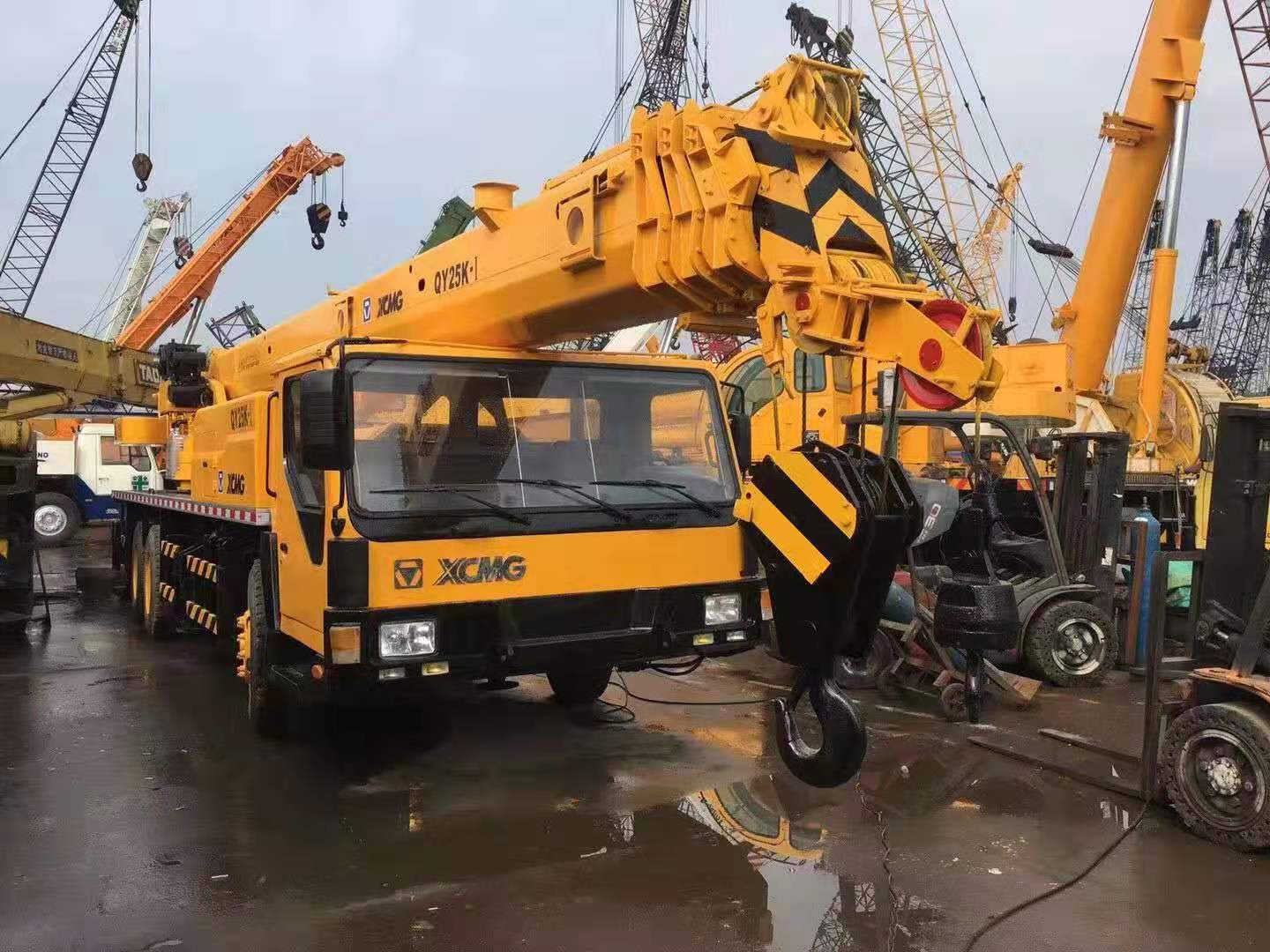

Very Good Condition Used XCMG Truck crane QY25K-II Made in year 2017
|
Dimension |
Unit |
QY25K-I |
|---|---|---|
|
Overall length |
mm |
12650 |
|
Overall width |
mm |
2500 |
|
Overall height |
mm |
3380 |
|
Weight |
|
|
|
Total weight in travel |
kg |
29400 |
|
Front axle load |
kg |
6200 |
|
Rear axle load |
kg |
23200 |
|
Power |
|
|
|
Engine model |
|
SC8DK280Q3 / WD615.329(domestic III) |
|
Engine rated power |
kW/(r/min) |
206/2200 213/2200 |
|
Engine rated torque |
N.m/(r/min) |
1112/1400 1160/1400 |
|
Travel |
|
|
|
Max. travel speed |
km/h |
75 |
|
Min. turning diameter |
m |
21.5 |
|
Min. ground clearance |
mm |
275 |
|
Approach angle |
° |
16 |
|
Departure angle |
° |
13 |
|
Max. grade ability |
% |
30 |
|
Fuel consumption for 100km |
L |
≈37 |
|
Main performance |
|
|
|
Max. rated total lifting capacity |
t |
25 |
|
Min. rated working radius |
mm |
3000 |
|
Turning radius at turntable tail |
m |
3.065 |
|
Max. lifting torque |
kN.m |
1010 |
|
Base boom |
m |
10.7 |
|
Fully extended boom |
m |
34.19 |
|
Fully extended boom+jib |
m |
42.15 |
|
Longitudinal outrigger span |
m |
5.14 |
|
Lateral outrigger span |
m |
6 |
|
Working speed |
|
|
|
Boom luffing time |
s |
75 |
|
Boom full extension time |
s |
100 |
|
Max. swing speed |
r/min |
≥2.5 |
|
Max. speed of main winch (single rope) |
m/min |
≥120 |
|
Max. speed of aux. winch (single rope) |
m/min |
≥120 |
