TRΛKMAN Brand 3 Axles 70 Tons Cargo Fence Trailer
-1. TRΛKMAN Brand Cargo Fence Trailer Main Specification
-. 35-54m³ bucket.
-. 3 Axles, use FUWA and BPW brand.
-. Transport bulk, cargo goods container etc
-. Carbon steel material
-. Choose stronger tire with TRIANGLE, LINGLONG etc brand tire.
-. Recommended WABCO brake system, for the safety driven.
|
Product Name |
3 Axles Cargo Box Semi Trailer |
|
Tare Weight |
About 8.3T |
|
Dimension |
13000mm*2490mm*2860mm (Outer side) |
|
Loading Capacity |
≤ 60 T |
|
Axle |
13 T/16T, Famous Brand |
|
Rim |
9.00-22.5 |
|
Tire |
12.00R22.5/ 315 80R22.5 |
|
Suspension |
Mechanical suspension Or Air suspension |
|
Spring leaf |
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
|
King pin |
Famous brand 2.0 or 3.5inch bolts type or Welding type |
|
Support leg |
Famous brand D200T or China brand 28Tons (Double speed) |
|
Main beam |
Height: 500mm, upper plate is 14mm, middle plate is 8mm, |
|
Side beam |
16mm or 18mm channel steel (Material is Q235steel). |
|
Side Wall |
600mm-1800mm ,the open door can be choose freely. |
|
Brake chamber |
6 relay valve; T30/30+T30 Spring brake chamber (Famous brand); Two pieces of 45L air tanks |
|
ABS |
Optional |
|
Twist Locks |
Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional |
|
Light |
LED light |
|
Voltage |
24V |
|
Receptacle |
7 ways (7 wire harness) |
|
Tool box |
One piece |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |

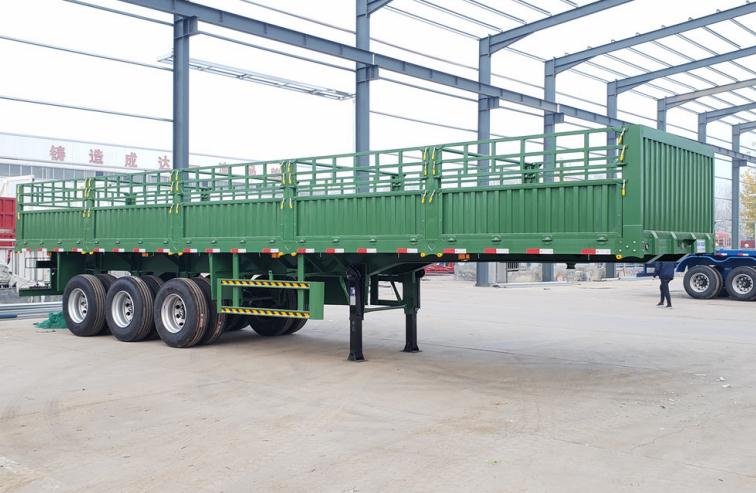

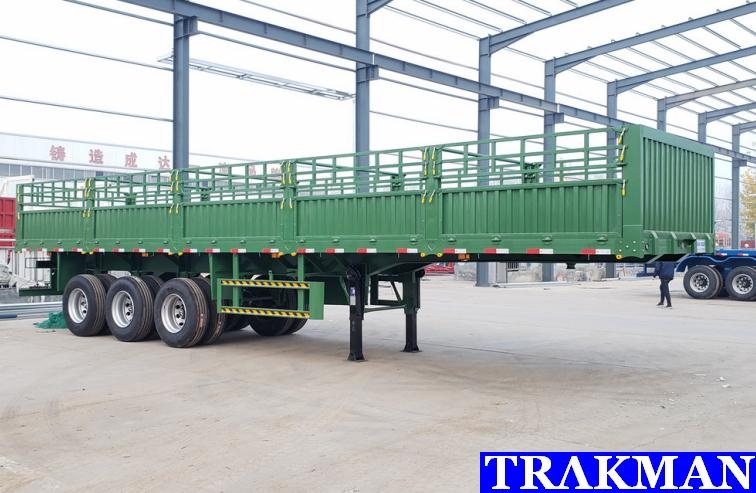

-2. Picture For Reference.

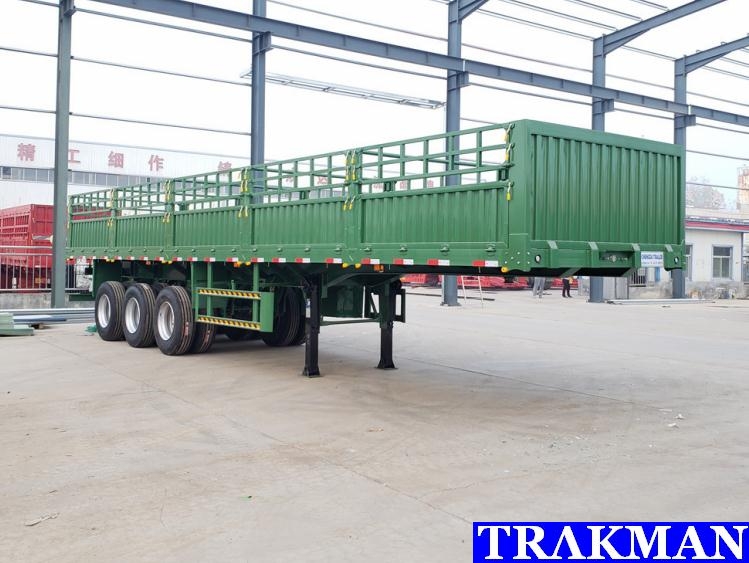

-3. Detail Picture.

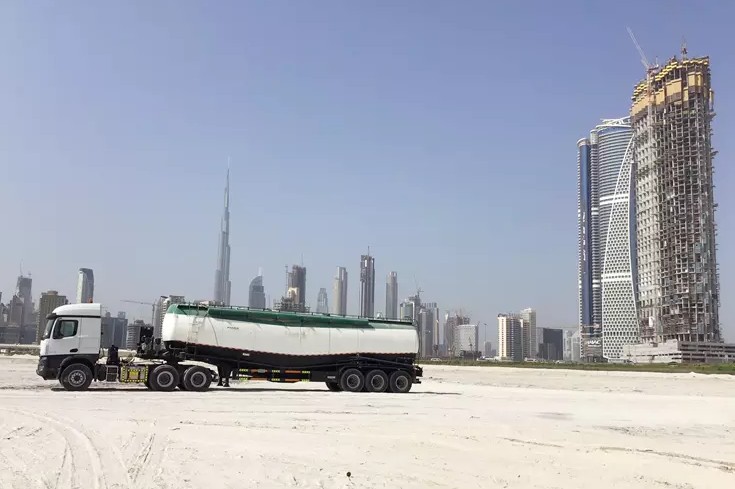

-4. Customers Received Goods.
Our customers received machinery last week, he is very satisfied with our service, delivery time and product quality. He told us that the next order will come soon.
