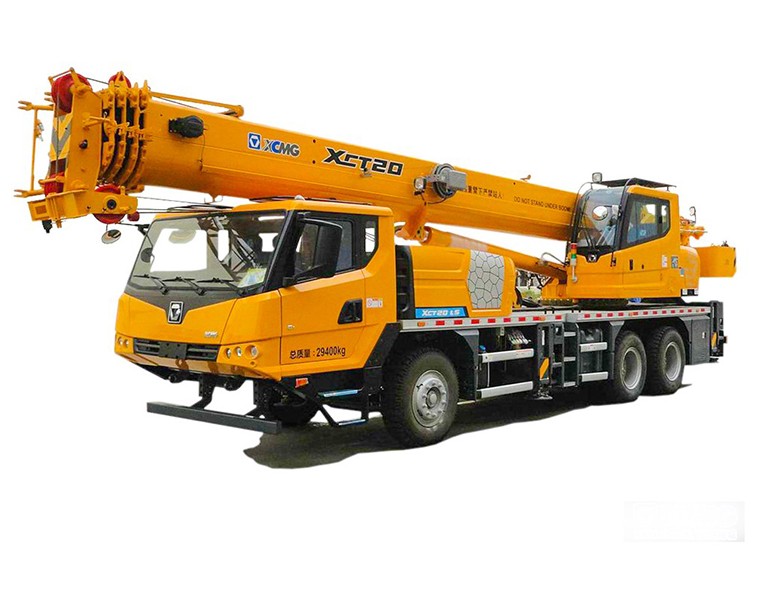

XCMG 20 Ton Hydraulic Truck Mounted Crane
-1. XCMG 20 Ton hydraulic truck mounted crane
-. Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.
-. Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
-. Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.
-. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.
|
Description |
Unit |
Parameter value |
|
|
Overall length |
mm |
12300 |
|
|
Overall width |
mm |
2500 |
|
|
Overall Height |
mm |
3350 |
|
|
Wheel Base |
mm |
4425+1350 |
|
|
Track |
mm |
2074/1834/1834 |
|
|
Total vehicle mass in travel configuration |
kg |
31750 |
|
|
Axle load |
Front axle |
kg |
6550 |
|
Rear axle |
25200 |
||
|
Engine Model |
|
SC8DK280Q3 |
|
|
Engine rated power |
kw/(r/min) |
206/2200 |
|
|
Engine rated torque |
N.m/(r/min) |
1112/1400 |
|
|
Max. travel speed |
km/h |
80 |
|
|
Min. turning diameter |
m |
22 |
|
|
Min. ground clearance |
mm |
275 |
|
|
Max. grade ability |
% |
40 |
|
|
Approach angle |
° |
16 |
|
|
Departure angle |
° |
13 |
|
|
Braking distance (at 30 km/h, full load ) |
m |
≤10 |
|
|
Oil consumption per 100km |
L |
≤37 |
|
|
Exterior noise level during |
dB (A) |
88 |
|
|
Noise level at seated position |
dB (A) |
90 |
|

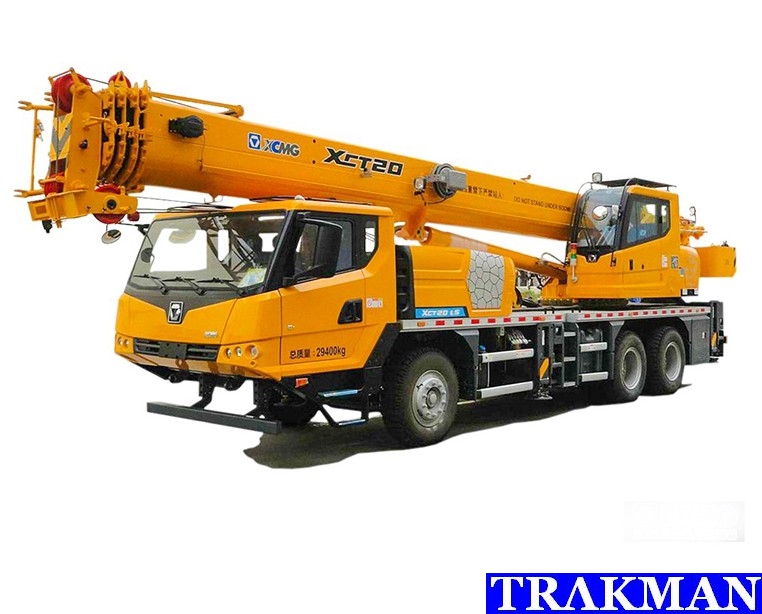

-2. Picture For Reference.
-3. Detail Picture.
-4. After Sales Service.
Now Our company built one big spare parts warehouse for our customer's machinery, all parts could arrange DHL or TNT as soon. In addition, we also could arrange the engineer for the maintenance.
