XCMG 55 Ton Hydraulic Truck Mounted Crane
-1. XCMG 55 Ton hydraulic truck mounted crane
-. Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.
-. Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
-. Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.
-. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.
|
Description |
Unit |
Parameter value |
||
|
Overall length |
mm |
14770 |
||
|
Overall width |
mm |
2800 |
||
|
Overall Height |
mm |
3890 |
||
|
Axle base |
1st ,2nd axle |
mm |
1470 |
|
|
2nd ,3rd axle |
4000 |
|||
|
3rd ,4th axle |
1350 |
|||
|
Wheel Base |
mm |
2380+2075 |
||
|
Total vehicle mass in travel configuration |
kg |
50000 |
||
|
Axle load |
1st and 2nd Axle |
kg |
24000 |
|
|
3rd and 4th Axle |
26000 |
|||
|
Engine Model |
|
WP12.375N |
MC11.39-30 |
|
|
Engine rated power |
kw/(r/min) |
276/1900 |
290/1900 |
|
|
Engine rated torque |
N.m/(r/min) |
1800/1000-1400 |
1900/1000-1400 |
|
|
Max. travel speed |
km/h |
80 |
||
|
Min. steady travel speed |
km/h |
3 |
||
|
Min. turning diameter |
m |
24 |
||
|
Min. turning diameter at boom tip |
m |
29 |
||
|
Min. ground clearance |
mm |
371 |
||
|
Max. grade ability |
% |
40 |
||
|
Approach angle |
° |
17 |
||
|
Departure angle |
° |
15.5 |
||

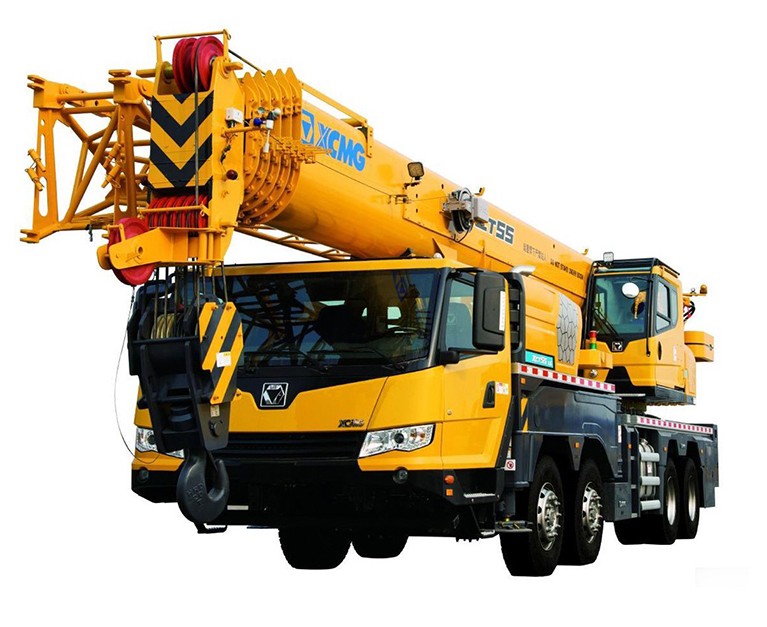

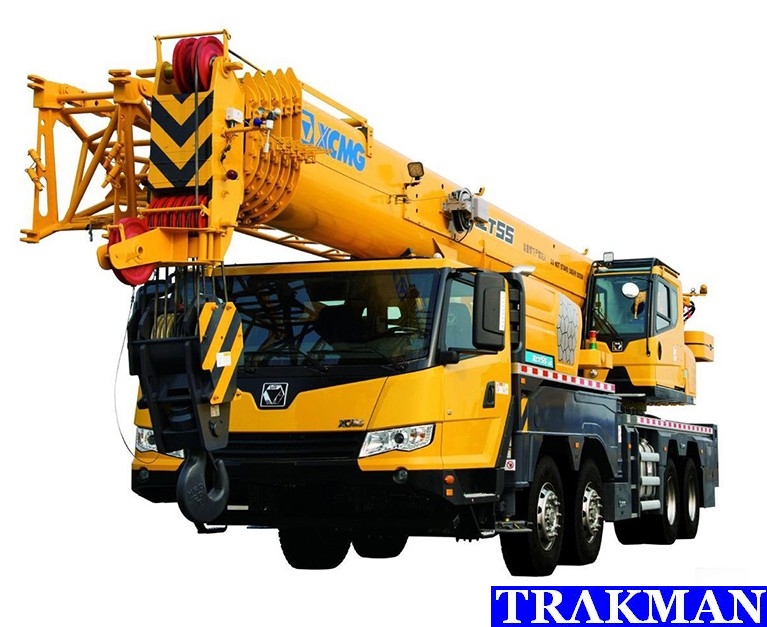

-2. Picture For Reference.
-3. Detail Picture.
-4. Payment Term.
Now our company could accept the T/T (BANK TRANSFER), L/C.
Also can accept the L/C against cover at SINOSURE.
