70 Tons Tipper Semi Trailer For Mauritania With Reasonable Price
-1. 70 Tons Tipper Semi Trailer Main Detail.

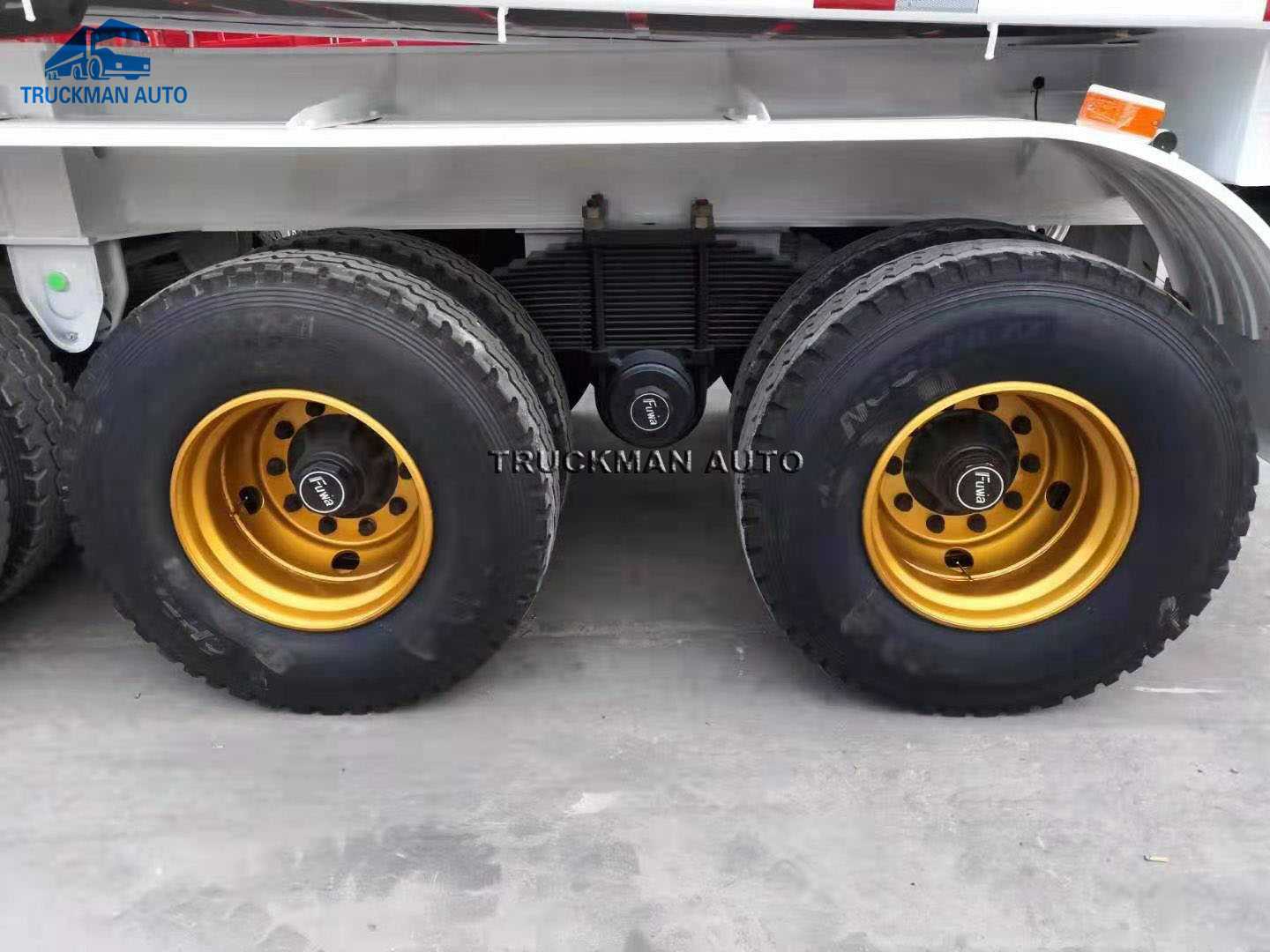

The 70 tons tipper semi trailer used for transport sand, gravel and iron ore in Mauritania. The axle is special for heavy loading transport, rear axle use the single point suspension axle and front axle use the normal axle, like the picture
-2. 70 Tons Tipper Semi Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
70 Tons Tipper Semi Trailer |
|
Loading Weight |
70,000kg |
|
Tare Weight |
11,500kg |
|
Axle |
3 axle, 3x13 tons, with single point suspension axle |
|
Suspension |
America type, 8mm thickness |
|
Leaf Spring |
90x16mmx10pcsx6sets |
|
Rim |
18mm thickness |
|
Tire |
12.00R24 or 13R22.5, 12 pcs, TRIANGLE brand |
|
Brake System |
WABCO brand, ABS and 6 pcs brake chamber |
|
Thickness Of Frame |
Upper plate 16mm, middle 8mm, lower plate 18mm, “I” type main beam |
|
Material |
Q345, high strength steel |
|
Application |
Transport the iron ore |
|
Cargo Box |
10000x2300x1700mm, 40cbm, HYVA brand lifting system |
|
Dimension |
11000x2500x3650mm |
The specification is only for reference, we could design the tipper semi trailer according to your request.

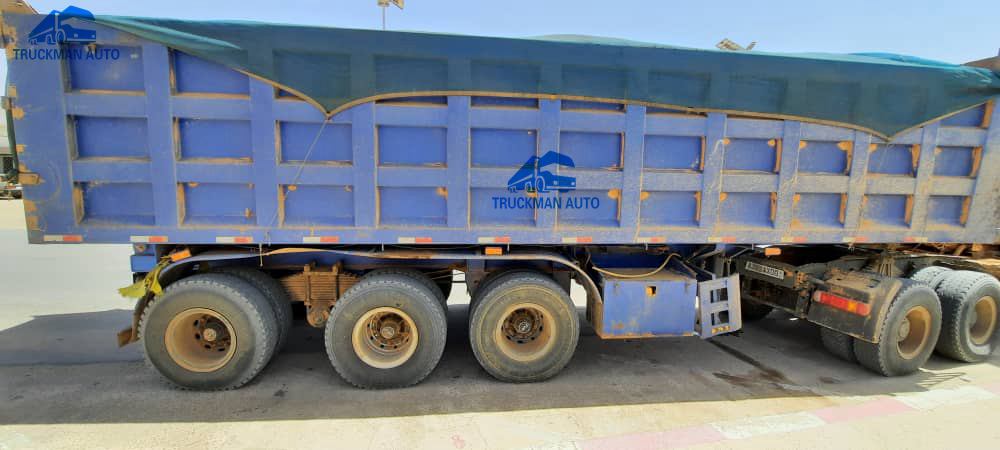

-3. TRUCKMAN AUTO Brand 70 Tons Tipper Semi Trailer In Mauritania.
The local customer use our 70 tons tipper semi trailer for sand transport, due to the transport distance very long, so we also add two pcs tire carrier for tipper semi trailer.
